Bilstein Stock Ride Height B6 4600 Rear Shock | 4WD (1979-95 Pickup)

Bilstein Stock Ride Height B6 4600 Rear Shock

For 1979–1995 Toyota Pickup 4WD at factory / stock ride height

Overview

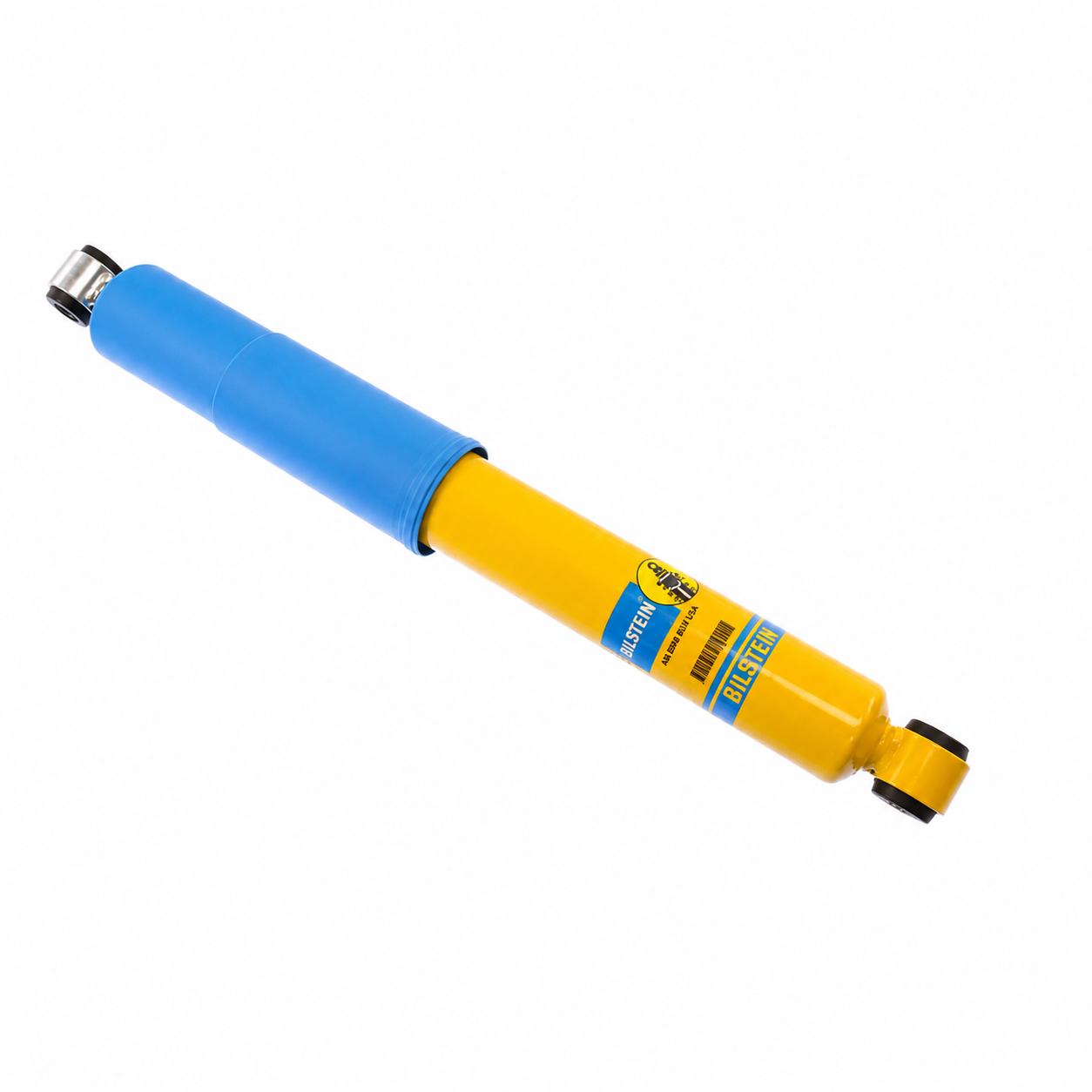

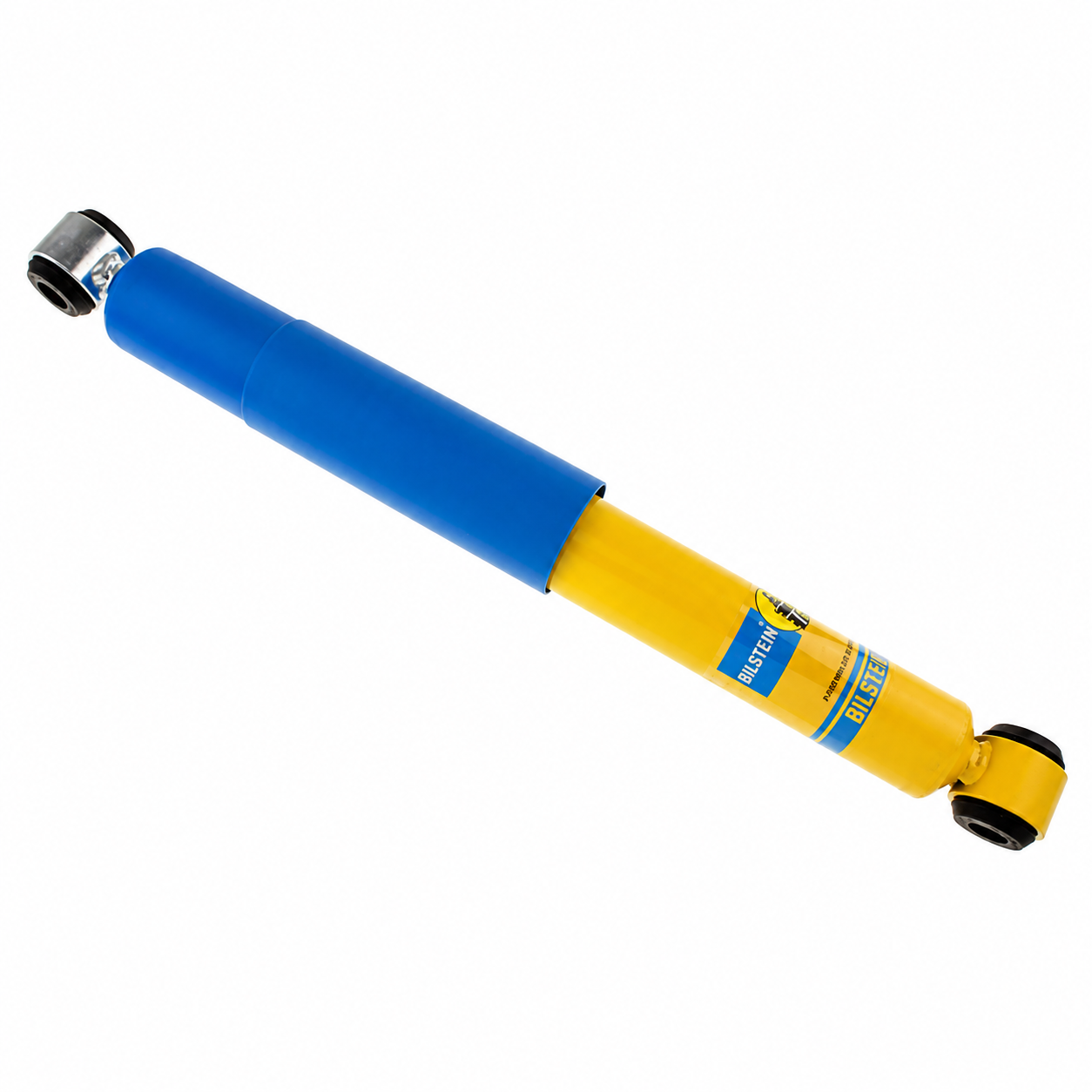

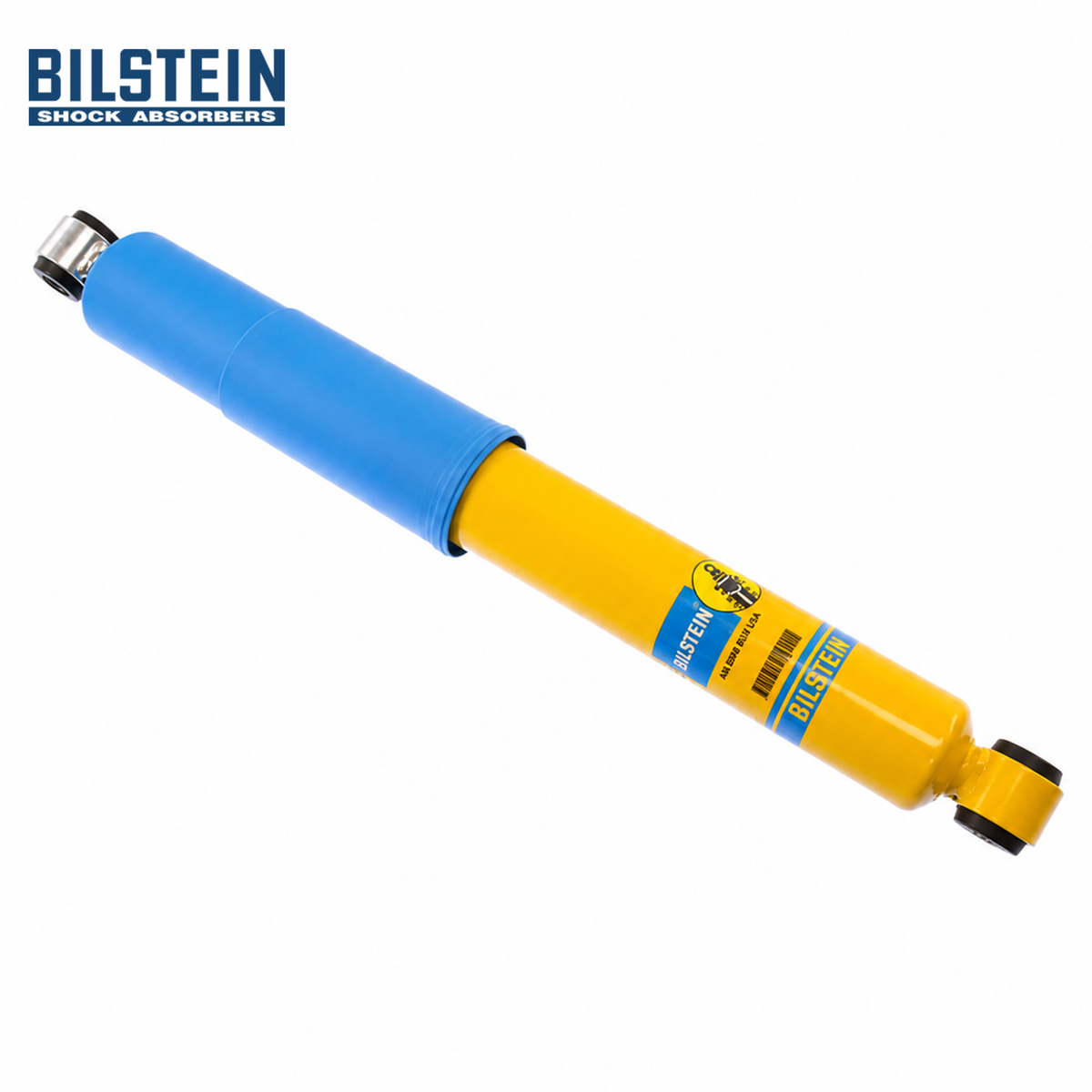

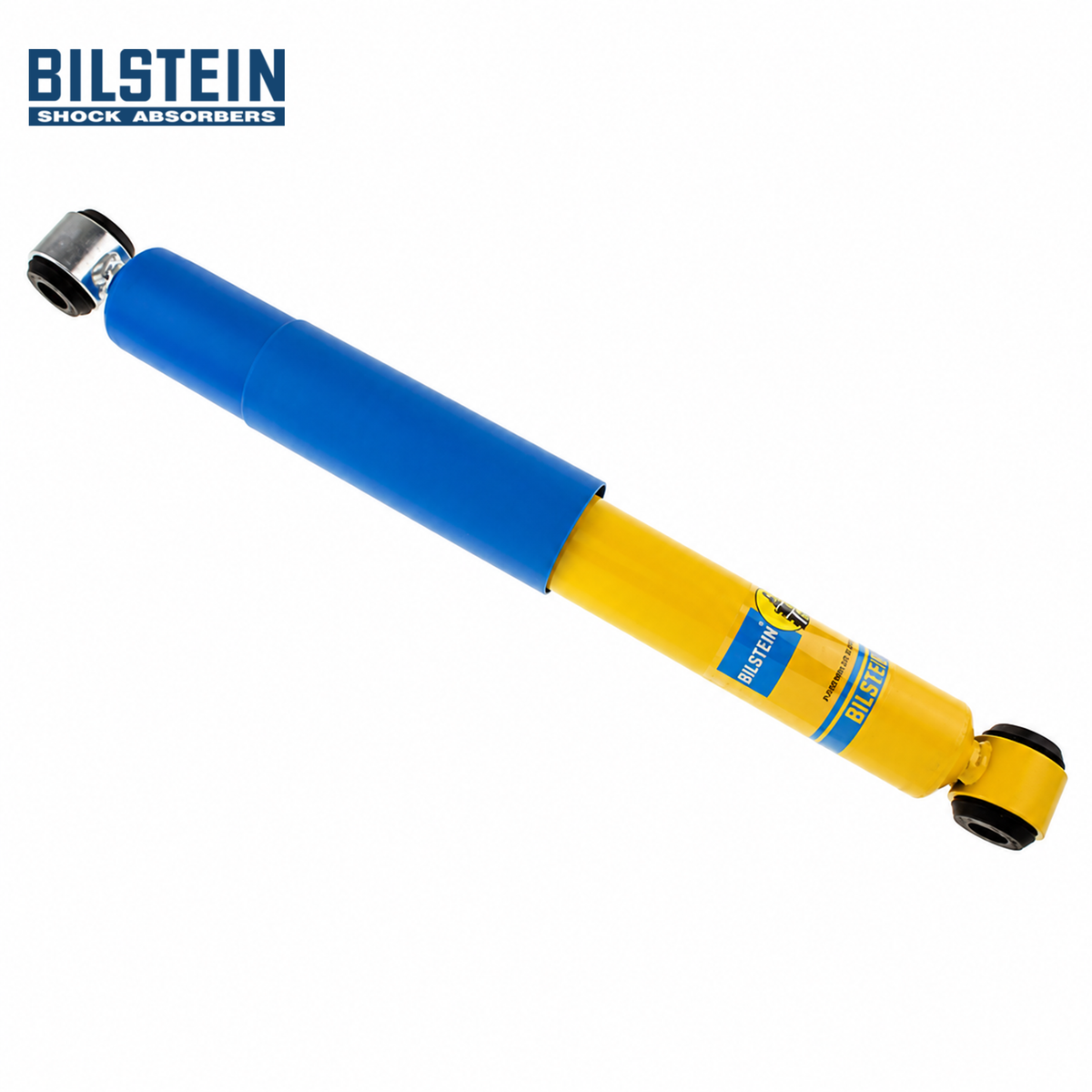

The Bilstein B6 4600 Rear Shock is a direct-fit monotube shock absorber for stock-height Toyota Pickup 4WD applications. Its high-pressure gas design and velocity-sensitive digressive valving provide consistent damping control for daily driving, towing, hauling, gravel roads, and light off-road use.

Two different rear shock applications are used across the 1979–1995 Pickup range. The 1979–1983 application uses the longer early shock with 16 mm upper and lower eye mounts, while the 1984–1995 application uses a shorter shock with 19 mm upper and lower eye mounts. The two applications are not interchangeable.

Key Features

• Bilstein B6 4600 stock-height rear shock
• High-pressure gas monotube design
• Velocity-sensitive digressive valving
• Application-specific damping calibration
• Non-adjustable damping
• Yellow painted shock body with blue protective boot
• No external reservoir
• Two rear shocks required per vehicle
• Bilstein Limited Lifetime Warranty

Shock Dimensions

1979–1983 Pickup 4WD
Collapsed Length: 14.09 in
Extended Length: 22.34 in
Travel: 8.25 in
Upper Mount: 16 mm Eye
Lower Mount: 16 mm Eye
Body Diameter: 2.0 in

1984–1995 Pickup 4WD
Collapsed Length: 13.62 in
Extended Length: 20.87 in
Travel: 7.25 in
Upper Mount: 19 mm Eye
Lower Mount: 19 mm Eye
Body Diameter: 2.0 in

Vehicle Fitment

• 1979–1983 Toyota Pickup – 1st Gen – 4WD – 1/2-Ton – Rear – Stock Height
• 1984–1988 Toyota Pickup – 2nd Gen – 4WD – 1/2-Ton – Rear – Stock Height
• 1989–1995 Toyota Pickup – 3rd Gen – 4WD – 1/2-Ton – Rear – Stock Height

Fitment Notes

• 4WD applications only.
• Factory / stock ride height only.
• 1979–1983 and 1984–1995 use different shock lengths and mounting-eye sizes and are not interchangeable.
• Two rear shocks are required to replace both sides.
• Not intended as a dedicated suspension-lift shock.
• Vehicles with relocated shock mounts, modified bump stops, long-travel suspension, or other suspension changes should be matched to the installed suspension dimensions rather than model year alone.
• Does not cover 2WD Toyota Pickup applications.

Product Specifications

Brand: Bilstein
Series: B6 4600
Product Type: Rear Shock Absorber
Position: Rear
Internal Design: Monotube
Charge Type: High-Pressure Gas
Valving: Velocity-Sensitive Digressive
Adjustable Damping: No
Ride Height: Factory / Stock
Drivetrain: 4WD
Truck Class: 1/2-Ton
Finish: Yellow Paint
Boot: Blue
External Reservoir: No
Quantity Required Per Vehicle: 2
Warranty: Bilstein Limited Lifetime Warranty

Which Rear Shock Should You Buy?

KYB Excel-G — Best for Factory-Style Comfort & Value

Choose KYB Excel-G if your Toyota Pickup is at factory ride height and you want an affordable replacement with original-style ride comfort. Its gas-charged twin-tube design emphasizes comfortable, predictable damping.

KYB Gas-a-Just — Best for Firmer Control on a Budget

Choose KYB Gas-a-Just if you prefer a firmer, more responsive rear shock without stepping up to Bilstein. Its high-pressure gas monotube design may feel firmer with an unloaded bed.

Bilstein B6 4600 — Best for Overall Stock-Height Performance

Choose Bilstein B6 4600 if you want more controlled rear suspension damping at factory ride height. Its high-pressure monotube design and digressive valving deliver a firmer, more controlled response for daily driving, highway travel, occasional towing, and light off-road use.

ARB / Old Man Emu Nitrocharger Plus — Best for OME Suspension Builds & Demanding Use

Choose Old Man Emu Nitrocharger Plus if your Pickup has a matched OME suspension system, regularly travels rough terrain, or carries permanent additional equipment. Its heavy-duty gas-charged twin-tube design offers Medium and Heavy damping choices suited to different normal rear loads.

Our Recommendation: For most Toyota Pickup owners maintaining factory rear ride height, Bilstein B6 4600 is our preferred all-around choice. Choose KYB Excel-G for factory-style comfort and affordability, or KYB Gas-a-Just for a firmer budget-friendly alternative. Choose Old Man Emu Nitrocharger Plus when a matched suspension setup or permanent added weight calls for OME-specific damping.

Important Rear Fitment Note: KYB Excel-G, KYB Gas-a-Just, and Bilstein B6 4600 are intended for factory-height rear suspension. Old Man Emu rear shocks must match the installed rear springs, normal vehicle load, mounting configuration, and available shock travel. Shock absorbers themselves do not create suspension lift.

Supporting Suspension Components

These related components service the same suspension or steering system and may be useful when completing a broader chassis refresh. Bilstein Stock Ride Height B6 4600 Front Shock | 4WD — matching front B6 4600 shock option for 1979–1995 Toyota Pickup 4WD stock-height applications.

Available Configurations

1979-1983 / Single

• (1) Rear Bilstein B6 4600 shock for 1979–1983 Pickup 4WD applications.

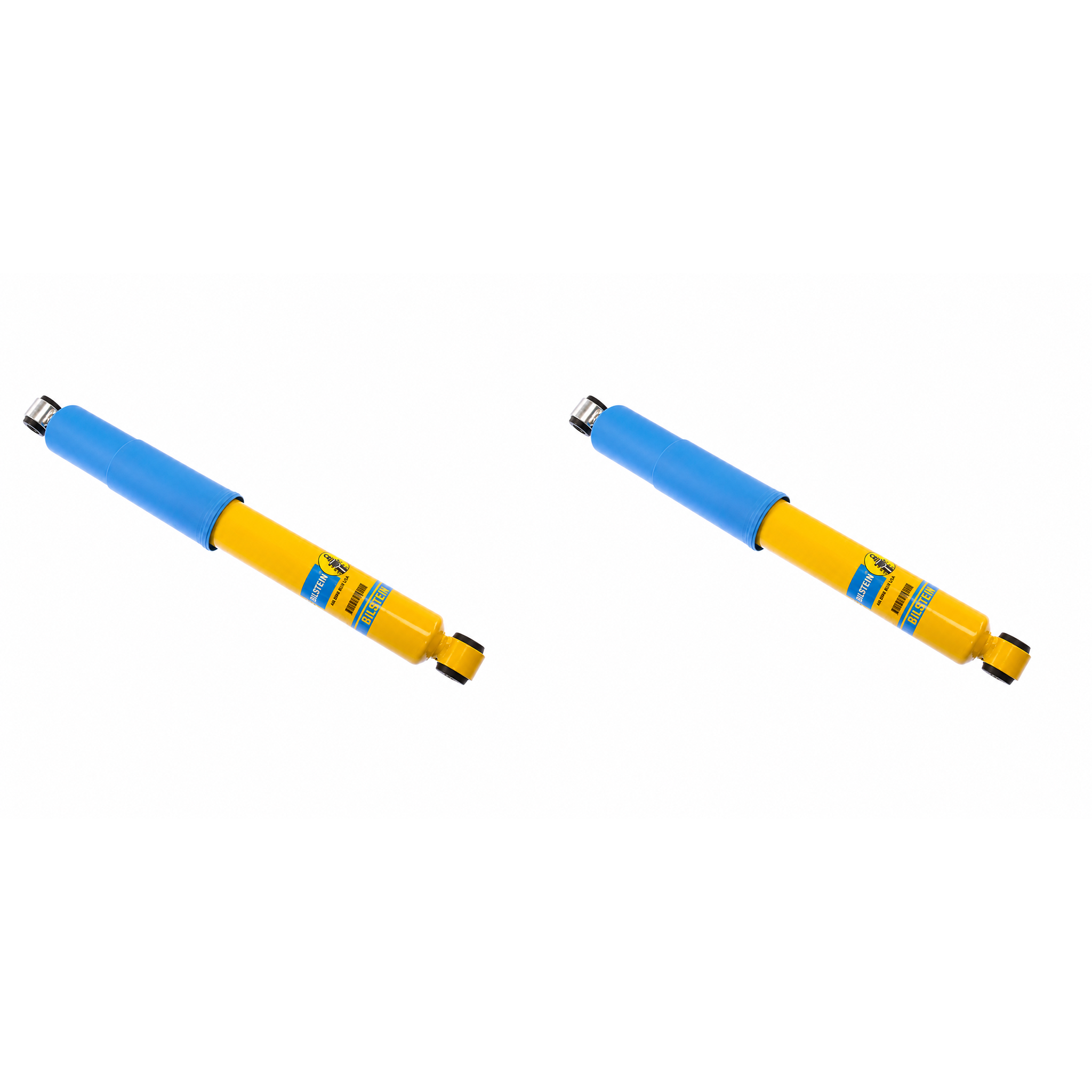

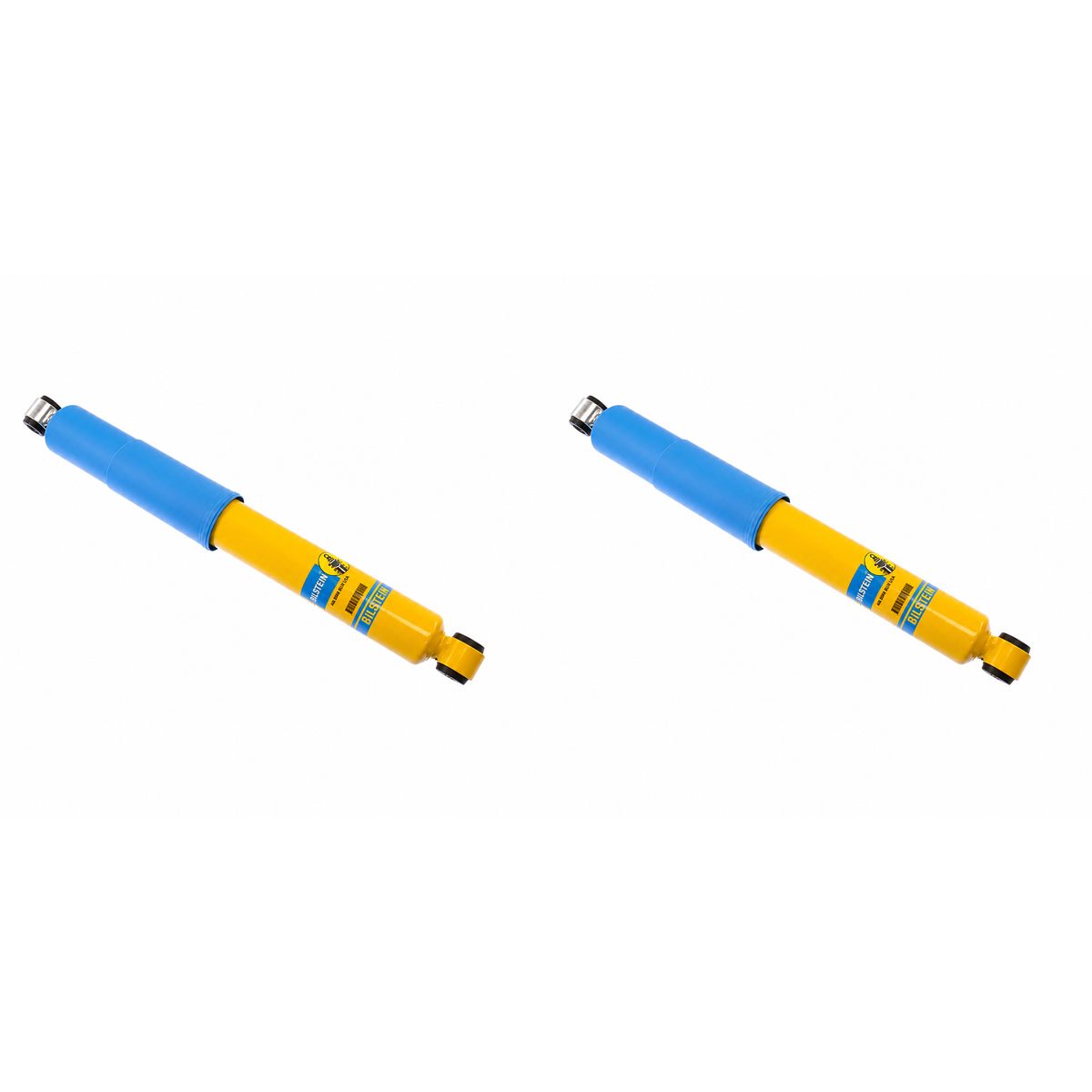

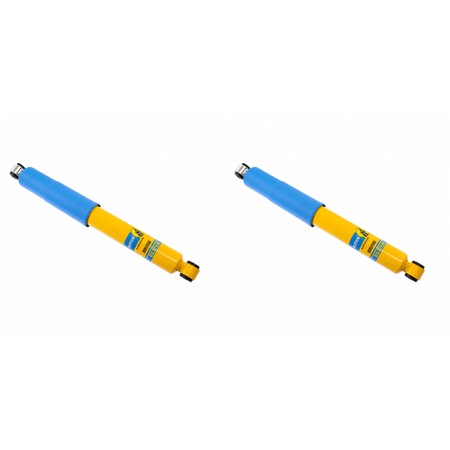

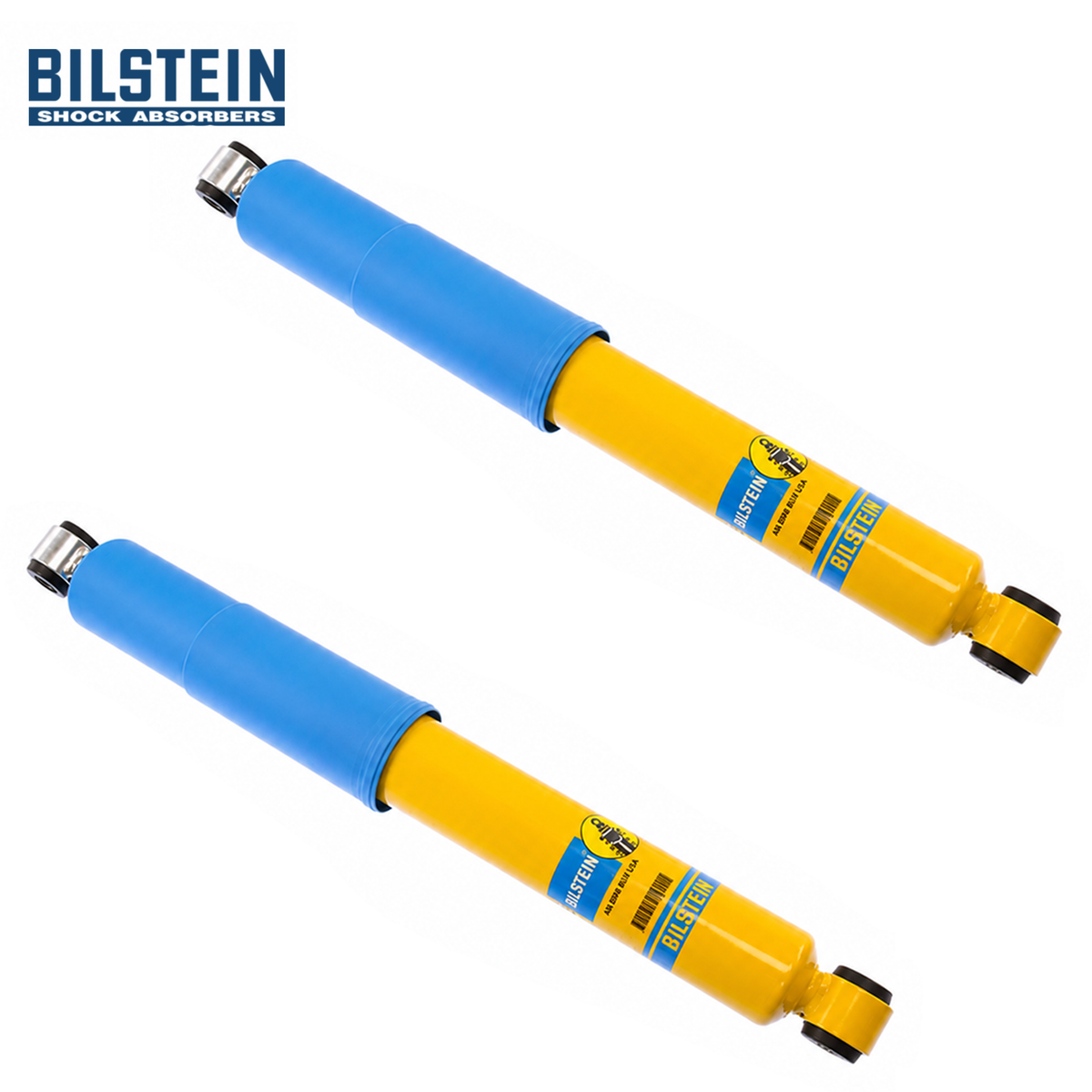

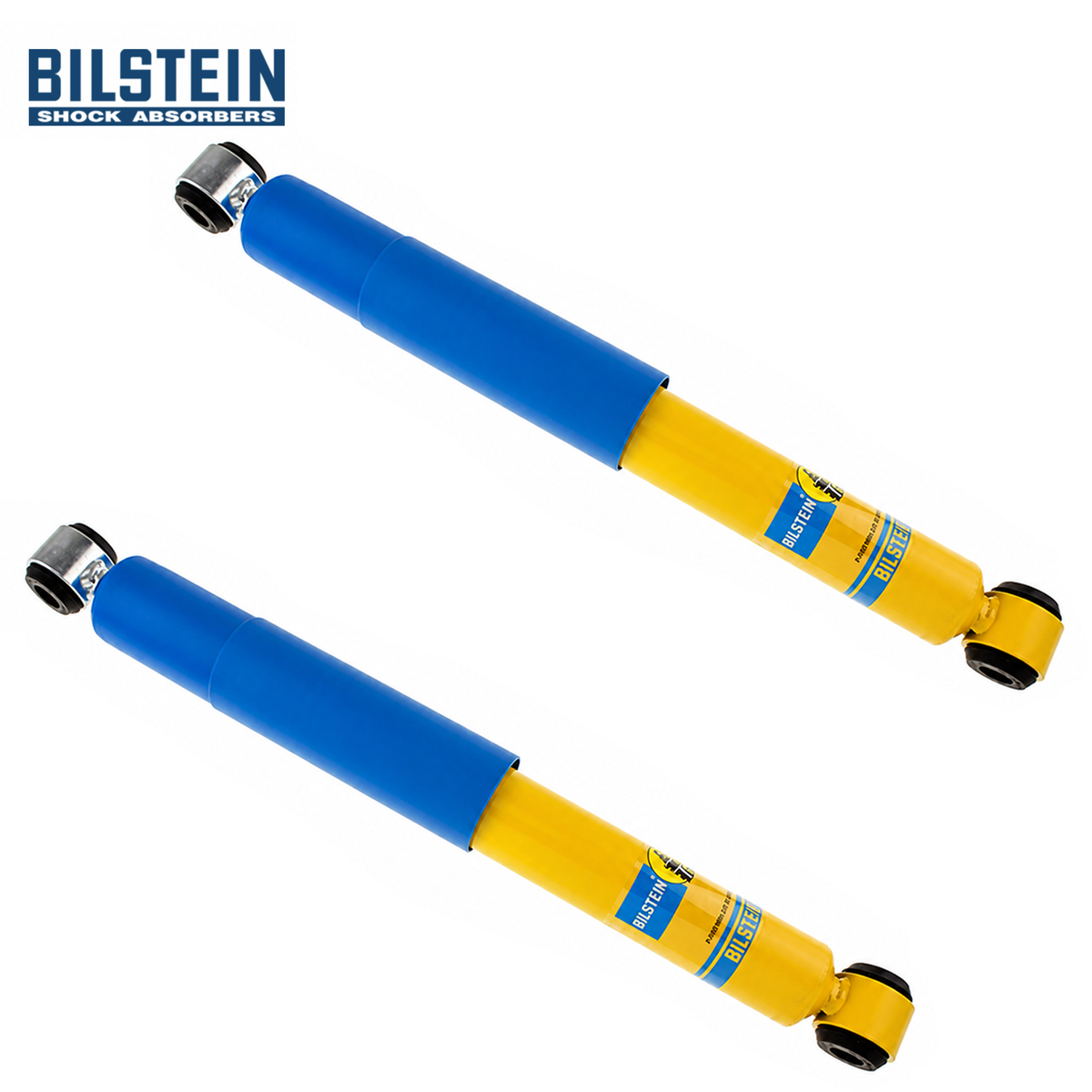

1979-1983 / Pair

• (2) Rear Bilstein B6 4600 shocks for 1979–1983 Pickup 4WD applications.

1984-1995 / Single

• (1) Rear Bilstein B6 4600 shock for 1984–1995 Pickup 4WD applications.

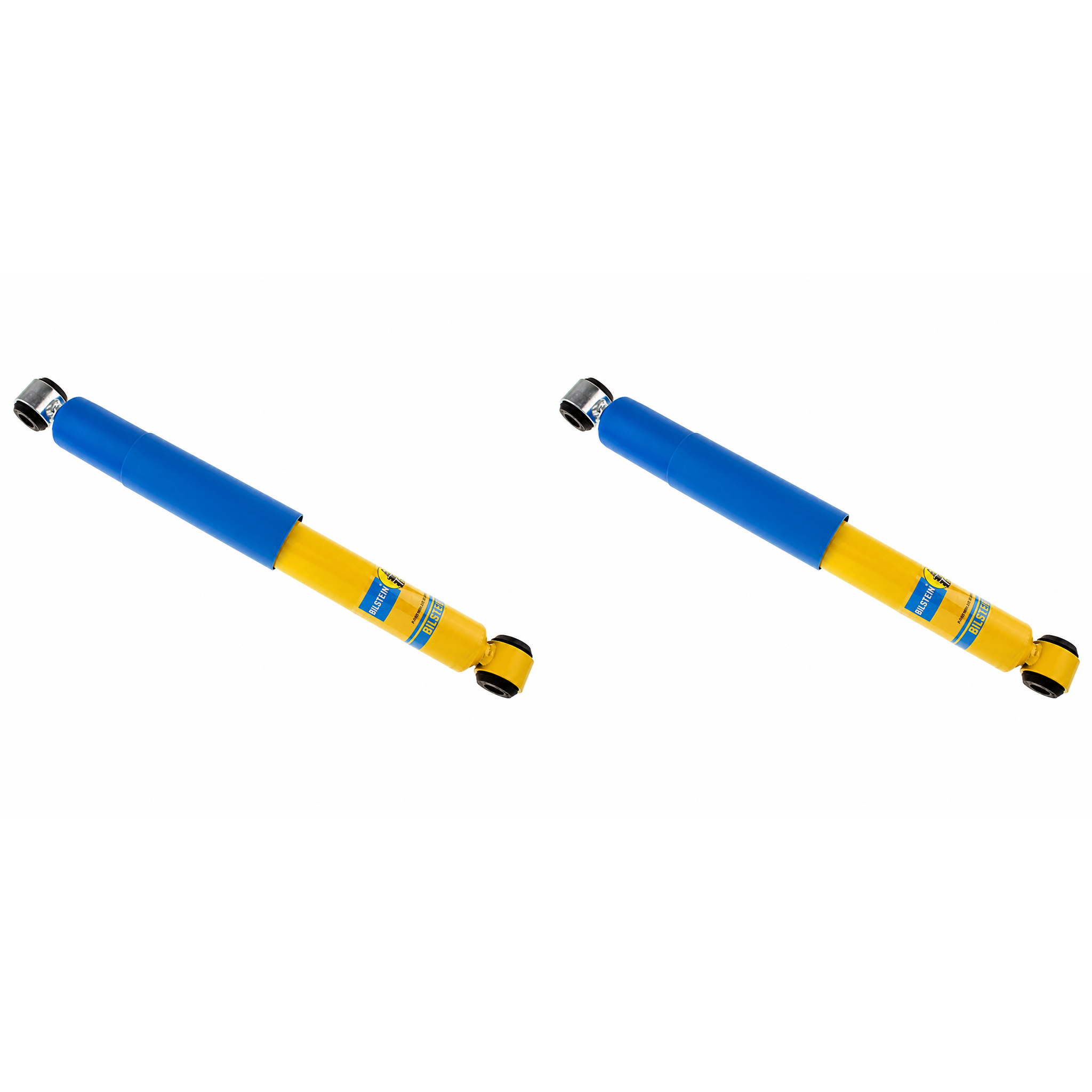

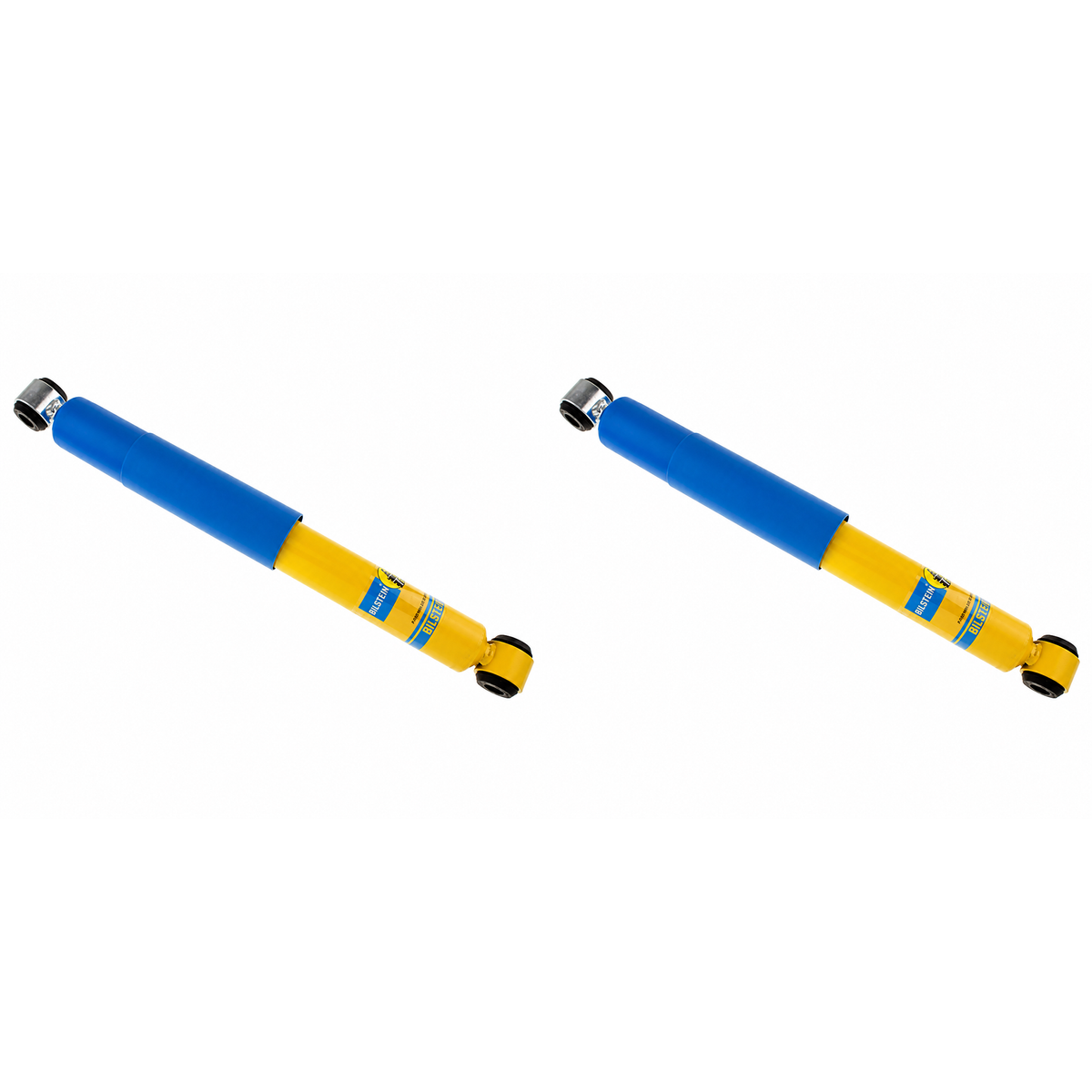

1984-1995 / Pair

• (2) Rear Bilstein B6 4600 shocks for 1984–1995 Pickup 4WD applications.
