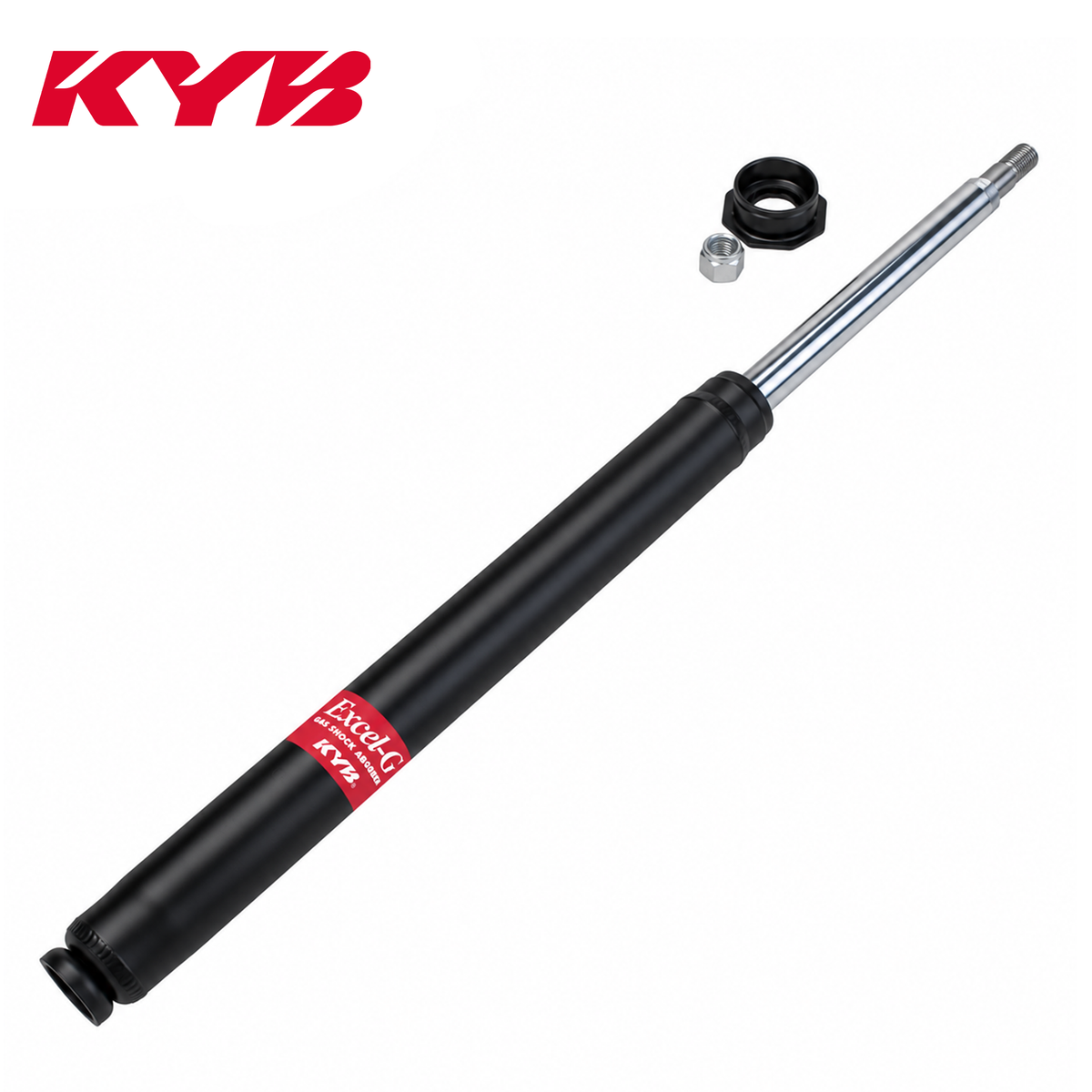

Single KYB Excel-G front shock (replacement strut insert) with gland nut and piston-rod nut

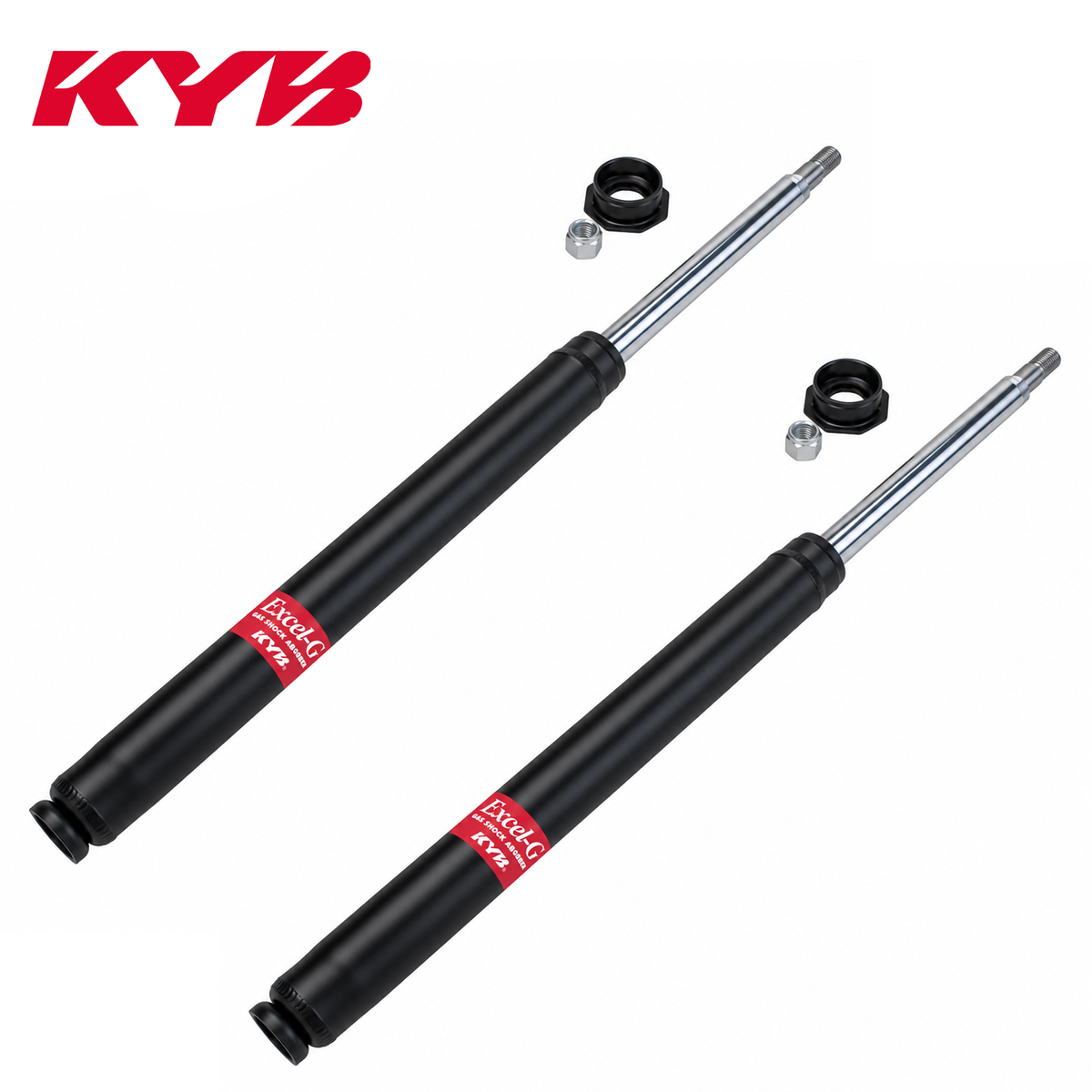

Pair of KYB Excel-G front shocks (replacement strut inserts) with gland nuts and piston-rod nuts
1 2
Single KYB Excel-G front shock (replacement strut insert) with gland nut and piston-rod nut
Pair of KYB Excel-G front shocks (replacement strut inserts) with gland nuts and piston-rod nuts
KYB

AW11 KYB Excel-G Front Shock (1984-89 MR2)

SKU: 1685
$59.95
Quantity
Fitment support available
Estimate shipping before checkout

KYB Excel-G Front Shock

For 1984–1989 JDM and 1985–1989 U.S.-Market Toyota MR2

Overview

The KYB Excel-G front shock fits 1984–1989 JDM and 1985–1989 U.S.-Market Toyota MR2 models with original serviceable front housings and stock-height suspension. Its nitrogen-gas-charged twin-tube damping is intended to restore factory-style road control and ride comfort—a practical choice for daily driving and original-style suspension refreshes rather than adjustable performance tuning.

This shock is a replacement insert for a serviceable front strut housing, not a complete strut assembly. The vehicle's correct housing, spring and upper mount remain separate components and are not included.

Key Features

  • Fixed damping: No rebound or compression adjustment controls.
  • Triple-chrome-plated piston rod: A smooth sealing surface helps limit seal wear.
  • Multi-lip synthetic oil seal: Helps retain damper fluid and keep contaminants out.
  • Seamless steel inner cylinder: Extruded tubing provides the internal working surface.
  • PTFE piston band: Helps control fluid bypass around the piston.

Vehicle Fitment

Toyota MR2 — AW11 / MK1

  • 1984–1989: JDM / Naturally aspirated
  • 1985–1989: U.S.-Market / Naturally aspirated
  • 1986–1989: JDM Supercharged
  • 1988–1989: U.S.-Market Supercharged

Fits the front left or front right position.

Important: Original serviceable front housings only. Sealed struts are excluded.

Fitment Notes

  • Housing identification: A removable threaded gland nut at the top of a serviceable housing retains the insert.
  • For unmodified stock-height suspension applications. Lowered, swapped, coilover or converted strut assemblies are outside this fitment.

Product Specifications

Brand: KYB
Series: Excel-G
Product Type: Shock (replacement strut insert)
Position: Front left or right
Design: Twin-tube
Gas Charged: Nitrogen
Damping Adjustability: Fixed, non-adjustable
Color: Black

Available Configurations

Choose a Single shock or a Pair for both front positions.

Quantity

  • Single: Includes (1) KYB Excel-G front shock.
  • Pair: Includes (2) matching KYB Excel-G front shocks for both front positions.

Each shock includes (1) housing-retaining gland nut and (1) piston-rod nut.

Important: Dust boots and bump stops are not included.
