AW11 Bando Rib Ace Supercharger and Water Pump Belt | 4A-GZE (1988-89 MR2)
Couldn't load pickup availability

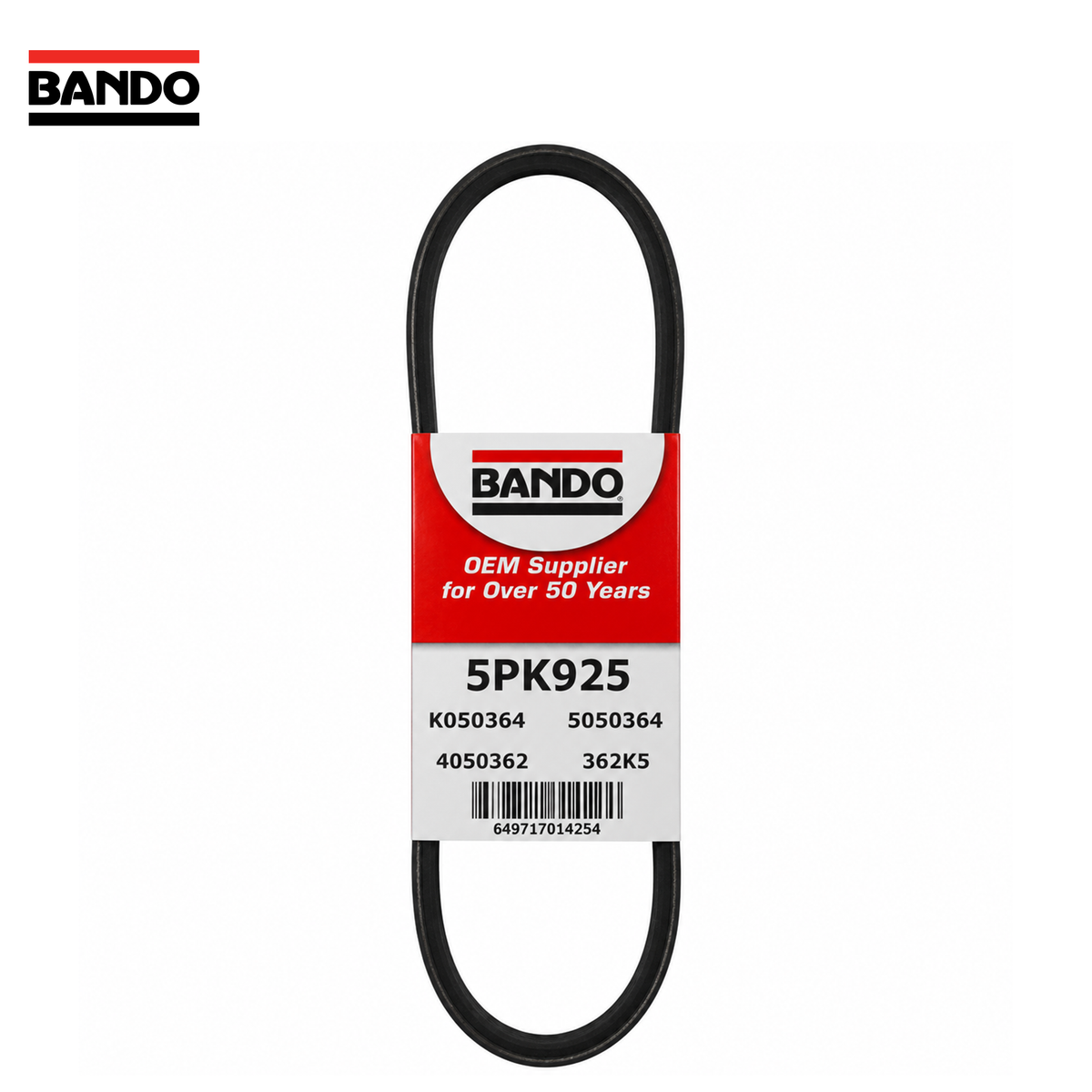

Bando Rib Ace Supercharger and Water Pump Belt
For 1988–1989 Toyota MR2 AW11 equipped with the factory-supercharged 4A-GZE engine and original pulleys.
Overview
This Bando Rib Ace belt serves the supercharger and water pump accessory drive on the U.S.-market 1988–1989 Toyota MR2 AW11 with the factory-supercharged 4A-GZE engine. It replaces the belt on the original pulley arrangement, keeping this circuit separate from the alternator and air conditioning drive.
Its five-rib EPDM construction combines a flexible backing, reinforced tensile cords and precision-ground rubber ribs. The backing resists heat and oil, while the ribbed profile carries drive loads around the original accessory pulleys.
Key Features
- Stock supercharger and water pump circuit: sized for the original 4A-GZE pulley arrangement.
- Five-rib profile: matches the factory accessory drive configuration.
- EPDM rubber construction: combines flexibility with wear resistance.
- Heat- and oil-resistant backing: supports service in the engine compartment.
- Reinforced tensile cords: carry accessory drive loads.
Vehicle Fitment
Toyota MR2 — AW11 / MK1
- 1988–1989: U.S.-market Supercharged models with the 4A-GZE engine; supercharger and water pump drive with original pulleys.
Important: Not for naturally aspirated 4A-GE models or modified supercharger pulley arrangements.
Fitment Notes
- Supercharger and water pump belt only. This is not the alternator or air conditioning belt.
- The belt serves the same supercharger and water pump circuit on manual- and automatic-transmission models.
- This is an accessory drive belt, not an engine timing belt.
- Water pump, pulleys and tensioner are not included.
Product Specifications
Brand: Bando
Series: Rib Ace
Belt Type: V-ribbed accessory drive belt
Material: EPDM rubber
Rib Count: 5
Effective Length: 955 mm
Top Width: 0.7 in
Drive Position: Supercharger and water pump
Quantity: One belt
What's Included
- (1) Bando Rib Ace supercharger and water pump belt.
