ARP High Performance 8740 Rod Bolt Kit | 20R / 22R / 22RE / 22R-TE (1984-95 4Runner / 1979-95 Pickup)

ARP High Performance 8740 Connecting Rod Bolt Kit

For 1984–1995 Toyota 4Runner with 22R / 22RE / 22R-TE and 1979–1995 Toyota Pickup with 20R / 22R / 22RE / 22R-TE

Overview

This ARP connecting-rod bolt kit supplies replacement fasteners for the original Toyota rods in 20R, 22R, 22RE and 22R-TE engines. The bolt-and-nut arrangement retains the factory rod architecture for an engine rebuild.

Professional connecting-rod reconditioning and resizing are required with these replacement bolts. This is a fastener set for rebuilding original rods, not a complete connecting-rod assembly.

Key Features

• Heat-treated 8740 chromoly steel bolt construction.
• Threads rolled after heat treatment for fatigue resistance.
• Press-fit bolt design for the original Toyota rod joint.
• Twelve-point nuts matched to the supplied bolts.
• One four-rod engine set covers all eight fastening positions.

Vehicle Fitment

All applications require: original Toyota connecting rods. U.S.-market factory applications:

Toyota 4Runner

• 1984 Toyota 4Runner – 1st Gen – 4WD – 22R
• 1985–1989 Toyota 4Runner – 1st Gen – 4WD – 22RE
• 1986–1987 Toyota 4Runner – 1st Gen – 4WD – 22R-TE – Automatic
• 1990–1991 Toyota 4Runner – 2nd Gen – 2WD – 22RE – 4-Door – Automatic
• 1990–1995 Toyota 4Runner – 2nd Gen – 4WD – 22RE

Toyota Pickup

• 1979–1980 Toyota Pickup – 1st Gen – 2WD / 4WD – 20R
• 1981–1983 Toyota Pickup – 1st Gen – 2WD / 4WD – 22R
• 1984–1987 Toyota Pickup – 2nd Gen – 2WD / 4WD – 22R
• 1984 Toyota Pickup – 2nd Gen – 2WD – 22RE
• 1985–1988 Toyota Pickup – 2nd Gen – 2WD / 4WD – 22RE
• 1985 Toyota Pickup – 2nd Gen – 2WD – 22R-TE – Xtracab SR5 – 4-Speed Automatic
• 1986–1987 Toyota Pickup – 2nd Gen – 2WD / 4WD – 22R-TE
• 1988 Toyota Pickup – 2nd Gen – 2WD – 22R
• 1988 Toyota Pickup – 2nd Gen – 2WD – 22R-TE – Xtracab SR5 – Manual
• 1989–1990 Toyota Pickup – 3rd Gen – 2WD – 22R
• 1989–1995 Toyota Pickup – 3rd Gen – 2WD / 4WD – 22RE

Fitment Notes

• Does not fit 3VZ-E V6, L / 2L / 2L-T diesel, or factory A-series connecting rods.
• Not for aftermarket cap-screw connecting rods. Modified rod caps, altered bolt seats, enlarged bolt holes and unidentified replacement rods require build-specific fitment assessment.
• Engine-swapped vehicles depend on the installed engine and connecting rods; chassis year alone does not establish fitment.

Product Specifications

• Brand: ARP
• Series: High Performance
• Product type: Connecting rod bolt kit
• Bolt material: 8740 chromoly steel
• Fastener arrangement: Press-fit through-bolts with separate twelve-point nuts

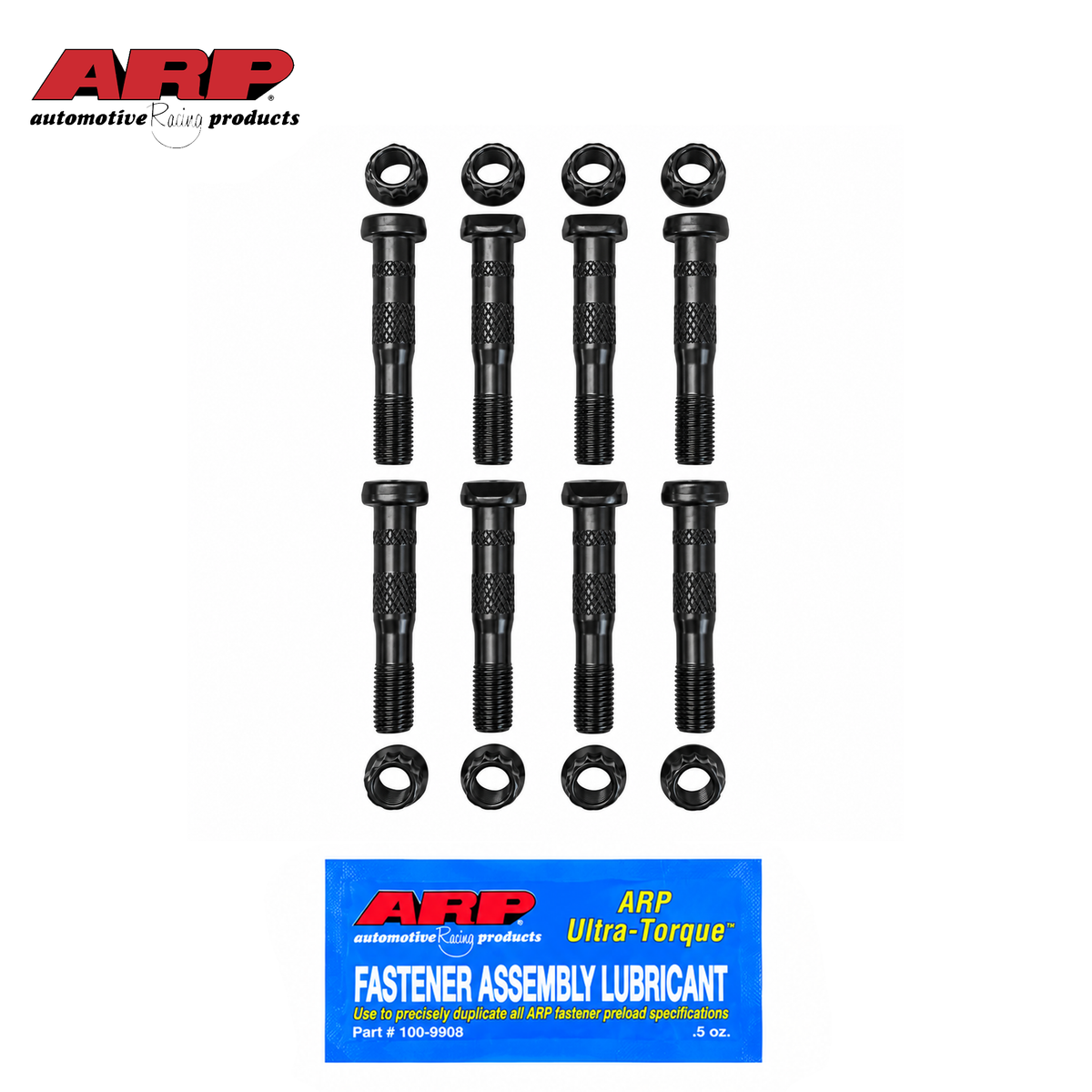

What's Included

• (8) Connecting rod bolts
• (8) Matching twelve-point nuts
• (1) 0.5-oz ARP Ultra-Torque assembly lubricant packet
