ARP 8740 Main Stud Kit | 20R / 22R / 22RE / 22R-TE (1984-95 4Runner / 1979-95 Pickup)

ARP 8740 Chromoly Main Stud Kit

For 1984–1995 Toyota 4Runner with 22R / 22RE / 22R-TE and 1979–1995 Toyota Pickup with 20R / 22R / 22RE / 22R-TE

Overview

This ARP main-bearing-cap stud kit replaces the main-cap bolt arrangement in Toyota 20R, 22R, 22RE and 22R-TE engines. The set covers the original five-cap, two-fastener-per-cap layout.

Heat-treated 8740 chromoly studs, twelve-point nuts and washers provide a stud-and-nut fastening arrangement for a full engine rebuild. Changed clamping load can alter main-bearing bore geometry, so machining may be part of the conversion.

Key Features

• 8740 chromoly steel construction for the main-bearing-cap joint.
• Heat-treated studs with threads rolled after heat treatment.
• Twelve-point nuts supplied with hardened, parallel-ground washers.
• Matched ten-stud set for the original two-bolt main caps.
• Stud-and-nut design retains the studs in the block while the nuts secure the caps.

Vehicle Fitment

U.S.-market applications:

Toyota 4Runner

• 1984 Toyota 4Runner – 1st Gen – 4WD – 22R
• 1985–1989 Toyota 4Runner – 1st Gen – 4WD – 22RE
• 1986–1987 Toyota 4Runner – 1st Gen – 4WD – 22R-TE – Automatic
• 1990–1991 Toyota 4Runner – 2nd Gen – 2WD – 22RE – 4-Door – Automatic
• 1990–1995 Toyota 4Runner – 2nd Gen – 4WD – 22RE

Toyota Pickup

• 1979–1980 Toyota Pickup – 1st Gen – 2WD / 4WD – 20R
• 1981–1983 Toyota Pickup – 1st Gen – 2WD / 4WD – 22R
• 1984–1987 Toyota Pickup – 2nd Gen – 2WD / 4WD – 22R
• 1984 Toyota Pickup – 2nd Gen – 2WD – 22RE
• 1985–1988 Toyota Pickup – 2nd Gen – 2WD / 4WD – 22RE
• 1985 Toyota Pickup – 2nd Gen – 2WD – 22R-TE – Xtracab SR5 – 4-Speed Automatic
• 1986–1987 Toyota Pickup – 2nd Gen – 2WD / 4WD – 22R-TE
• 1988 Toyota Pickup – 2nd Gen – 2WD – 22R
• 1988 Toyota Pickup – 2nd Gen – 2WD – 22R-TE – Xtracab SR5 – Manual
• 1989–1990 Toyota Pickup – 3rd Gen – 2WD – 22R
• 1989–1995 Toyota Pickup – 3rd Gen – 2WD / 4WD – 22RE

Fitment Notes

• Does not fit 3VZ-E V6 or L / 2L / 2L-T diesel engines.
• Main-bore size, roundness, cap alignment and thrust clearance determine any required machining. Align honing may be necessary.
• Aftermarket main caps, girdles, altered bearing structures and repaired block threads require build-specific fitment assessment.

Product Specifications

• Brand: ARP
• Product type: Main-bearing-cap stud kit
• Stud material: 8740 chromoly steel
• Block-end thread: M12 × 1.25
• Main-cap layout: Five caps, two fastening positions per cap

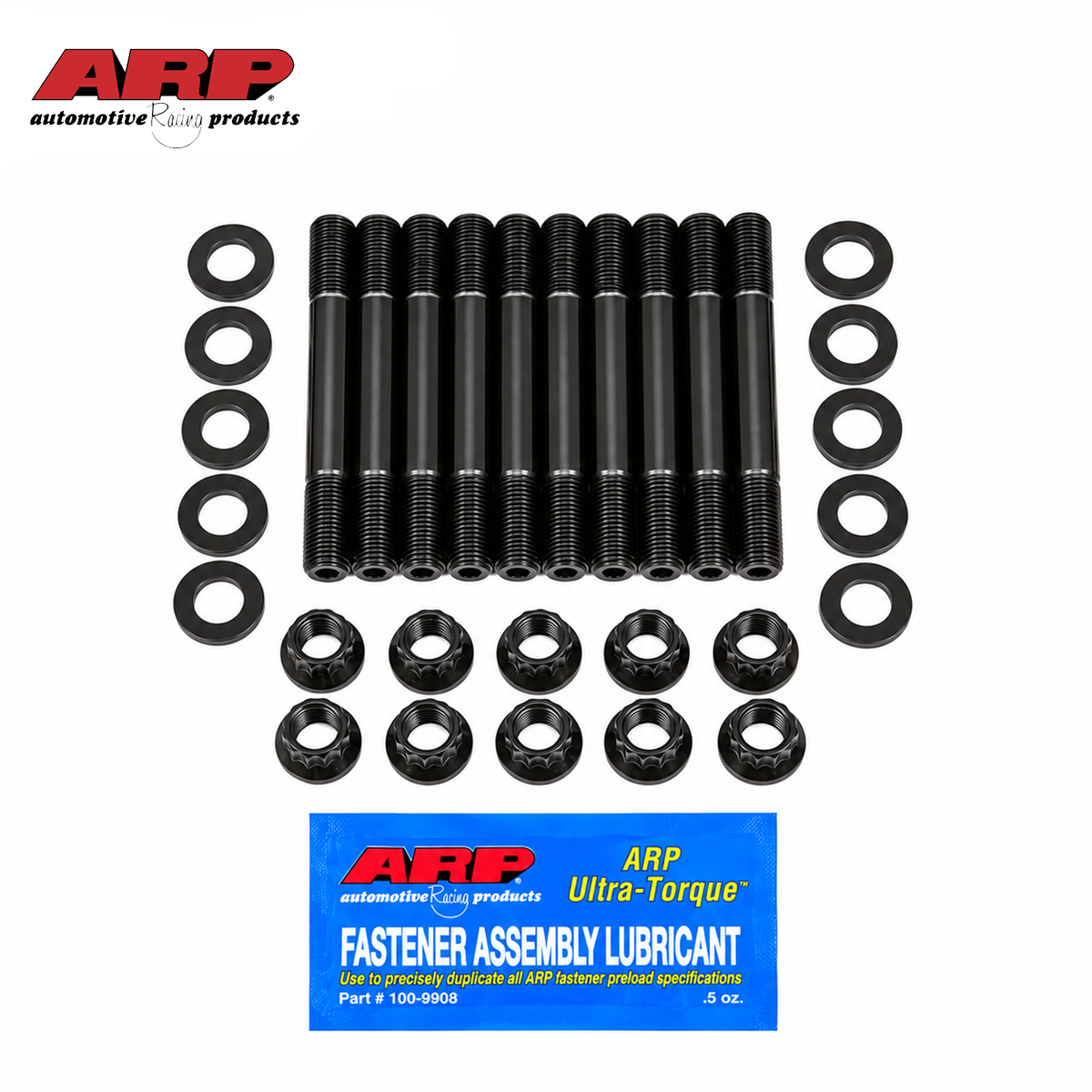

What's Included

• (10) Main studs
• (10) Twelve-point nuts
• (10) Washers
• ARP Ultra-Torque assembly lubricant
