ARP 8740 Chromoly Cylinder Head Stud Kit

For 1984–1995 Toyota 4Runner with 22R / 22RE / 22R-TE and 1979–1995 Toyota Pickup with 20R / 22R / 22RE / 22R-TE

Overview

This ARP cylinder-head stud kit replaces the head-bolt arrangement with studs, twelve-point nuts and washers for Toyota 20R, 22R, 22RE and 22R-TE engines.

The 8740 chromoly hardware supports stock-rebuild and machined performance-engine applications.

Key Features

• Heat-treated 8740 chromoly studs for the cylinder-head joint.
• Threads rolled after heat treatment.
• Centerless-ground stud bodies provide consistent body geometry.
• Twelve-point nut design uses separate washers at the clamping surfaces.
• One engine set covers the ten cylinder-head fastening positions.

Vehicle Fitment

U.S.-market applications:

Toyota 4Runner

• 1984 Toyota 4Runner – 1st Gen – 4WD – 22R
• 1985–1989 Toyota 4Runner – 1st Gen – 4WD – 22RE
• 1986–1987 Toyota 4Runner – 1st Gen – 4WD – 22R-TE – Automatic
• 1990–1991 Toyota 4Runner – 2nd Gen – 2WD – 22RE – 4-Door – Automatic
• 1990–1995 Toyota 4Runner – 2nd Gen – 4WD – 22RE

Toyota Pickup

• 1979–1980 Toyota Pickup – 1st Gen – 2WD / 4WD – 20R
• 1981–1983 Toyota Pickup – 1st Gen – 2WD / 4WD – 22R
• 1984–1987 Toyota Pickup – 2nd Gen – 2WD / 4WD – 22R
• 1984 Toyota Pickup – 2nd Gen – 2WD – 22RE
• 1985–1988 Toyota Pickup – 2nd Gen – 2WD / 4WD – 22RE
• 1985 Toyota Pickup – 2nd Gen – 2WD – 22R-TE – Xtracab SR5 – 4-Speed Automatic
• 1986–1987 Toyota Pickup – 2nd Gen – 2WD / 4WD – 22R-TE
• 1988 Toyota Pickup – 2nd Gen – 2WD – 22R
• 1988 Toyota Pickup – 2nd Gen – 2WD – 22R-TE – Xtracab SR5 – Manual
• 1989–1990 Toyota Pickup – 3rd Gen – 2WD – 22R
• 1989–1995 Toyota Pickup – 3rd Gen – 2WD / 4WD – 22RE

Fitment Notes

• Does not fit 3VZ-E V6 or L / 2L / 2L-T diesel engines.
• Valve-cover modification may be required for clearance above the front two studs and nuts.
• Higher-clamp-load builds require matching torque-plate-honed cylinder bores. The stock-rebuild clamp-load configuration is a separate build choice.
• Aftermarket cylinder heads or valve covers, altered rocker hardware, heavily decked surfaces and repaired block threads require build-specific fitment assessment.

Product Specifications

• Brand: ARP
• Product type: Cylinder head stud kit
• Stud material: 8740 chromoly steel
• Block-end thread: M12 × 1.25
• Fastening arrangement: Studs with twelve-point nuts and washers

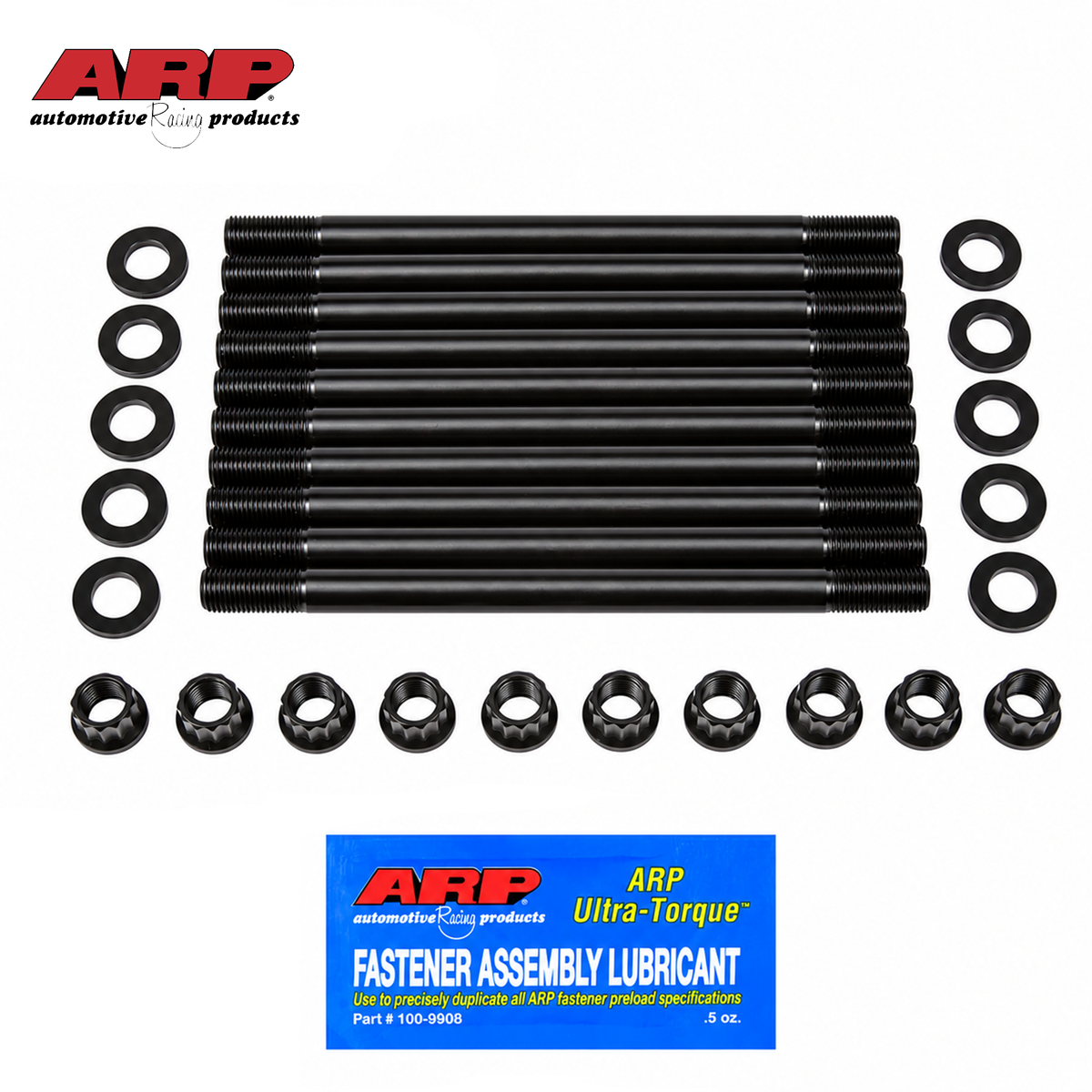

What's Included

• (10) Cylinder head studs
• (10) Twelve-point nuts
• (10) Washers
• ARP Ultra-Torque assembly lubricant
