AE86 ARP Pro Series 8740 Chromoly Cylinder Head Stud Kit (Corolla 1983-1987)

ARP Pro Series 8740 Chromoly Cylinder Head Stud Kit

For 1983–1987 Toyota Corolla Levin / Sprinter Trueno AE86 & 1985–1987 Toyota Corolla Sport GT-S AE86 with 1.6L 4A-GE 16V Engine

Overview

The ARP Pro Series Cylinder Head Stud Kit is a performance-grade cylinder head fastening upgrade for Toyota 4A-GE 1.6L DOHC 16-valve engines, including the engine used in the AE86 Corolla Levin, Sprinter Trueno, and Corolla Sport GT-S.

The kit replaces the factory cylinder-head fasteners with 8740 chromoly steel studs, 12-point nuts, and hardened parallel-ground washers. The stud design provides a strong, consistent clamping connection between the cylinder head and engine block, making it well suited to engine rebuilds, performance builds, and applications where dependable cylinder-head sealing is important.

The kit uses ten application-specific studs in three lengths to match the factory 4A-GE cylinder-head mounting locations.

Key Features

• Designed for Toyota 1.6L 4A-GE DOHC 16V engines
• Fits AE86 models equipped with the 4A-GE / 4A-GEU 16-valve engine
• 8740 chromoly steel fastener construction
• Black oxide fastener finish
• Heat-treated performance fasteners
• Thread-rolled stud construction
• Includes 12-point nuts
• Includes hardened parallel-ground washers
• Ten application-specific cylinder head studs
• ARP Ultra-Torque fastener assembly lubricant included

Installation & Torque Requirements

The cylinder-head studs install into M10 × 1.25 block threads and should be threaded into the engine block hand tight only.

With ARP Ultra-Torque applied to the stud threads, nut faces, and washers, the cylinder-head nuts are tightened following the proper Toyota cylinder-head torque sequence in three equal steps to a final torque of 60 ft-lb.

The ten studs use three application-specific lengths:

• Five M10 studs measuring 4.250 inches
• Four M10 studs measuring 5.000 inches
• One M10 stud measuring 4.800 inches

Engine-block threads should be thoroughly cleaned before installation to ensure proper thread engagement and accurate torque readings.

Vehicle Fitment

Toyota Corolla Levin

• 1983–1987 Toyota Corolla Levin – AE86 – 1.6L 4A-GE / 4A-GEU DOHC 16V

Toyota Sprinter Trueno

• 1983–1987 Toyota Sprinter Trueno  – AE86 – 1.6L 4A-GE / 4A-GEU DOHC 16V

Toyota Corolla Sport GT-S

• 1985–1987 Toyota Corolla Sport GT-S – AE86 – 1.6L 4A-GE DOHC 16V

Fitment Notes

• 4A-GE / 4A-GEU 16-valve engines only
• Does not fit AE86 SR5 models with the 4A-C SOHC engine
• Not intended for 4A-GE 20-valve cylinder-head applications
• Clean all engine-block threads before installation
• Install studs into the block hand tight only
• Final torque specification is 60 ft-lb when using ARP Ultra-Torque
• Follow the correct Toyota cylinder-head tightening sequence
• Professional engine assembly is recommended when proper installation procedures cannot be verified

Product Specifications

Brand: ARP
Series: Pro Series
Product Type: Cylinder Head Stud Kit
Engine: Toyota 1.6L 4A-GE / 4A-GEU DOHC 16V
Fastener Style: Stud
Material: 8740 Chromoly Steel
Finish: Black Oxide
Nut Style: 12-Point
Block Thread: M10 × 1.25
Stud Quantity: 10
Final Torque: 60 ft-lb with ARP Ultra-Torque
Washers Included: Yes
Assembly Lubricant Included: Yes
Application: Cylinder Head-to-Engine Block Fastening

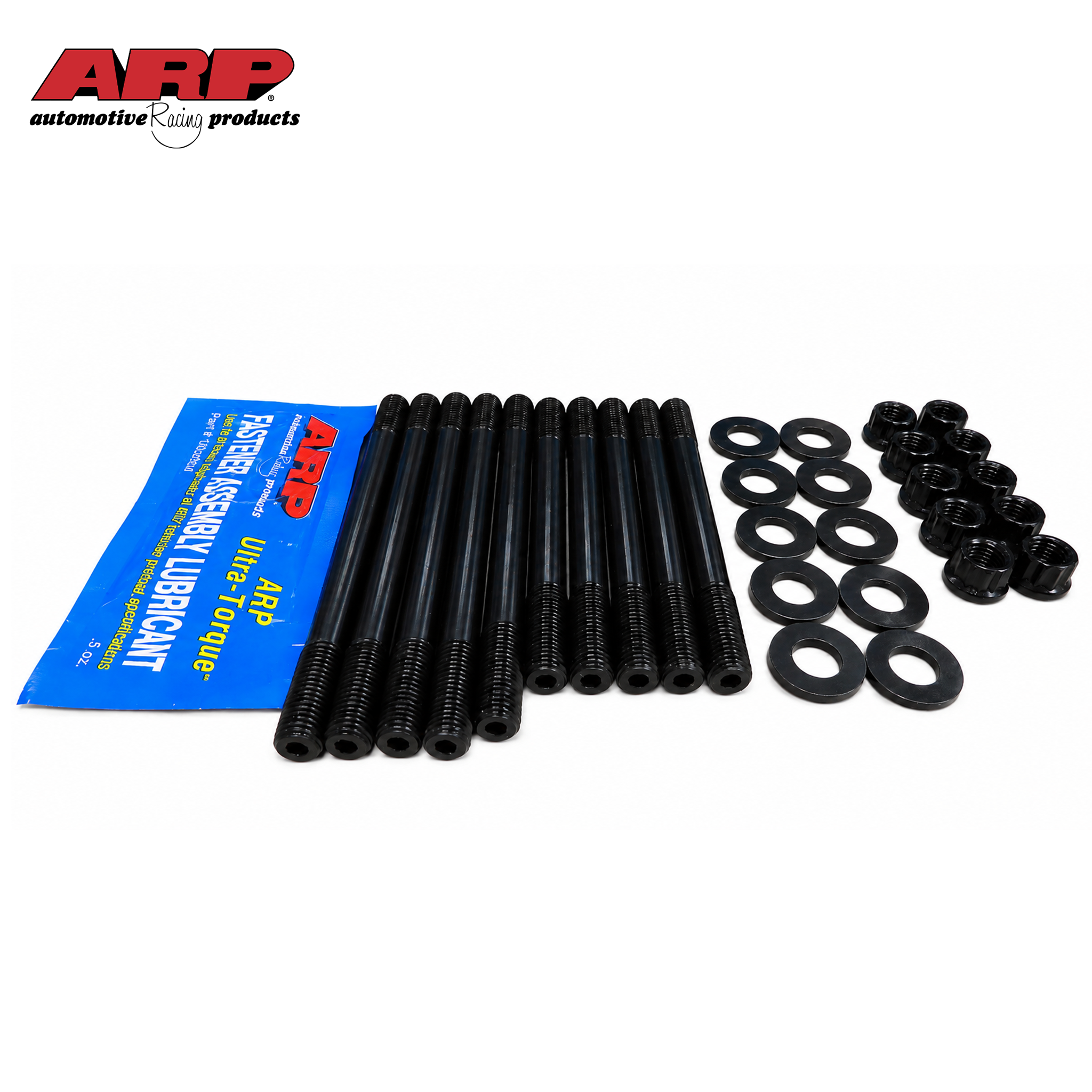

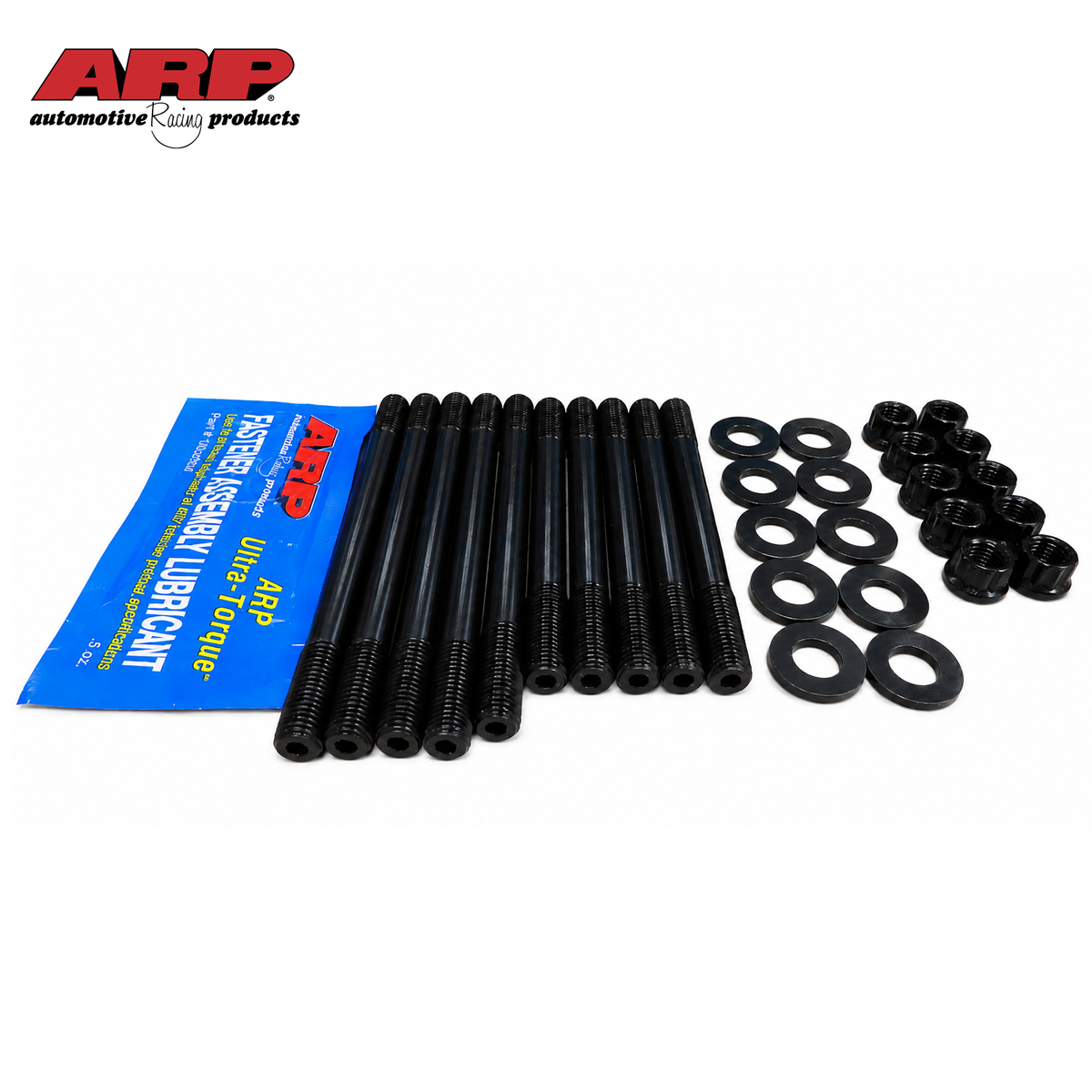

What's Included

• Ten application-specific cylinder head studs
• 12-point fastening nuts
• Hardened parallel-ground washers
• ARP Ultra-Torque fastener assembly lubricant
