ARB Differential Breather Kit

ARB Differential Breather Kit

For Universal 4WD Drivetrain Systems Including 1979–1995 Toyota Pickup & 1984–1995 Toyota 4Runner 4WD

Overview

The ARB Differential Breather Kit is a centralized drivetrain breather system designed to relocate differential, transmission, and transfer-case breathers to a higher, cleaner location. This helps reduce the risk of water, dust, mud, and other contaminants entering drivetrain housings during water crossings, off-road driving, and dusty conditions.

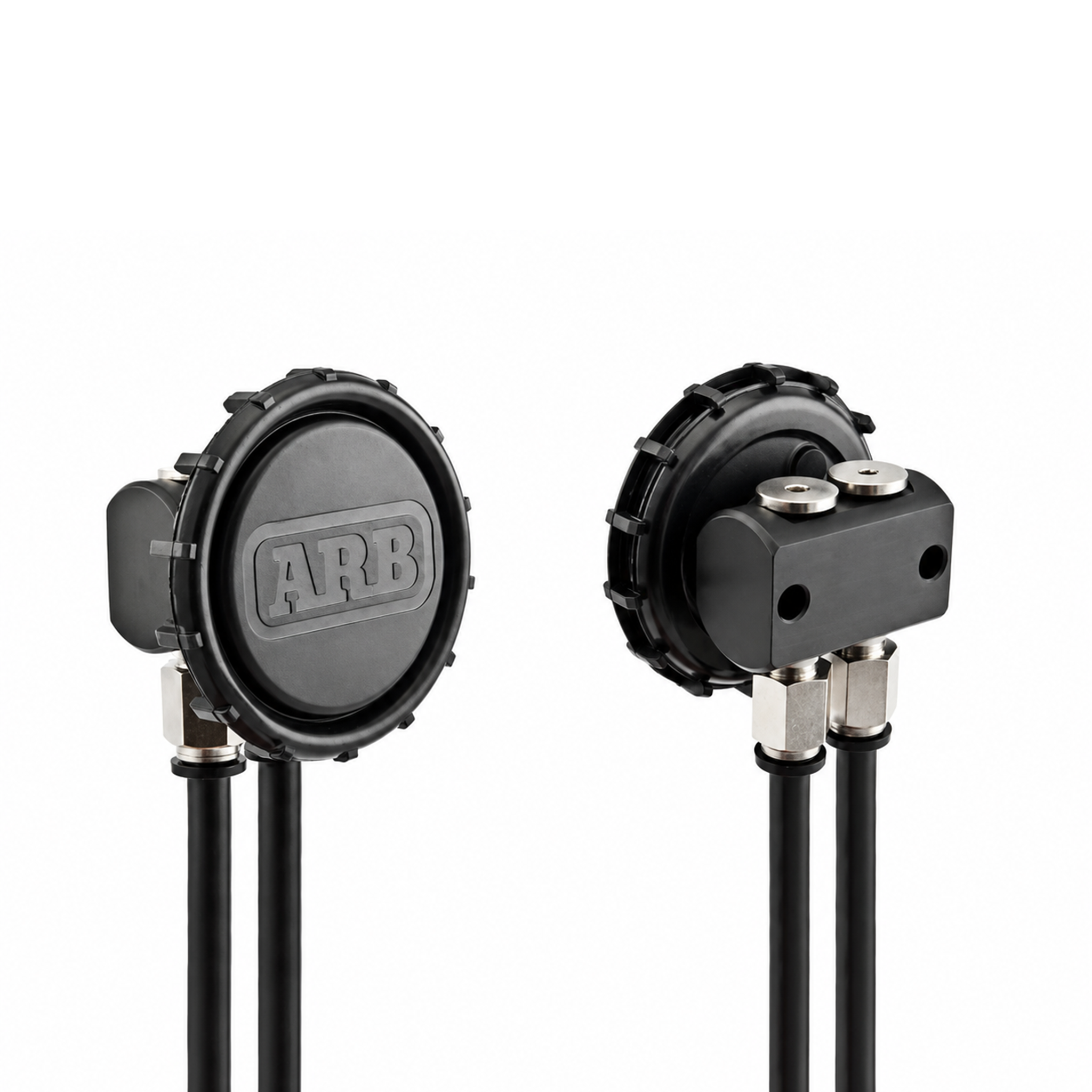

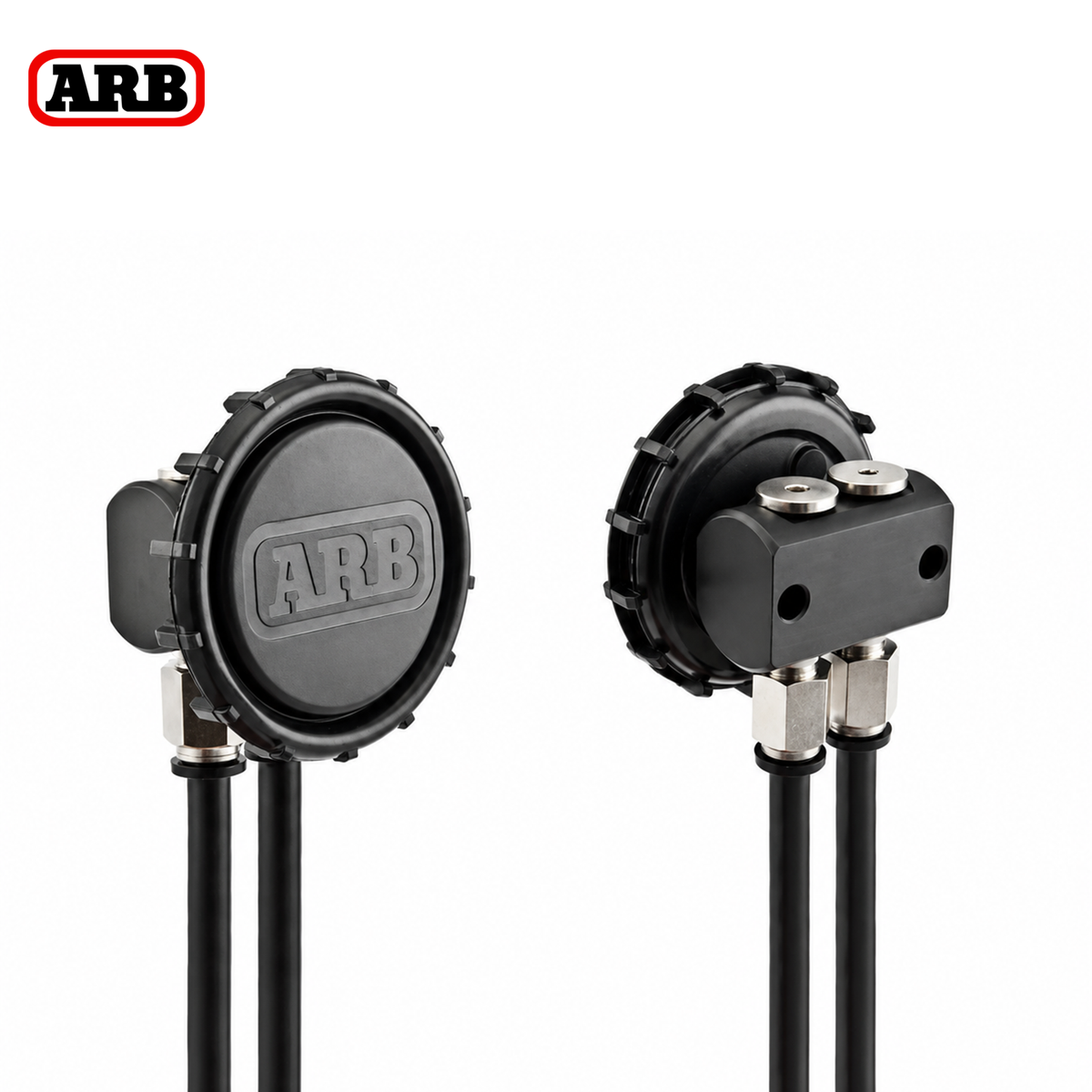

The system uses an anodized billet-aluminum manifold with four drivetrain breather ports and a high-flow filtered breather. Its zero-back-pressure, zero-vacuum design allows connected drivetrain assemblies to equalize pressure as operating temperatures change.

The kit includes enough tubing and fittings to connect at least two drivetrain assemblies and can be expanded to as many as four with additional tubing and fittings. It is a universal system and works well for custom breather relocation on classic Toyota 4WD platforms.

Key Features

• Centralized drivetrain breather relocation system

• Four breather-line ports for up to four drivetrain assemblies

• High-flow, zero-back-pressure and zero-vacuum design

• Anodized billet-aluminum manifold

• Splash-resistant filtered breather

• 8 mm breather tubing for increased flow capacity

• Includes enough tubing and fittings for at least two drivetrain assemblies

• Suitable for differentials, transmissions, and transfer cases

• Expandable with additional tubing and fittings

• Universal/custom-mount installation

• 3-year ARB warranty

Drivetrain Breather Design

Differentials, transmissions, and transfer cases experience internal pressure changes as their operating temperatures rise and fall. Factory breathers allow this pressure to equalize, but low-mounted or one-way breather designs can leave drivetrain assemblies more vulnerable during water crossings and harsh off-road conditions.

The ARB system routes compatible drivetrain breathers to a central manifold positioned above expected water levels. A high-flow air filter allows the connected components to breathe while helping prevent dirt, dust, and water from entering through the relocated breather system.

The kit uses 8 mm tubing, providing additional internal area compared with smaller breather lines. This is particularly useful in off-camber 4WD conditions where gear oil can enter a breather line and restrict airflow.

Vehicle Fitment

Universal 4WD Application

Designed for custom installation on 4WD vehicles with drivetrain breathers that can be connected or adapted to the ARB system.

Toyota Pickup

• 1979–1983 Toyota Pickup – 1st Gen – 4WD – Universal Custom Installation

• 1984–1988 Toyota Pickup – 2nd Gen – 4WD – Universal Custom Installation

• 1989–1995 Toyota Pickup – 3rd Gen – 4WD – Universal Custom Installation

Toyota 4Runner

• 1984–1989 Toyota 4Runner – 1st Gen – 4WD – Universal Custom Installation

• 1990–1995 Toyota 4Runner – 2nd Gen – 4WD – Universal Custom Installation

Fitment Notes

• Universal/custom installation; not a vehicle-specific bolt-on kit.

• Designed for drivetrain breather relocation on suitable 4WD applications.

• The four-port manifold supports one to four breather lines.

• Supplied components are sufficient to connect at least two drivetrain assemblies.

• Additional tubing and fittings are required when necessary to complete a four-component installation.

• The manifold and filter should be mounted above expected water levels in a protected location.

• Many factory breathers use a 1/8" BSP connection, but connection type varies by vehicle and drivetrain component.

• Additional adapters may be required when the factory breather thread differs from the supplied fittings.

• Factory hose-barb breathers may allow the supplied tubing to be connected directly when properly secured.

• Modified axles, transmission swaps, transfer-case conversions, and other drivetrain changes may require different fittings or routing.

• Keep breather tubing away from exhaust components, turbochargers, radiators, and other high-heat areas.

Product Specifications

Brand: ARB
Product Type: Differential / Drivetrain Breather Kit
Installation: Universal / Custom
Manifold Material: Anodized Billet Aluminum
Breather Ports: 4
Filter Port: 1
Maximum Drivetrain Connections: 4
Tubing Diameter: 8 mm
Tubing Length: 8 m / approximately 26 ft
Tubing Material: Polyethylene
Filter: Splash Resistant
Breather Design: High Flow / Zero Back Pressure / Zero Vacuum
Warranty: 3 Years

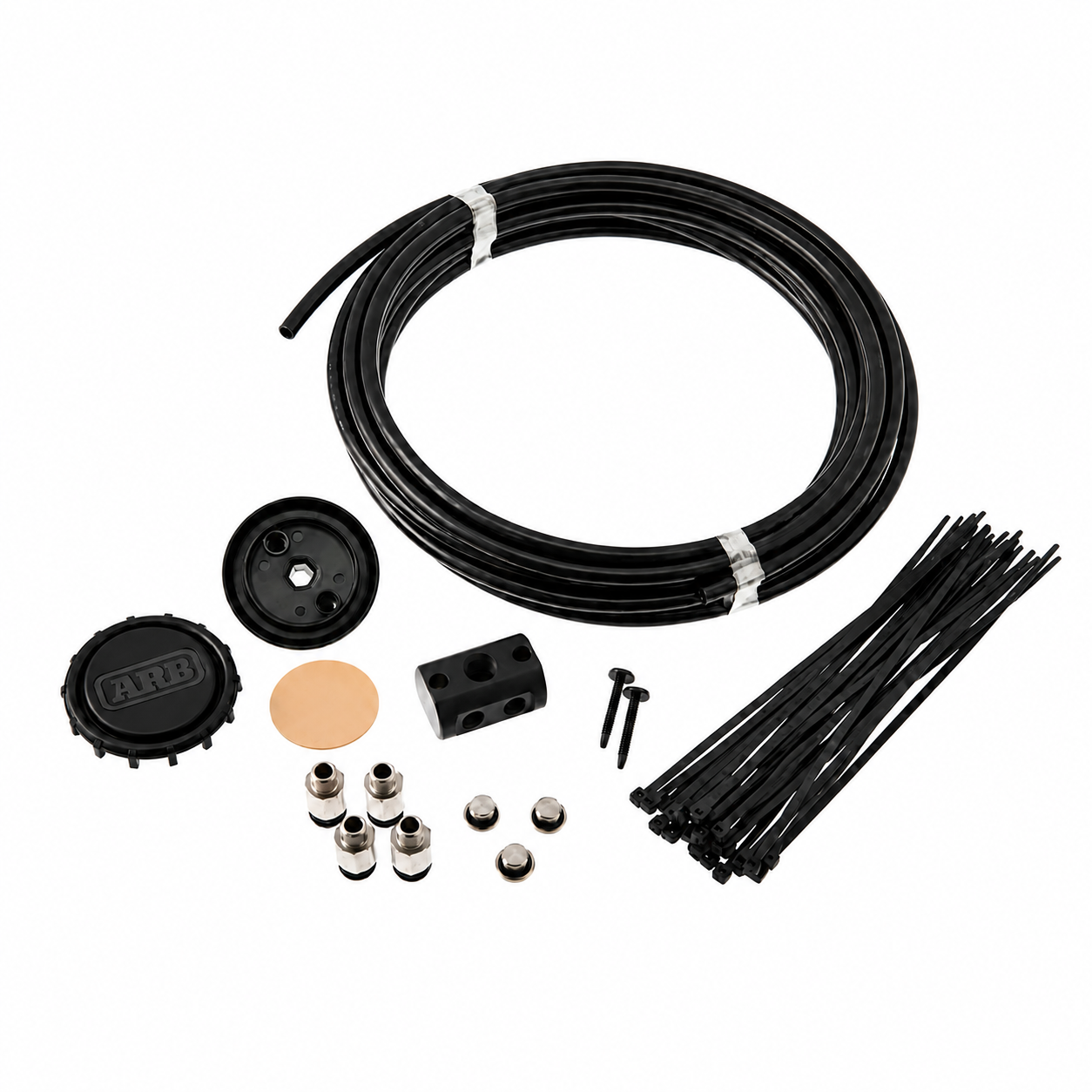

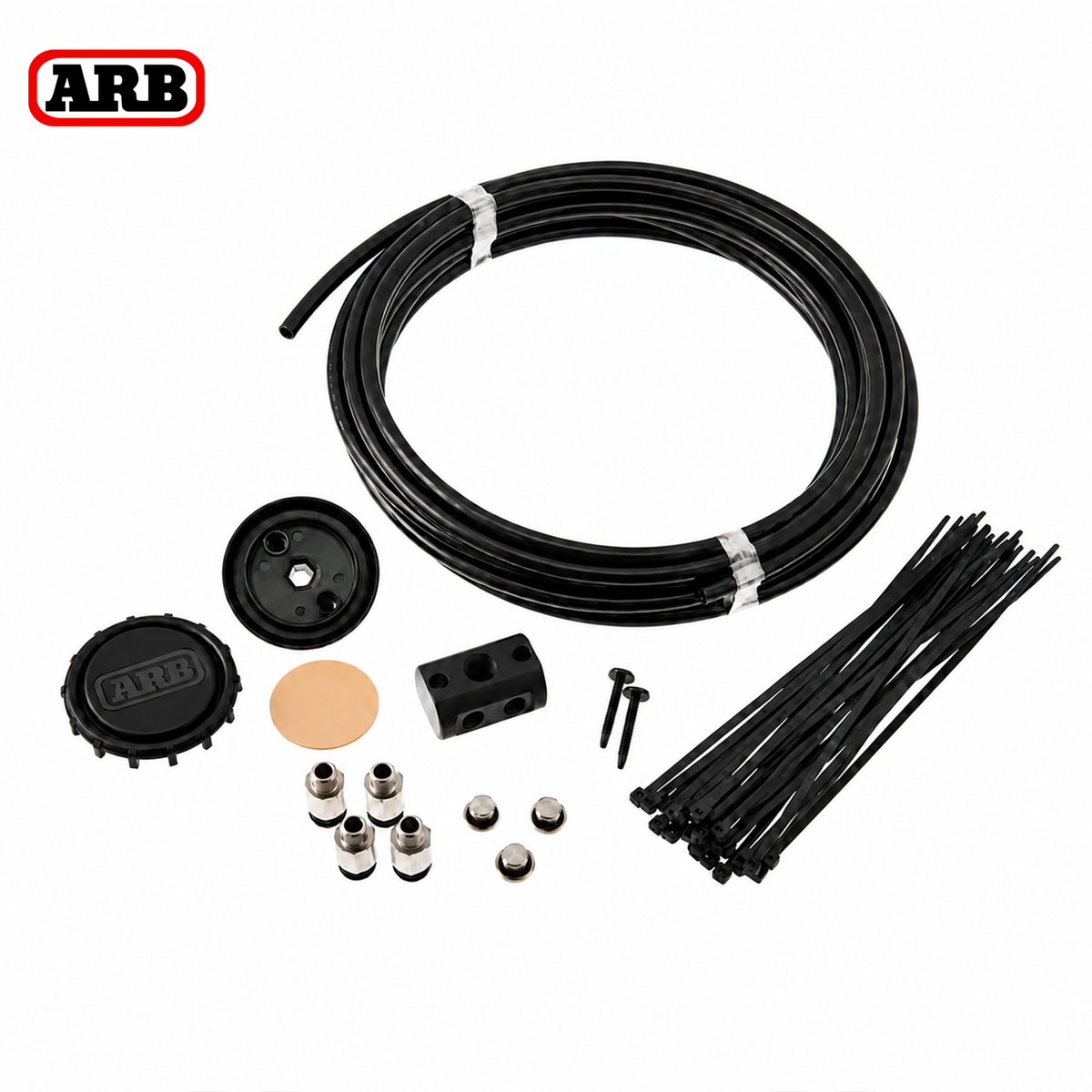

What's Included

• (1) Anodized billet-aluminum breather manifold

• (1) Air filter assembly

• (4) 8 mm push-in breather fittings

• (3) Plugs for unused breather ports

• (1) 8 m length of 8 mm polyethylene tubing

• (2) Self-tapping mounting screws

• (25) Cable ties

The supplied components provide the tubing and fittings needed to connect at least two drivetrain assemblies. Additional adapters, tubing, or fittings may be required depending on the vehicle and the number of components being connected.
