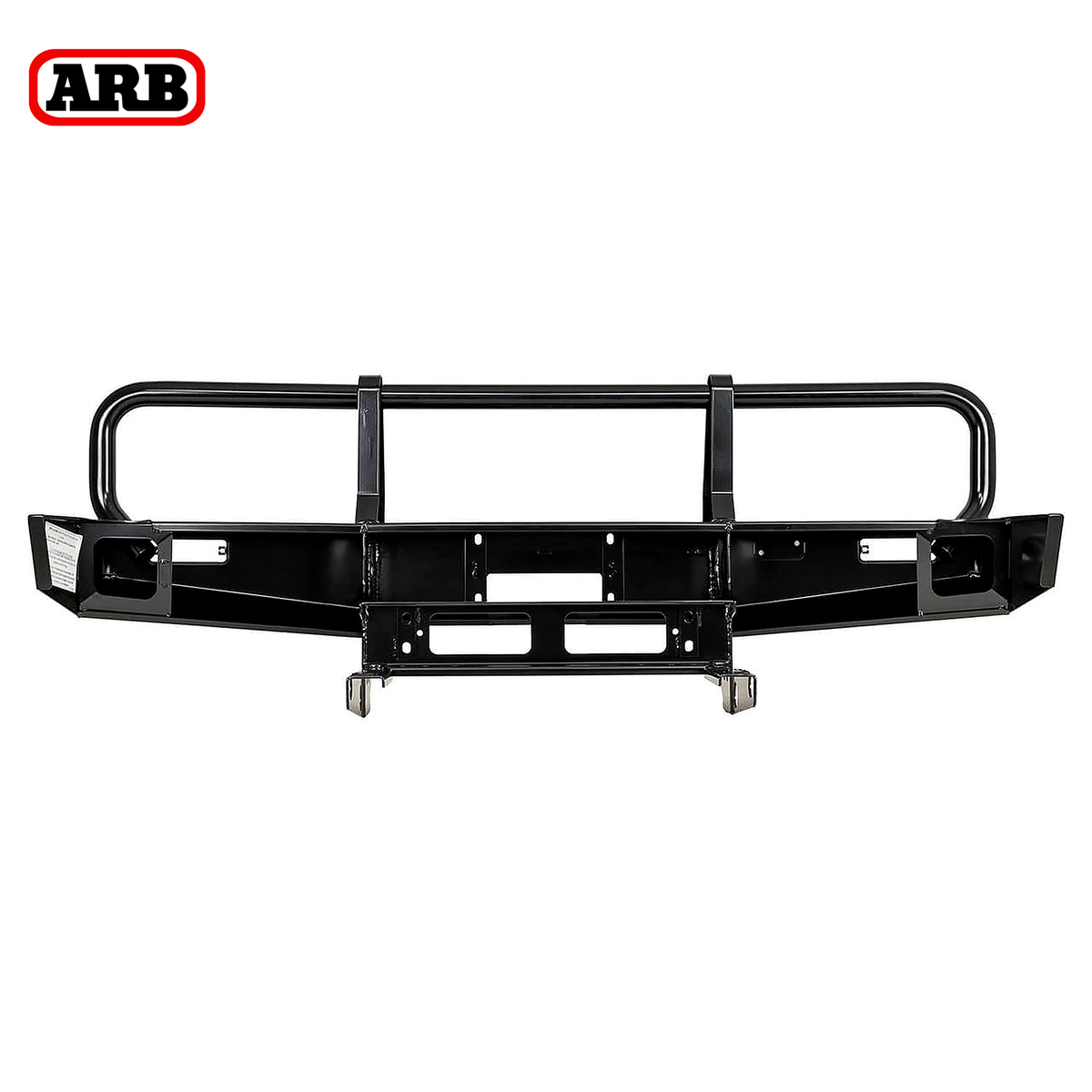

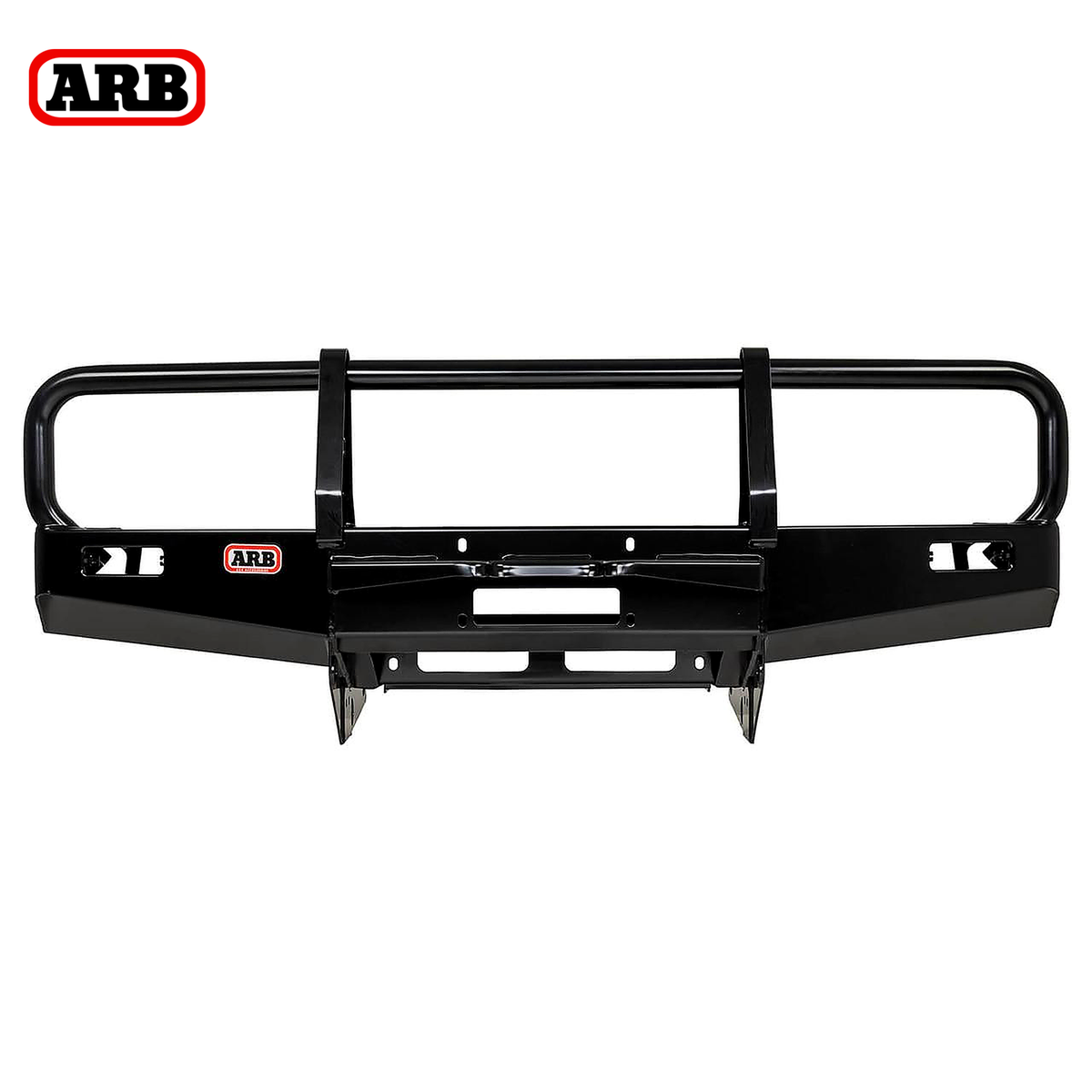

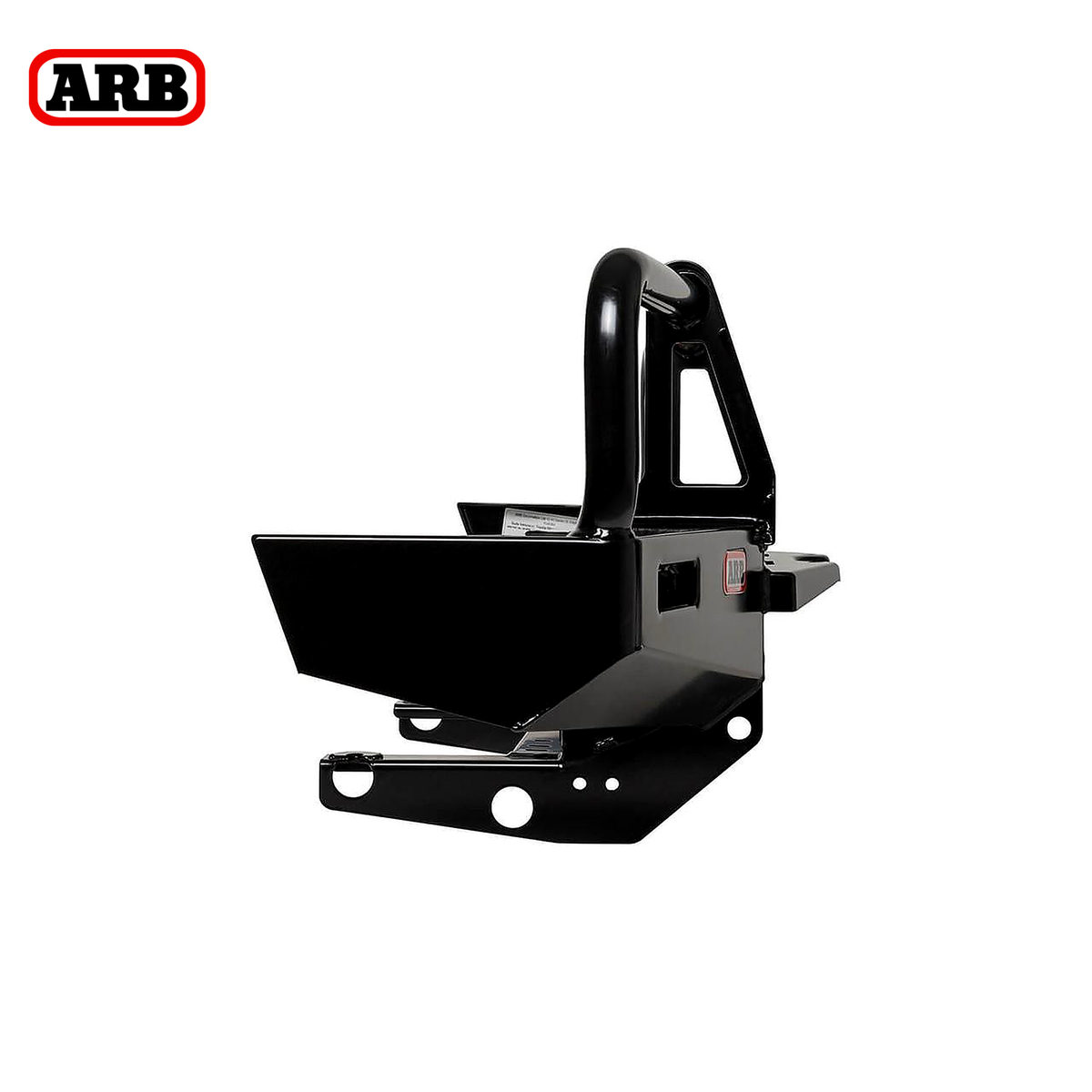

ARB Deluxe Front Winch Bumper
For 1984–1995 Toyota 4Runner & Toyota Pickup 4WD
Overview

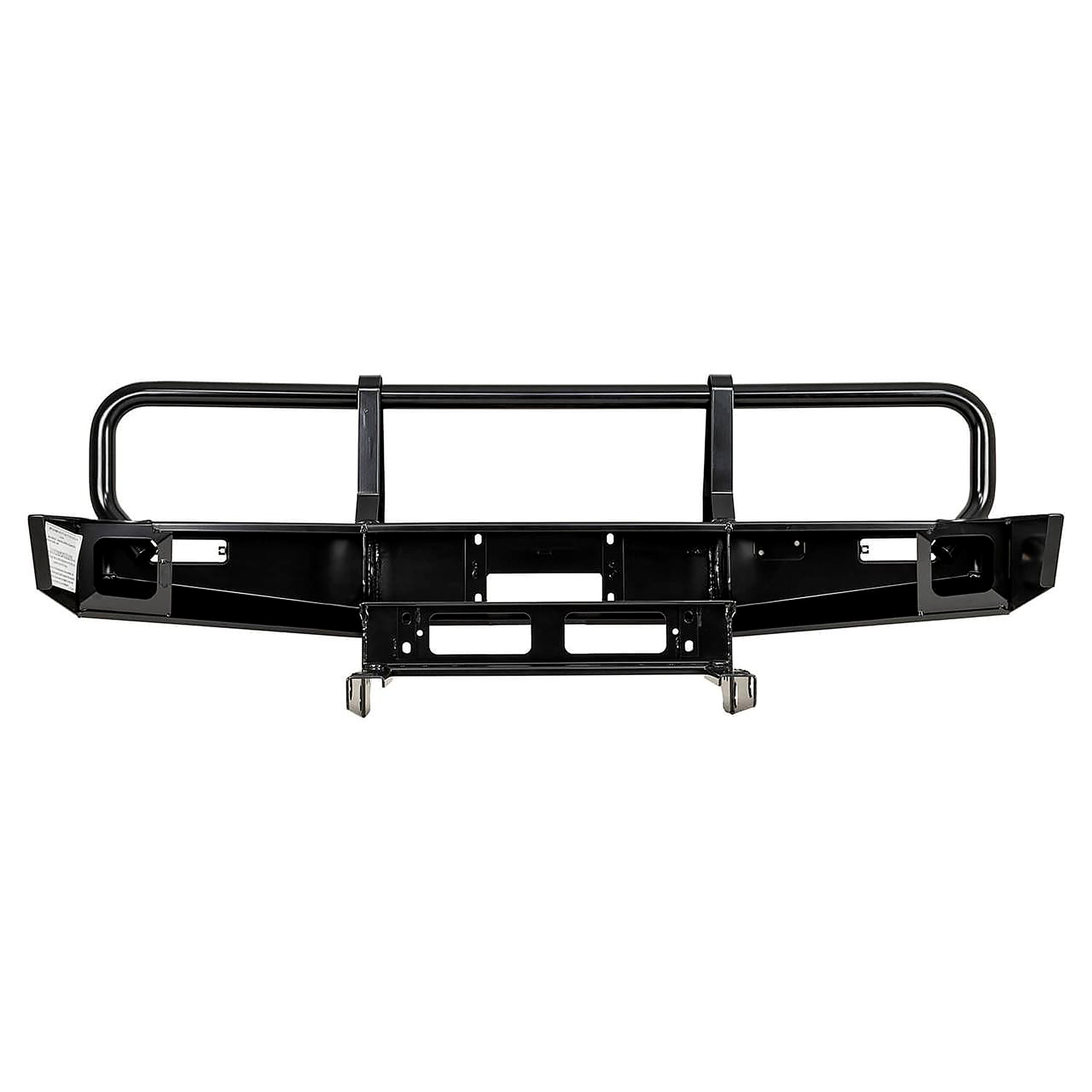

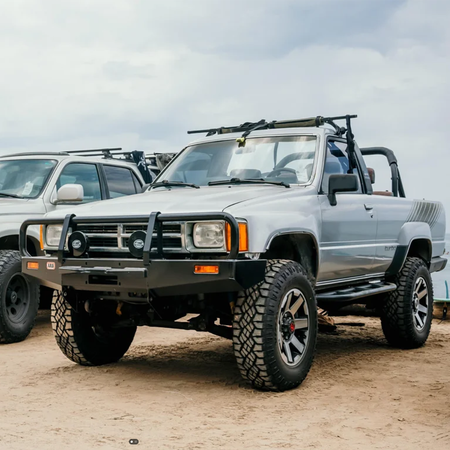

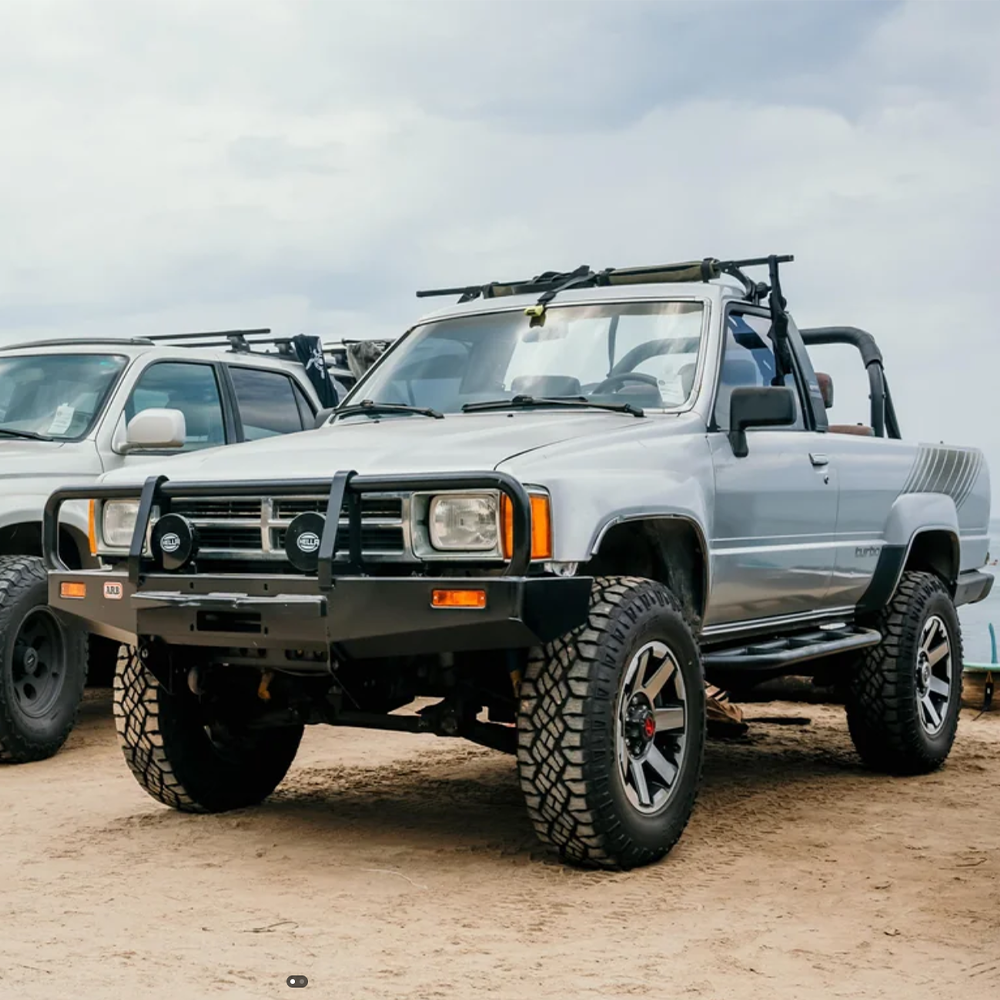

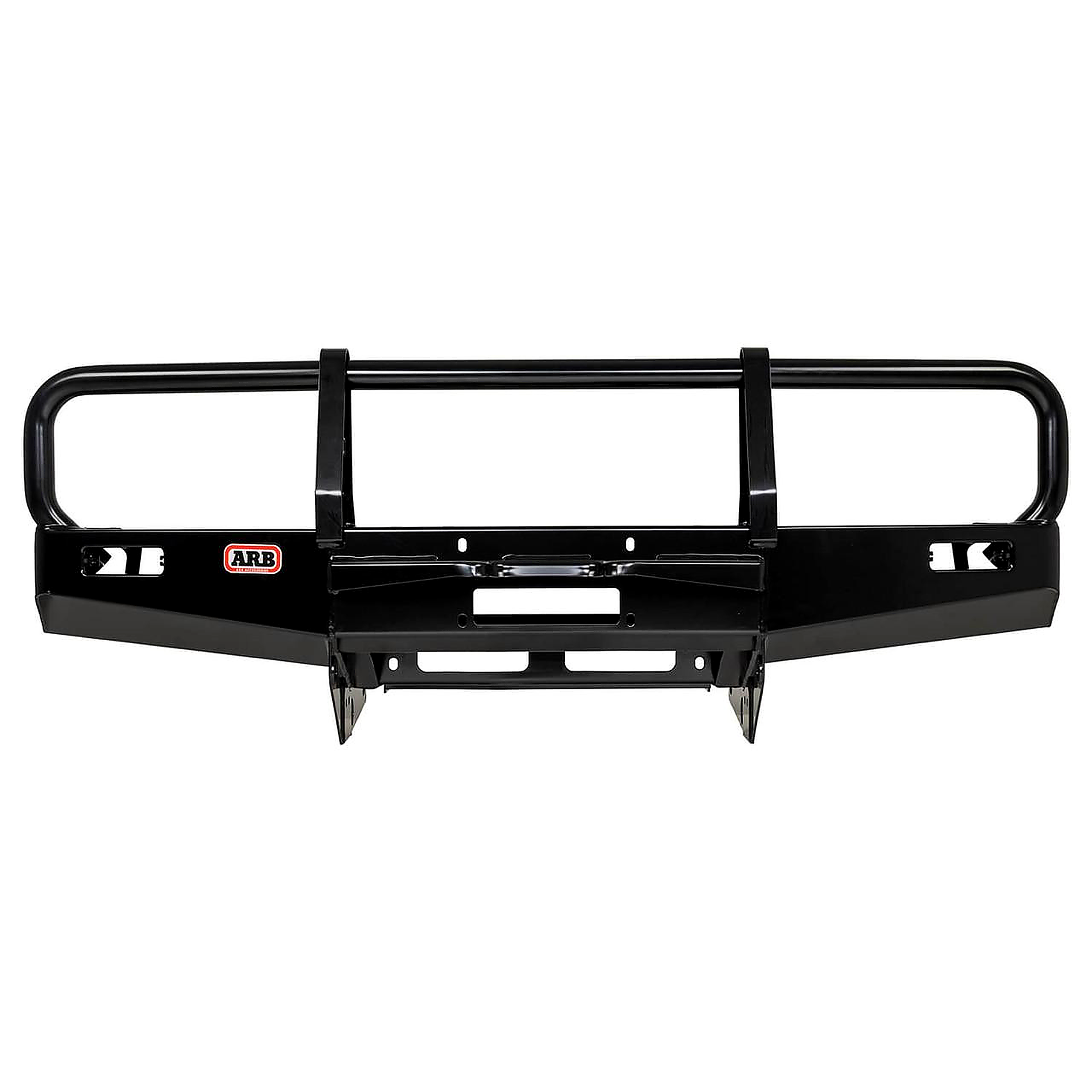

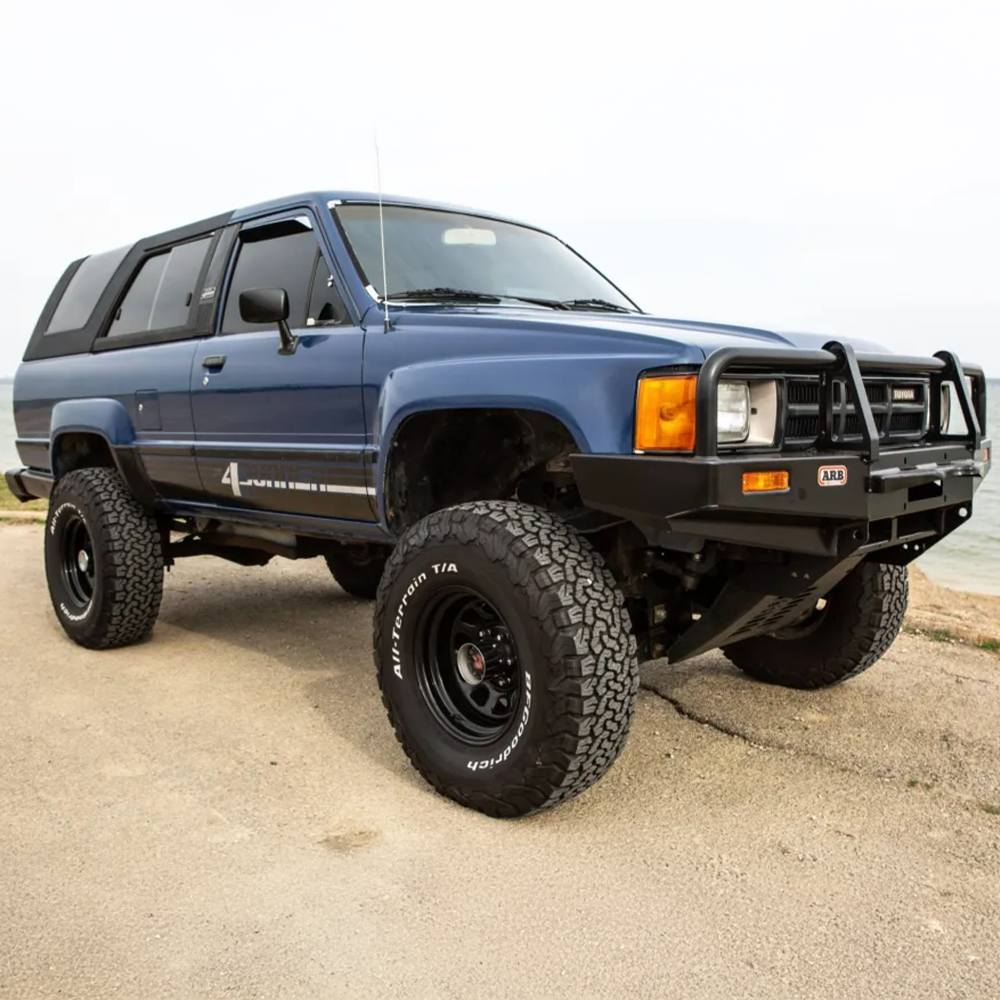

The ARB Deluxe Front Winch Bumper is a full replacement front bumper system for 1984–1995 Toyota 4Runner and Pickup 4WD models. Rather than mounting over the factory bumper as a brush guard, the ARB Deluxe replaces the original bumper and integrates with the vehicle's chassis through a vehicle-specific mounting system.
Built for off-road travel, overlanding, and recovery setups, the bumper combines heavy-duty steel construction with winch compatibility, Hi-Lift jacking points, tow points, auxiliary driving-light provisions, and underbody protection.
Two vehicle-year configurations are available to account for differences in the Toyota front-end design: 1984–1985 and 1986–1995. Select the configuration that matches your vehicle's model year when ordering.
Key Features
- Complete replacement for the factory front bumper
- Vehicle-specific chassis mounting system
- Heavy-duty steel construction
- Compatible with most low-mount electric winches up to 10,000 lb
- Multi-fold upswept and tapered wing design
- Split-pan construction for strength and airflow
- Integrated underbody protection panels
- Twin Hi-Lift jacking points
- Integrated tow points
- Provisions for auxiliary driving lights
- Durable urethane bumper buffers
- Satin black powder-coated finish
- Separate 1984–1985 and 1986–1995 configurations
Full Replacement Bumper Design

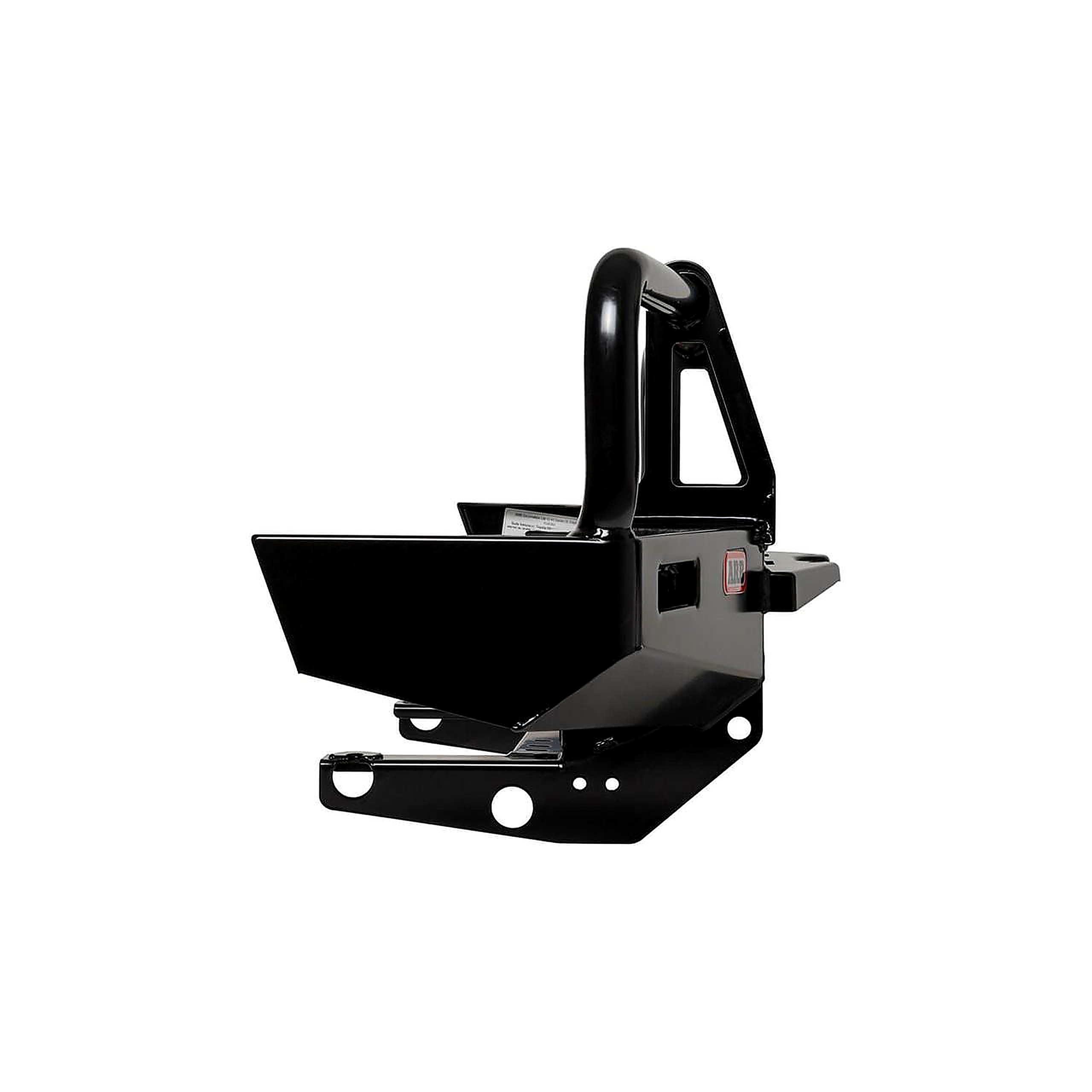

The ARB Deluxe is an integrated bumper system rather than an add-on grille or brush guard. Its vehicle-specific mounting structure attaches the bumper directly to the chassis while providing a rigid foundation for compatible winch equipment and front-end protection.

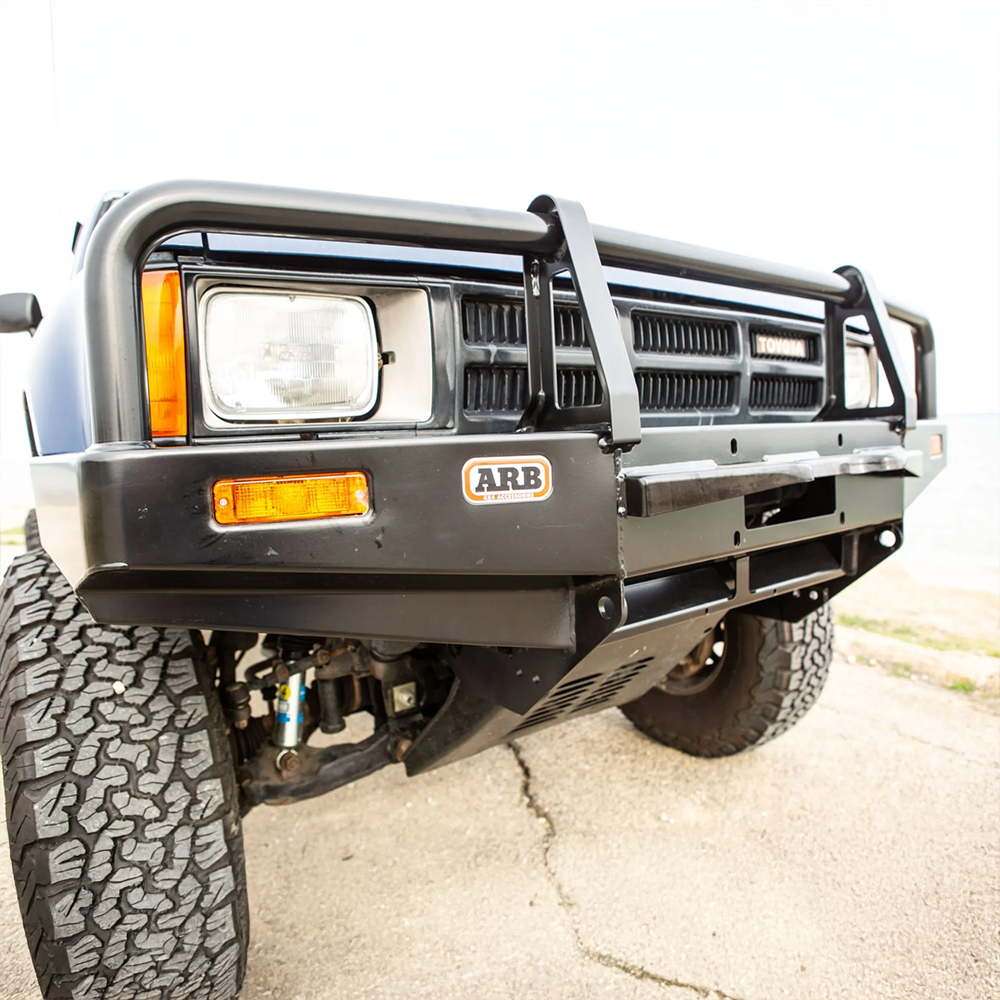

The multi-fold wing design angles upward toward the outer corners to improve clearance around obstacles, while the split-pan construction maintains airflow through the front of the vehicle. Integrated underbody panels provide additional protection beneath the front bumper area.
Durable urethane buffers are incorporated into the bumper for additional impact protection while maintaining the recognizable ARB Deluxe appearance.
Winch & Accessory Capability
The bumper accepts most low-mount electric winches rated up to 10,000 lb, allowing recovery equipment to be incorporated directly into the front bumper system.
Twin Hi-Lift jacking points provide dedicated locations for compatible jack use, while integrated tow points add functionality for towing and recovery situations.
Provisions are also incorporated for auxiliary driving lights. Fog lights are not included, and the bumper is not designed for OEM or ARB fog-light integration.
Vehicle Fitment
Toyota 4Runner
- 1984–1989 Toyota 4Runner – 1st Gen – 4WD – Front
- 1990–1995 Toyota 4Runner – 2nd Gen – 4WD – Front
Toyota Pickup
- 1984–1988 Toyota Pickup – 2nd Gen – 4WD – Front
- 1989–1995 Toyota Pickup – 3rd Gen – 4WD – Front
Fitment Notes
- 4WD applications
- Complete replacement for the factory front bumper
- Two vehicle-year-specific bumper configurations are available
- 1984–1985 vehicles require the 1984–1985 configuration
- 1986–1995 vehicles require the 1986–1995 configuration
- Vehicle-specific chassis mounting system
- Compatible with most low-mount electric winches up to 10,000 lb
- Auxiliary driving-light provisions included
- Fog lights are not included
- Not designed for OEM fog-light integration
- Not designed for ARB fog-light integration
- Integrated tow points are included
- Dedicated rated recovery points are not included
- Professional installation recommended
Product Specifications
Brand: ARB
Series: Deluxe
Product Type: Front Winch Bumper
Position: Front
Material: Steel
Color: Black
Finish: Satin Powder Coat
Winch Compatible: Yes
Maximum Winch Capacity: 10,000 lb
Tow Points: Yes
Dedicated Recovery Points: No
Hi-Lift Jacking Points: Yes
Driving Light Provisions: Yes
Fog Lights Included: No
OEM Fog Light Compatible: No
ARB Fog Light Compatible: No
Installation: Vehicle-Specific Replacement
Warranty: 3-Year Limited Warranty
Available Configurations
Select the configuration that matches your vehicle's model year.
Vehicle Year
- 1984–1985
- 1986–1995
The two configurations use different bumper applications to account for differences in the Toyota front-end design across these model years. Select your vehicle's actual model-year range when ordering.

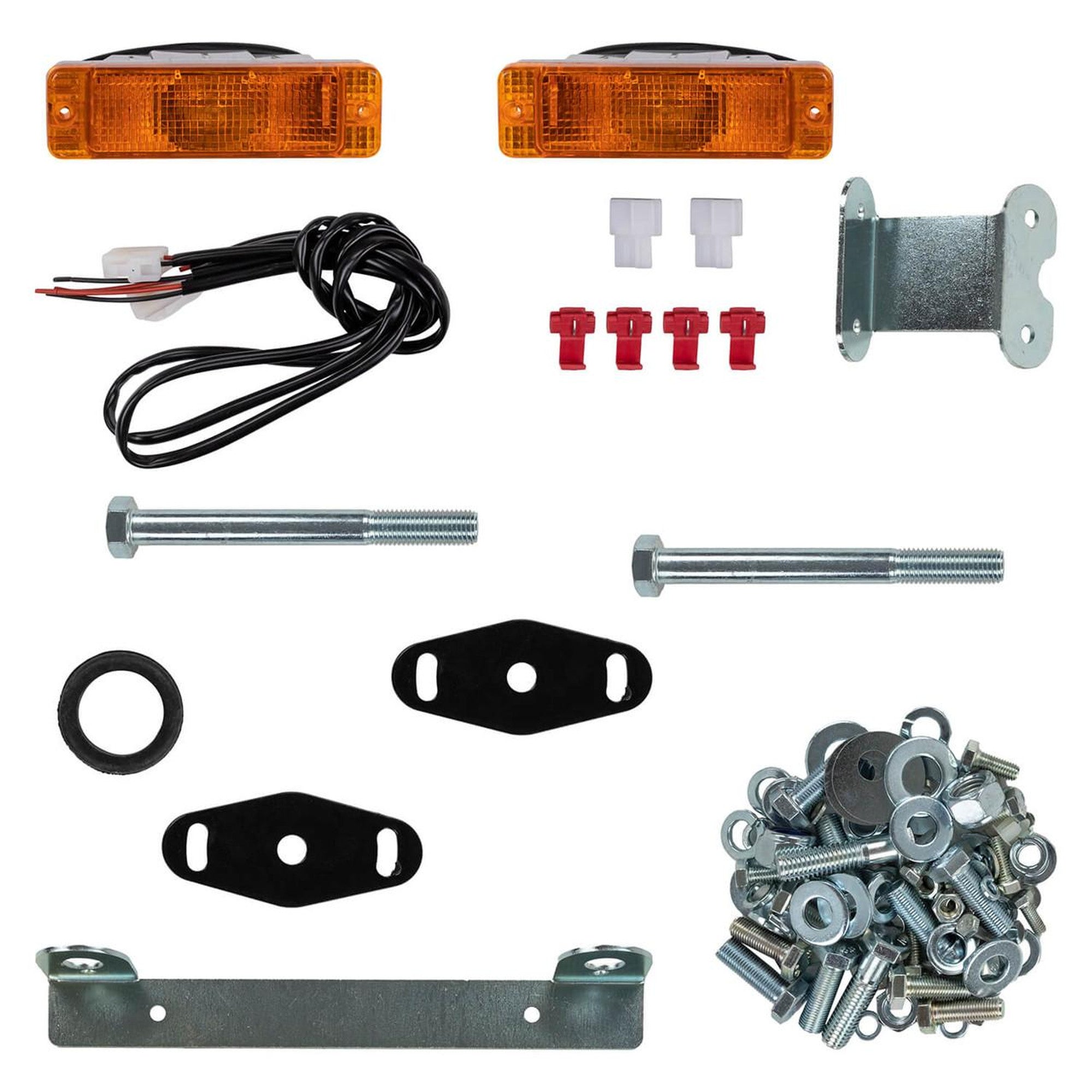

Each configuration includes:
- ARB Deluxe front bumper
- Vehicle-specific mounting system
- Installation hardware
