APEXi Power Intake Kit
For 1983–1987 Toyota Corolla Levin & Sprinter Trueno AE86 with JDM 4A-GE
Overview

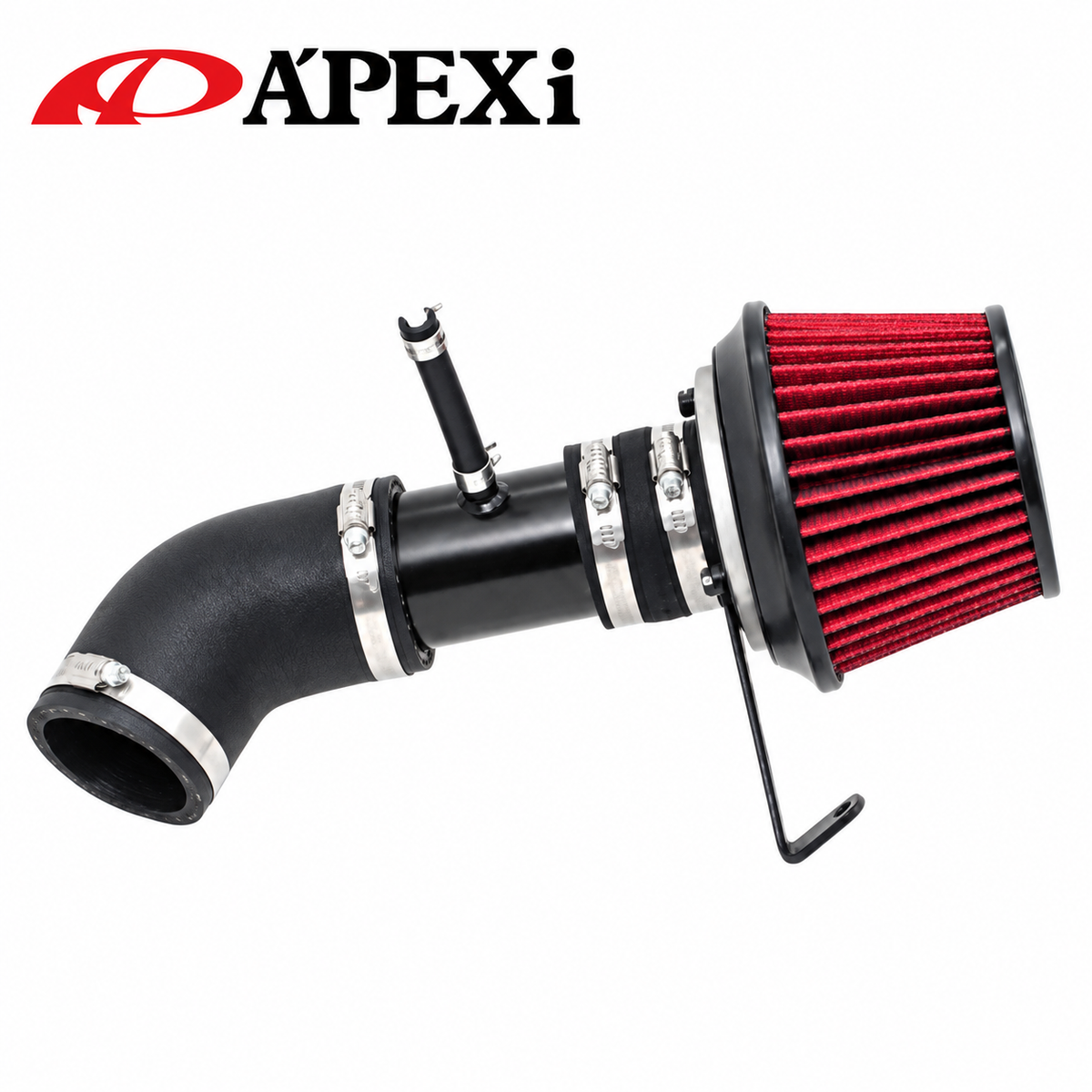

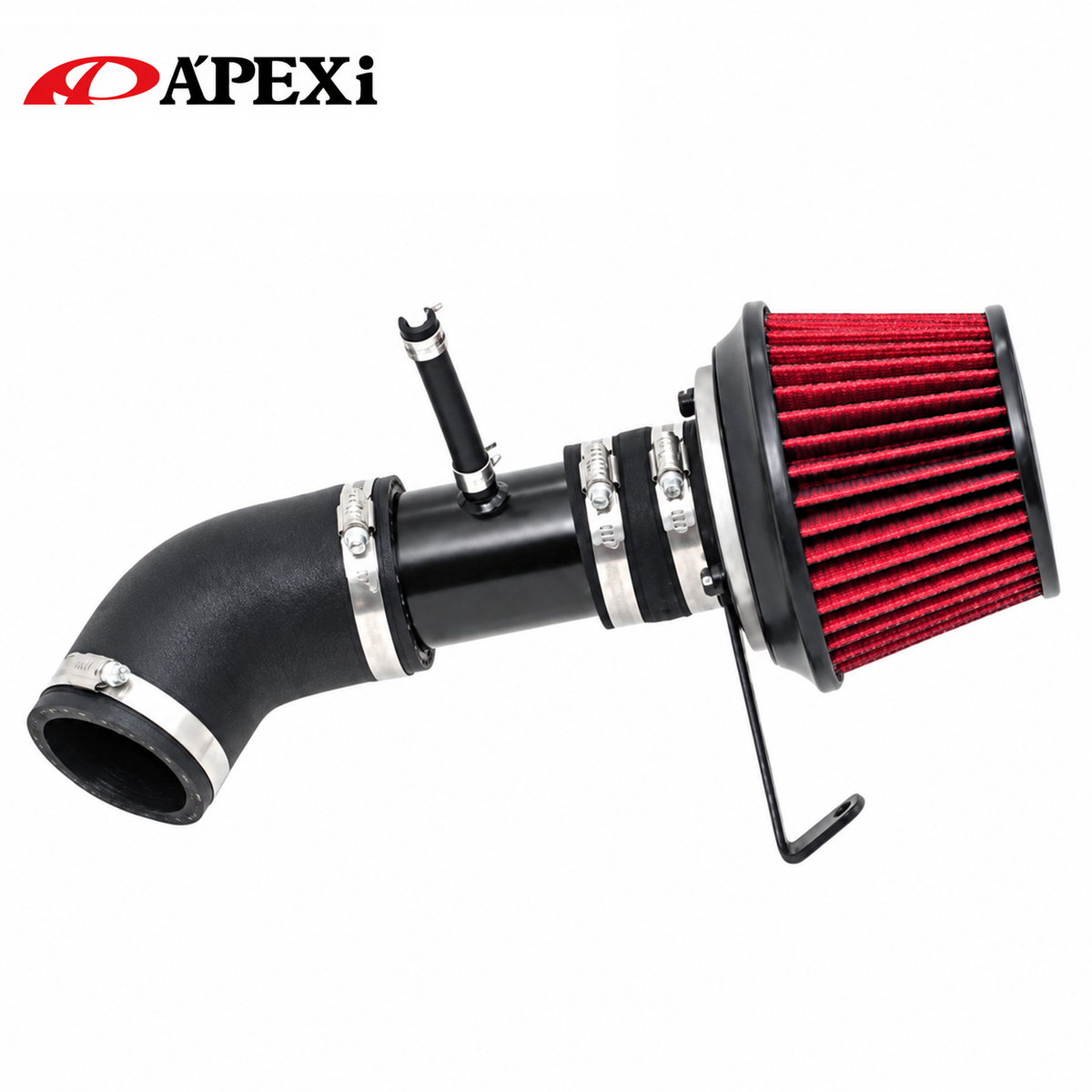

The APEXi Power Intake Kit is a vehicle-specific performance air intake system for the JDM Toyota AE86 equipped with the 1.6L 4A-GE engine. It replaces the factory air-cleaner assembly with a free-flowing dry filter, intake pipe, adapter, hoses, brackets, and installation hardware.
Its dual-funnel filter design is engineered to smooth incoming airflow while reducing intake restriction. A molded upper and lower funnel directs air toward the intake tract without relying on an oiled filter element, making the system well suited to airflow-meter-equipped applications.
This application is intended for JDM Corolla Levin and Sprinter Trueno AE86 models with the original-style 4A-GE intake configuration.
Key Features
- Vehicle-specific performance intake system for JDM 4A-GE AE86 applications
- Dual-funnel filter design minimizes intake turbulence
- Dry-density fiber filter media requires no filter oil
- Approximately 10% lower ventilation resistance compared with the preceding intake-filter design
- 14-degree lower funnel geometry promotes smooth airflow into the intake tract
- Injected-resin funnel construction allows a smooth, purpose-shaped airflow path
- Bolt-on installation using the supplied intake pipe, adapter, brackets, hoses, and hardware
- Dry filter design helps avoid oil contamination of the airflow meter
- Replacement filter elements are available separately
Dual-Funnel Dry-Filter Design
The Power Intake uses an upper primary funnel to direct incoming air into the lower funnel rather than allowing the center area of the filter to contribute little to airflow. This arrangement is designed to increase air velocity while maintaining a smoother path toward the intake pipe.
The lower funnel uses a 14-degree curvature and sits close to the base of the filter to reduce unnecessary restriction and dead areas. Layered dry-density fiber media provides filtration without the oil used by many reusable wet-type filters.
Installation Requirements
Installation replaces the original air-cleaner box and associated intake ducting while retaining several factory components.
The factory air-control valve and specified original vacuum hoses are reused during installation. The supplied brackets, intake adapter, intake pipe, rubber hoses, clamps, and hardware support the vehicle-specific installation.
The intake should be positioned with adequate clearance from the hood and surrounding engine-bay components before all mounting hardware is fully tightened.
Vehicle Fitment
Toyota Corolla Levin
- 1983–1987 Toyota Corolla Levin – AE86 – JDM – 1.6L 4A-GE – GT / GTV / GT-APEX
Toyota Sprinter Trueno
- 1983–1987 Toyota Sprinter Trueno – AE86 – JDM – 1.6L 4A-GE – GT / GTV / GT-APEX
Fitment Notes
- Designed around the JDM AE86 4A-GE intake configuration
- Production application covers approximately May 1983 through May 1987
- Fits applicable 2-door coupe and 3-door hatchback AE86 configurations
- Stock USDM Corolla GT-S direct fitment is not claimed in this listing
- Not intended for the stock USDM SR5 4A-C engine configuration
- Not intended for AE85 3A-U applications
- Modified engines or intake systems may require additional fitment verification
- Verify local emissions regulations before installation
Product Specifications
Brand: APEXi
Series: Power Intake
Product Type: Performance Air Intake Kit
Component Type: Air Intake
Filter Type: Dry-Type Performance Filter
Filter Design: Dual Funnel
Filter Media: Layered Dry-Density Fiber
Lower Funnel Angle: 14°
Engine: 1.6L 4A-GE
Chassis: AE86
Market Application: JDM
Installation: Vehicle-Specific Bolt-On

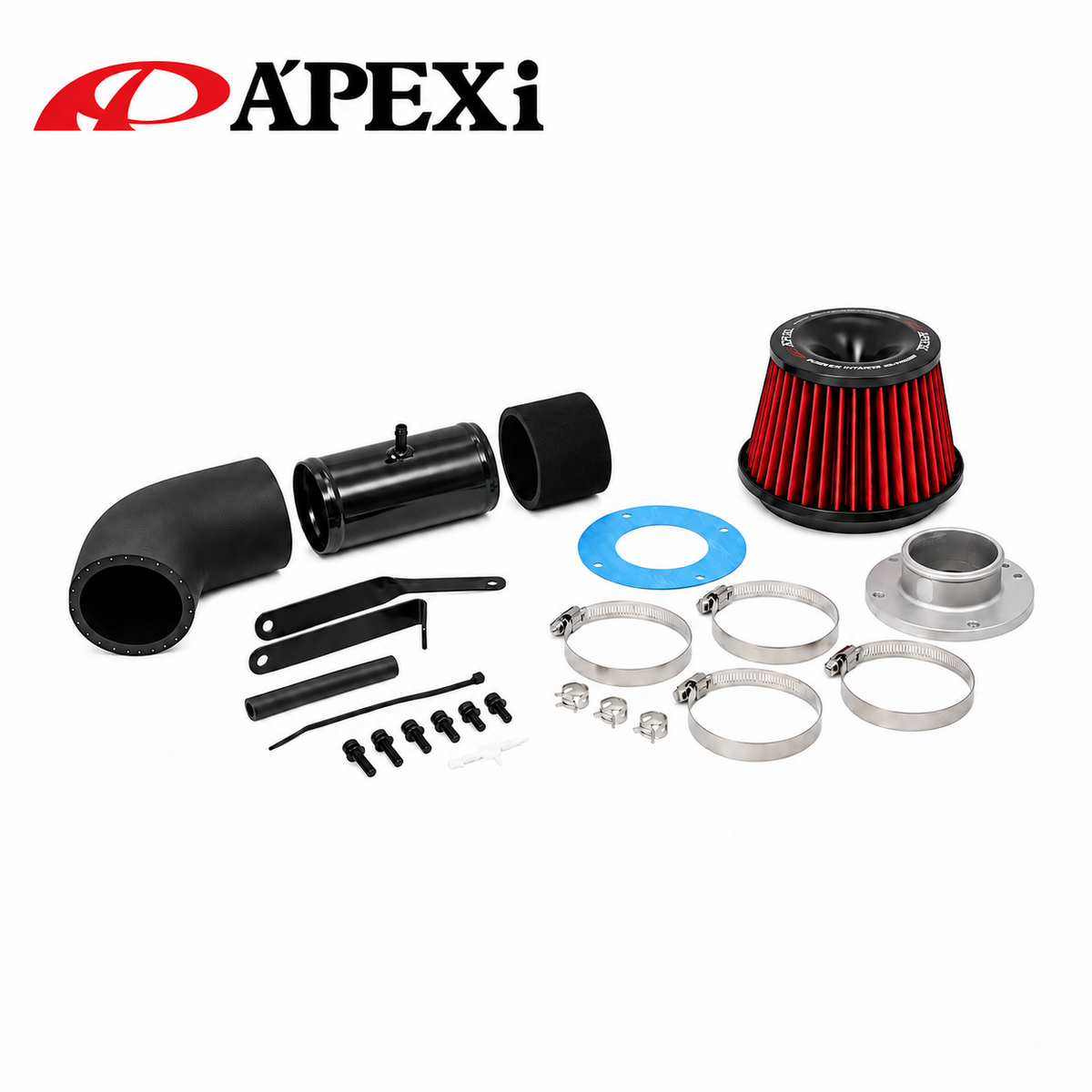

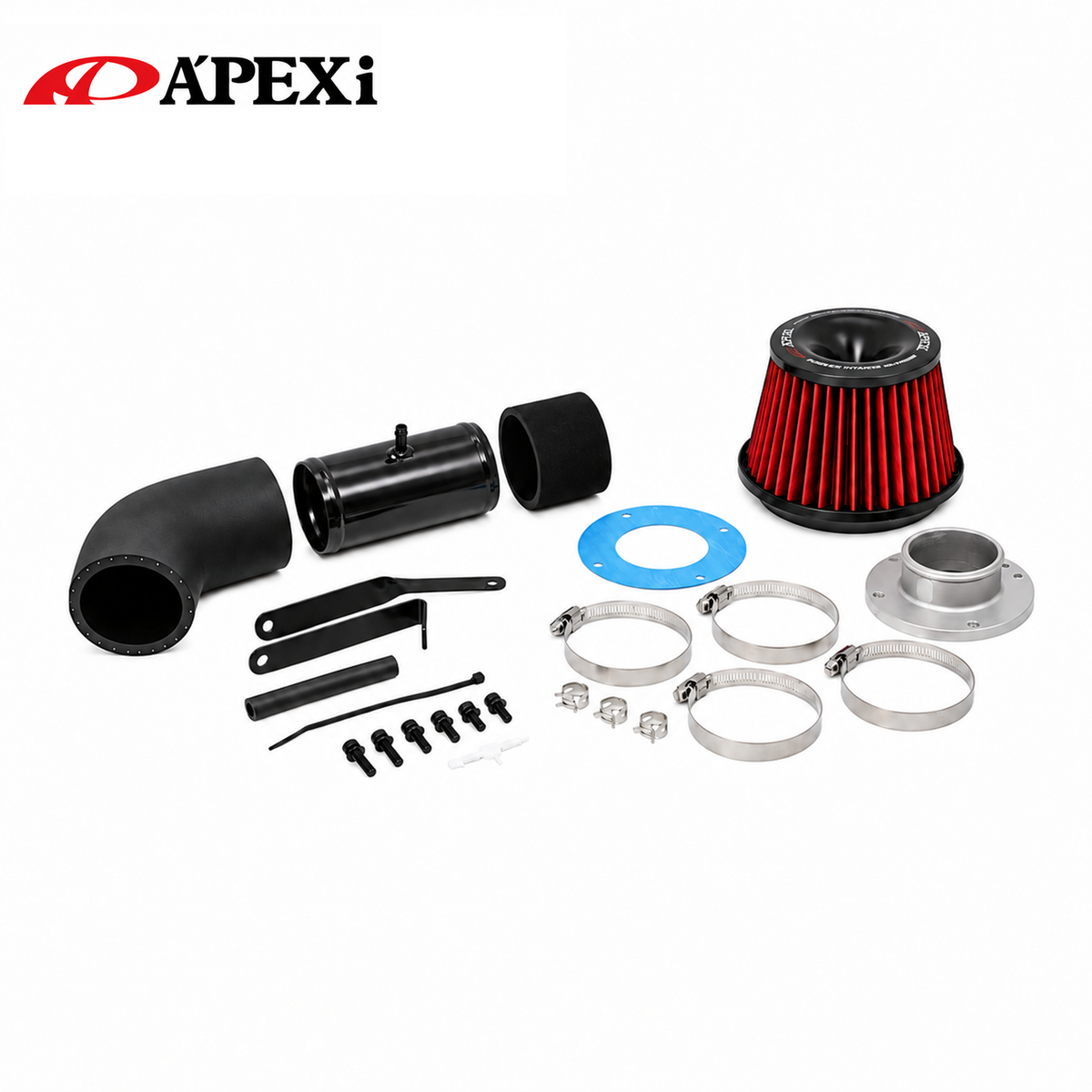

What's Included
- (1) APEXi dry-type filter element
- (1) Filter gasket
- (1) Intake adapter
- (1) Intake pipe
- (2) Mounting brackets
- (1) 65 mm straight rubber hose
- (1) 65 mm elbow rubber hose
- (1) 8 mm rubber hose
- (4) Hose bands
- (3) Clamps
- (6) M6 mounting bolts in three lengths
- (1) Three-way hose connector
- (1) Cable tie
- Installation instructions
