All-Pro Off-Road Front Tube Bumper | 4WD (1984-95 4Runner / 1984-95 Pickup)

All-Pro Off-Road Front Tube Bumper | 4WD

For 1984–1995 Toyota 4Runner 4WD and 1984–1995 Toyota Pickup 4WD

Overview

The All-Pro Off-Road Front Tube Bumper is a low-profile steel bumper for classic Toyota 4Runner and Pickup 4WD applications. It uses 1.75-inch × .120-wall steel tubing with a 3/16-inch integrated winch mounting plate and bolts to the factory bumper mounting locations.

The bumper includes recovery attachment points and is drilled for most 10,000-lb winches using a 4.5 × 10-inch mounting pattern. Multiple configurations are available with optional stinger, dimple-die fill plates, and side handles.

Key Features

• 1.75-inch × .120-wall steel tube construction
• 3/16-inch integrated winch mounting plate
• Bolt-on installation at the factory bumper mounting locations
• Integrated recovery attachment points
• Fits most 10,000-lb winches with a 4.5 × 10-inch mounting pattern
• Low-profile design for maximum approach clearance
• Optional stinger, dimple-die fill plates, and side handles
• Fill-plate option includes both top and side plates
• Bare steel finish
• Made in the USA

Vehicle Fitment

Toyota 4Runner 4WD

• 1984–1989 Toyota 4Runner – 1st Gen – 4WD
• 1990–1995 Toyota 4Runner – 2nd Gen – 4WD

Toyota Pickup 4WD

• 1984–1988 Toyota Pickup – 2nd Gen – 4WD
• 1989–1995 Toyota Pickup – 3rd Gen – 4WD

Fitment Notes

• 4WD models only. Does not fit 2WD applications.
• Select the vehicle fitment group that matches the model year before ordering.
• 1984–1985 4Runner / 1984–1985 Pickup uses the early fitment.
• 1986–1989 4Runner / 1986–1988 Pickup uses the middle fitment.
• 1990–1995 4Runner / 1989–1995 Pickup uses the late fitment.
• Winch fitment can vary by winch dimensions even when the mounting pattern is supported.

Product Specifications

Brand: All-Pro Off-Road
Product Type: Front Tube Bumper
Position: Front
Drivetrain: 4WD
Material: Steel
Finish: Bare Steel
Tube Size: 1.75 in × .120 in Wall
Winch Plate Thickness: 3/16 in
Winch Mounting Pattern: 4.5 × 10 in
Winch Capacity: Most 10,000-lb Winches
Mounting: Factory Bumper Mounting Locations
Hardware: Included
Country of Manufacture: USA

Available Configurations

Select one Vehicle Fitment and one Configuration.

Vehicle Fitment

• 1984–1985 4Runner / 1984–1985 Pickup
• 1986–1989 4Runner / 1986–1988 Pickup
• 1990–1995 4Runner / 1989–1995 Pickup

Configuration

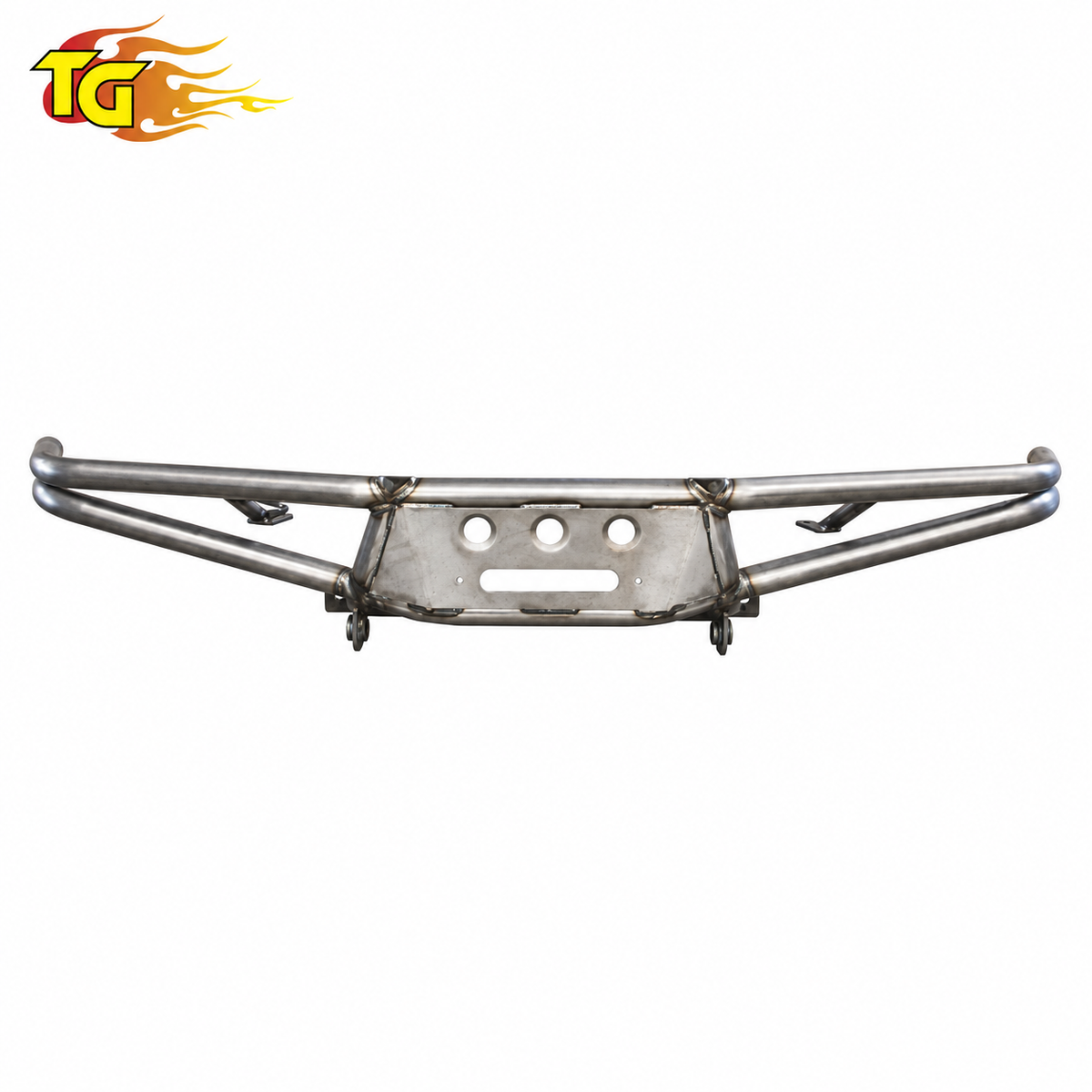

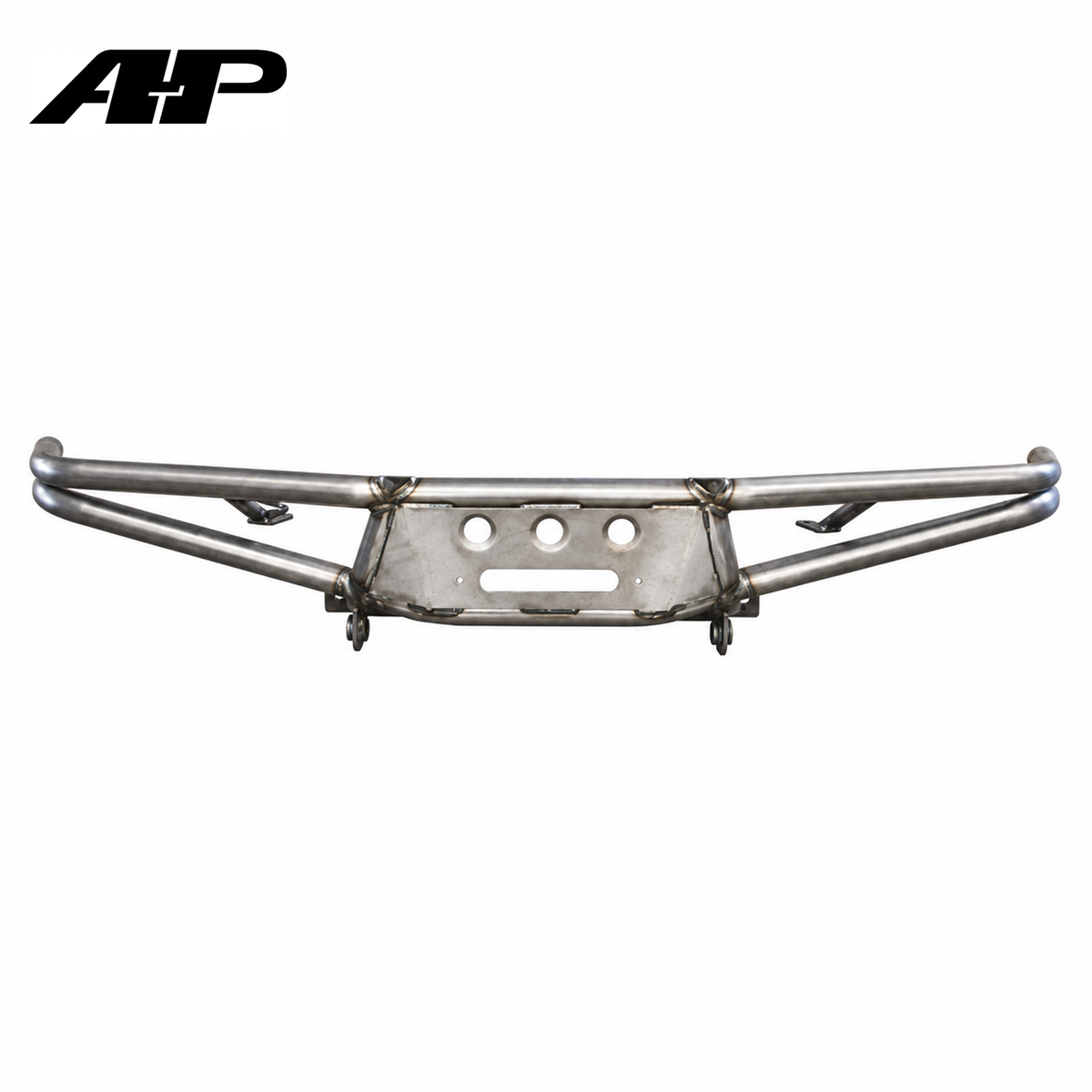

• Standard

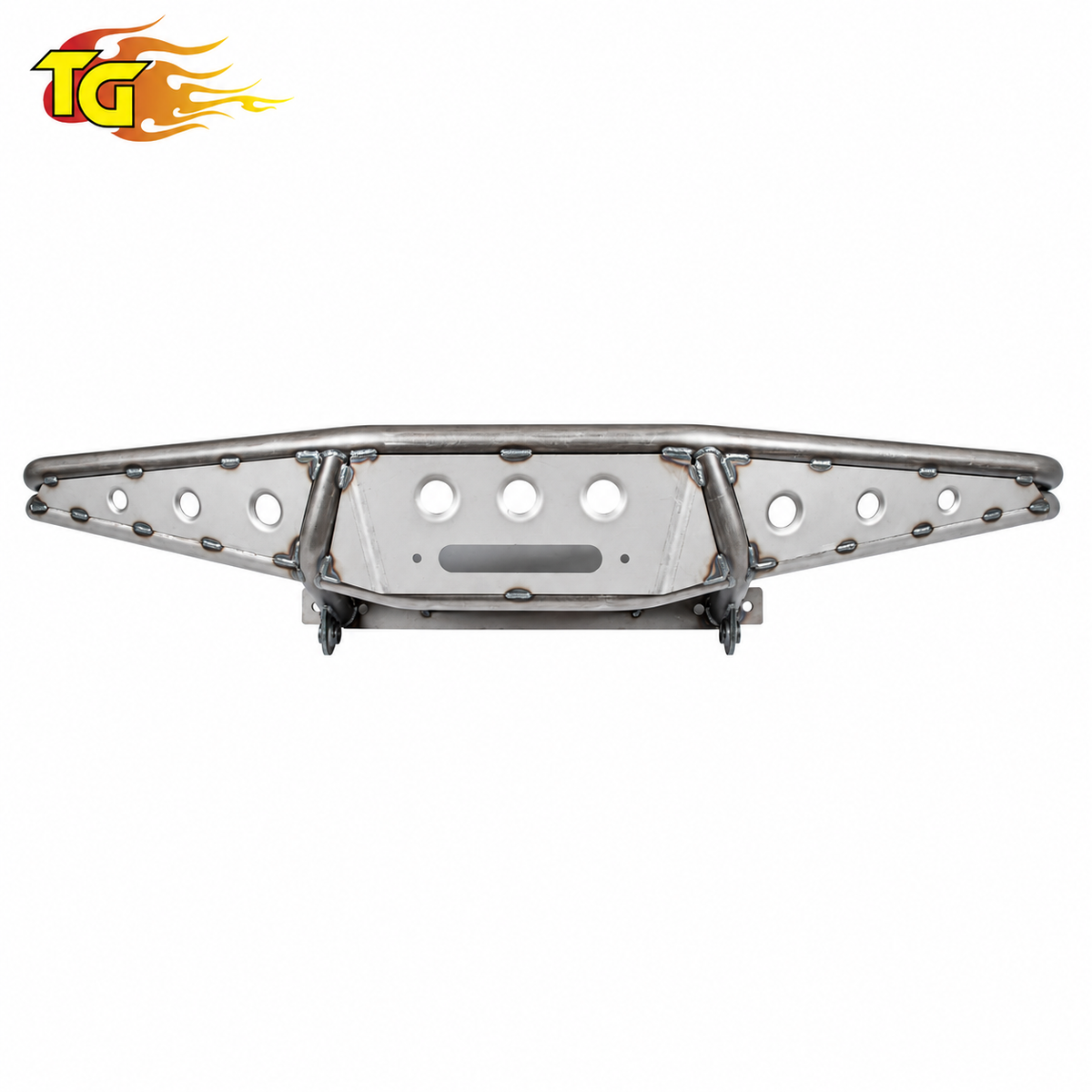

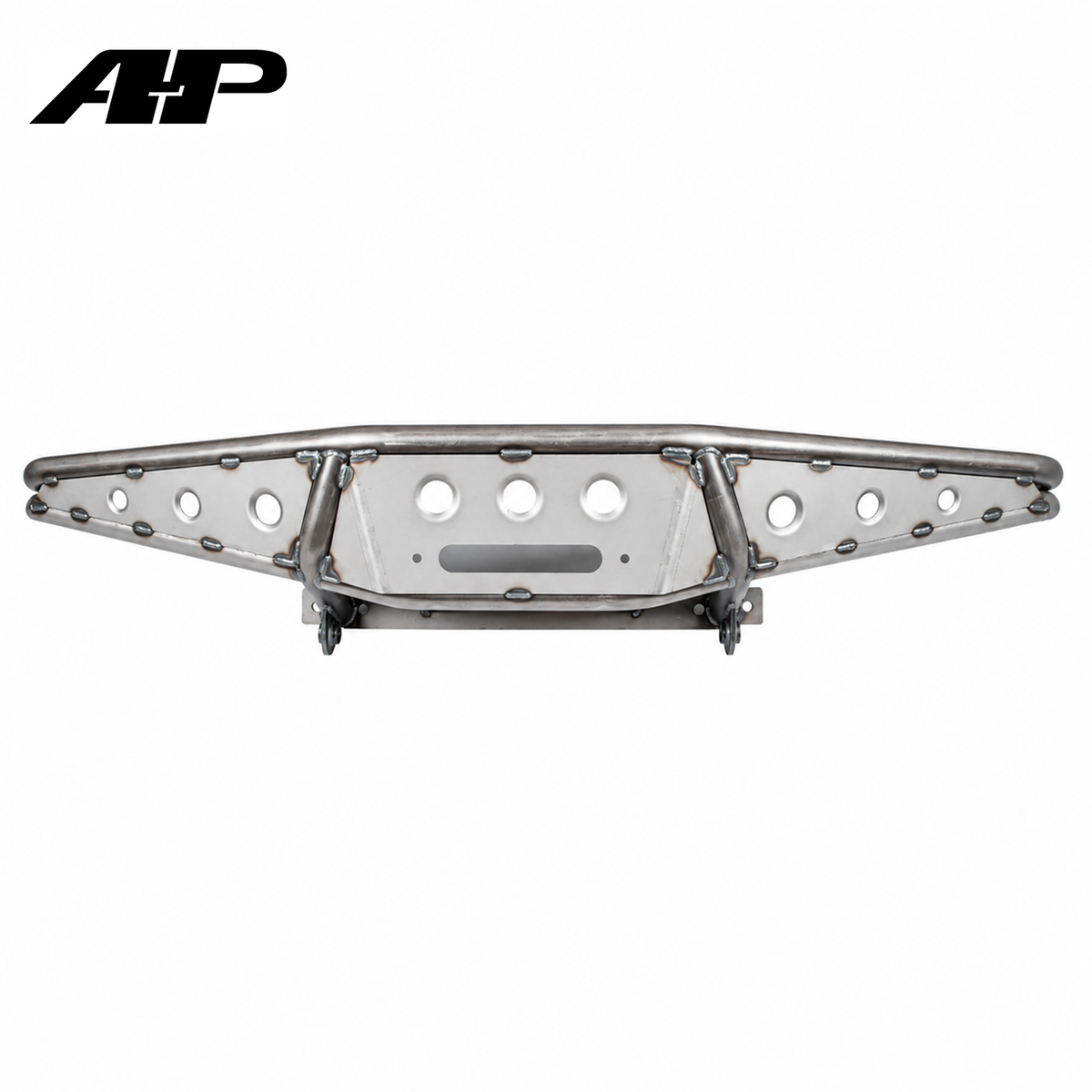

• Fill Plates

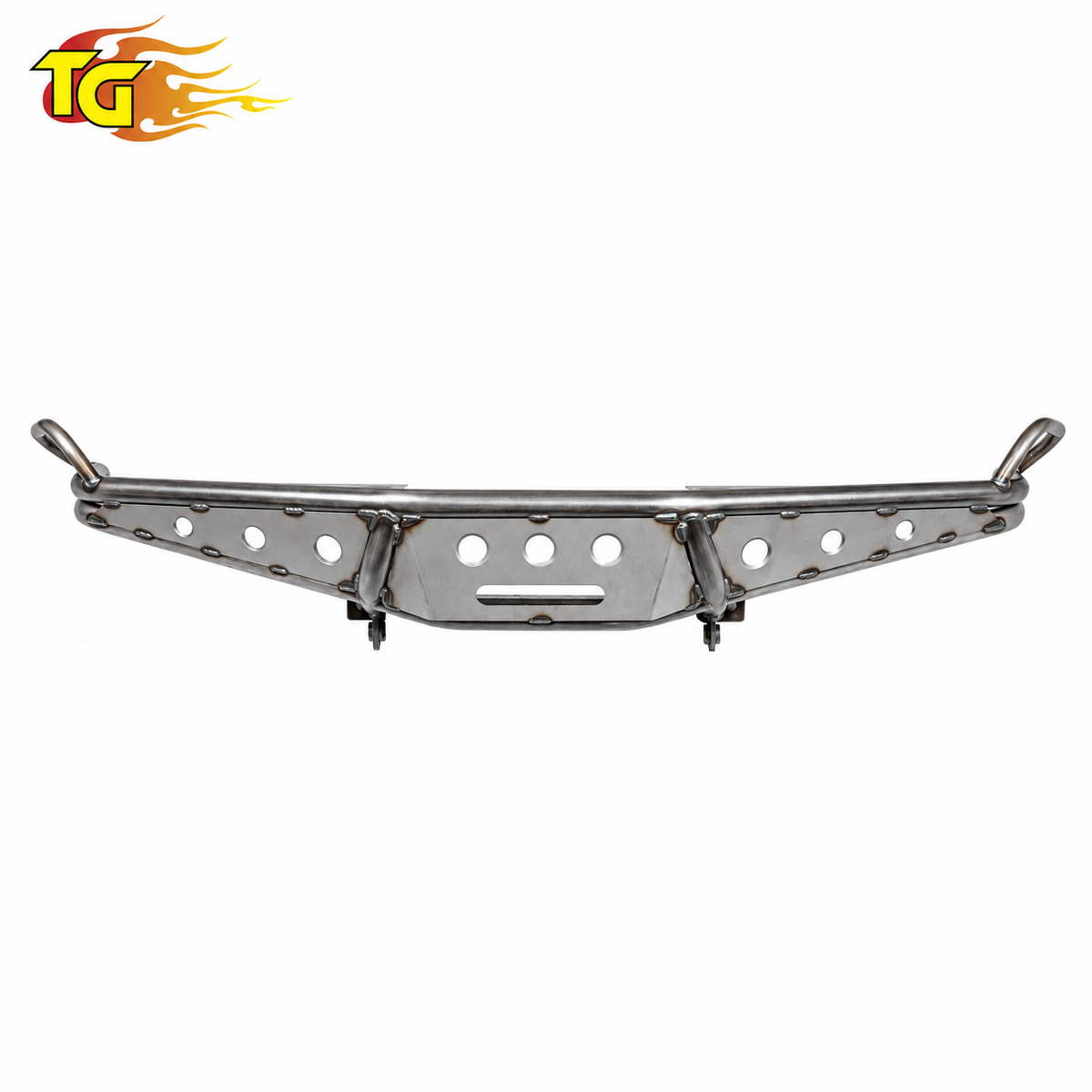

• Fill Plates + Side Handles

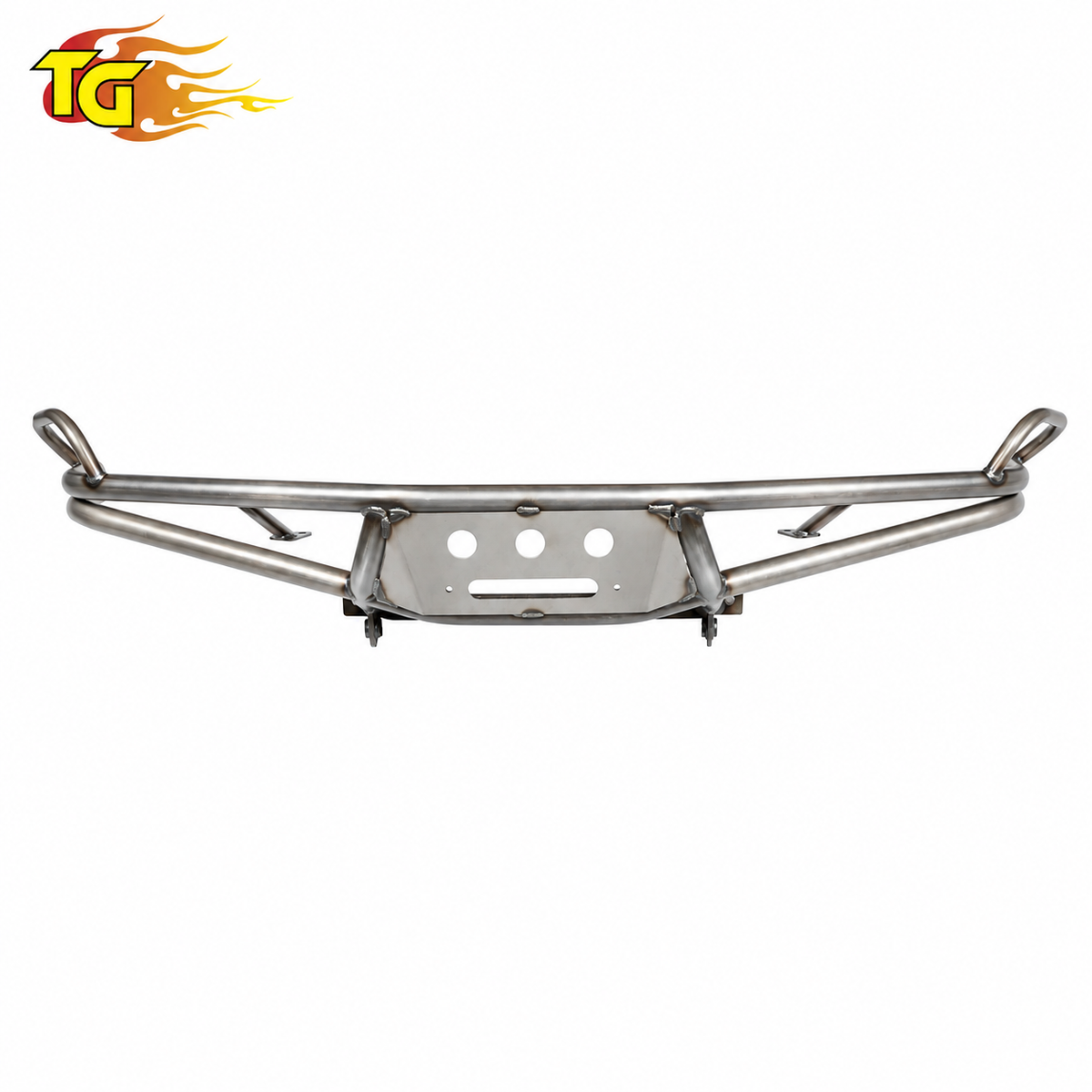

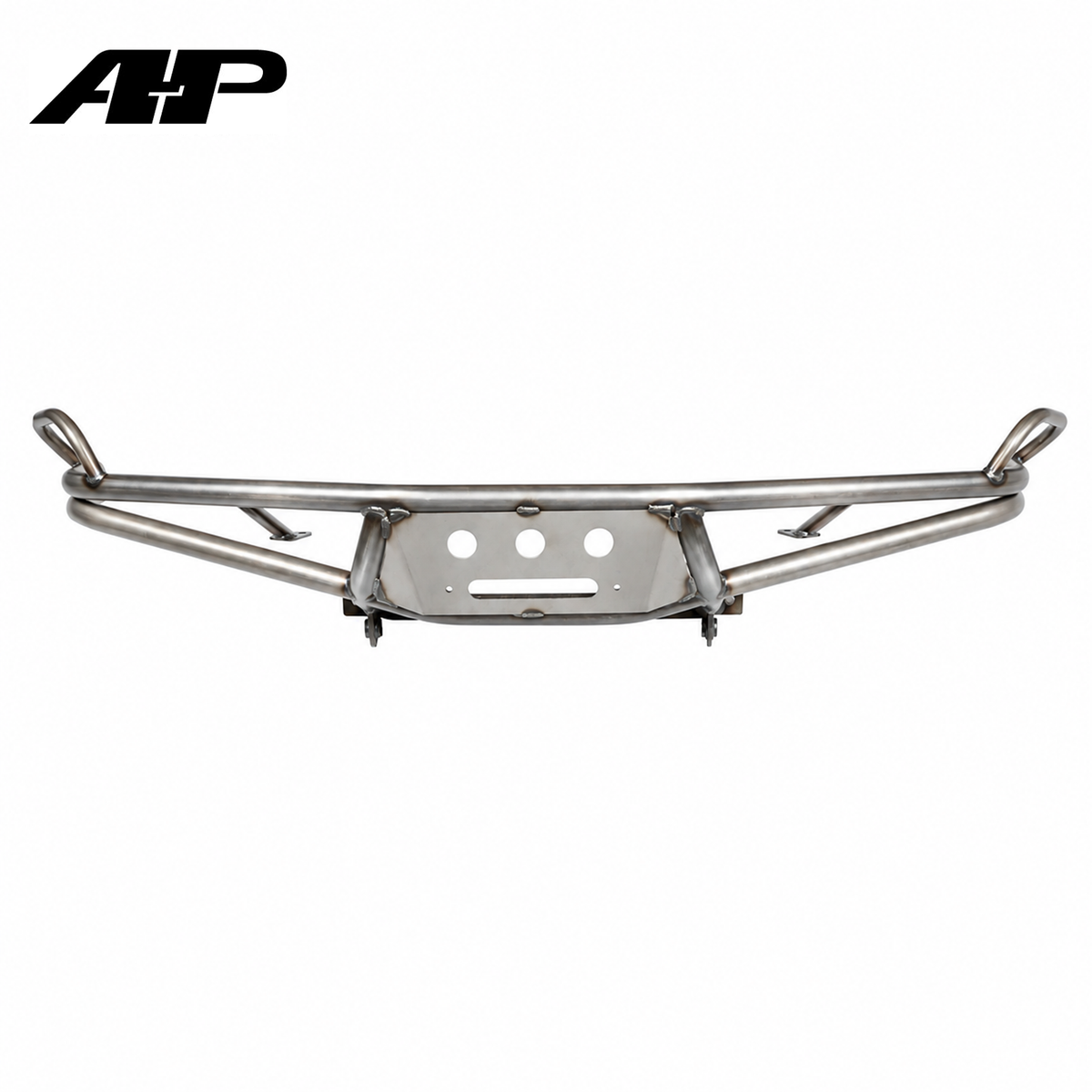

• Side Handles

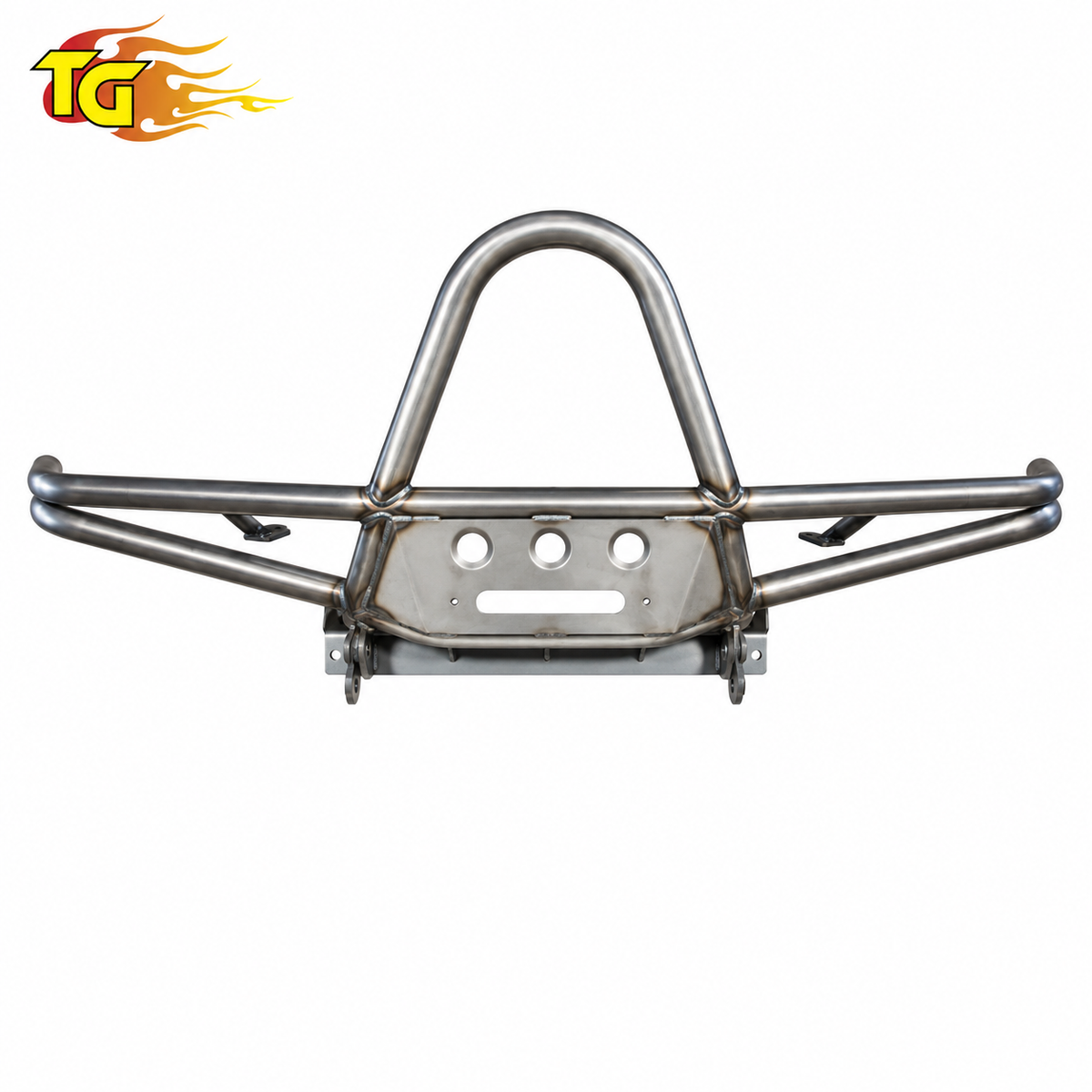

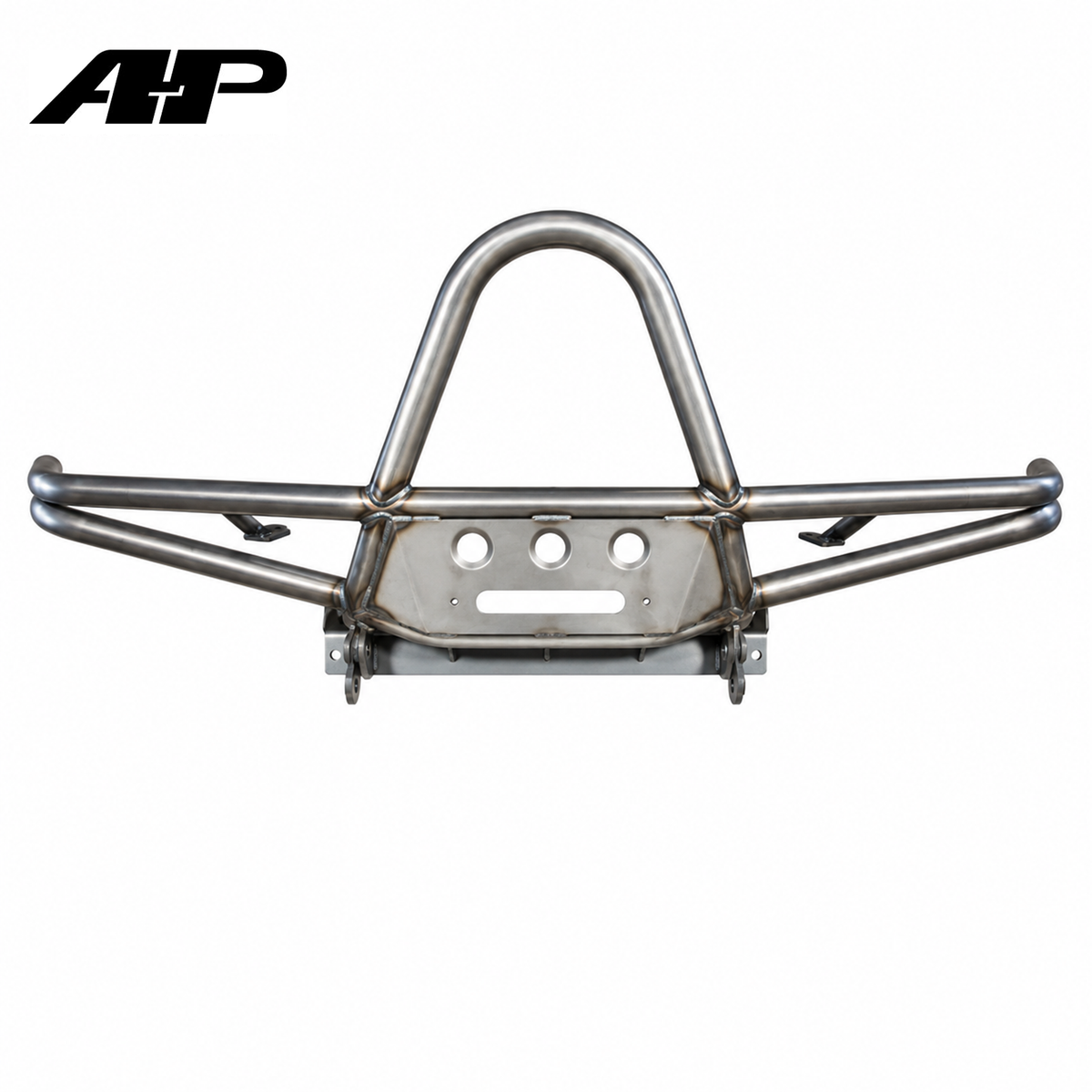

• Stinger

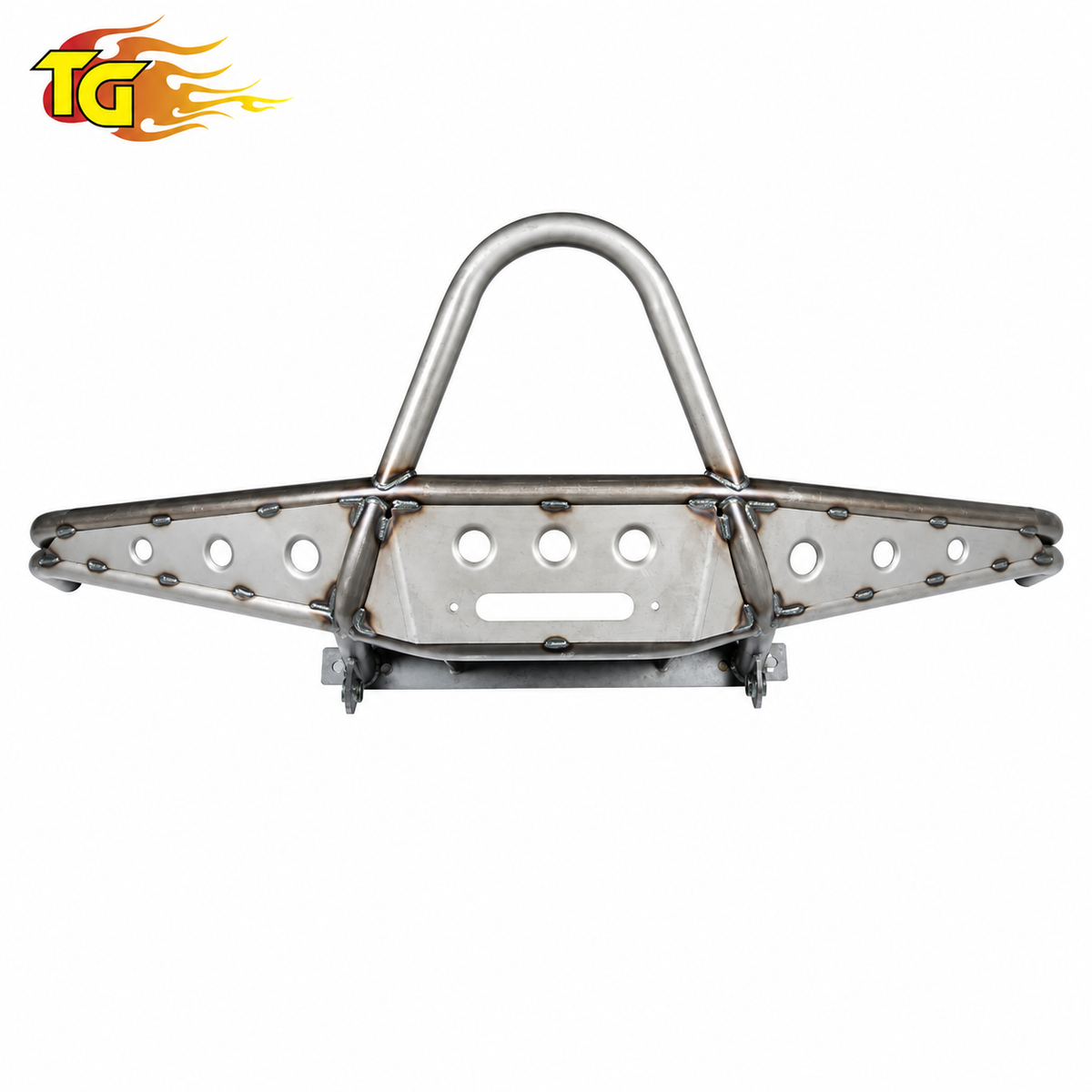

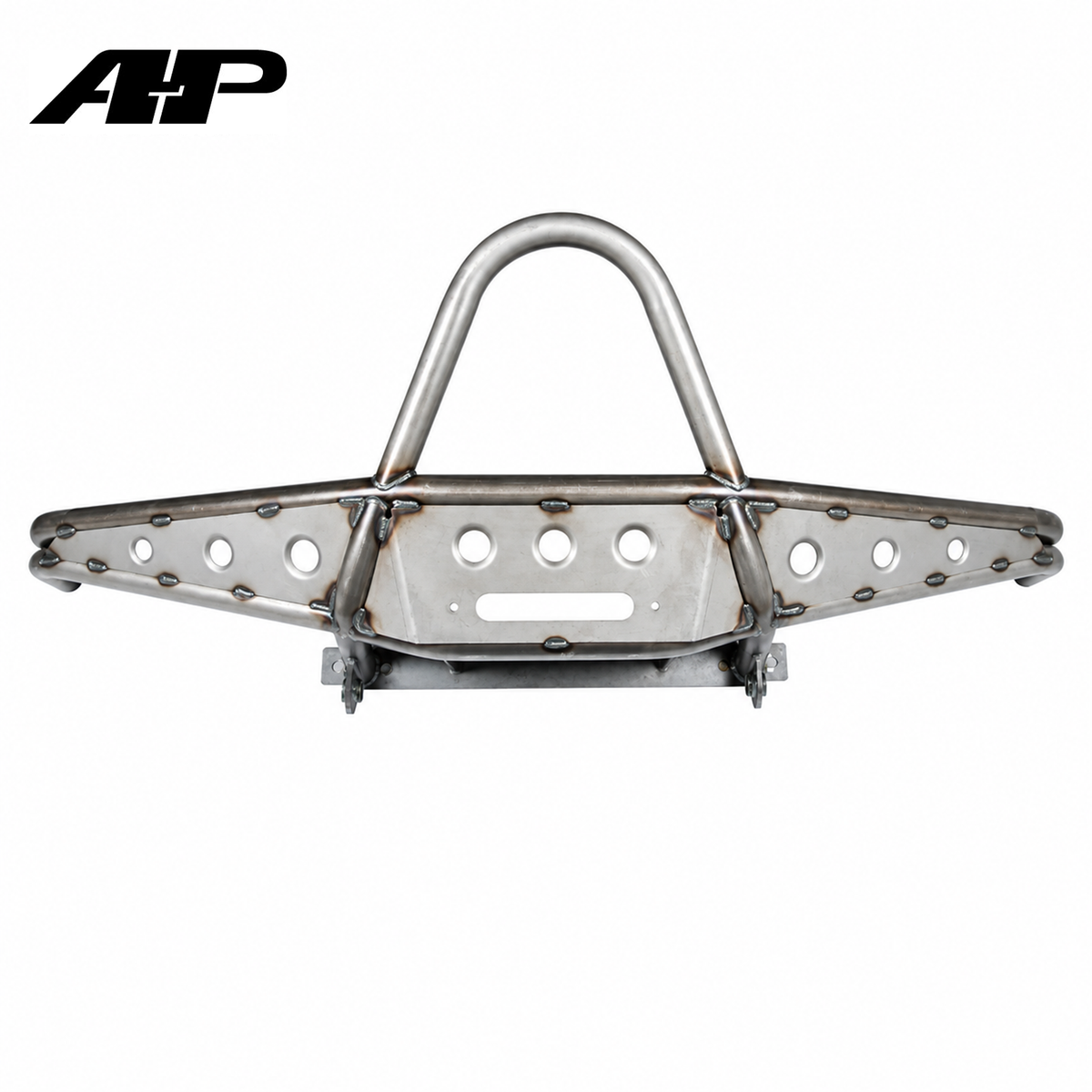

• Stinger + Fill Plates

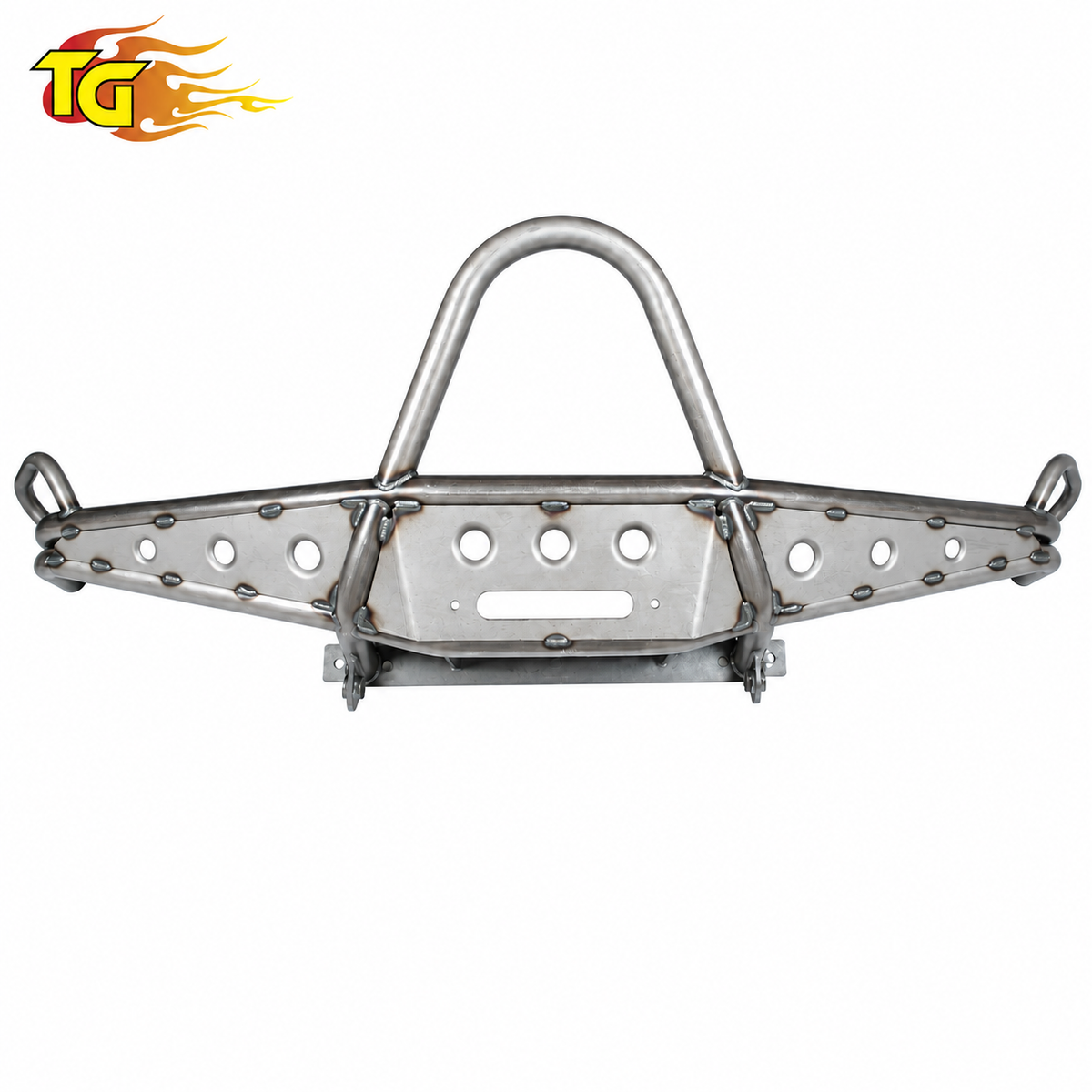

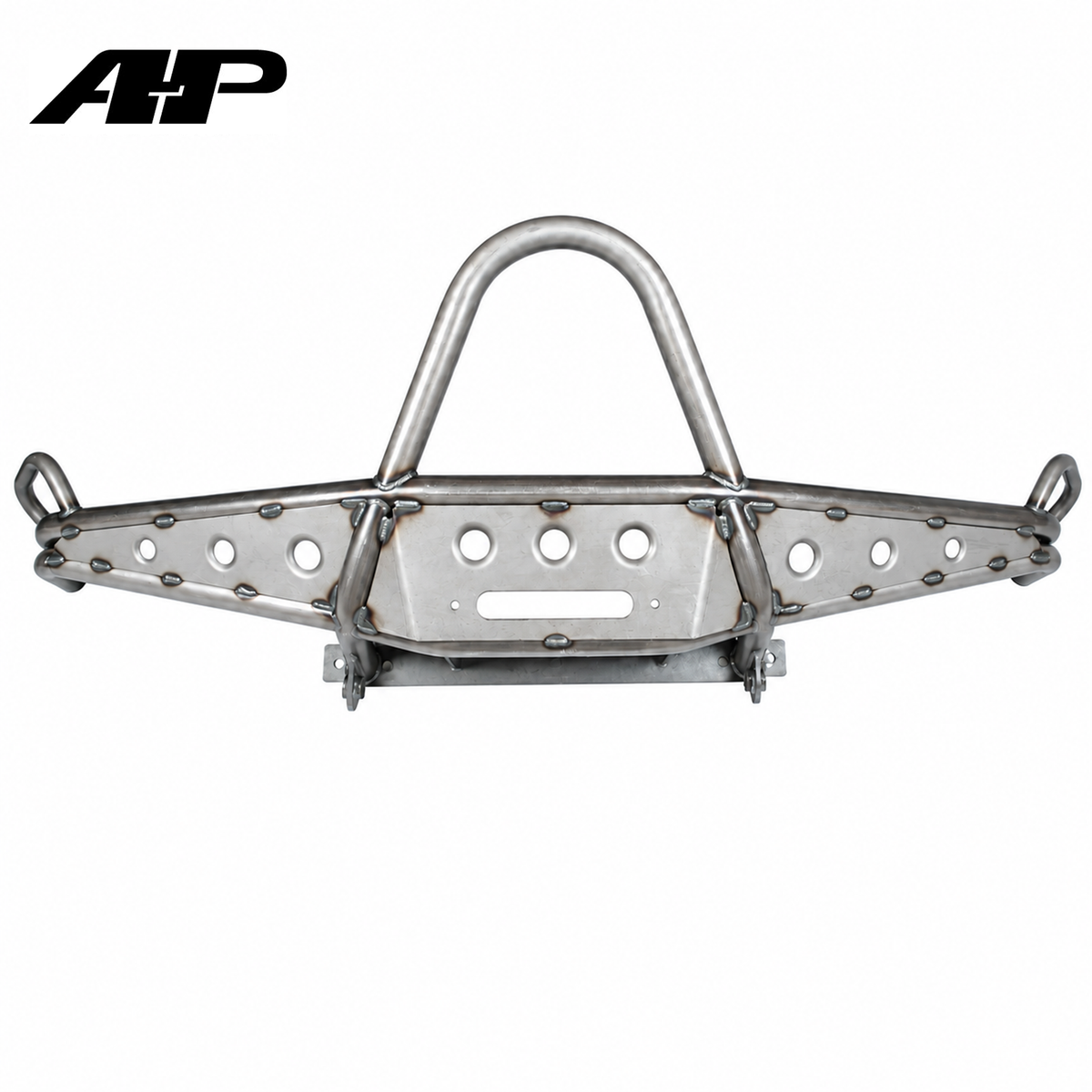

• Stinger + Fill Plates + Side Handles

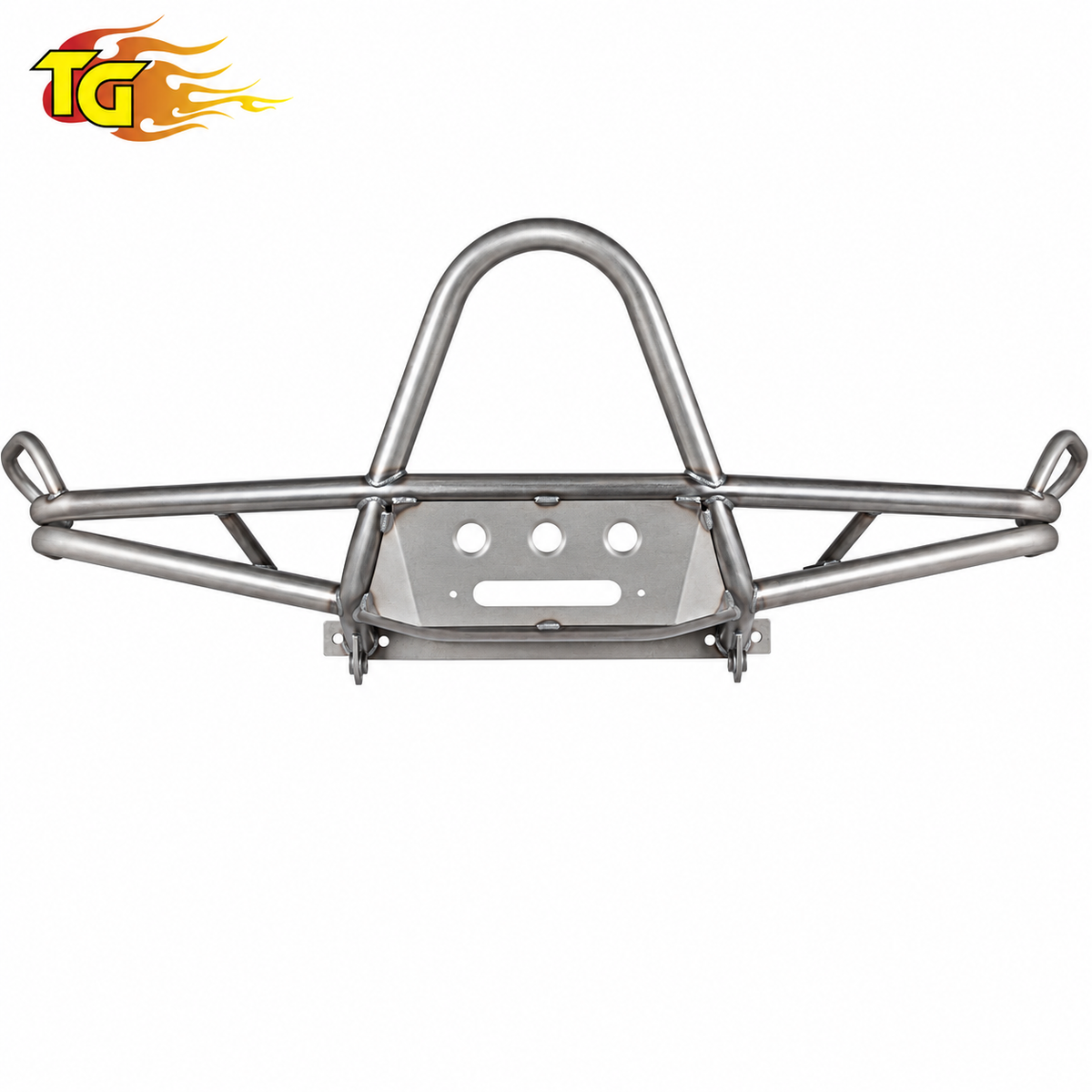

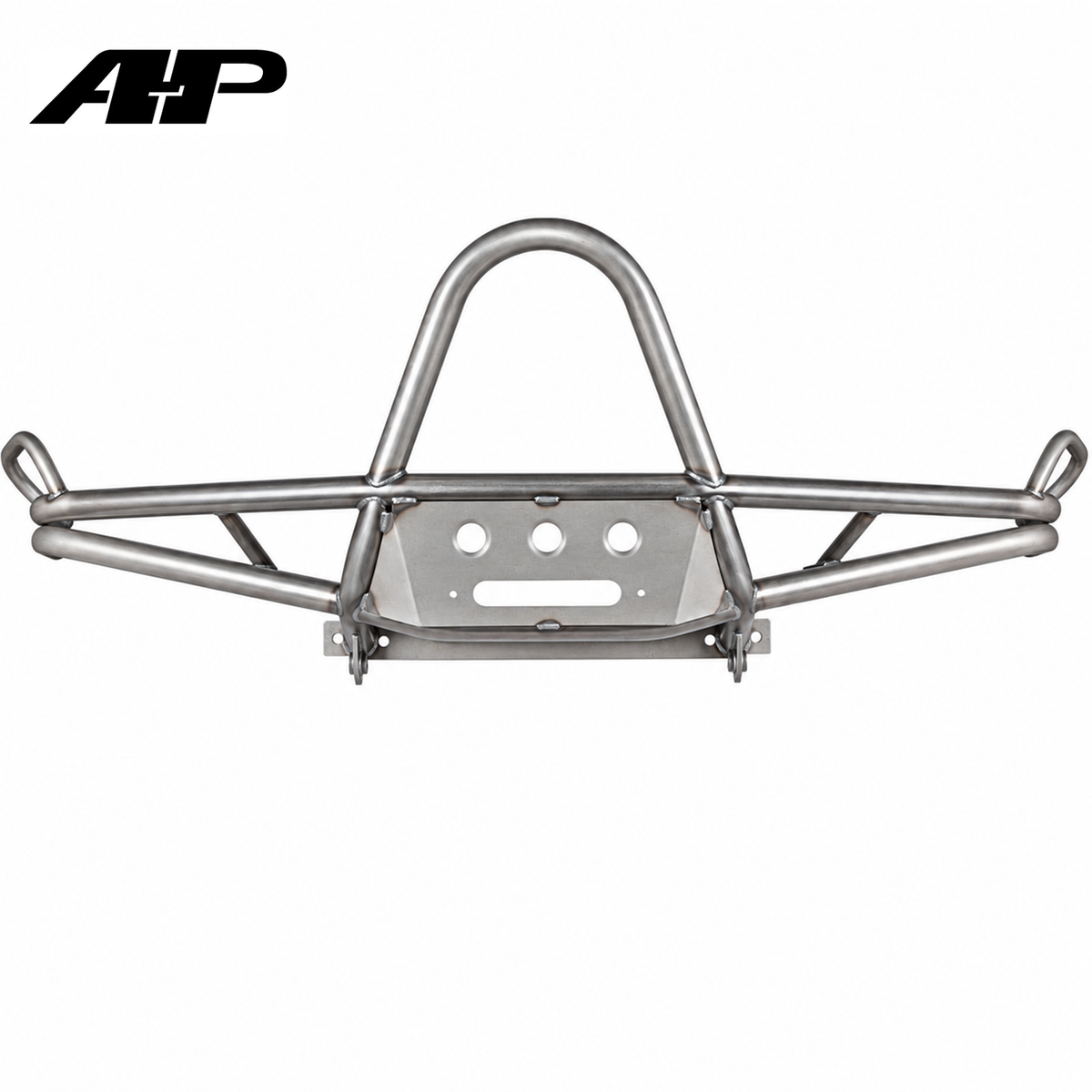

• Stinger + Side Handles

Installation Requirements

Remove the factory front bumper and install the All-Pro bumper at the factory bumper mounting locations using the supplied hardware. Final clearance should be checked after installation, especially when a winch, stinger, fill plates, or other front-end accessories are installed.
