AISIN 180°F Thermostat | 3VZ-E (1988-95 4Runner / Pickup)

$24.99
Configuration
Fitment support available
Estimate shipping before checkout

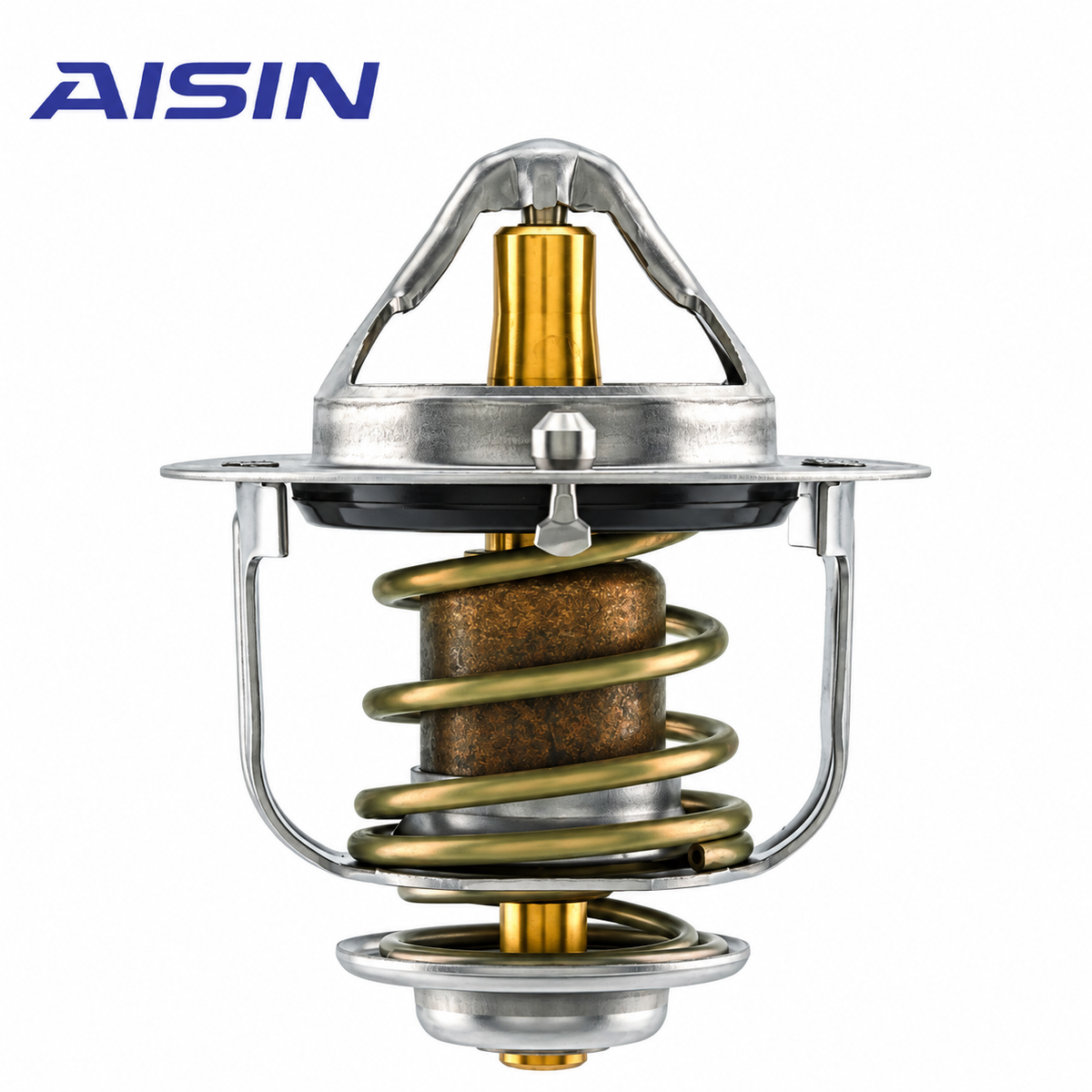

AISIN 180°F Thermostat

For 1988–1995 Toyota 4Runner and Toyota Pickup with 3VZ-E

Overview

This OE-manufacturer replacement from AISIN regulates coolant flow through the radiator as the engine warms up. It retains the original-equipment temperature rating for the Toyota 3VZ-E cooling system.

The bottom-bypass design combines the main thermostat valve with a lower bypass valve. A matching AISIN thermostat gasket is available with the thermostat as an optional configuration for cooling-system service.

Key Features

  • 82°C / 180°F nominal opening temperature
  • Wax-pellet operation with a temperature-responsive valve
  • Stainless steel and brass construction
  • Jiggle valve for air bleeding at the thermostat
  • Made in Japan
  • Matching AISIN thermostat gasket available as a bundled configuration

Vehicle Fitment

Toyota 4Runner

  • 1988–1989 Toyota 4Runner – 1st Gen – 3VZ-E
  • 1990–1995 Toyota 4Runner – 2nd Gen – 3VZ-E

Toyota Pickup

  • 1988 Toyota Pickup – 2nd Gen – 3VZ-E
  • 1989–1995 Toyota Pickup – 3rd Gen – 3VZ-E

Fitment Notes

  • U.S.-market applications. For automatic and manual transmission applications; thermostat selection does not change between the supported 2WD and 4WD configurations.
  • Does not fit 22R, 22RE, or 22R-TE applications.
  • For an engine-swapped vehicle, select the thermostat for the installed engine and water-inlet assembly rather than chassis year alone.
  • Install with a new thermostat gasket and position the jiggle valve upward in the water inlet.

Product Specifications

Brand: AISIN
Part Type: Engine coolant thermostat
Engine: Toyota 3VZ-E, 3.0L V6
Opening Temperature: 82°C / 180°F
Sealing Flange Outside Diameter: 52 mm
Bypass Flange Diameter: 28 mm
Flange Height: 33 mm
Thermostat Gasket: Optional by configuration
Condition: New

Available Configurations

Thermostat Only

Includes:

  • (1) AISIN 180°F engine coolant thermostat

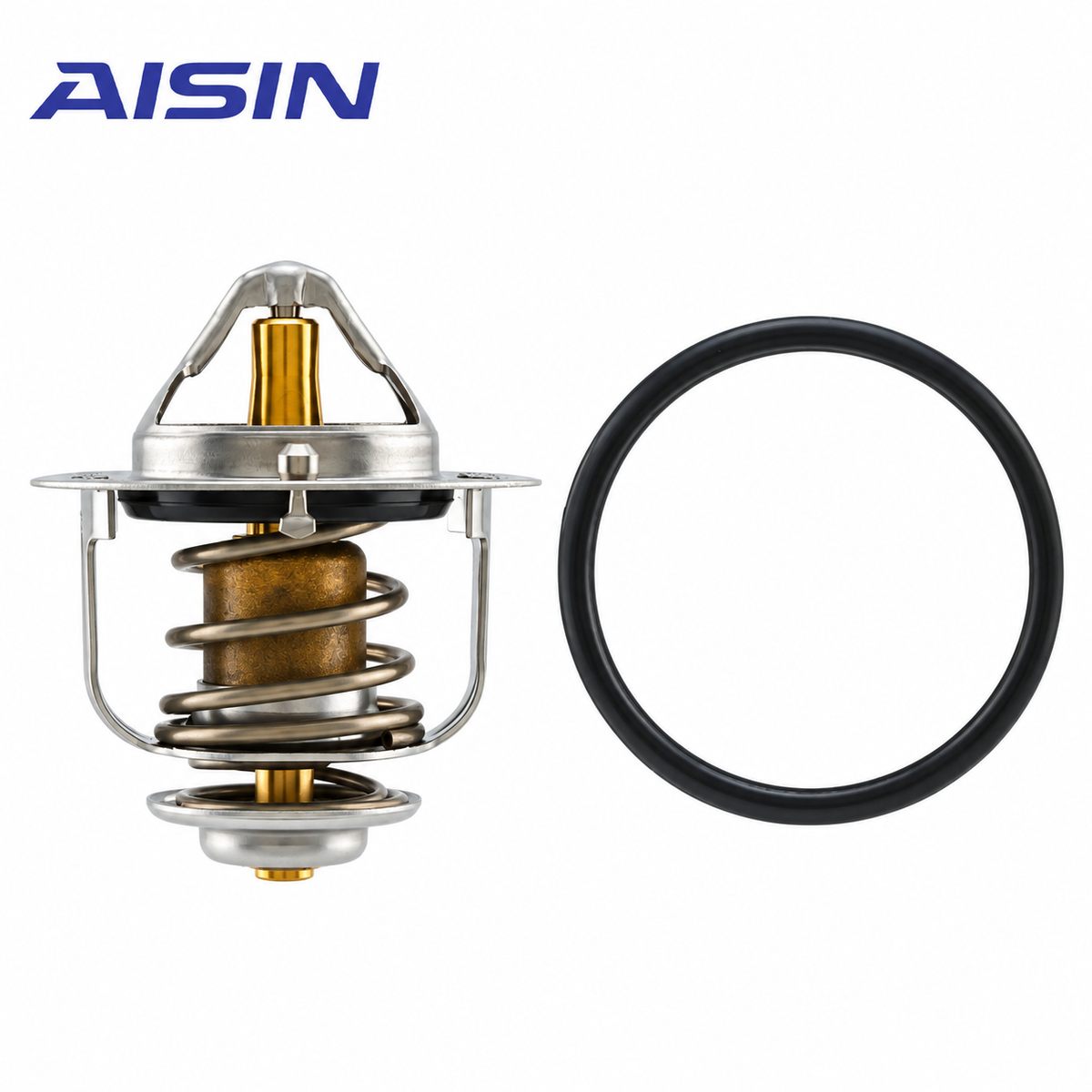

Thermostat + AISIN Thermostat Gasket

Includes:

  • (1) AISIN 180°F engine coolant thermostat
  • (1) AISIN thermostat gasket
