AISIN 190°F Thermostat | 22R / 22RE / 22R-TE (1984-95 4Runner / 1981-95 Pickup)

AISIN Thermostat

For 1984–1995 Toyota 4Runner and 1981–1995 Toyota Pickup with 22R, 22RE, or 22R-TE engines

Overview

This AISIN 190°F thermostat is a direct cooling-system service replacement for Toyota R-series four-cylinder applications. Its 88°C start-to-open temperature matches the standard-temperature thermostat specification used across the listed 22R, 22RE, and 22R-TE applications.

The standard mechanical design includes a jiggle-pin check valve to support air bleeding during cooling-system service. Matching AISIN thermostat gaskets are available as optional configurations, with the correct gasket selected by production range.

Key Features

• 190°F / 88°C start-to-open temperature
• Standard mechanical thermostat design
• Jiggle-pin check valve
• 52 mm sealing flange outside diameter
• 26 mm flange height
• Brass and stainless-steel construction
• Made in Japan

Vehicle Fitment

Toyota 4Runner

• 1984 Toyota 4Runner – 1st Gen – 22R
• 1985–1989 Toyota 4Runner – 1st Gen – 22R / 22RE / 22R-TE, as factory equipped
• 1990–1995 Toyota 4Runner – 2nd Gen – 22RE

Toyota Pickup

• 1981–1983 Toyota Pickup – 1st Gen – 22R
• 1984–1988 Toyota Pickup – 2nd Gen – 22R / 22RE / 22R-TE, as factory equipped
• 1989–1990 Toyota Pickup – 3rd Gen – 22R / 22RE, as factory equipped
• 1991–1995 Toyota Pickup – 3rd Gen – 22RE

Fitment Notes

• For 22R, 22RE, and 22R-TE gasoline engines only.
• Does not fit 3VZ-E V6 applications.
• Fits manual- and automatic-transmission applications within the listed engine and year coverage.
• Fits 2WD and 4WD Pickup applications within the listed engine and year coverage.
• 1982 Toyota Pickup: gasket selection changes at the 08/1982 production break. Check the vehicle production date before selecting a gasket-equipped configuration.
• On engine-swapped vehicles, match the thermostat to the installed engine and cooling-system configuration.

For a matching cooling-system service part, see the AISIN water pump for Toyota R-series engines.

Product Specifications

Brand: AISIN
Product Type: Cooling
Component Type: Thermostat
Opening Temperature: 190°F / 88°C
Sealing Flange Outside Diameter: 52 mm
Flange Height: 26 mm
Jiggle Pin: Yes
Material: Brass / Stainless Steel
Thermostat Gasket: Optional by configuration
Country of Origin: Japan
Condition: New

Available Configurations

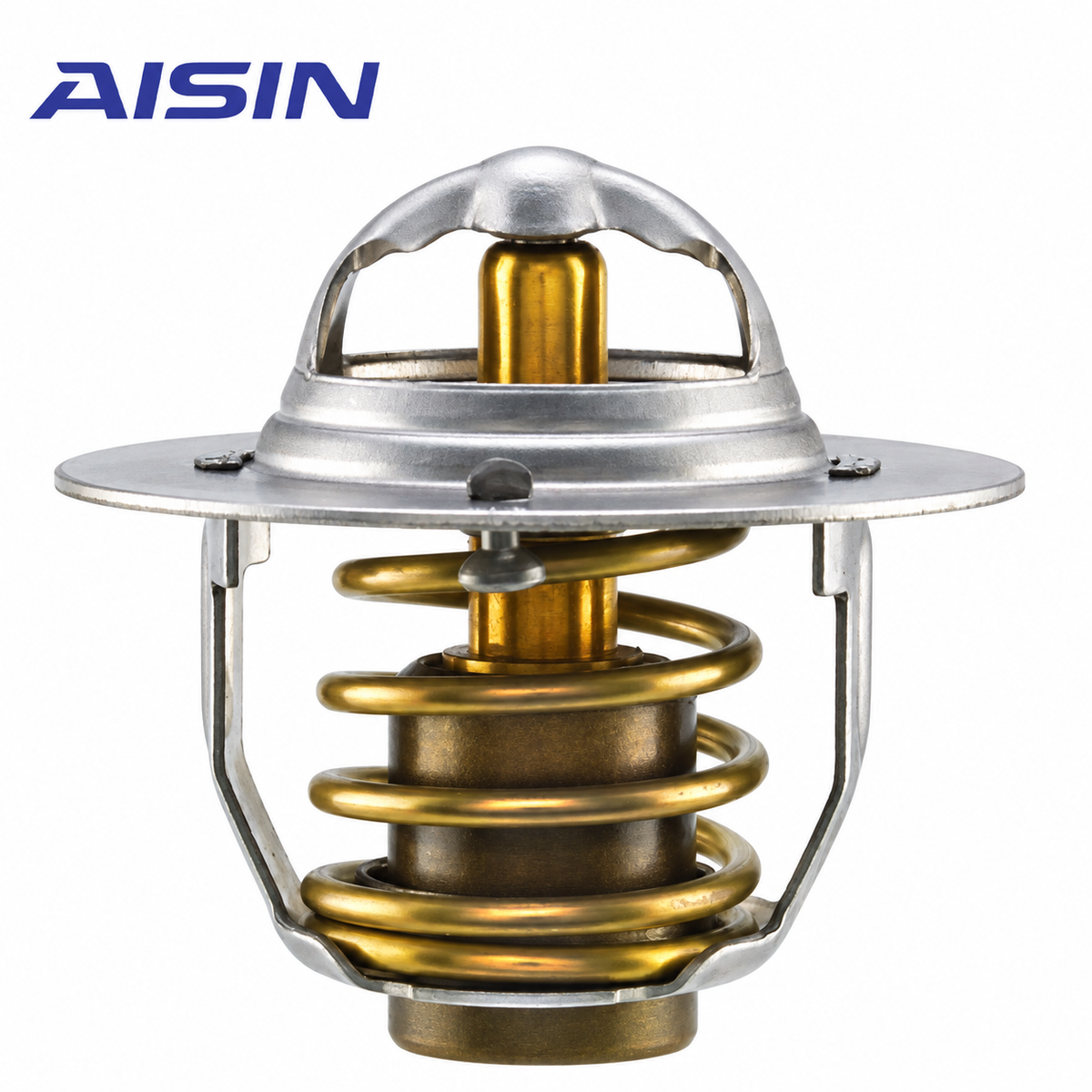

Thermostat Only

Includes:

• (1) AISIN engine coolant thermostat

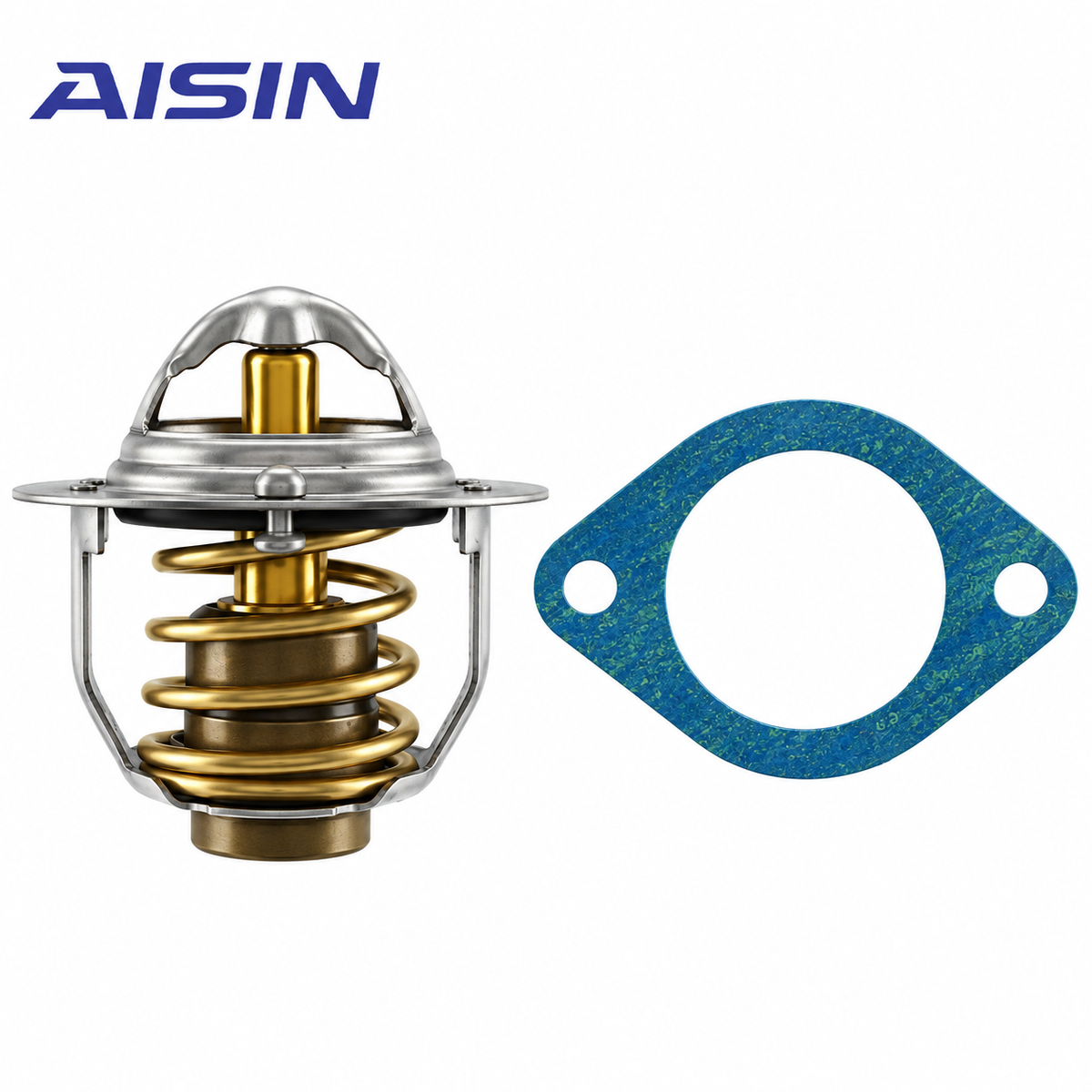

Thermostat + AISIN Thermostat Gasket | 1981–07/1982 Production Pickup

Includes:

• (1) AISIN engine coolant thermostat
• (1) AISIN thermostat gasket for the early water-outlet configuration

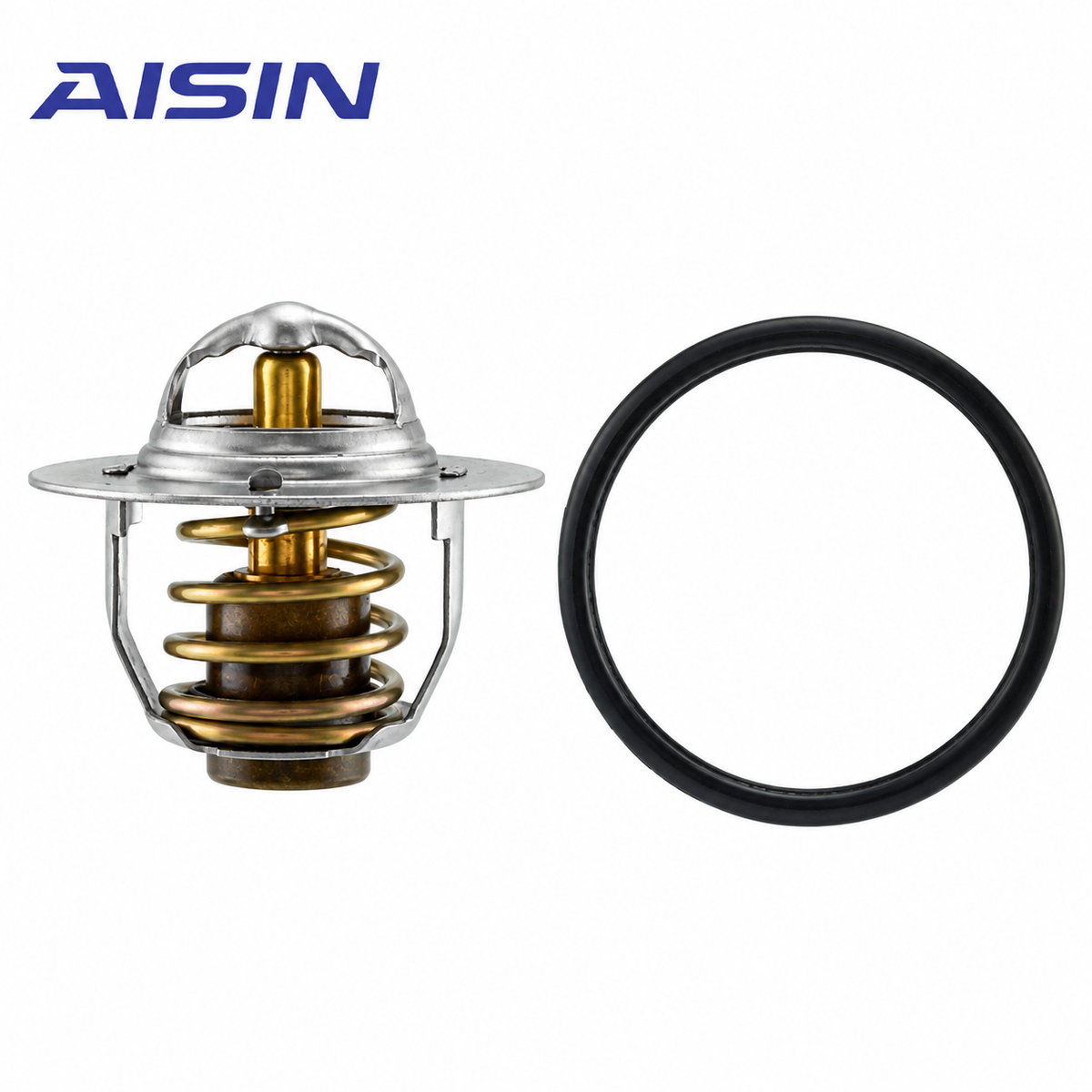

Thermostat + AISIN Thermostat Gasket | 1984–1995 4Runner & 08/1982–1995 Pickup

Includes:

• (1) AISIN engine coolant thermostat
• (1) AISIN thermostat gasket for the later water-outlet configuration
