AISIN Manual Locking Hub | 4WD (1984-95 4Runner / 1979-95 Pickup)

AISIN Manual Locking Hub

For 1984–1995 Toyota 4Runner 4WD and 1979–1995 Toyota Pickup 4WD

Overview

The AISIN Manual Locking Hub restores factory-style manual FREE / LOCK operation at the front wheels of classic Toyota 4WD trucks and SUVs. Locking the hubs mechanically connects the front wheels to the front axle shafts for four-wheel-drive operation; setting them to FREE disengages that connection for normal two-wheel-drive driving.

Two axle-specific fitments cover factory solid-front-axle and factory IFS vehicles. Choose the fitment that matches the vehicle's front axle configuration, then select a Single hub or a Pair (Complete Front Set).

Key Features

• Manual FREE / LOCK operation for direct front-hub engagement and disengagement
• Two axle-specific fitments covering factory solid-front-axle and IFS Toyota 4WD vehicles
• 30-spline solid-axle configuration for 1979–1985 applications listed below
• 26-spline IFS configuration for 1986–1995 applications listed below
• Front application for Toyota Pickup and 4Runner 4WD models
• Available as a Single hub or Pair (Complete Front Set)

Manual Hub Operation

Set both front hubs to LOCK before using four-wheel drive. Set both hubs to FREE when the front axle does not need to be mechanically coupled to the front wheels.

Vehicle Fitment

1979–1985 Solid Axle

• 1984–1985 Toyota 4Runner – 1st Gen – 4WD – Factory Solid Front Axle – Front
• 1979–1983 Toyota Pickup – 1st Gen – 4WD – Factory Solid Front Axle – Front
• 1984–1985 Toyota Pickup – 2nd Gen – 4WD – Factory Solid Front Axle – Front

1986–1995 IFS

• 1986–1989 Toyota 4Runner – 1st Gen – 4WD – IFS – Front
• 1990–1995 Toyota 4Runner – 2nd Gen – 4WD – IFS – Front
• 1986–1988 Toyota Pickup – 2nd Gen – 4WD – IFS – Front
• 1989–1995 Toyota Pickup – 3rd Gen – 4WD – IFS – Front

Fitment Notes

• 4WD models only.
• Front application only.
• The 1979–1985 solid-axle fitment uses a 30-spline hub.
• The 1986–1995 IFS fitment uses a 26-spline hub.
• Vehicles with axle swaps or hub conversions must be matched to the installed front axle and spline configuration.

Product Specifications

Brand: AISIN
Product Type: Manual Locking Hub
Position: Front
Drivetrain: 4WD
Operation: Manual FREE / LOCK
Solid-Axle Spline Count: 30
IFS Spline Count: 26
Quantity Options: Single / Pair (Complete Front Set)

Available Configurations

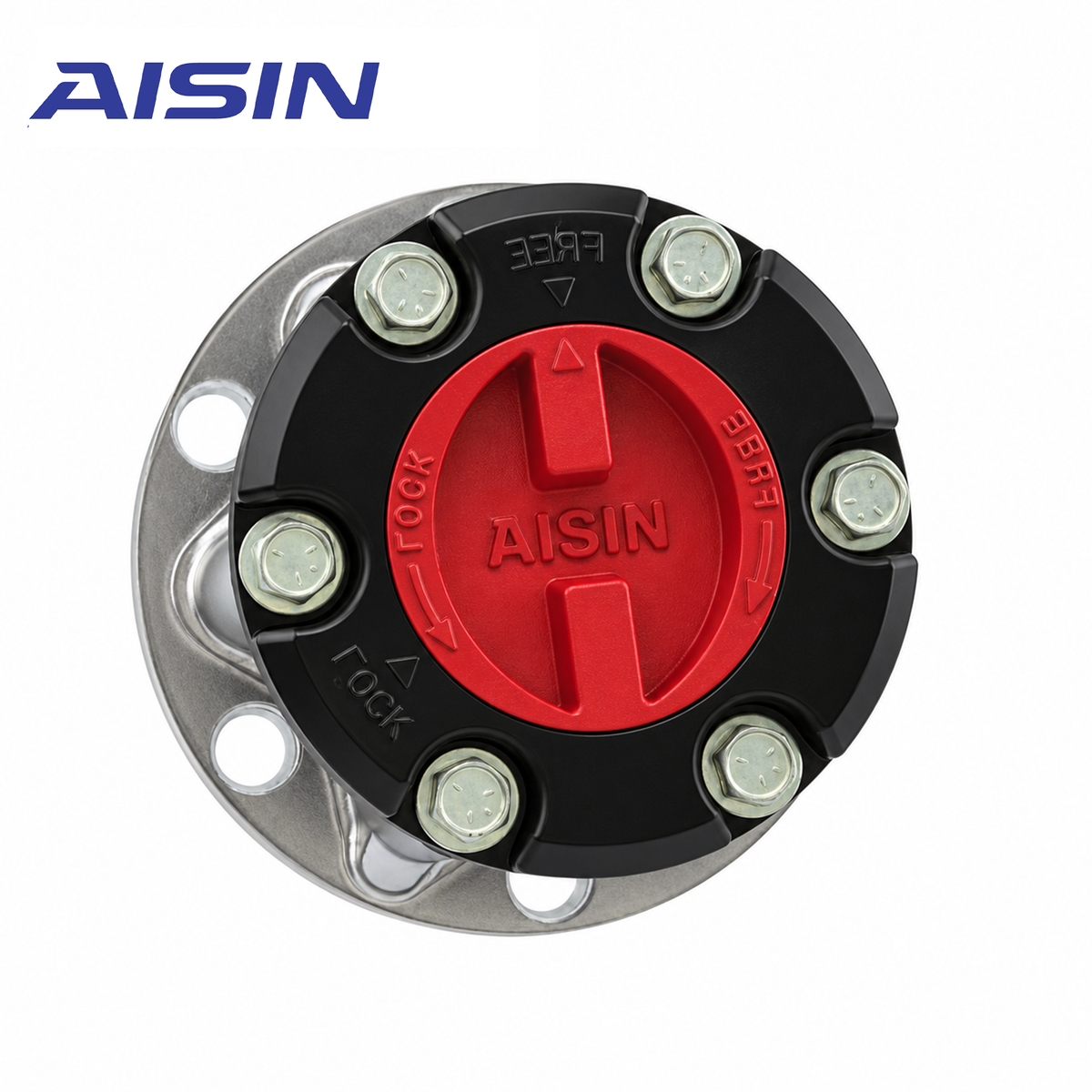

1979–1985 Solid Axle — Single

• Includes one 30-spline manual locking hub for one front wheel.

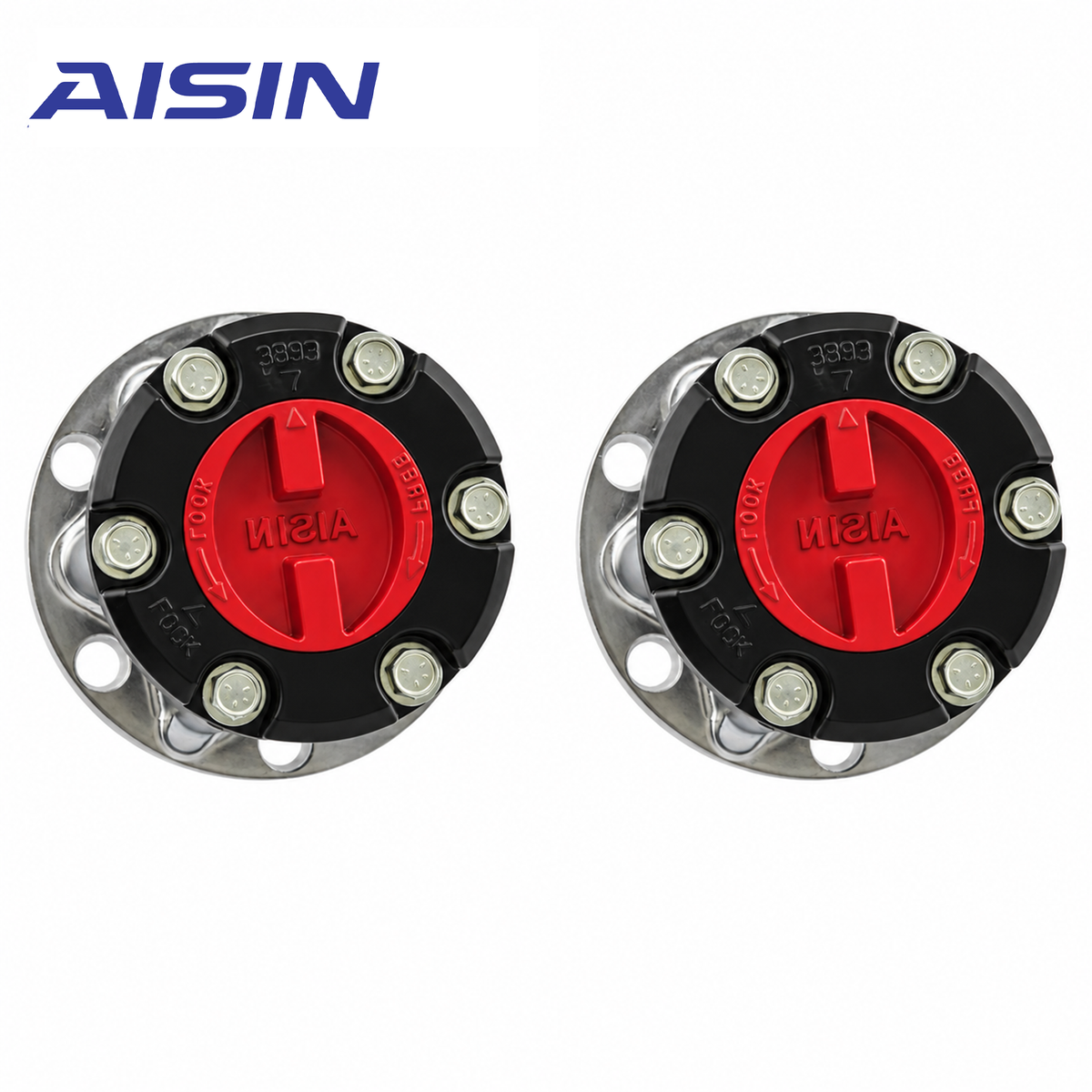

1979–1985 Solid Axle — Pair (Complete Front Set)

• Includes two matching 30-spline manual locking hubs for the driver- and passenger-side front wheels.

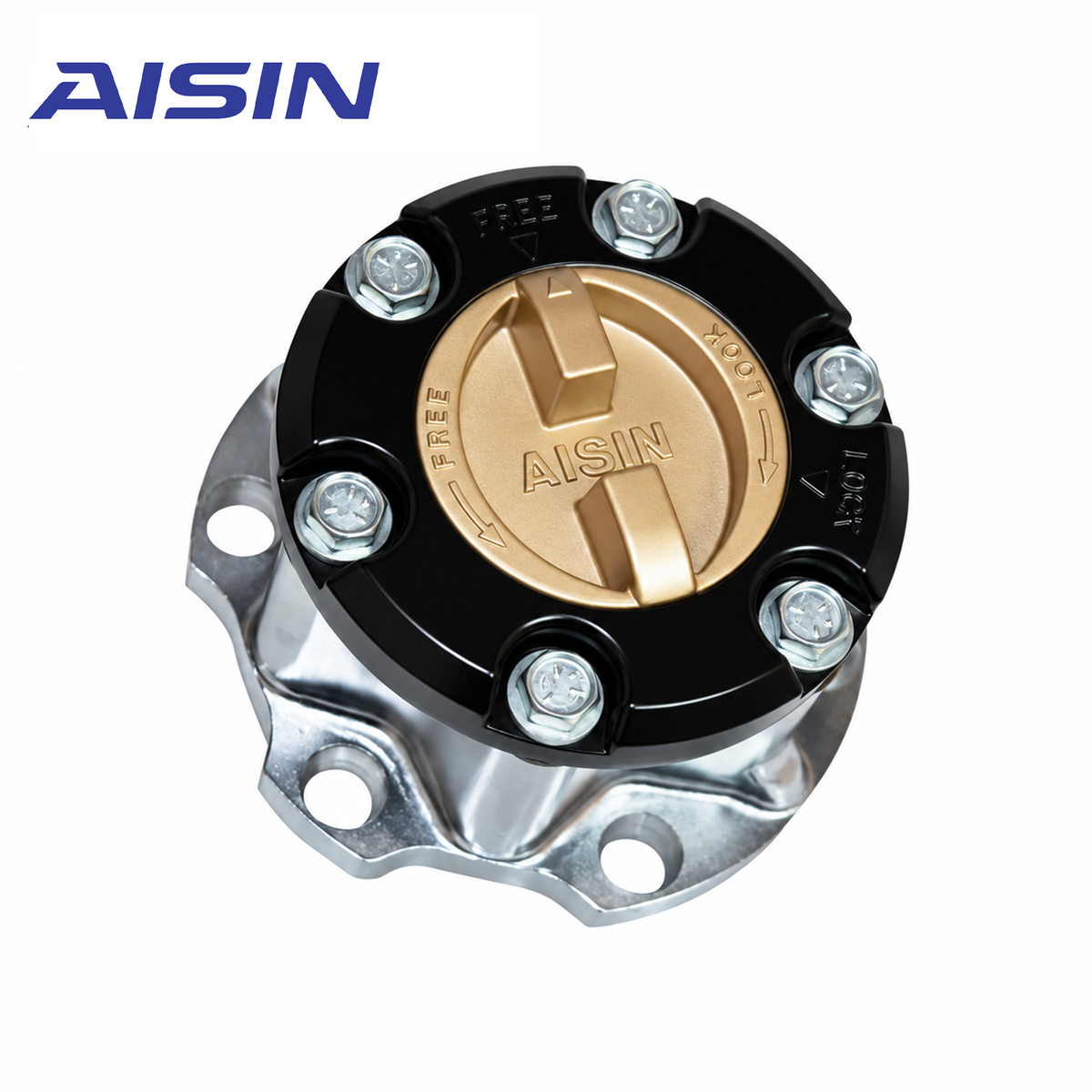

1986–1995 IFS — Single

• Includes one 26-spline manual locking hub for one front wheel.

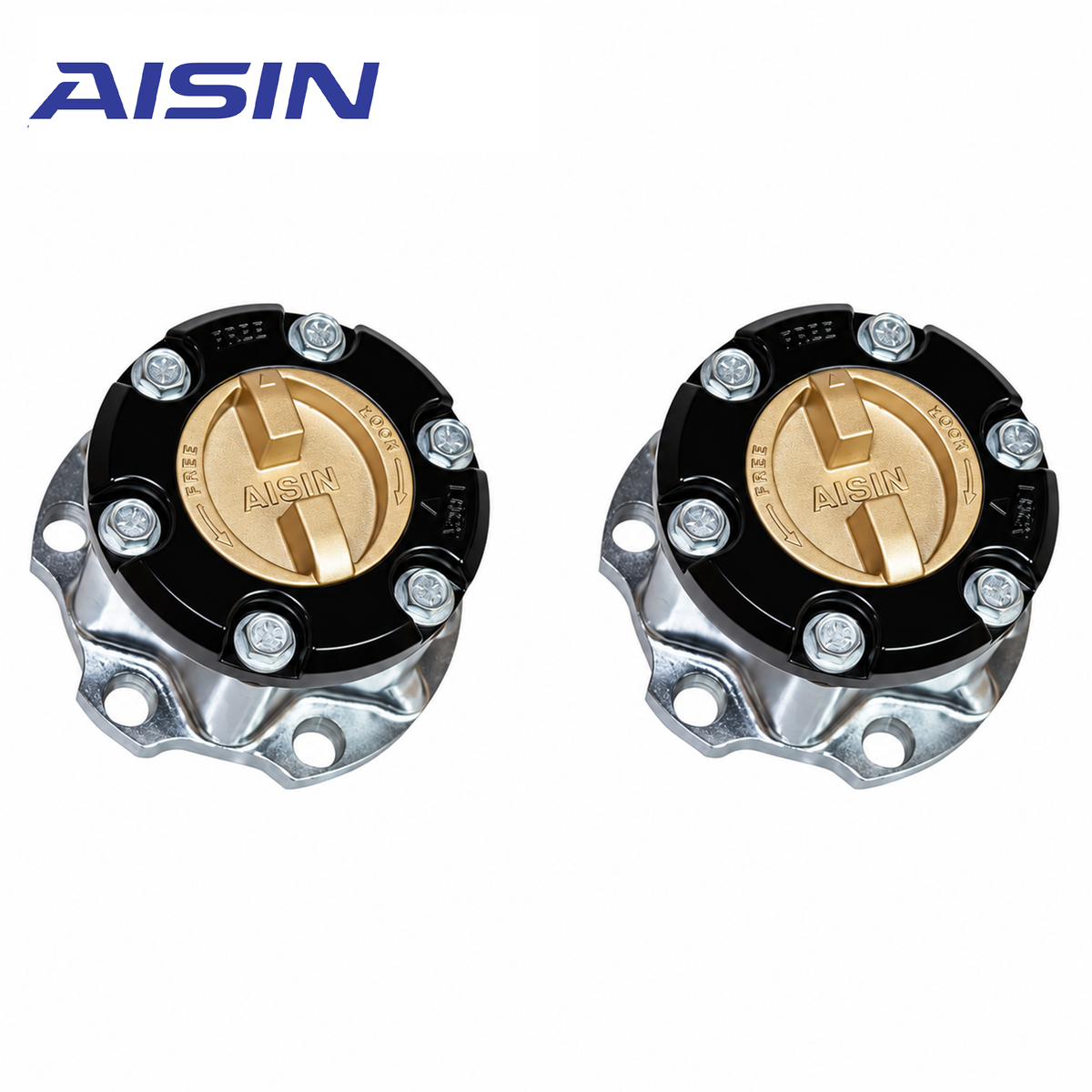

1986–1995 IFS — Pair (Complete Front Set)

• Includes two matching 26-spline manual locking hubs for the driver- and passenger-side front wheels.
