AISIN Cooling Fan Clutch | Manual 20R / 22R / 22RE (1984 4Runner / 1979, 1984-92 Pickup)

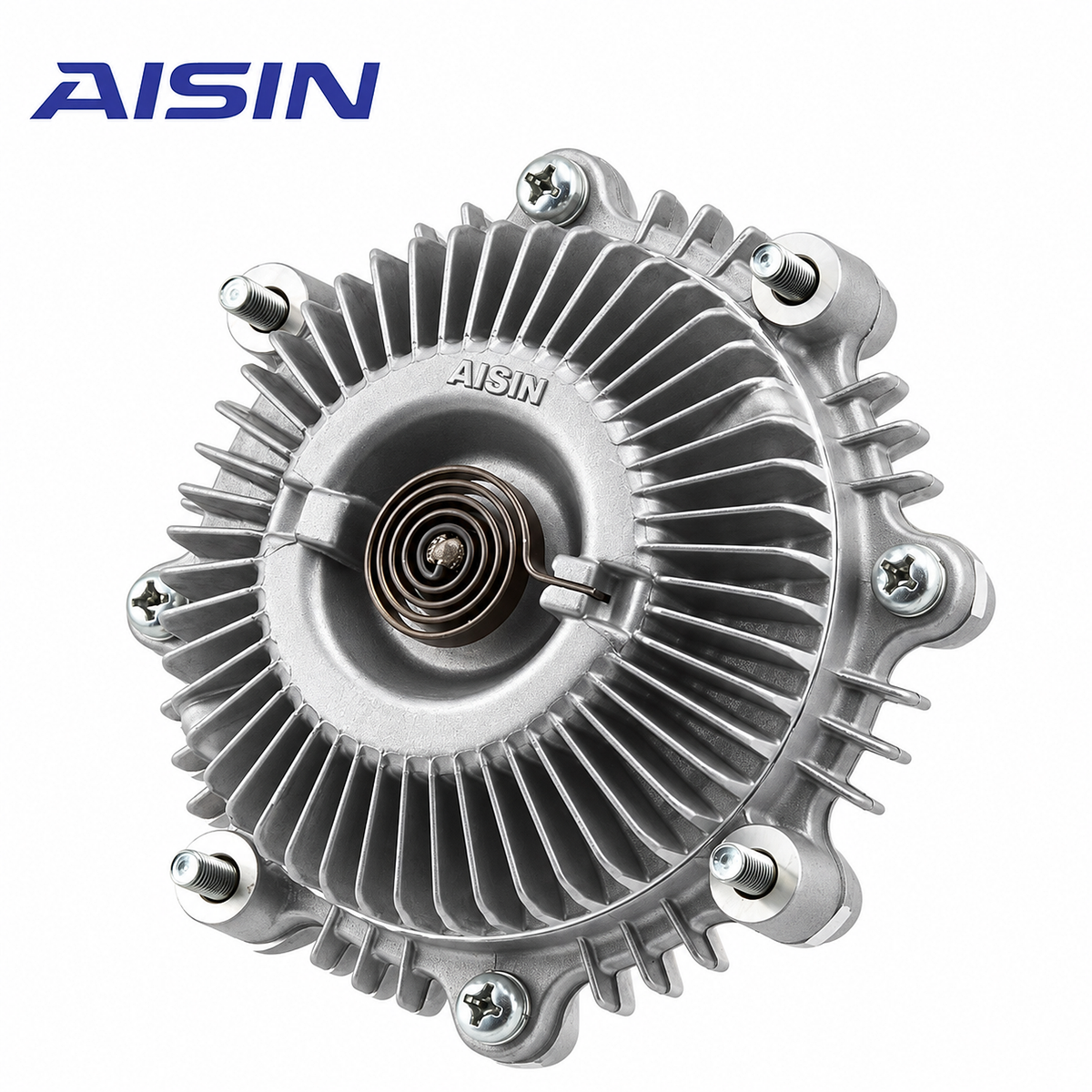

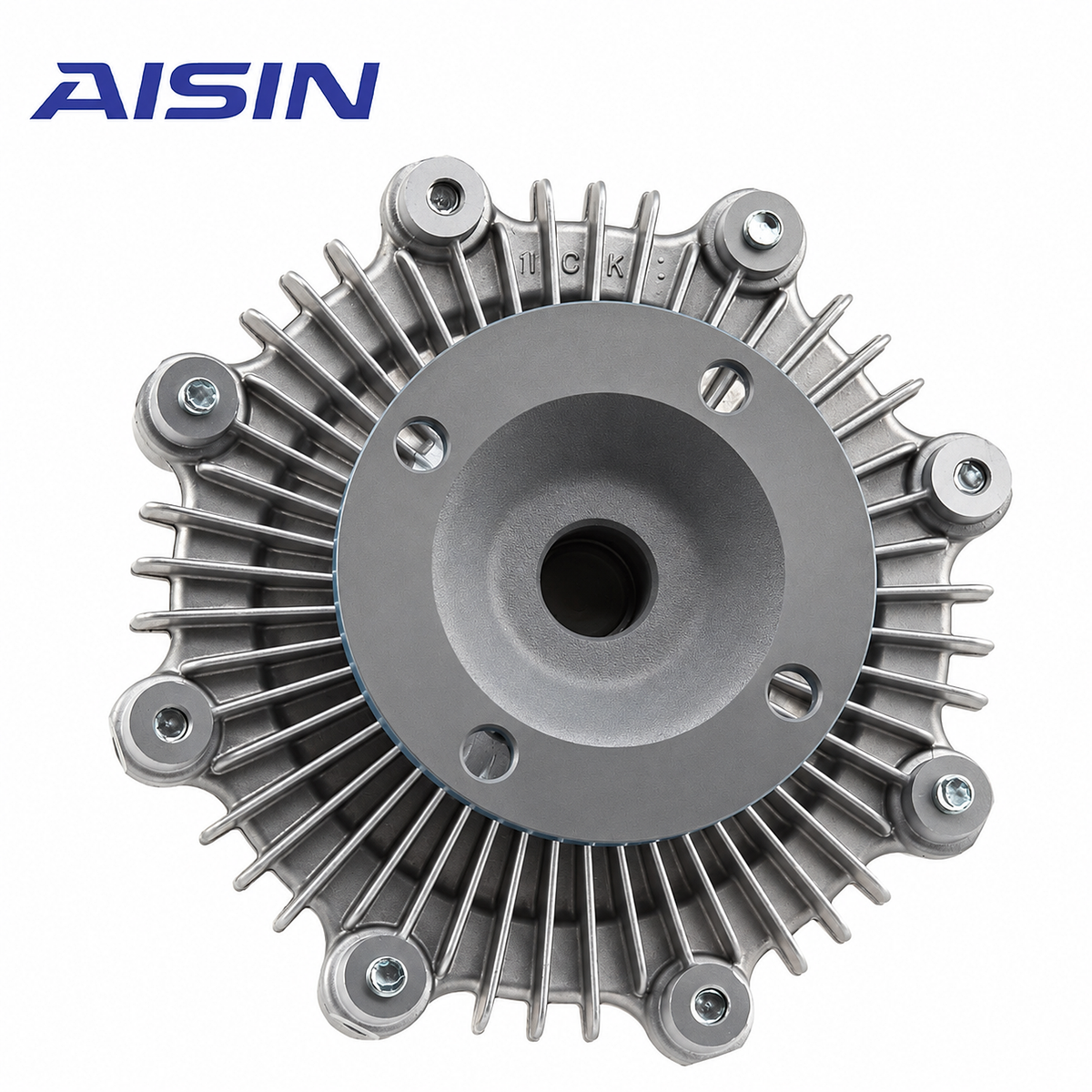

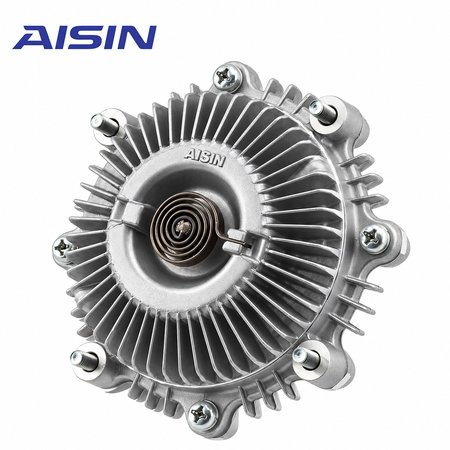

AISIN Cooling Fan Clutch

For verified manual-transmission Toyota applications: 1984 4Runner with 22R, 1979 Pickup with 20R, and 1984–1992 Pickup with 22R / 22RE.

Overview

AISIN is the OE fan-clutch manufacturer associated with these Toyota cooling-system applications. This standard-duty thermal fan clutch regulates engine-driven fan speed as cooling demand changes, helping provide airflow at low vehicle speed without keeping the fan fully engaged at all times.

Toyota used different AISIN fan-clutch configurations for automatic-transmission, turbocharged, later 4Runner, and 1993–1995 Pickup applications. This unit is limited to the verified manual-transmission fitment below.

Key Features

• OE-manufacturer replacement for verified Toyota R-series applications
• Manual-transmission fitment for the applications below
• Standard thermal design that responds to cooling demand
• Clockwise rotation for the factory-style mechanical cooling fan system
• Direct-fit construction with no universal adapter or wiring
• New replacement component — not remanufactured

Vehicle Fitment

Toyota 4Runner

• 1984 | 1st Gen — 2.4L 22R — Manual Transmission

Toyota Pickup

• 1979 | 1st Gen — 2.2L 20R — Manual Transmission
• 1984–1988 | 2nd Gen — 2.4L 22R / 22RE — Manual Transmission
• 1989–1992 | 3rd Gen — 2.4L 22R / 22RE — Manual Transmission

Fitment Notes

• Manual transmission only for the fitment presented here.
• 22R-TE turbo applications are excluded.
• 1980–1983 and 1993–1995 Pickup applications are excluded.
• 1985–1995 4Runner applications are excluded.
• Automatic-transmission applications require a different fan-clutch configuration.
• Engine-swapped vehicles should be matched to the installed water-pump, fan, and fan-clutch configuration rather than chassis year alone.

Product Specifications

Brand: AISIN
Product Type: Cooling
Component Type: Fan Clutch
Fan Type: Mechanical Clutch Fan
Design: Standard Thermal
Rotation: Clockwise
Transmission: Manual
Condition: New
Sold As: Each

Installation Requirements

Install with the correct factory-style fan blade and mounting hardware for the vehicle. Inspect the water-pump shaft and bearing for play before installation, verify the fan blade and shroud have proper clearance, and confirm the fan rotates freely without contact before starting the engine.

What's Included

• (1) AISIN cooling fan clutch

Important: Fan blade and mounting hardware are not included.
