AISIN Cooling Fan Clutch | 4WD 20R / 22R / 22RE / 22R-TE (1979-95 Pickup)

AISIN Cooling Fan Clutch

For 1979–1995 Toyota Pickup 4WD with 20R, 22R, 22RE, or 22R-TE engines

Overview

AISIN is an original-equipment manufacturer of fan clutches for Toyota applications, giving owners an AISIN-branded replacement backed by OE cooling-system engineering. These thermal fan clutches regulate engine-driven fan speed as cooling demand changes.

Toyota used an early and later fan-clutch configuration across the 1979–1995 4WD Pickup four-cylinder range. Select the 1979–1981 configuration for 20R / 22R applications or the 1982–1995 configuration for the later 22R / 22RE / 22R-TE applications shown below.

Key Features

• OE-manufacturer engineering — AISIN fan-clutch design for Toyota engine-driven cooling applications
• 4WD Pickup application coverage — organized around the four-cylinder applications shown below
• Thermal viscous operation — varies fan engagement with cooling demand
• Two year-and-engine configurations — separates the 1979–1981 and 1982–1995 applications
• Factory-style mechanical design — designed for the matching engine-driven fan arrangement
• New replacement component — not remanufactured

Vehicle Fitment

All applications require: 4WD.

Toyota Pickup

• 1979–1980 Toyota Pickup – 1st Gen — 20R
• 1981–1983 Toyota Pickup – 1st Gen — 22R
• 1984 Toyota Pickup – 2nd Gen — 22R
• 1985–1988 Toyota Pickup – 2nd Gen — 22R / 22RE / 22R-TE
• 1989–1990 Toyota Pickup – 3rd Gen — 22R / 22RE
• 1991–1995 Toyota Pickup – 3rd Gen — 22RE

Fitment Notes

• 4WD four-cylinder Pickup applications only.
• 1979–1981 and 1982–1995 use different fan-clutch configurations.
• Does not fit 3VZ-E V6 applications. V6 models use a separate fan clutch.

Product Specifications

Brand: AISIN
Manufacturer Type: OE Manufacturer
Product Type: Cooling
Component Type: Fan Clutch
Fan Type: Mechanical Clutch Fan
Operation: Thermal Viscous
Drivetrain: 4WD
Engine: 20R / 22R / 22RE / 22R-TE
Condition: New
Sold As: Each

Available Configurations

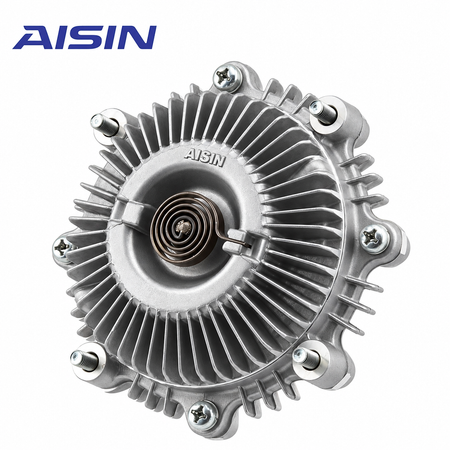

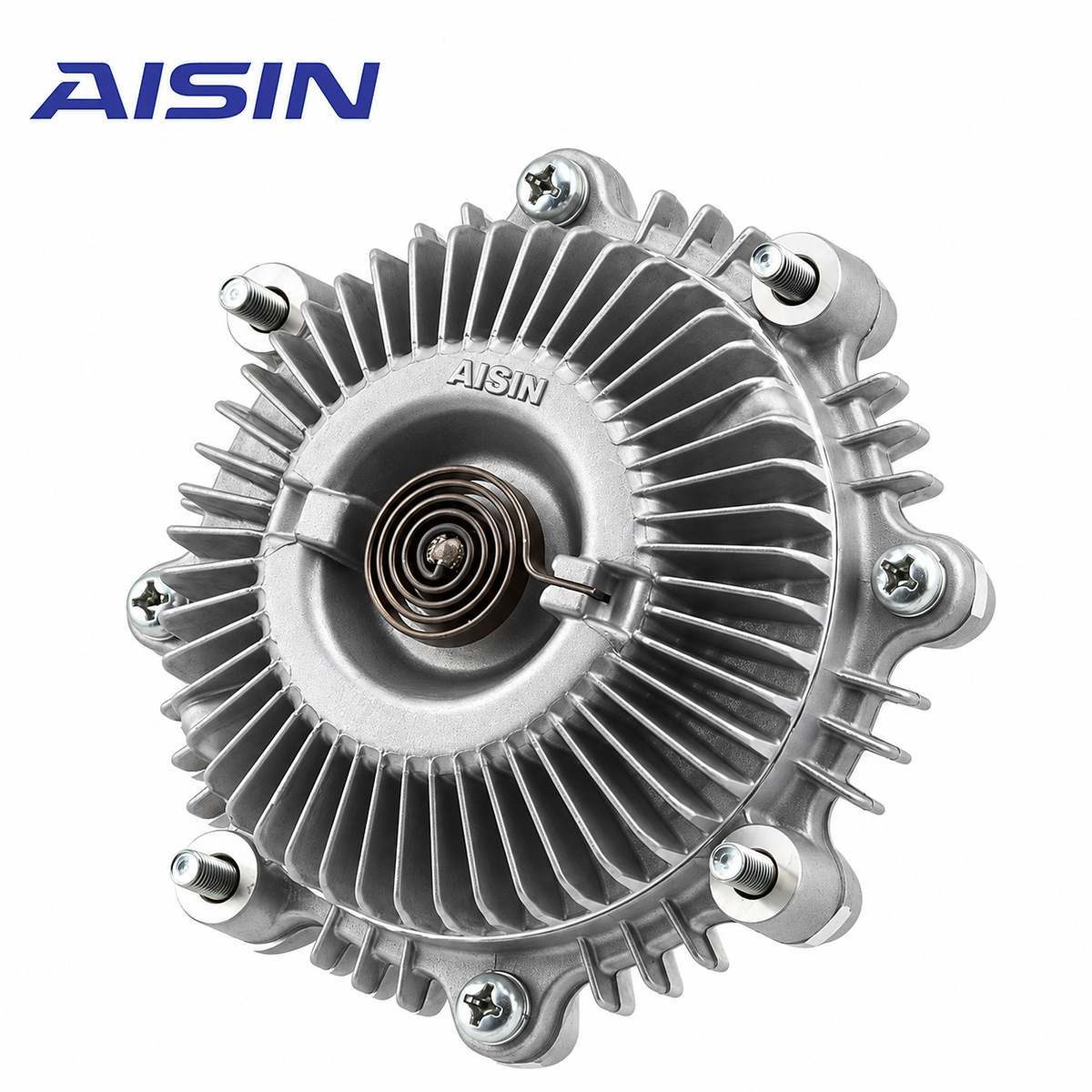

1979–1981 — 20R / 22R
For 1979–1980 20R and 1981 22R Toyota Pickup 4WD applications.

1982–1995 — 22R / 22RE / 22R-TE
For 1982–1990 22R, 1985–1995 22RE, and 1985–1988 22R-TE Toyota Pickup 4WD applications.
