AISIN Clutch Slave Cylinder | Manual Transmission (1984-95 4Runner / 1979-95 Pickup)

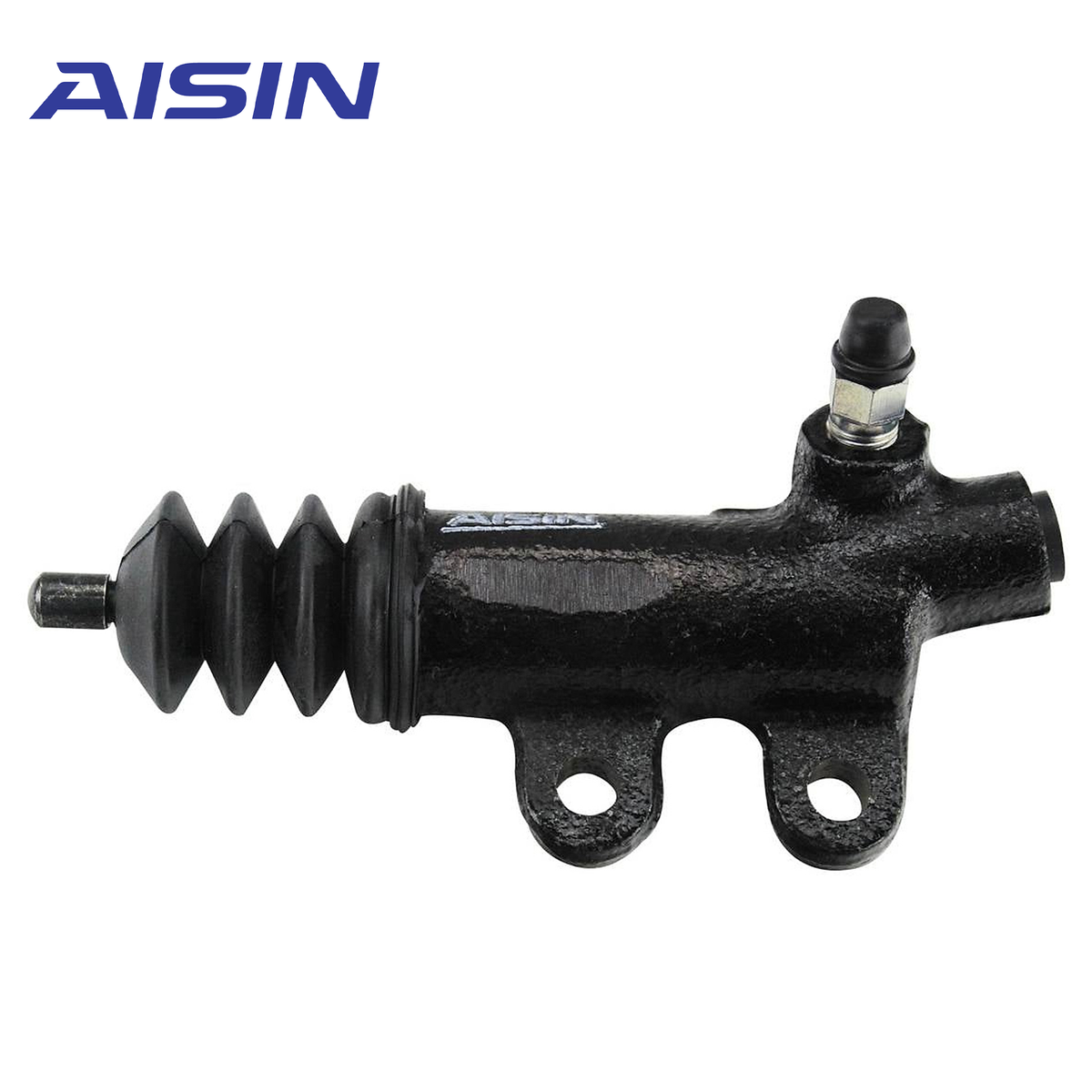

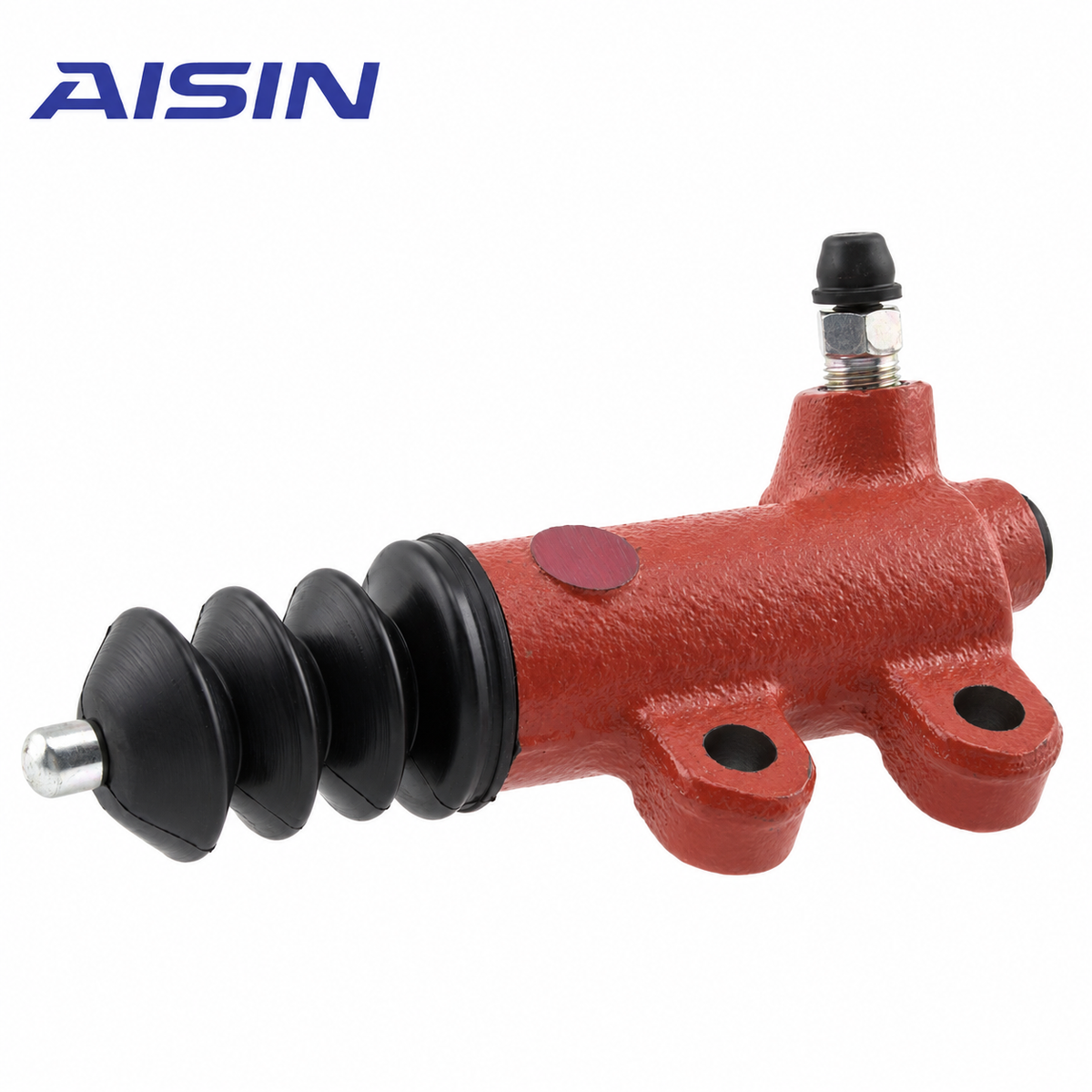

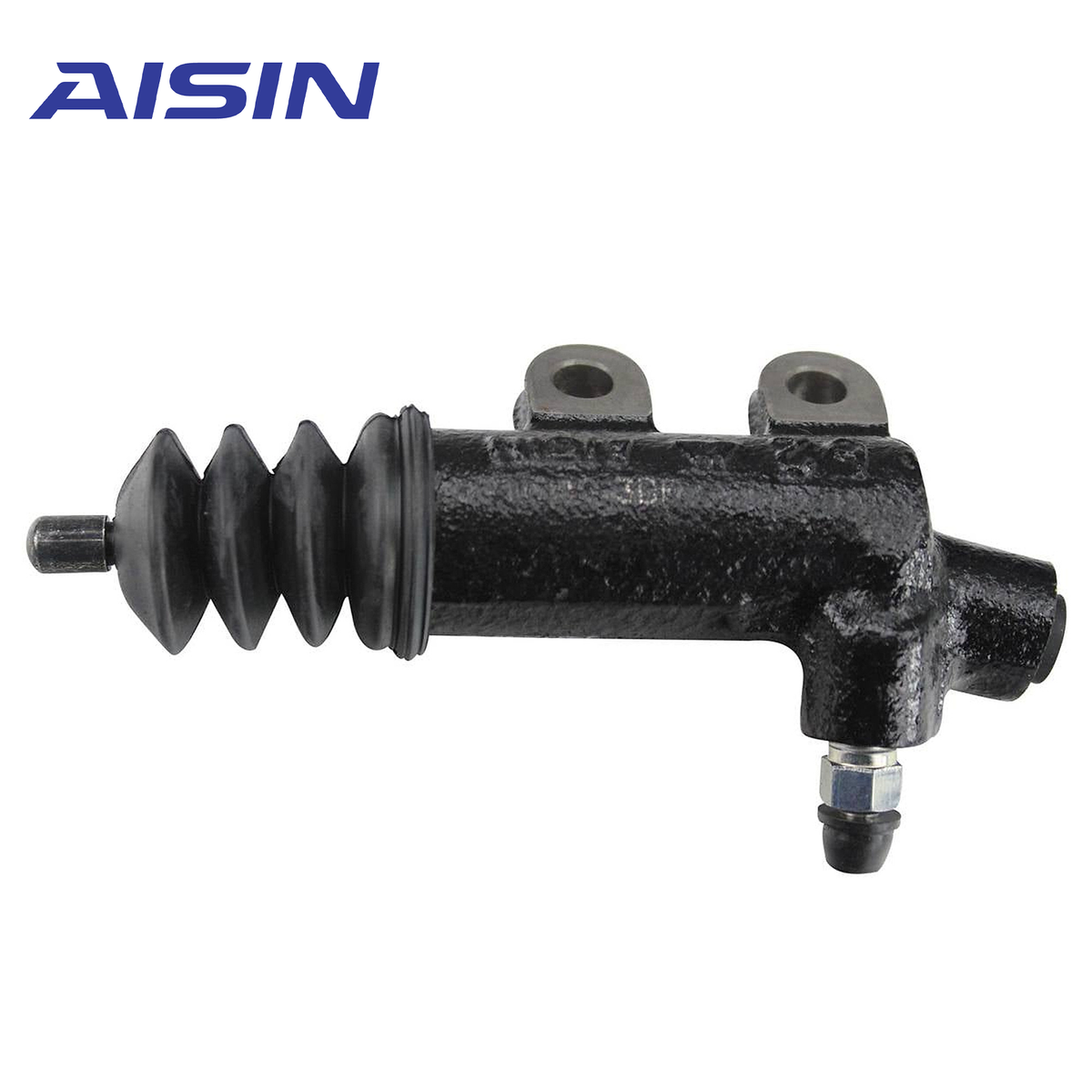

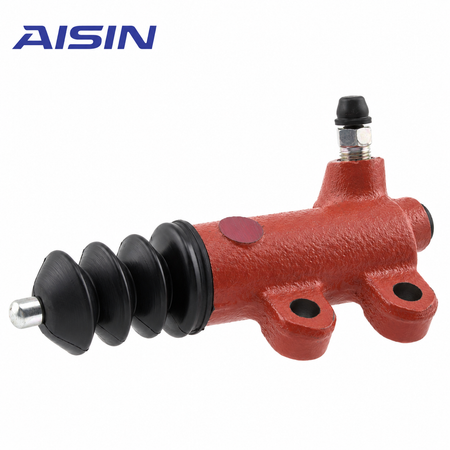

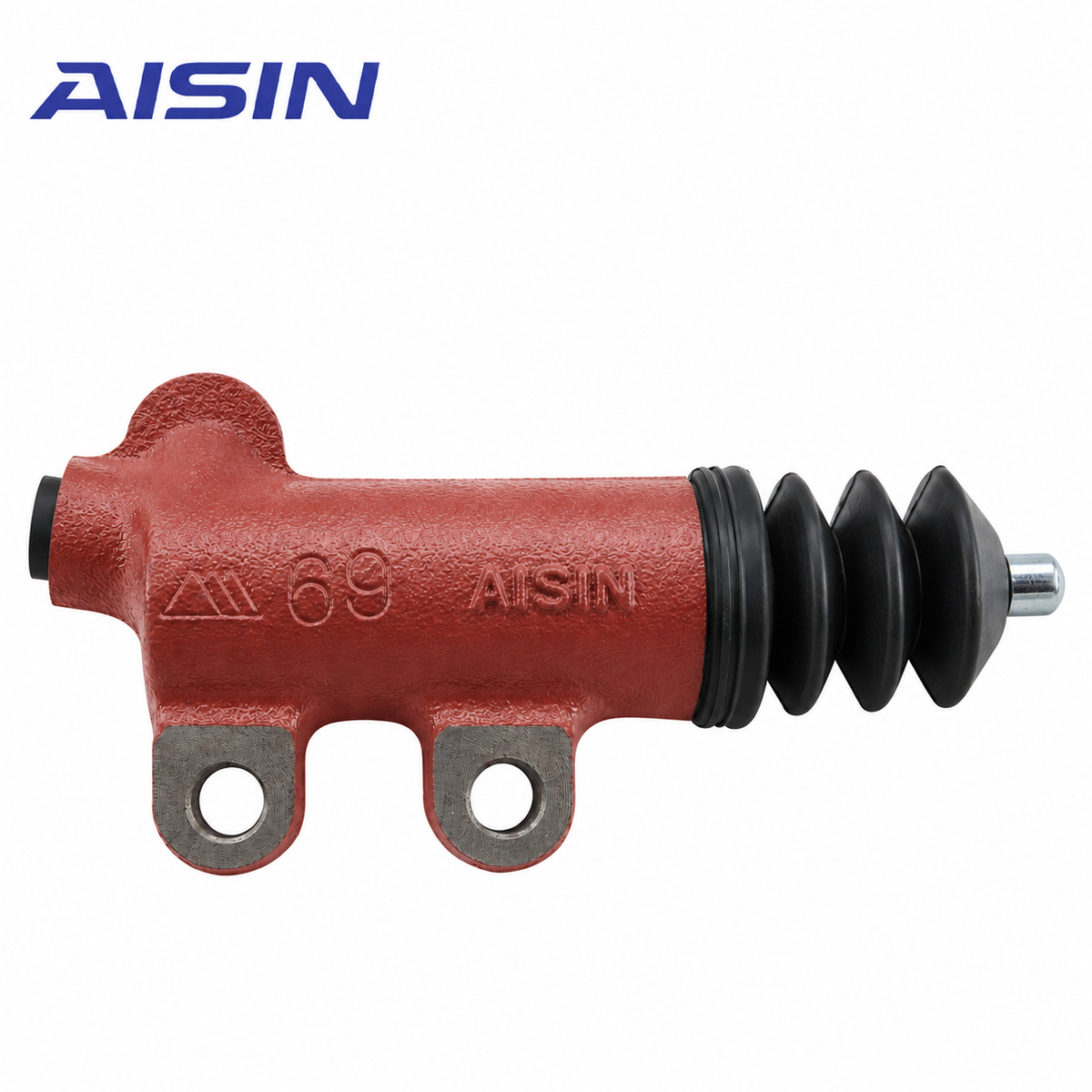

AISIN Clutch Slave Cylinder

For 1984–1995 Toyota 4Runner and 1979–1995 Toyota Pickup manual-transmission clutch-hydraulic applications

Overview

The AISIN clutch slave cylinder is an OE-manufacturer replacement for Toyota external hydraulic clutch systems. AISIN supplied original-equipment hydraulic components to Toyota, so these cylinders retain the OE engineering approach, fit, and hydraulic response expected from the factory-style system without being sold as Genuine Toyota parts.

This listing combines two engine/application families so the correct slave cylinder can be selected without splitting the same service part into separate product pages.

Key Features

• AISIN OE-manufacturer replacement for applicable Toyota clutch-hydraulic systems
• External bolt-on slave-cylinder design
• Precision-finished hydraulic bore for smooth piston travel
• Corrosion-resistant cylinder treatment
• Heat-resistant EPDM seals for hydraulic service
• Direct service replacement for the applicable factory-style manual clutch system
• Sold individually

Which Configuration Fits?

20R / 22R / 22RE | Standard 4-Cylinder
Use this configuration for the naturally aspirated four-cylinder manual-transmission applications listed below.

22R-TE / 3VZ-E | Turbo / V6
Use this configuration for the applicable turbo Pickup and V6 manual-transmission applications listed below.

Select by the vehicle's engine and installed clutch-hydraulic configuration rather than by appearance alone.

Vehicle Fitment

All applications require a manual transmission and factory-style external hydraulic clutch system.

Toyota 4Runner

• 1984–1989 | 1st Gen — 2.4L 22R / 22RE: Standard 4-Cylinder configuration
• 1988–1989 | 1st Gen — 3.0L 3VZ-E V6: Turbo / V6 configuration
• 1990–1995 | 2nd Gen — 3.0L 3VZ-E V6: Turbo / V6 configuration
• 1990–1995 | 2nd Gen — 2.4L 22RE: verify the original or installed slave-cylinder configuration before ordering because catalog references overlap on later four-cylinder 4Runners

Toyota Pickup

• 1979–1983 | 1st Gen — 2.2L 20R / 2.4L 22R: Standard 4-Cylinder configuration
• 1984–1988 | 2nd Gen — 2.4L 22R / 22RE: Standard 4-Cylinder configuration
• 1986–1988 | 2nd Gen — 2.4L 22R-TE turbo with manual transmission: Turbo / V6 configuration
• 1988 | 2nd Gen — 3.0L 3VZ-E V6 with manual transmission: Turbo / V6 configuration
• 1989–1995 | 3rd Gen — 2.4L 22R / 22RE: Standard 4-Cylinder configuration
• 1989–1995 | 3rd Gen — 3.0L 3VZ-E V6: Turbo / V6 configuration

Fitment Notes

• Manual-transmission applications only.
• Factory 22R-TE turbo 4Runners are not included because U.S.-market turbo 4Runners were automatic-transmission vehicles.
• Later 2.4L 4Runner catalogs contain overlapping slave-cylinder references; match the installed hydraulic configuration before ordering.
• Vehicles with engine, transmission, or clutch-hydraulic swaps must be matched to the installed components rather than model year alone.
• Bleed the clutch hydraulic system after installation.

Product Specifications

Brand: AISIN
Component: Clutch Slave Cylinder
Clutch System: External Hydraulic Slave Cylinder
Mounting: External Bolt-On
Transmission: Manual
Condition: New
Sold As: Each

Available Configurations

20R / 22R / 22RE | Standard 4-Cylinder

• Includes: (1) AISIN clutch slave cylinder for the applicable naturally aspirated four-cylinder manual-transmission applications above.

22R-TE / 3VZ-E | Turbo / V6

• Includes: (1) AISIN clutch slave cylinder for the applicable turbo Pickup and V6 manual-transmission applications above.
