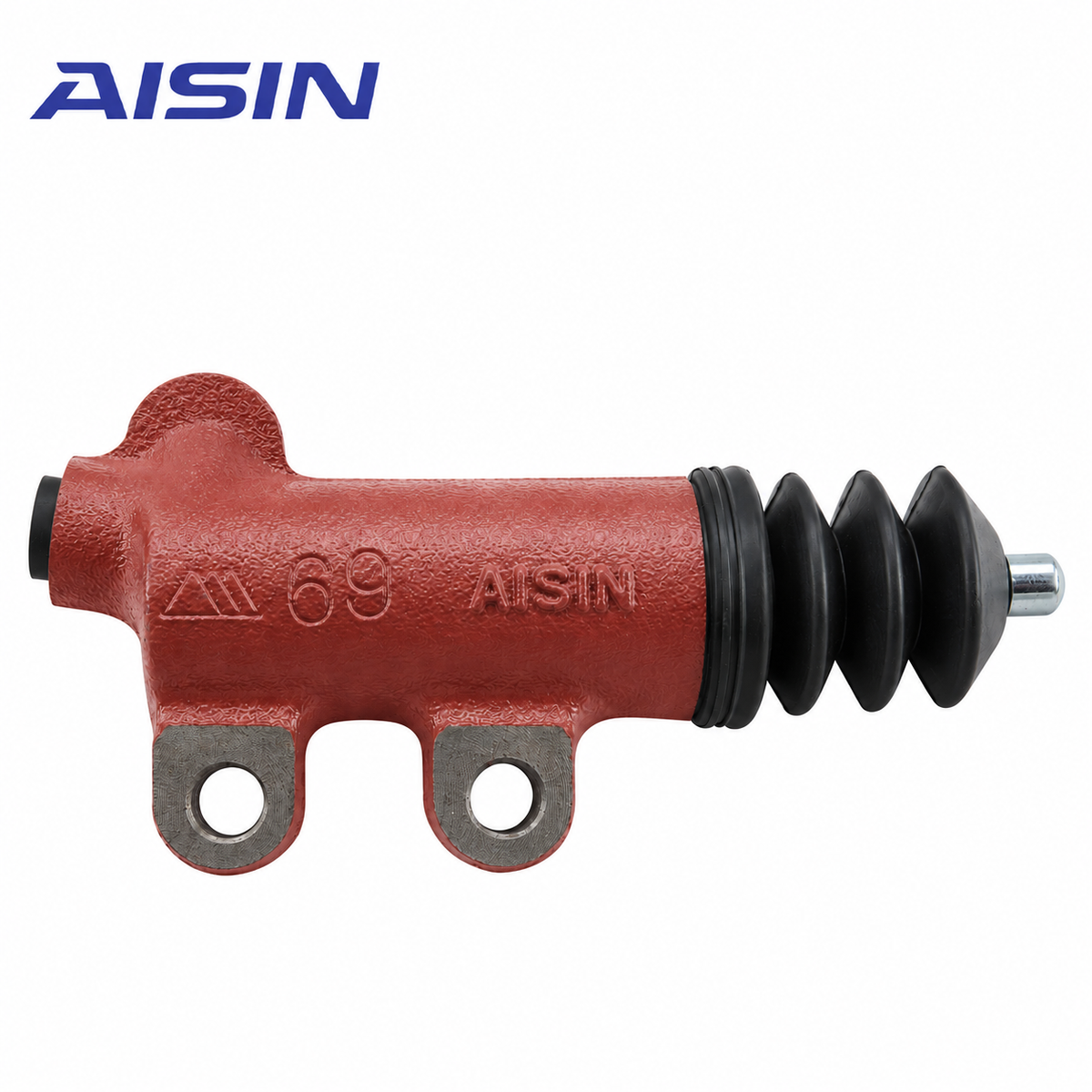

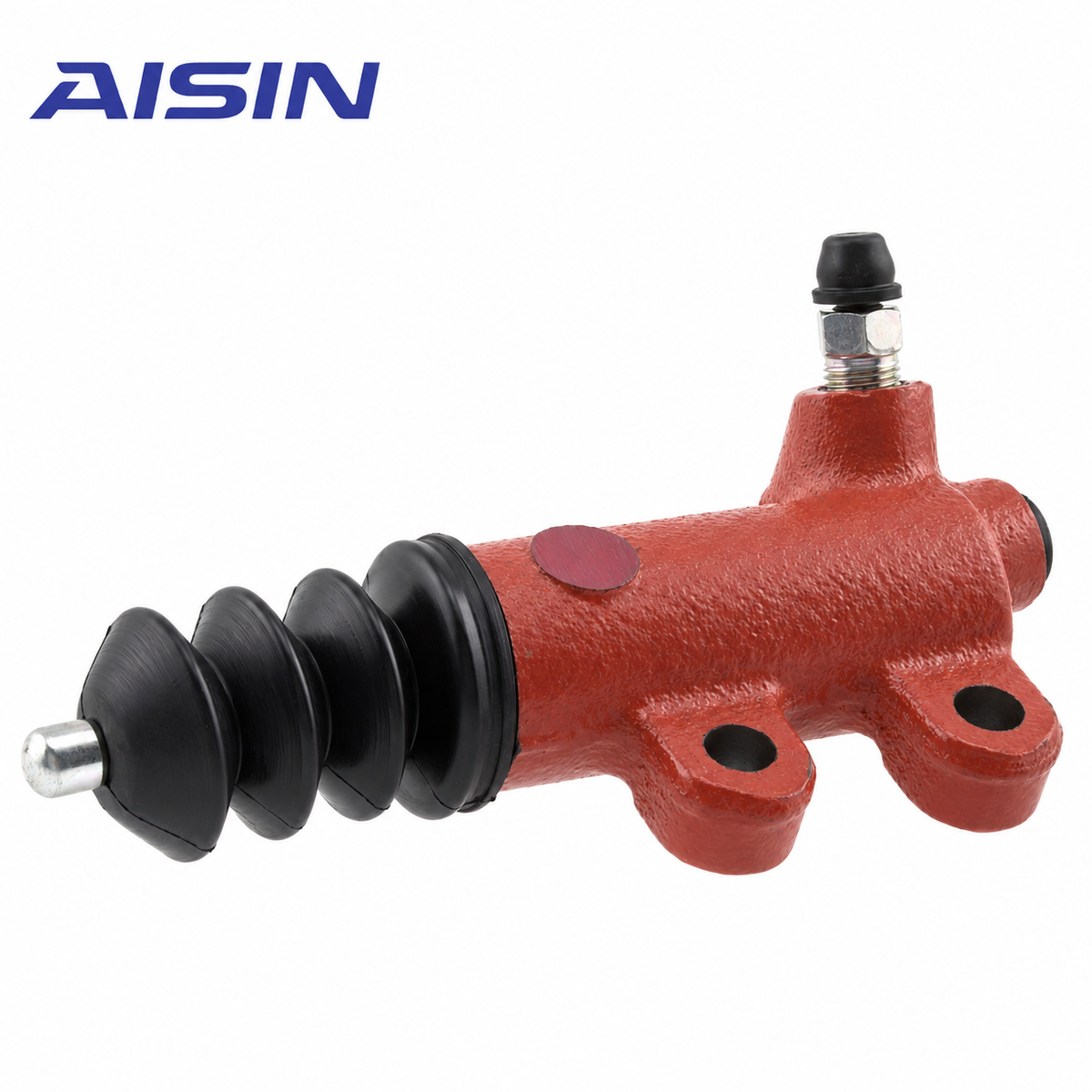

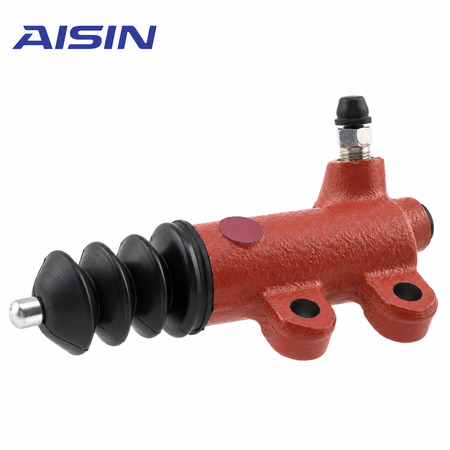

AISIN Clutch Slave Cylinder (1979-95 Pickup)

AISIN Clutch Slave Cylinder

For 1979–1995 Toyota Pickup with manual transmission

Overview

The AISIN clutch slave cylinder is an OE-manufacturer replacement for Toyota external hydraulic clutch systems. AISIN supplied original-equipment hydraulic components to Toyota, giving these cylinders the factory-style fit, hydraulic response, and serviceability expected from an OE supplier without representing them as Genuine Toyota parts.

Key Features

• AISIN OE-manufacturer replacement for applicable Toyota clutch-hydraulic systems
• External bolt-on slave-cylinder design
• Precision-honed hydraulic cylinder for smooth piston travel
• Corrosion-resistant cylinder surface treatment
• Heat-resistant EPDM seals for hydraulic service
• Direct service replacement for the applicable factory-style manual clutch system
• Sold individually

Which Configuration Fits?

20R | 1979-1980 (Excl. 1980 4WD)
Choose this configuration for 1979 Pickup 20R applications and 1980 Base or RWD DLX / SR5 20R applications. The 1980 DLX 4WD application uses a different cylinder and is not included.

22R / 22RE | 1981-1991
Choose this configuration for naturally aspirated 2.4L 22R / 22RE manual-transmission applications through 1991.

22RE | 1992-1995
Choose this configuration for 1992–1995 22RE manual-transmission applications.

22R-TE 1986-88 / 3VZ-E 1988-95
Choose this configuration for the 1986–1988 22R-TE turbo manual-transmission Pickup and the 1988–1995 3.0L 3VZ-E V6 manual-transmission Pickup.

Vehicle Fitment

All applications require a manual transmission.

Toyota Pickup

• 1979 Toyota Pickup – 1st Gen – 2.2L 20R – Manual – 20R | 1979-1980 (Excl. 1980 4WD)
• 1980 Toyota Pickup – 1st Gen – 2.2L 20R – Base / RWD DLX / RWD SR5 – Manual – 20R | 1979-1980 (Excl. 1980 4WD)
• 1981–1983 Toyota Pickup – 1st Gen – 2.4L 22R – Manual – 22R / 22RE | 1981-1991
• 1984–1988 Toyota Pickup – 2nd Gen – 2.4L 22R / 22RE – Manual – 22R / 22RE | 1981-1991
• 1986–1988 Toyota Pickup – 2nd Gen – 2.4L 22R-TE Turbo – Manual – 22R-TE 1986-88 / 3VZ-E 1988-95
• 1988 Toyota Pickup – 2nd Gen – 3.0L 3VZ-E V6 – Manual – 22R-TE 1986-88 / 3VZ-E 1988-95
• 1989–1991 Toyota Pickup – 3rd Gen – 2.4L 22R / 22RE – Manual – 22R / 22RE | 1981-1991
• 1989–1995 Toyota Pickup – 3rd Gen – 3.0L 3VZ-E V6 – Manual – 22R-TE 1986-88 / 3VZ-E 1988-95
• 1992–1995 Toyota Pickup – 3rd Gen – 2.4L 22RE – Manual – 22RE | 1992-1995

Fitment Notes

• Manual-transmission applications only.
• 1980 DLX 4WD Pickup is excluded because it uses a different AISIN clutch slave cylinder.
• Select by engine and model year using the configurations above.
• Vehicles with engine, transmission, or clutch-hydraulic swaps must be matched to the installed components.
• Bleed the clutch hydraulic system after installation.

Product Specifications

Brand: AISIN
Component: Clutch Slave Cylinder
Clutch System: External Hydraulic Slave Cylinder
Mounting: External Bolt-On
Transmission: Manual
Condition: New
Sold As: Each

Available Configurations

20R | 1979-1980 (Excl. 1980 4WD)

• Includes: (1) AISIN clutch slave cylinder for the applicable early 20R manual-transmission applications above.

22R / 22RE | 1981-1991

• Includes: (1) AISIN clutch slave cylinder for the applicable naturally aspirated 2.4L manual-transmission applications above.

22RE | 1992-1995

• Includes: (1) AISIN clutch slave cylinder for the applicable 1992–1995 22RE manual-transmission applications above.

22R-TE 1986-88 / 3VZ-E 1988-95

• Includes: (1) AISIN clutch slave cylinder for the applicable turbo and V6 manual-transmission applications above.
