AE86 Prothane Polyurethane Front Sway Bar Bushings Kit (1983-87 Corolla)

AE86 Prothane Polyurethane Front Sway Bar Bushing Kit – 21mm or 22mm

For 1983–1987 Toyota Corolla AE86 Trueno / Levin and 1984–1987 U.S.-Market Corolla Sport AE86

Overview

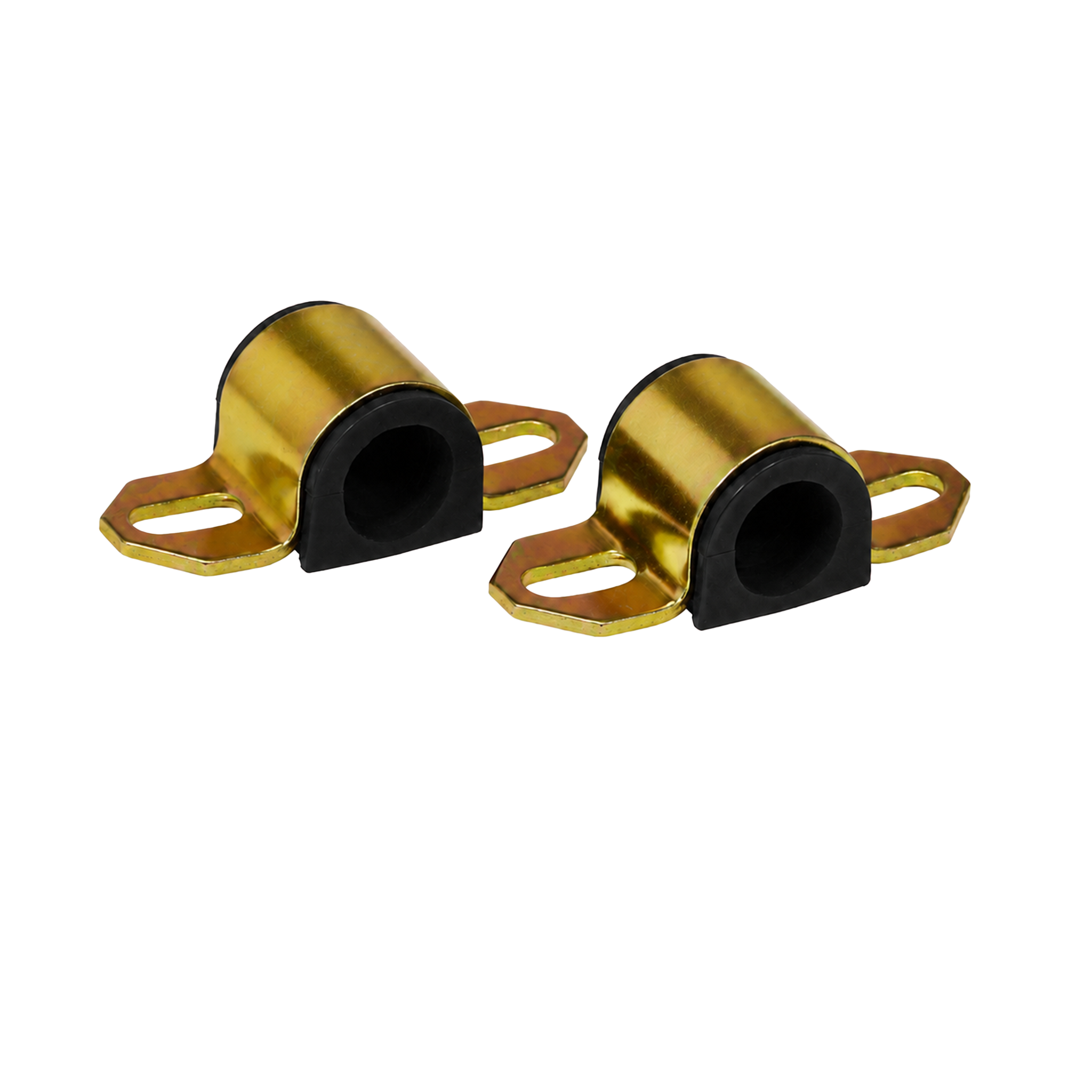

The Prothane Polyurethane Front Sway Bar Bushing Kit replaces worn factory-style rubber front sway bar frame-mount bushings with firmer polyurethane bushings for more consistent stabilizer-bar support and response.

Two front sway bar diameters are offered for the supported AE86 applications: 21mm and 22mm. The 21mm configuration covers the verified Japanese-market Trueno and Levin applications as well as the U.S.-market SR5, while the 22mm configuration covers the U.S.-market GT-S.

Because many AE86s have received replacement or aftermarket sway bars over the years, measure the actual front sway bar outside diameter before ordering and select the bushing size that matches the bar currently installed on the vehicle.

Key Features

• Fits verified AE86 Trueno, Levin, GT-S, and SR5 applications listed below
• Polyurethane front sway bar frame-mount bushings
• 21mm and 22mm configurations
• Replaces worn factory-style rubber sway bar bushings
• Reduces unwanted sway bar movement at the chassis mounts
• Firmer and more consistent stabilizer-bar support than aging factory rubber
• Designed for factory-style front sway bar mounting locations
• Polyurethane installation grease included
• Available in black or red
• Made in the USA
• Prothane lifetime warranty

21mm vs. 22mm Front Sway Bar Fitment

The bushing inside diameter must match the outside diameter of the front sway bar.

• 21mm: 1983–1987 Toyota Sprinter Trueno AE86, 1983–1987 Toyota Corolla Levin AE86, and 1984–1987 U.S.-market Corolla Sport SR5 AE86
• 22mm: 1985–1987 U.S.-market Corolla Sport GT-S AE86

Use digital or vernier calipers to measure a clean, straight section of the sway bar. Vehicles with replacement or aftermarket sway bars may no longer use the original diameter associated with their model or trim, so the physical measurement should be used as the final size confirmation.

Vehicle Fitment

Toyota Sprinter Trueno

• 1983–1987 Toyota Corolla AE86 – Trueno (JDM) – 21mm Front Sway Bar

Toyota Corolla Levin

• 1983–1987 Toyota Corolla AE86 – Levin (JDM) – 21mm Front Sway Bar

Toyota Corolla Sport GT-S

• 1985–1987 Toyota Corolla Sport AE86 – GT-S (U.S.-Market) – 22mm Front Sway Bar

Toyota Corolla Sport SR5

• 1984–1987 Toyota Corolla Sport AE86 – SR5 (U.S.-Market) – 21mm Front Sway Bar

Fitment Notes

• Front application only.
• Measure the actual front sway bar outside diameter before ordering.
• Select the bushing size that matches the sway bar currently installed on the vehicle.
• Vehicles with aftermarket or previously replaced sway bars may require a different size than the original factory configuration.
• Clean the sway bar and mounting surfaces before installation.
• Apply the supplied polyurethane grease to the recommended bushing contact surfaces.
• Inspect mounting brackets and hardware for corrosion, bending, or excessive wear before installation.

Product Specifications

Brand: Prothane
Product Type: Front Sway Bar Bushing Kit
Position: Front
Material: Polyurethane
Available Bar Diameters: 21mm / 22mm
Color Options: Black / Red
Fit Type: Vehicle-Specific / Direct Replacement
Installation: Factory-Style Sway Bar Mounting Locations
Country of Manufacture: USA
Warranty: Prothane Lifetime Warranty

Available Configurations

21mm / Black

• (2) 21mm front sway bar bushings
• Polyurethane installation grease

21mm / Red

• (2) 21mm front sway bar bushings
• Polyurethane installation grease

22mm / Black

• (2) 22mm front sway bar bushings
• (2) Sway bar mounting plates
• Polyurethane installation grease

22mm / Red

• (2) 22mm front sway bar bushings
• (2) Sway bar mounting plates
• Polyurethane installation grease
