Prothane Complete Polyurethane Suspension Bushing Kit
For 1985–1987 Toyota Corolla AE86 GTS & SR5 RWD
Overview
The Prothane Complete Polyurethane Suspension Bushing Kit provides a comprehensive suspension refresh for 1985–1987 Toyota Corolla AE86 rear-wheel-drive models. The kit replaces multiple aging factory rubber suspension bushings with firmer polyurethane components designed to reduce unwanted suspension deflection and provide more consistent steering and chassis response.
The package covers the major front and rear suspension pivot points, including the front lower control arms, front strut rods, rear four-link control arms, rear lateral rod, and front and rear sway bar mounting systems.
Available in black or red polyurethane, both colors use the same durometer and provide the same functional performance.
Key Features
- Comprehensive polyurethane suspension bushing package
- Designed for 1985–1987 Corolla GTS and SR5 rear-wheel-drive models
- Front lower control arm bushings
- Front strut rod / tension rod bushings
- Rear four-link control arm bushings
- Rear track bar / lateral rod bushings
- Front and rear sway bar bushings and end-link components
- Includes multiple factory sway bar bushing sizes used across supported applications
- Firmer construction than factory rubber
- Helps reduce unwanted suspension deflection
- Supplied polyurethane installation grease
- Available in black or red
Sway Bar Bushing Configuration
The Total Kit includes sway bar bushings for the factory-size variations used across the supported Corolla RWD applications.
Front Sway Bar
- 21mm bushing configuration
- 22mm bushing configuration
Rear Sway Bar
- 14mm bushing configuration
- 16mm bushing configuration
Only the bushings matching the vehicle's installed sway bar diameters are used. Measure the front and rear sway bars before installation rather than assuming size solely from trim or model year, particularly on vehicles that may have received suspension modifications over the past several decades.
Vehicle Fitment
Toyota Corolla AE86
- 1985–1987 Toyota Corolla GTS – AE86 – Rear-Wheel Drive
- 1985–1987 Toyota Corolla SR5 – AE86 – Rear-Wheel Drive
Fitment Notes
- Rear-wheel-drive Corolla application only
- Designed around the factory AE86 suspension mounting configuration
- Measure front and rear sway bar diameters before selecting the supplied sway bar bushings
- Some sway bar bushings supplied with the kit will remain unused depending on the vehicle's factory or currently installed sway bars
- Polyurethane is firmer than factory rubber and may transmit slightly more noise, vibration, and harshness
- Apply the supplied polyurethane grease to applicable bushing contact surfaces during installation
- Inspect original suspension arms, sleeves, mounting bolts, and brackets before reassembly
- Professional installation and a suspension alignment are recommended after replacement
Product Specifications
Brand: Prothane
Product Type: Complete Suspension Bushing Kit
Chassis: AE86
Material: Polyurethane / Steel
Color Options: Black / Red
Drivetrain: Rear-Wheel Drive
Front Sway Bar Bushing Sizes: 21mm / 22mm
Rear Sway Bar Bushing Sizes: 14mm / 16mm
Fitment Type: Vehicle Specific
Installation Grease: Included
Available Configurations

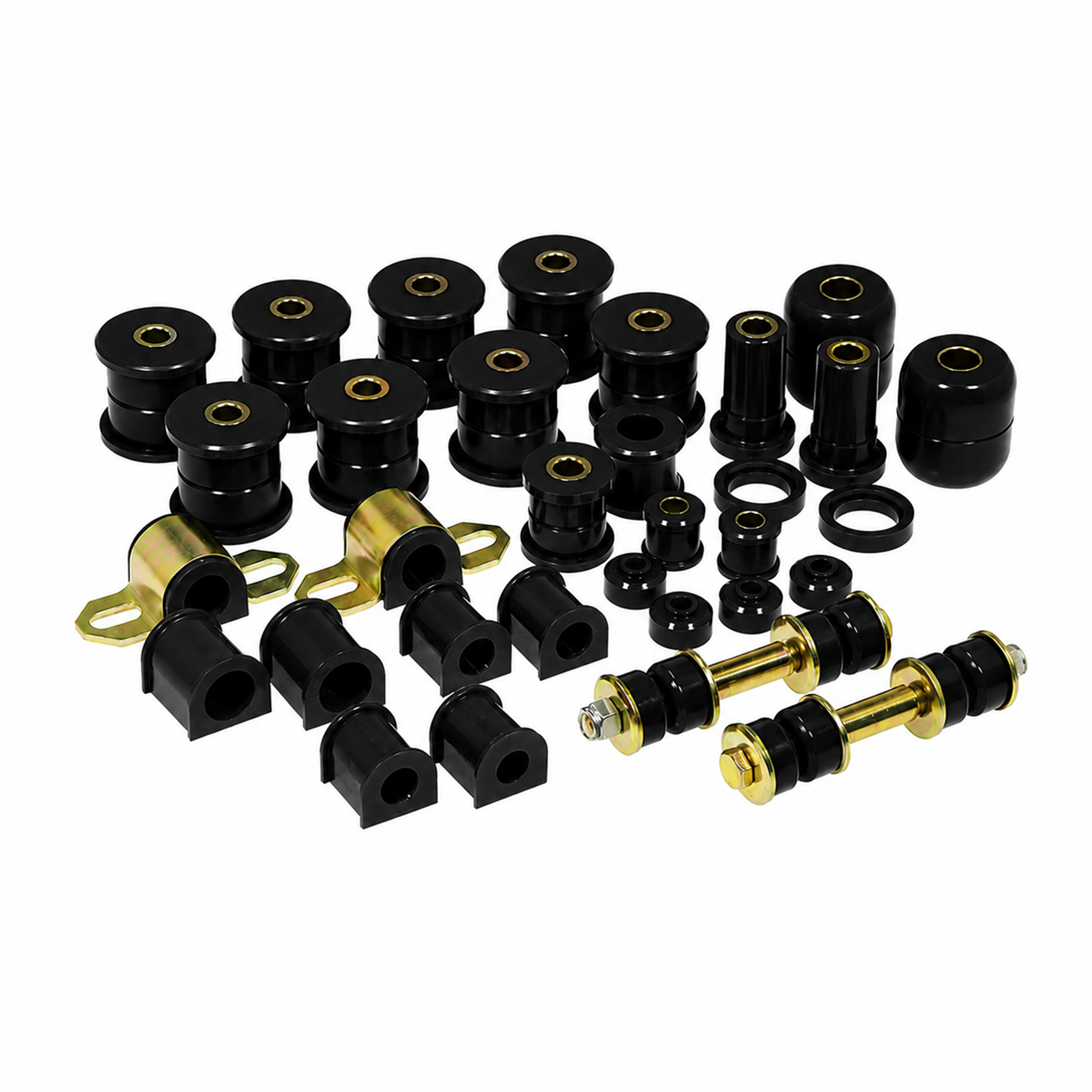

Black Polyurethane
- Complete AE86 suspension bushing package
- Black polyurethane construction

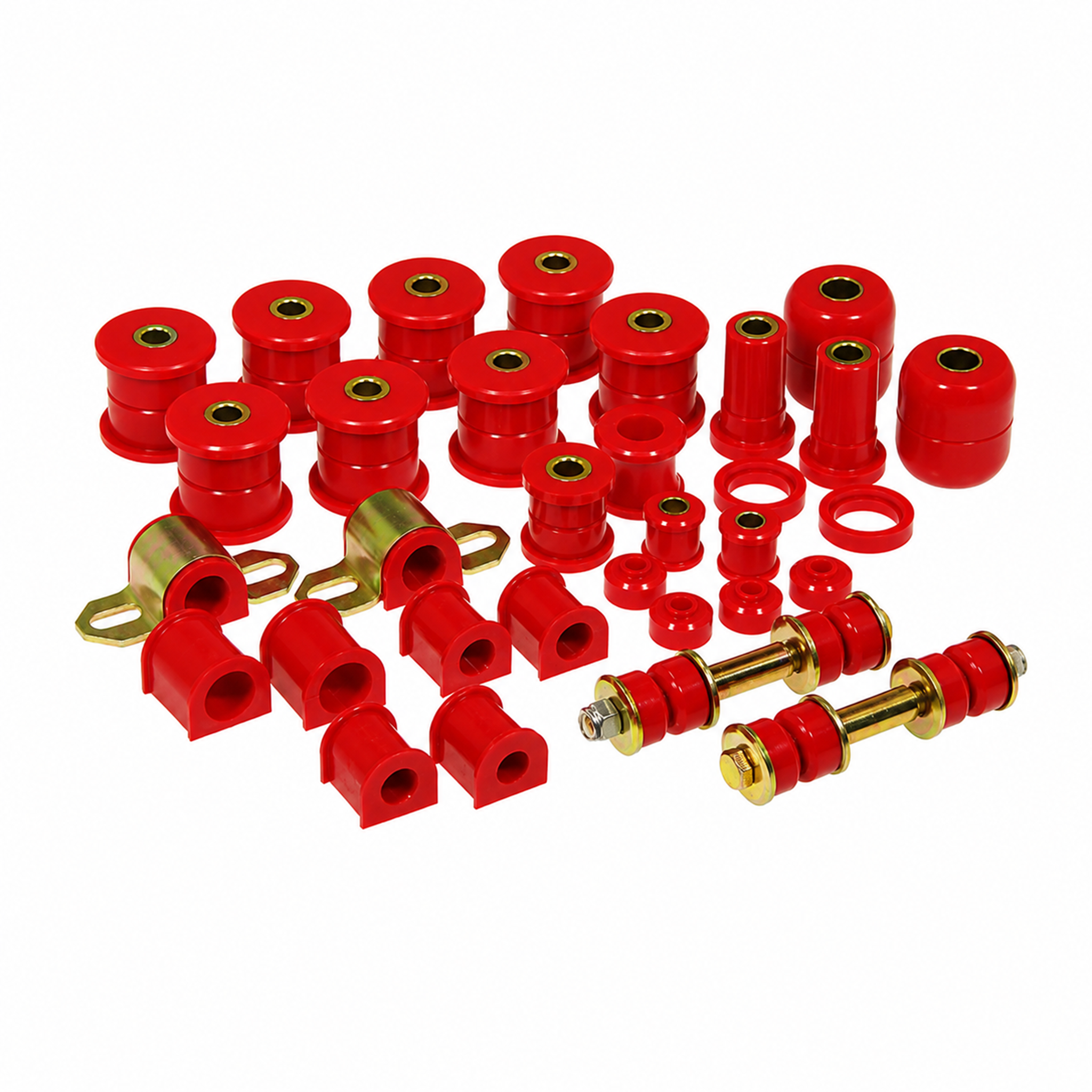

Red Polyurethane
- Complete AE86 suspension bushing package
- Red polyurethane construction
Each configuration includes:
- Front lower control arm bushings
- Front strut rod / tension rod bushings
- Rear four-link control arm bushings
- Rear track bar / lateral rod bushings
- Front sway bar bushings
- Front sway bar end-link components
- Rear sway bar bushings
- Rear sway bar end-link components
- Application-specific metal sleeves and hardware
- Polyurethane installation grease
