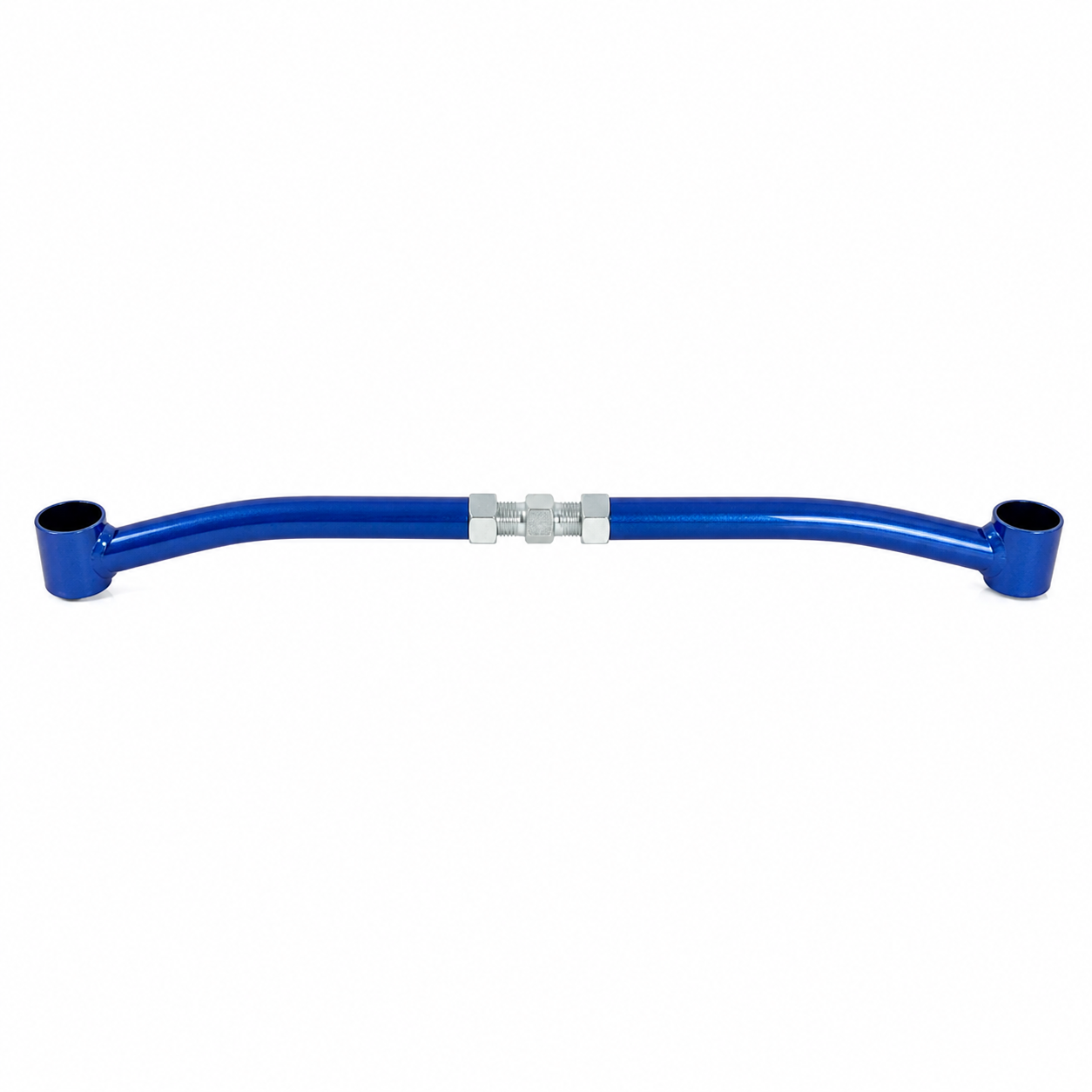

CUSCO Front Tension Rod Bar
For 1983–1987 Toyota Corolla Levin / Sprinter Trueno AE86 & 1985–1987 Toyota Corolla Sport SR5 / GT-S AE86
Overview
The CUSCO Front Tension Rod Bar is a chassis reinforcement component designed for Toyota AE86 front suspension applications. The bar connects the left and right tension-rod mounting brackets, reinforcing the mounting area to help reduce chassis flex and improve alignment stability under suspension load.
Constructed from 22 mm steel tubing, the bar uses a turnbuckle-style adjustment mechanism that allows its preload and tension to be set after installation. CUSCO designed the assembly as a bolt-on reinforcement upgrade using the factory-style tension-rod mounting arrangement.
Unlike a sway bar, this component does not primarily control body roll. It reinforces the front lower suspension mounting structure and is intended for AE86 applications retaining the factory-style tension-rod arrangement.
Key Features
- 22 mm steel tension rod reinforcement bar
- Connects the left and right front tension-rod mounting brackets
- Helps increase rigidity at the front lower suspension mounting area
- Designed to improve alignment stability under suspension load
- Turnbuckle adjustment allows bar tension to be set after installation
- Vehicle-specific design for Toyota AE86 applications
- Bolt-on installation
- CUSCO Blue finish
- Reinforcement component rather than a sway bar or strut tower brace
Suspension Reinforcement
The AE86 front tension rods help locate the lower suspension and transmit braking and suspension loads into their chassis mounting brackets. The CUSCO Tension Rod Bar links the left and right bracket assemblies together, reinforcing the mounting area and helping limit unwanted movement under load.
The turnbuckle mechanism adjusts the tension of the reinforcement bar itself, allowing the assembly to be properly set after installation. CUSCO describes the design as improving tension-rod mount rigidity and helping stabilize alignment.
Vehicle Fitment
Toyota Corolla Levin
- 1983–1987 Toyota Corolla Levin – AE86
Toyota Sprinter Trueno
- 1983–1987 Toyota Sprinter Trueno – AE86
Toyota Corolla Sport
- 1985–1987 Toyota Corolla Sport SR5 – AE86 – 4A-C
- 1985–1987 Toyota Corolla Sport GT-S – AE86 – 4A-GE
Fitment Notes
- Front suspension application only
- AE86 chassis
- Fits factory-style front tension-rod mounting arrangements
- Bolt-on installation
- Turnbuckle is used to adjust tension in the reinforcement bar
- Includes required installation hardware
- This is a tension rod reinforcement bar, not a sway bar or strut tower brace
- Confirm clearance on vehicles with substantially modified front suspension components
Product Specifications
Brand: CUSCO
Product Type: Front Tension Rod Bar / Chassis Reinforcement Bar
Position: Front
Material: Steel
Bar Diameter: 22 mm
Finish: CUSCO Blue
Design: Adjustable Turnbuckle
Vehicle Chassis: AE86
Fit Type: Vehicle Specific
Installation: Bolt-On
What's Included
- (1) CUSCO front tension rod bar assembly
- Required installation hardware
