AE86 ADVICS Brake Master Cylinder | LHD (1984-87 Corolla)

ADVICS Brake Master Cylinder

For 1985–1987 U.S.-Market Corolla Sport AE86 (GT-S) and 1984–1987 U.S.-Market Corolla Sport AE86 (SR5)

Overview

This ADVICS brake master cylinder is an OE-manufacturer replacement for the U.S.-market AE86’s original brake hydraulics. It converts pedal input into hydraulic pressure for the front and rear brakes while retaining the factory master-cylinder configuration.

The assembly serves both the GT-S rear-disc and SR5 rear-drum applications. It is intended for restoration of the original system rather than a larger-bore conversion for modified brakes.

Key Features

• New assembly rather than a rebuilt master cylinder
• Tandem hydraulic design with separate primary and secondary pistons
• Corrosion-protective finishes on the OE-specification assembly
• Factory booster mounting for the original left-hand-drive installation
• Single reservoir layout with a fluid-level sensor

Vehicle Fitment

Toyota Corolla AE86

• 1985–1987 GT-S (U.S.-Market) — 4A-GE; coupe and sport liftback; manual transmission
• 1984–1987 SR5 (U.S.-Market) — 4A-C; coupe and sport liftback; manual or automatic transmission

Fitment Notes

• U.S.-market left-hand-drive applications only. Does not fit front-wheel-drive Corolla sedan, FX or FX16 applications.
• Brake-booster replacements, booster-delete conversions and modified hydraulic systems must be matched to the installed hardware. The AE86 Brake Guide explains how GT-S/SR5 brake and axle conversions affect replacement-part selection.

Product Specifications

Brand: ADVICS
Cylinder bore: 13/16 inch (20.64 mm)
Body material: Aluminum
Outlet ports: 2

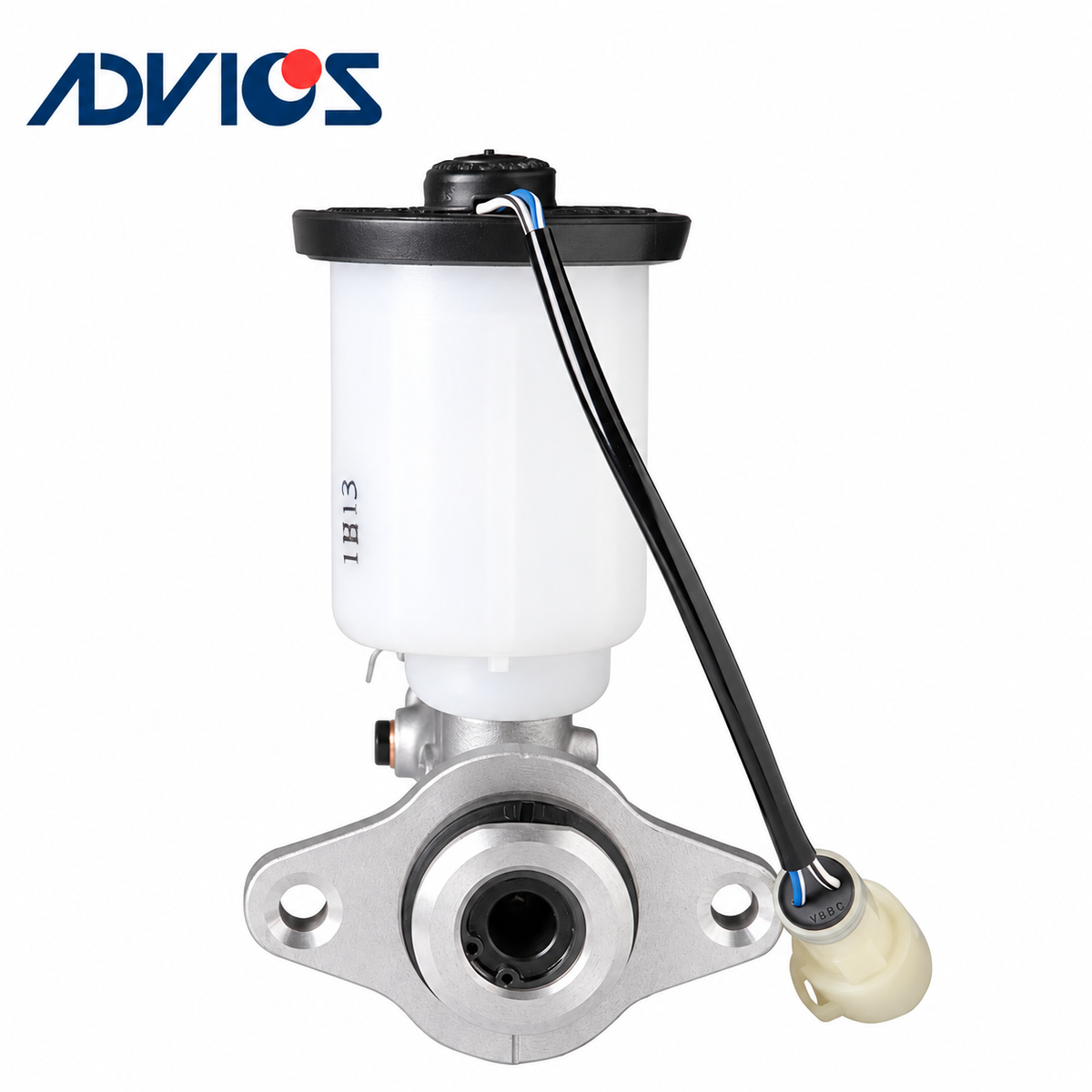

Mounting flange: 2 mounting holes
Brake fluid: DOT 3

What's Included

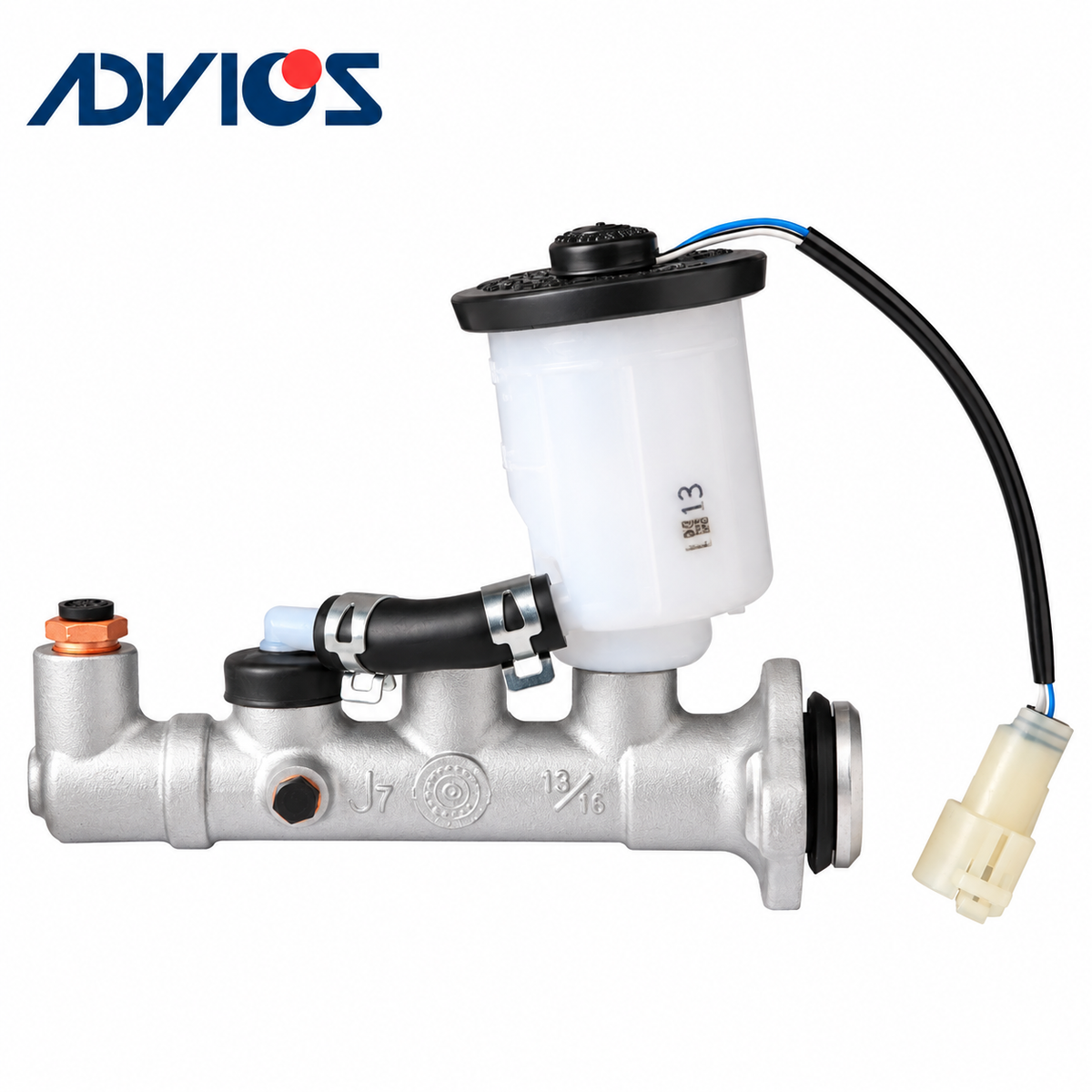

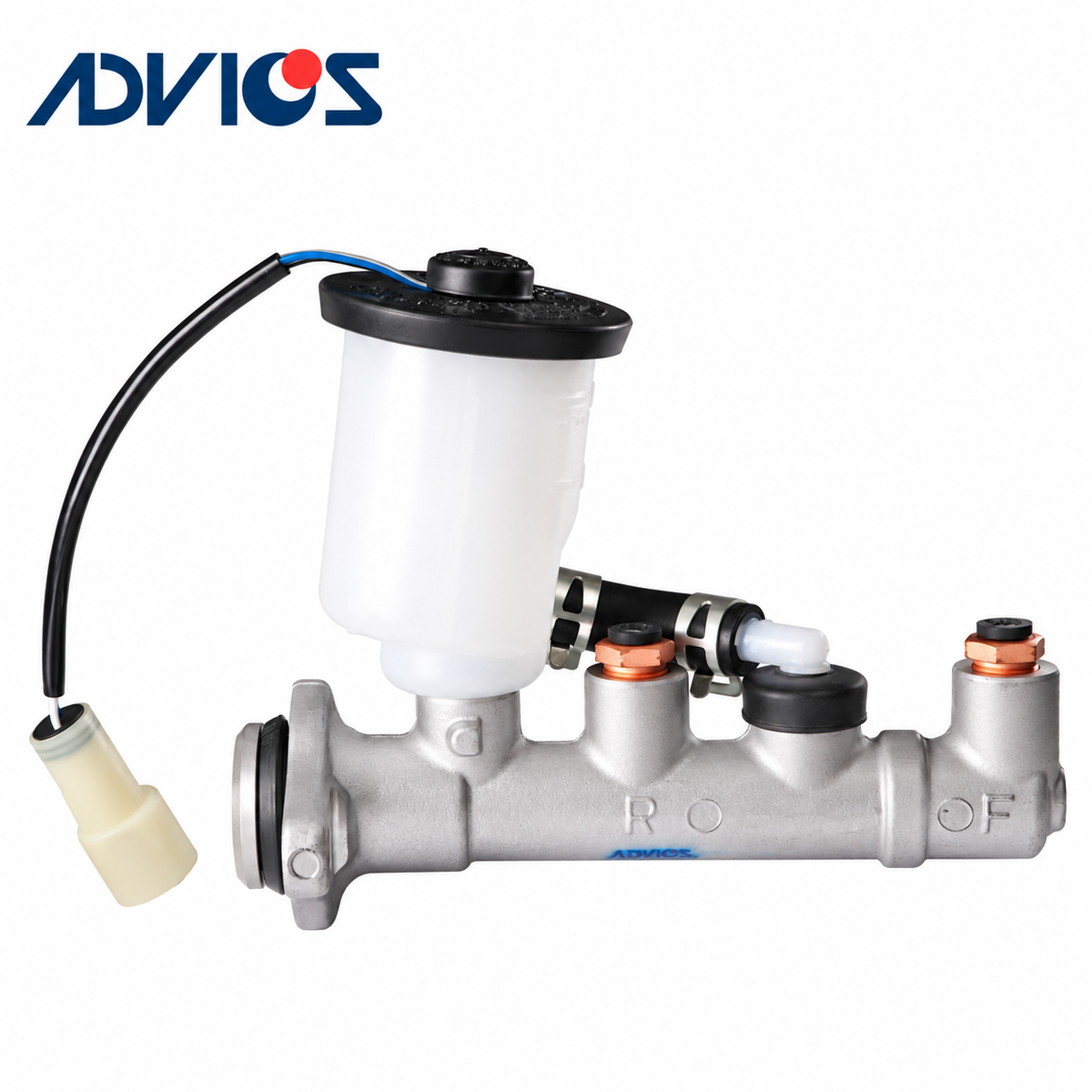

• (1) Brake master cylinder assembly with plastic reservoir, cap, fluid-level sensor and gasket/seal

Brake booster, pushrod and mounting hardware are not included.
