The Toyota RF1A is the gear-driven transfer-case family behind many classic 4WD Toyota Pickup and 4Runner builds. Before ordering crawl gears, rebuild parts, dual-case components, parking brakes, or input gears, identify whether the truck actually has an RF1A and then determine its input spline and shifter configuration.
Quick answer: how do I know if I have an RF1A?
Start with the engine and transmission. Many 4-cylinder 4WD Toyota Pickups from 1979–1995 and 4-cylinder 4Runners from 1985–1995 use a gear-driven RF1A configuration. Factory 3VZ-E V6 trucks with the R150F use a chain-driven VF1A, not a factory RF1A. A V6 truck can still have an RF1A if it has been converted with the appropriate adapter, so modified vehicles must be identified by the installed hardware.
Common RF1A transmission, spline and shifter combinations
| Common application | Transmission | Input | Shifter style |
|---|---|---|---|
| 1979–07/1983 4-cyl Pickup | L43 / L45 / L50 / L52 | 21-spline | Top shift |
| 08/1983–1988 4-cyl | G52 / G54 | 21-spline | Forward shift, commonly 4.5-in offset |
| 1985–1988 4-cyl | W56A / W56B | 21-spline | Top shift |
| 1986–1987 22R-TE turbo | R151F | 23-spline | Top or forward shift depending on original configuration |
| 1989–1995 4-cyl | W56C / W56D / W56E | 21-spline | Forward shift, commonly 4-in offset |
| 1988–1995 V6 factory configuration | R150F | 23-spline transmission output | Factory case is chain-driven VF1A; RF1A requires a conversion/adapter |
This table is a strong starting point, but swaps are common. Verify the transmission code and the case installed in the vehicle before buying internal parts.
21-spline vs. 23-spline: why it matters
Most naturally aspirated 4-cylinder RF1A applications use a 21-spline input. The 1986–1987 turbo R151F application uses a 23-spline input, and 23-spline components are also common in upgraded dual-case builds because of their additional spline engagement and strength. Do not assume a modified truck still has its original spline count.
Top shift vs. forward shift
RF1A cases also differ by shifter arrangement. A top-shift case has its transfer-case shifter mechanism on top of the transfer case. A forward-shift arrangement uses shift forks that project forward and connect to a shifter mounted farther forward through the transmission/shifter assembly. This distinction matters when buying crawl boxes, shifter parts, conversion components, and complete cases.
RF1A vs. factory V6 chain-driven case
The most important exception is the 3VZ-E V6 drivetrain. A stock R150F/V6 Pickup or 4Runner uses a chain-driven VF1A. RF1A-specific 4.70 gears, RF1A rebuild components, and RF1A transfer-case-mounted accessories are not direct-fit parts for the stock chain-driven case. V6-to-RF1A conversions exist, but they require the correct adapter and supporting drivetrain changes.
What to verify before ordering RF1A parts
- 4-cylinder or V6 engine—and whether the drivetrain is original.
- Transmission code, especially W56, R151F, or R150F applications.
- Gear-driven RF1A versus chain-driven factory V6 case.
- 21-spline versus 23-spline input.
- Top-shift versus forward-shift configuration.
- Single-case versus dual-case or crawl-box conversion.
Related RF1A parts

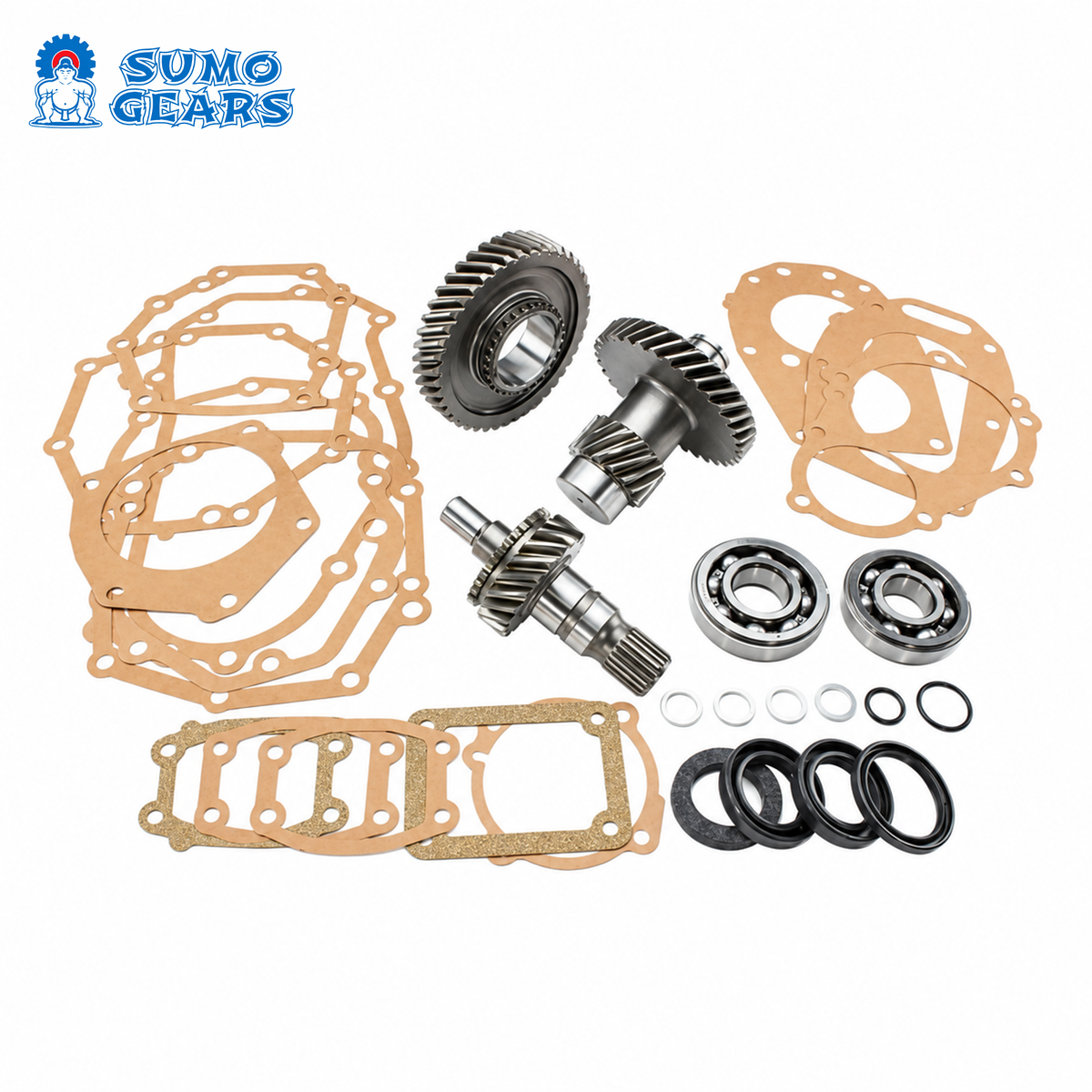

- Sumo Gear 4.7:1 RF1A Transfer Case Gear Set
