Yukon Gear 5.29 4-Cylinder Ring & Pinion Gear Set for Toyota 8" Differential 4WD (1979-95 4Runner/Pickup)

Yukon Gear 4-Cylinder 5.29 Ring & Pinion Gear Set

For 1979–1995 Toyota Pickup & 1984–1995 Toyota 4Runner 4WD with Toyota 8" 4-Cylinder Differential

Overview

The Yukon Gear 5.29 Ring & Pinion Gear Set is a deep-ratio differential upgrade for classic Toyota 4WD applications equipped with the standard Toyota 8-inch 4-cylinder differential. The 5.29:1 ratio is well suited to vehicles running larger tires or builds focused on low-speed trail performance, rock crawling, and improved mechanical advantage.

This version uses a 29-spline pinion rather than the factory-style 27-spline configuration found in many original Toyota 8-inch differentials. Vehicles retaining 27-spline pinion hardware require the appropriate 29-spline companion flange, pinion seal, and pinion nut for installation.

Fitment is determined by the differential housing, not engine alone. The standard 4-cylinder Toyota 8-inch third member was commonly used with 20R, 22R, and 22RE applications and is different from the V6/Turbo-style 8-inch differential and the 7.5-inch IFS front differential.

Key Features

• 5.29:1 differential gear ratio
• Designed for the Toyota 8-inch 4-cylinder differential
• Heavy-duty 29-spline pinion
• High-grade steel ring and pinion construction
• Gear tooth surface finishing designed to reduce friction and heat
• Deep gearing improves mechanical advantage for larger tires and low-speed off-road use
• Fits applicable front and rear solid-axle Toyota 8-inch differentials
• Available with or without 29-spline conversion hardware
• Suitable for lockers and differential carriers designed for the Toyota 8-inch 4-cylinder platform
• Professional differential setup required

Toyota 8" 4-Cylinder Differential Identification

Toyota used different 8-inch third-member designs across these vehicles, so identifying the differential before ordering is important.

Standard 4-Cylinder Toyota 8" Differential

• Commonly found in 20R, 22R, and 22RE applications
• Typically identified by three external reinforcement ribs
• Uses this 4-cylinder-style ring and pinion gear set

V6 / Turbo Toyota 8" Differential

• Typically identified by four reinforcement ribs and a trapezoid-shaped upper rib
• Commonly associated with 22R-TE and 3VZ-E applications
• Uses the separate V6/Turbo-style gear set

Beginning with Toyota's transition to IFS, the front differential changed to a 7.5-inch design. This 8-inch gear set therefore fits the front differential only on the solid-front-axle applications listed below.

Vehicle Fitment

Toyota Pickup

• 1979–1983 Toyota Pickup – 1st Gen – 4WD – Toyota 8" 4-Cylinder Differential – Front & Rear
• 1984–1985 Toyota Pickup – 2nd Gen – 4WD – Toyota 8" 4-Cylinder Differential – Front & Rear
• 1986–1988 Toyota Pickup – 2nd Gen – 4WD – Toyota 8" 4-Cylinder Differential – Rear Only
• 1989–1995 Toyota Pickup – 3rd Gen – 4WD – Toyota 8" 4-Cylinder Differential – Rear Only

Toyota 4Runner

• 1984–1985 Toyota 4Runner – 1st Gen – 4WD – Toyota 8" 4-Cylinder Differential – Front & Rear
• 1986–1989 Toyota 4Runner – 1st Gen – 4WD – Toyota 8" 4-Cylinder Differential – Rear Only
• 1990–1995 Toyota 4Runner – 2nd Gen – 4WD – Toyota 8" 4-Cylinder Differential – Rear Only

Fitment Notes

• Toyota 8-inch 4-cylinder differential only
• 29-spline pinion
• 5.29:1 gear ratio
• Factory 27-spline applications require compatible 29-spline companion flange, pinion seal, and pinion nut
• Does not fit the 7.5-inch IFS front differential used beginning in 1986
• Does not fit the V6/Turbo-style 8-inch third member
• Front application is limited to Toyota 8-inch solid-front-axle configurations
• On 4WD vehicles, front and rear differential ratios must match before engaging four-wheel drive
• Verify the installed third member if the vehicle has undergone an axle or differential swap
• Professional installation and differential setup are recommended
• Proper pinion depth, bearing preload, backlash, and gear contact pattern must be established during installation
• Proper ring-and-pinion break-in should be completed after installation

Factory 4.88 Differential Warning: The uncommon factory G144 4.88 differential uses a specialized third-member housing and should not be treated as a standard aftermarket Toyota 8-inch gear application. Vehicles equipped with this differential require additional third-member verification before ordering.

Product Specifications

Brand: Yukon Gear & Axle
Product Type: Ring & Pinion Gear Set
Differential: Toyota 8" 4-Cylinder
Gear Ratio: 5.29:1
Pinion Spline: 29-Spline
Ring Gear Diameter: 8 Inches
Material: High-Grade Steel
Rotation: Standard
Drivetrain: 4WD
Front Application: 1979–1985 Solid Axle
Rear Application: 1979–1995 Toyota 8" 4-Cylinder Differential
Installation: Professional Differential Setup Recommended

Available Configurations

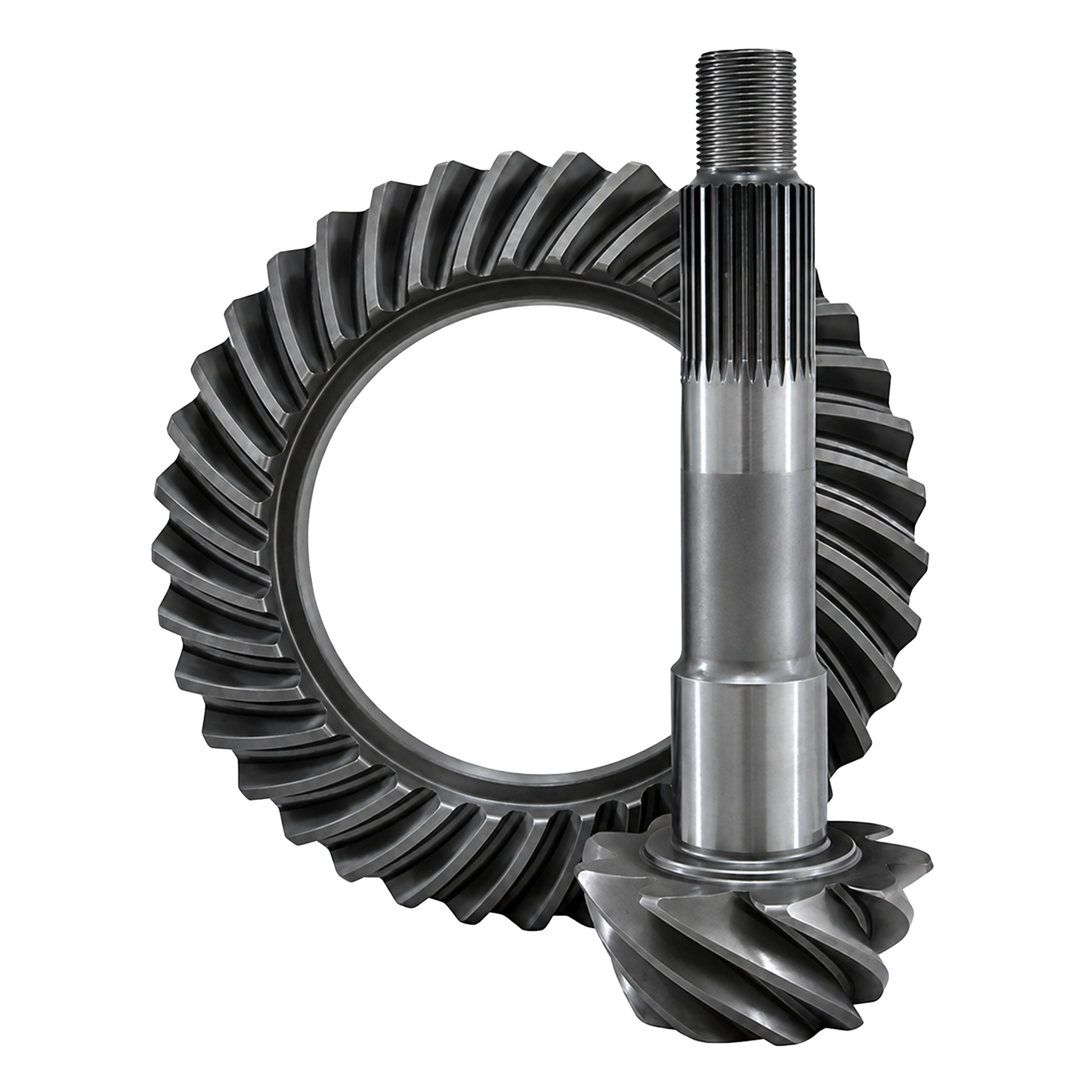

29-Spline Gear Set

• (1) Yukon 5.29 Ring Gear
• (1) Yukon 5.29 Pinion Gear
• Requires existing compatible 29-spline pinion hardware or separately purchased conversion components

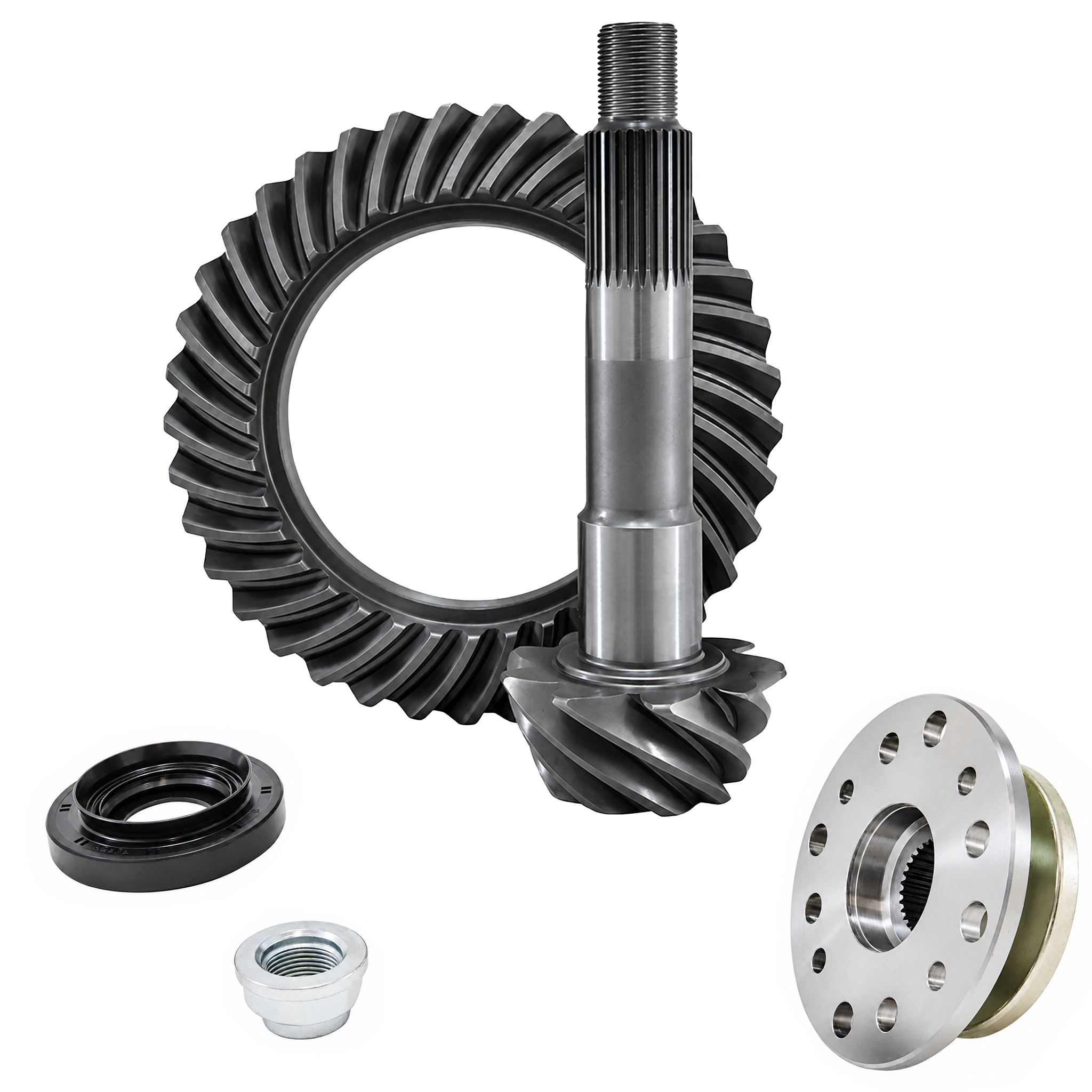

29-Spline Gear Set + Conversion Hardware

• (1) Yukon 5.29 Ring Gear
• (1) Yukon 5.29 Pinion Gear
• (1) 29-Spline Companion Flange / Yoke
• (1) Pinion Seal
• (1) 29-Spline Pinion Nut
• Provides the required pinion hardware for converting applicable factory 27-spline configurations to the 29-spline gear set
