Total Chaos Gen II Caddy Weld-On Shock Hoop Kit
For 1986–1995 Toyota 4Runner & Toyota Pickup 4WD Long Travel Suspension
Overview
The Total Chaos Gen II Caddy Weld-On Shock Hoop Kit provides a reinforced upper mounting system for converting 1986–1995 Toyota 4Runner and Pickup 4WD front suspension to an 8-inch-travel, 2.5-inch coilover shock configuration.
Pre-bent 4130 chromoly main hoops, laser-cut reinforcement plates, support tubes, and gussets create a substantially stronger shock mounting structure than the factory arrangement. The system is designed for long travel suspension applications where proper coilover positioning and chassis reinforcement are required.
The shock hoops support King, FOX, and Sway-A-Way 2.5-inch coilovers and include provisions for secondary shocks and remote reservoirs, making the kit suitable for performance-oriented off-road suspension builds.
Key Features
- Pre-bent 4130 chromoly shock hoops
- Designed for 8-inch-travel, 2.5-inch coilover shocks
- Supports King, FOX, and Sway-A-Way 2.5-inch coilovers
- Weld-on chassis installation
- Laser-cut cross-shaft mounting plates
- 4130 chromoly support tubes
- Integrated secondary shock mounting tabs
- Weld-on remote reservoir mounting tabs
- Frame overlay plates distribute suspension loads
- Reinforcement uprights and gussets strengthen critical mounting areas
Reinforced Coilover Mounting System
The primary hoops are pre-bent from 4130 chromoly steel to position 8-inch-travel coilover shocks within the long travel suspension geometry.
CNC laser-cut cross-shaft plates and support components integrate the shock tower into the chassis. Frame overlay plates, upright supports, and gussets distribute suspension loads across a larger section of the frame rather than concentrating force at a single mounting point.
The kit also includes secondary shock tabs for dual-shock configurations and reservoir tabs for securely mounting remote reservoirs. These provisions allow the front suspension to be configured for additional damping control when paired with the appropriate shocks.
Vehicle Fitment
Toyota 4Runner
- 1986–1989 Toyota 4Runner – 1st Gen – 4WD – Long Travel Front Suspension – Coilover Shock Mounting
- 1990–1995 Toyota 4Runner – 2nd Gen – 4WD – Long Travel Front Suspension – Coilover Shock Mounting
Toyota Pickup
- 1986–1988 Toyota Pickup – 2nd Gen – 4WD – Long Travel Front Suspension – Coilover Shock Mounting
- 1989–1995 Toyota Pickup – 3rd Gen – 4WD – Long Travel Front Suspension – Coilover Shock Mounting
Fitment Notes
- 4WD applications
- Designed for long travel front suspension systems
- Designed around 8-inch-travel, 2.5-inch coilover shocks
- Supports King, FOX, and Sway-A-Way 2.5-inch coilovers
- Welding is required
- Coilover shocks are not included
- Secondary shocks are not included
- Professional fabrication and suspension installation are recommended
Product Specifications
Brand: Total Chaos Fabrication
Series: Gen II Caddy
Product Type: Weld-On Shock Hoop / Coilover Mount Kit
Position: Front
Drivetrain: 4WD
Primary Material: 4130 Chromoly Steel
Shock Configuration: 8-Inch-Travel / 2.5-Inch Coilover
Shock Compatibility: King, FOX, Sway-A-Way
Secondary Shock Capability: Yes
Remote Reservoir Mounts: Included
Main Hoop Design: Pre-Bent
Reinforcement: Frame Overlay Plates, Uprights & Gussets
Hardware: Grade 8
Installation: Weld-On

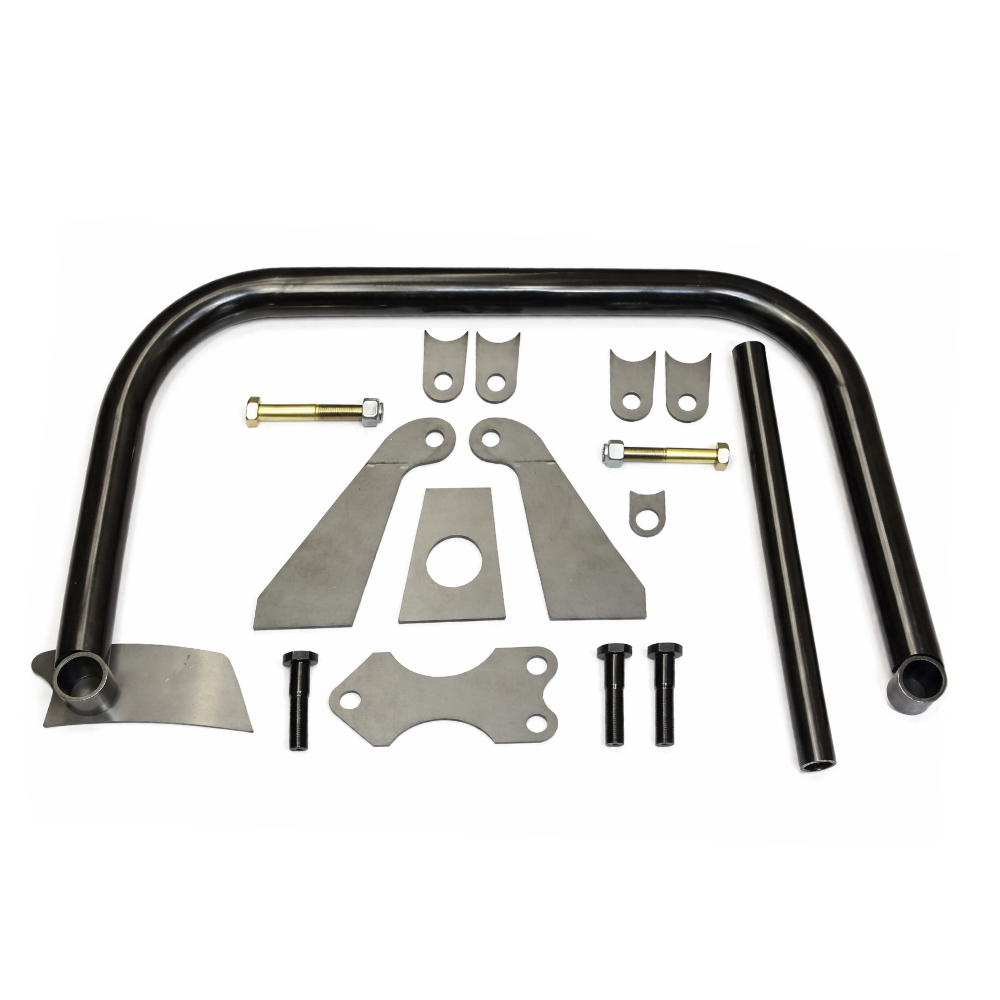

What's Included
- (2) Gen II Caddy main shock hoops
- (2) Gen II Caddy support tubes
- (4) 1-1/2-inch x 2-inch bosses
- (8) Reservoir mounting tabs
- (1) Brake line tab
- (8) Shock hoop tabs
- (1) Driver-side front upright with notch
- (1) Passenger-side front upright
- (1) Driver-side rear upright
- (1) Passenger-side rear upright
- (2) Cross-shaft plane uprights
- (2) Frame overlay plates
- (2) Upright gussets with holes
- Grade 8 mounting hardware
