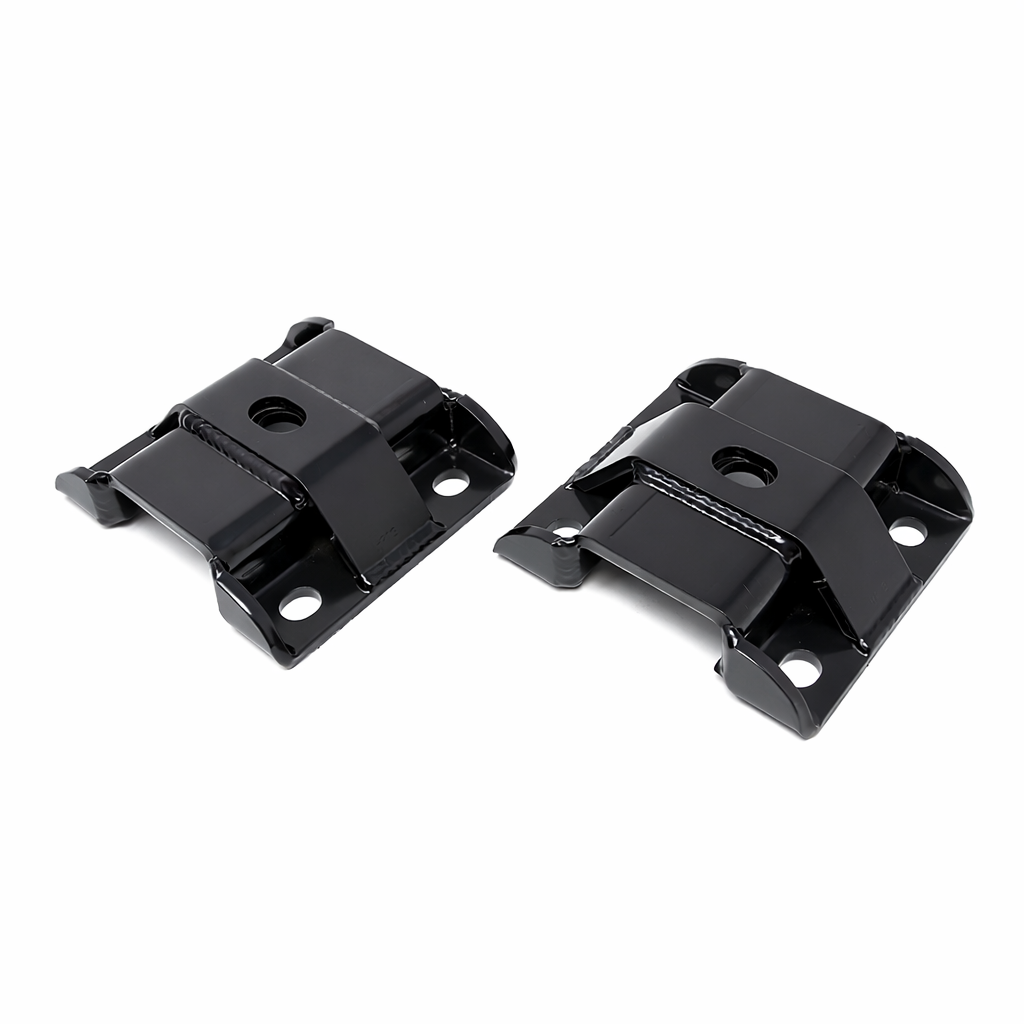

Total Chaos Heavy-Duty U-Bolt Relocation Plates
For 1986–1995 Toyota 4Runner & Toyota Pickup 4WD with 2.5-Inch-Wide 62-Inch Rear Leaf Springs
Overview
The Total Chaos Heavy-Duty U-Bolt Relocation Plates are designed for Toyota 4WD rear suspension setups using 2.5-inch-wide aftermarket 62-inch leaf springs in a spring-under-axle configuration.
These reinforced rear U-bolt plates improve support at the axle and leaf spring mounting point while protecting the U-bolt nuts from trail and off-road impacts. A welded gusset strengthens each plate, while a recessed center-pin pocket helps locate the leaf spring and resist unwanted movement under suspension load.
Each plate is finished in black powder coat for corrosion resistance and installs as a bolt-on component when used with the specified spring-under suspension configuration.
Key Features
- Heavy-duty rear leaf spring U-bolt plates
- Designed for 2.5-inch-wide aftermarket leaf springs
- Intended for 62-inch spring-under-axle setups
- Welded gusset reinforces each plate
- Recessed leaf spring center-pin pocket helps prevent shifting
- Helps shield U-bolt nuts from impact damage
- Supports secure leaf spring and axle clamping
- Black powder-coated finish
- 100% bolt-on installation with the correct suspension configuration
- Sold as a pair
Reinforced U-Bolt Plate Design
The U-bolt plates feature a gusseted steel construction designed to resist bending as the U-bolts are tightened and subjected to rear suspension loads.
A recessed pocket captures the leaf spring center pin, helping maintain the relationship between the spring and axle during acceleration, articulation, and off-road suspension cycling. The plate design also positions the U-bolt hardware to provide additional protection for the nuts beneath the axle.
Vehicle Fitment
Toyota 4Runner
- 1986–1989 Toyota 4Runner – 1st Gen – 4WD – 2.5-Inch-Wide 62-Inch Rear Leaf Springs – Spring-Under-Axle
- 1990–1995 Toyota 4Runner – 2nd Gen – 4WD – Custom 2.5-Inch-Wide 62-Inch Rear Leaf Spring Conversion – Spring-Under-Axle
Toyota Pickup
- 1986–1988 Toyota Pickup – 2nd Gen – 4WD – 2.5-Inch-Wide 62-Inch Rear Leaf Springs – Spring-Under-Axle
- 1989–1995 Toyota Pickup – 3rd Gen – 4WD – 2.5-Inch-Wide 62-Inch Rear Leaf Springs – Spring-Under-Axle
Fitment Notes
- 4WD applications
- Requires 2.5-inch-wide aftermarket leaf springs
- Designed around a 62-inch rear leaf spring
- Requires a spring-under-axle configuration
- Not intended for a standard spring-over-axle configuration
- 1990–1995 2nd Gen Toyota 4Runner requires a properly configured rear leaf spring conversion
- Bolt-on installation when used with the correct suspension configuration
- Verify compatibility when combining components from different aftermarket suspension systems
Product Specifications
Brand: Total Chaos Fabrication
Product Type: Rear U-Bolt Relocation Plates
Position: Rear
Material: Steel
Finish: Black Powder Coat
Leaf Spring Width: 2.5 Inches
Leaf Spring Length: 62 Inches
Spring Configuration: Spring Under Axle
Design: Gusseted / Recessed Center-Pin Pocket
Installation: Bolt-On
Quantity: Pair
What's Included
- (2) Heavy-duty rear U-bolt relocation plates
