Total Chaos Weld-On Shackle Pivot Gusset Kit
For 1986–1995 Toyota Pickup 4WD & Toyota 4Runner Rear Leaf-Spring Applications with 9- or 12-Inch Shackles
Overview
The Total Chaos Weld-On Shackle Pivot Gusset Kit reinforces the rear shackle mounting area on Toyota 4WD leaf-spring suspension systems using 9-inch or 12-inch aftermarket shackles.
Extended shackles increase leverage at the frame pivot, placing additional stress on the factory mounting area during articulation, hard suspension cycling, and aggressive off-road use. These gussets strengthen the frame around the shackle pivot to help reduce flex, deformation, cracking, and pivot-hole elongation.

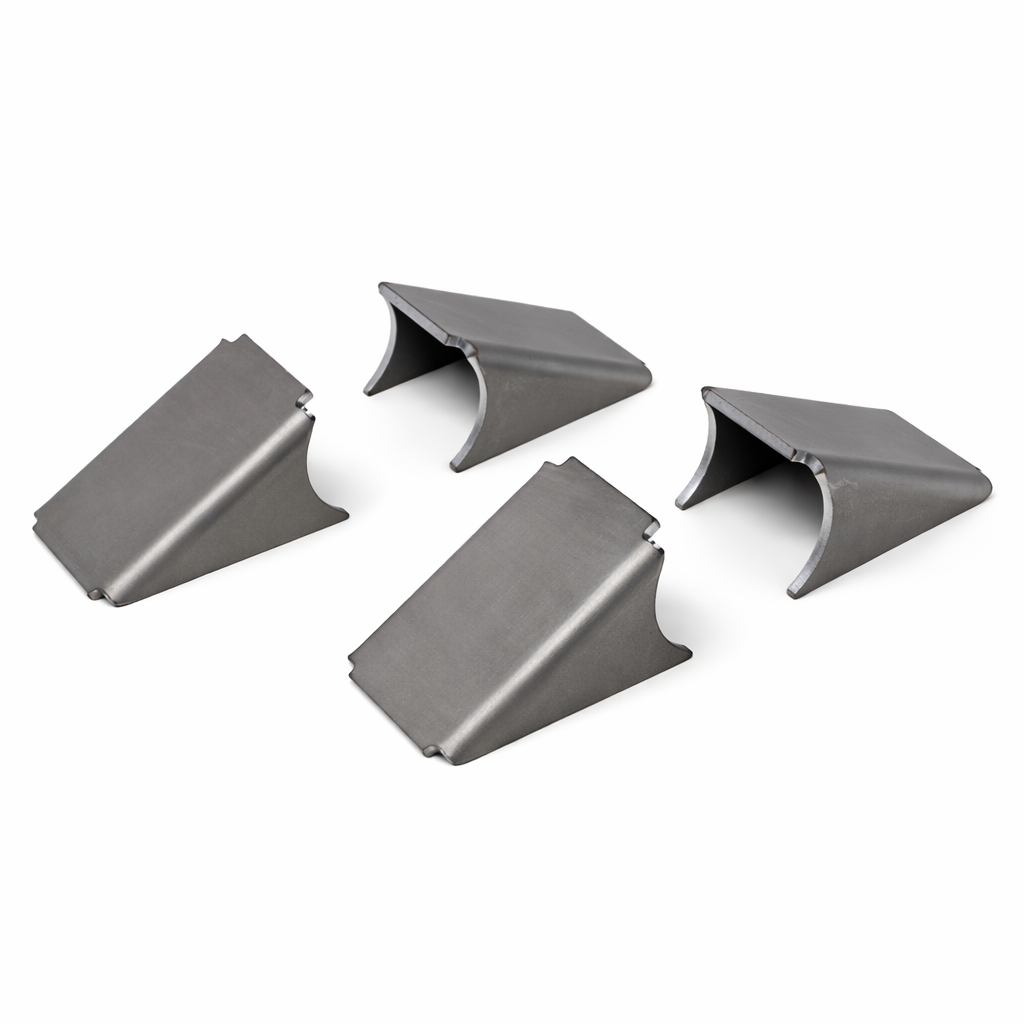

Each gusset is manufactured from laser-cut 10-gauge steel and comes pre-bent and notched to simplify fabrication. Four gussets are included, providing enough reinforcement for one vehicle.
Key Features
- Reinforces the rear shackle pivot mounting area
- Designed for vehicles running 9-inch or 12-inch extended shackles
- Helps reduce frame flex and distortion around the pivot
- Helps prevent shackle pivot-hole elongation
- Supports demanding off-road and long-travel leaf-spring applications
- Laser-cut 10-gauge steel construction
- Pre-bent and notched for easier installation
- Four-piece kit reinforces one vehicle
- Weld-on installation
- Designed for custom rear suspension fabrication
Shackle Pivot Reinforcement
Longer shackles increase the mechanical leverage applied to the frame-mounted shackle pivot. Under heavy suspension loads, this additional leverage can fatigue or deform the surrounding frame structure.
The gussets reinforce the mounting area above and below the frame rail, creating a stronger structure around the shackle pivot. This added support is especially beneficial on vehicles used for aggressive off-road driving, increased articulation, and custom long-travel rear suspension setups.
Vehicle Fitment
Toyota 4Runner
- 1986–1989 Toyota 4Runner – 1st Gen – 4WD – Rear Leaf Springs – 9- or 12-Inch Shackles
- 1990–1995 Toyota 4Runner – 2nd Gen – Custom Rear Leaf-Spring Conversion – 9- or 12-Inch Shackles
Toyota Pickup
- 1986–1988 Toyota Pickup – 2nd Gen – 4WD – Rear Leaf Springs – 9- or 12-Inch Shackles
- 1989–1995 Toyota Pickup – 3rd Gen – 4WD – Rear Leaf Springs – 9- or 12-Inch Shackles
Fitment Notes
- Intended for rear suspension applications using 9-inch or 12-inch aftermarket shackles
- Welding is required
- Grinding and frame-surface preparation are required before welding
- Designed to reinforce the shackle pivot mounting area
- 1990–1995 2nd Gen Toyota 4Runner requires a custom rear leaf-spring conversion
- Proper gusset placement should be established before final welding
- Professional suspension fabrication and welding are recommended
Product Specifications
Brand: Total Chaos Fabrication
Product Type: Shackle Pivot Gusset Kit
Position: Rear
Material: Steel
Material Thickness: 10 Gauge
Construction: Laser Cut / Pre-Bent / Notched
Shackle Application: 9-Inch or 12-Inch Extended Shackles
Installation: Weld-On
Quantity: Four Gussets
Vehicle Coverage: One Vehicle
What's Included
- (4) Rear shackle pivot gussets
- Enough gussets to reinforce one vehicle
