Total Chaos Weld-On Rear Axle Shock Mounts
For 1986–1995 Toyota 4Runner & Toyota Pickup 4WD Rear Axle Applications
Overview
The Total Chaos Weld-On Rear Axle Shock Mounts are heavy-duty lower shock mounting brackets designed for 1986–1995 Toyota 4Runner and Pickup 4WD rear axle applications.
Constructed from laser-cut 1/4-inch steel, each mount is pre-welded with integrated gussets to reinforce the lower shock attachment point and help protect the shock rod end during aggressive off-road use. The mounts reposition the lower shock eyelet approximately 7 inches above the axle housing, allowing improved shock placement for custom and long-travel rear suspension systems.
These mounts are designed around 3-inch-diameter axle housings and require welding for installation. They can be modified by grinding to accommodate larger axle housings when required.
Key Features
- Laser-cut 1/4-inch-thick steel construction
- Pre-welded integrated gussets for structural reinforcement
- Repositions the lower shock eyelet approximately 7 inches off the axle housing
- Helps protect lower shock rod ends from trail and impact damage
- Designed for custom and long-travel rear suspension setups
- Designed around 3-inch axle housings
- Can be modified to accommodate larger axle housings
- Supports rod-end-style lower shock mounting
- Grade 8 mounting hardware included
- Weld-on installation
Reinforced Rear Shock Mounting
Factory-style lower shock mounts can leave the shock attachment point vulnerable during aggressive off-road use. These reinforced mounts provide a stronger mounting structure while repositioning the shock for custom suspension geometry.
Each bracket incorporates welded gussets and a heavy 1/4-inch steel construction. The raised lower mounting position can provide additional clearance around the axle and allows the shock angle to be configured for performance-oriented rear suspension systems.
Because shock angle, travel, and mounting position affect suspension operation, final placement should be determined as part of the complete rear suspension setup before welding.
Vehicle Fitment
Toyota 4Runner
- 1986–1989 Toyota 4Runner – 1st Gen – 4WD – Rear Axle Shock Mount
- 1990–1995 Toyota 4Runner – 2nd Gen – 4WD – Rear Axle Shock Mount
Toyota Pickup
- 1986–1988 Toyota Pickup – 2nd Gen – 4WD – Rear Axle Shock Mount
- 1989–1995 Toyota Pickup – 3rd Gen – 4WD – Rear Axle Shock Mount
Fitment Notes
- 4WD applications
- Rear axle application
- Designed around 3-inch-diameter axle housings
- Can be ground to fit larger axle housings when required
- Designed for rod-end-style lower shock mounting
- Welding is required
- Final shock position and angle must be established during installation
- Professional suspension fabrication and welding are recommended
Product Specifications
Brand: Total Chaos Fabrication
Product Type: Weld-On Rear Axle Shock Mounts
Position: Rear / Lower Shock Mount
Material: Steel
Material Thickness: 1/4 Inch
Axle Housing Diameter: 3 Inches
Lower Shock Position: Approximately 7 Inches Above Axle Housing
Design: Gusseted / Weld-On
Installation: Welding Required
Quantity: Pair
What's Included
- (2) Weld-on rear shock mounts
- (2) 1/2"-20 × 3.5" Grade 8 zinc bolts
- (4) 1/2"-20 AN washers
- (2) 1/2"-20 nylon lock nuts

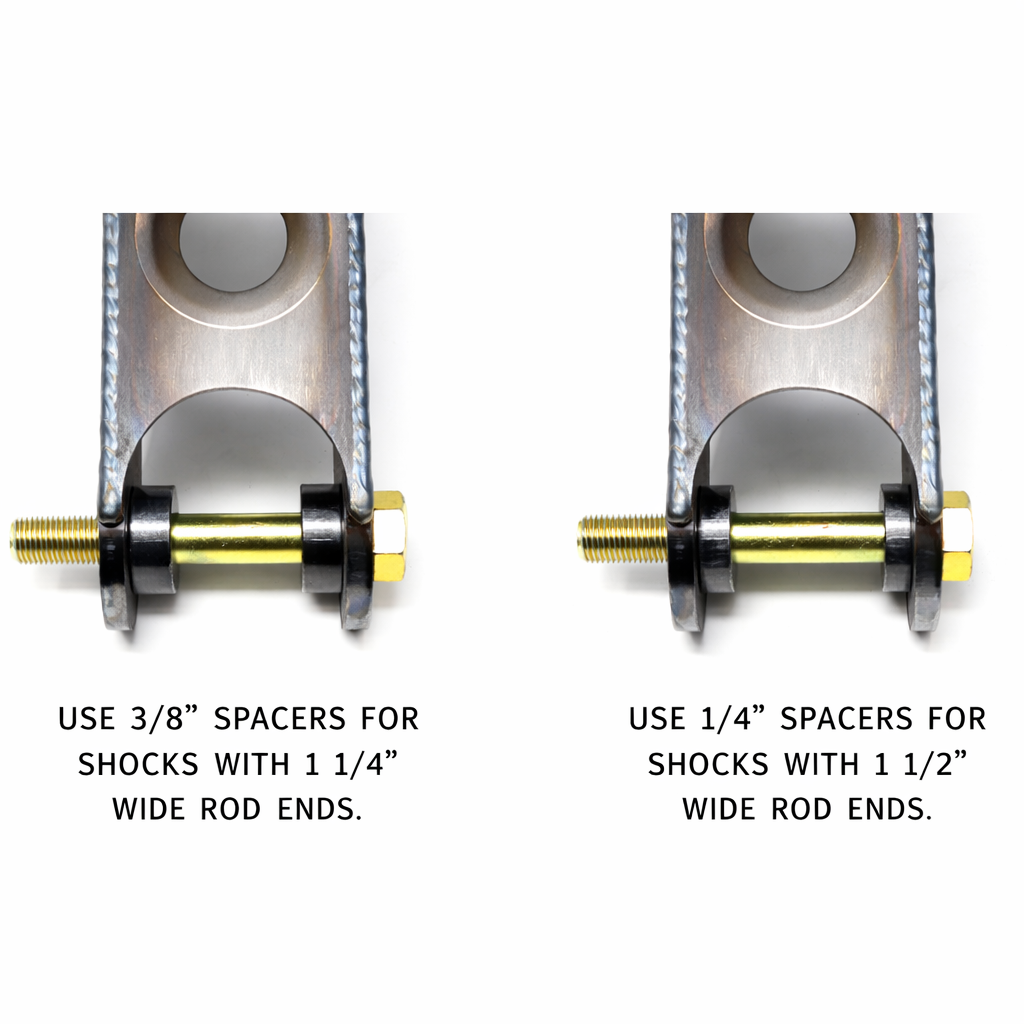

- (4) 1/4-inch rod-end spacers
- (4) 3/8-inch rod-end spacers
