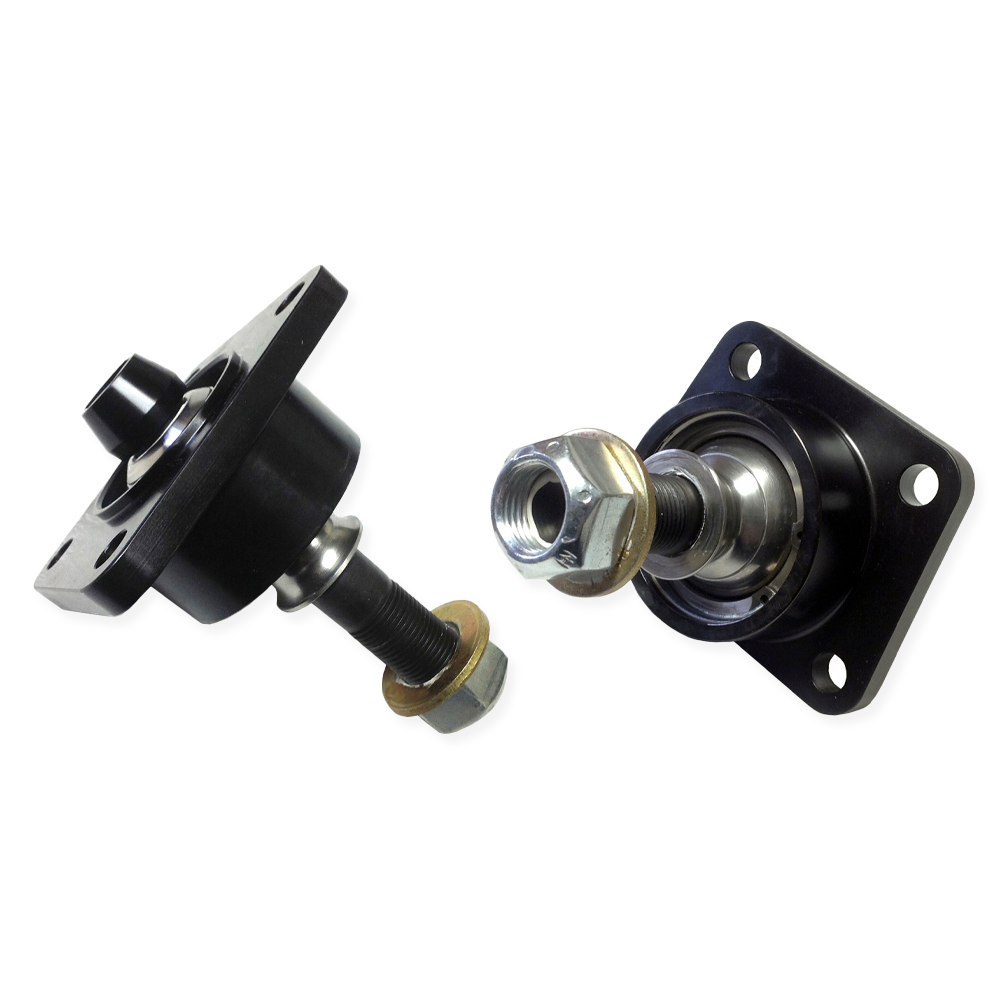

Total Chaos Lower Ball Joint Uniball Conversion Kit
For 1986–1995 Toyota 4Runner & Toyota Pickup 4WD
Overview
The Total Chaos Lower Ball Joint Uniball Conversion Kit replaces the factory lower ball joints on 1986–1995 Toyota 4Runner and Pickup 4WD suspension systems that retain the factory spindle geometry.
Designed for demanding off-road use, the conversion replaces the factory ball-joint connection with 1-inch stainless steel uniballs and CNC-machined 4130 chromoly billet adapters. The upgraded joint provides increased strength and articulation while retaining the original spindle mounting arrangement.
This system is well suited for vehicles subjected to aggressive terrain, larger tires, and upgraded suspension components where additional strength at the lower spindle connection is desired.
Key Features
- Converts factory lower ball joints to 1-inch uniballs
- CNC-machined 4130 chromoly billet lower uniball cups
- Heat-treated stainless steel uniball construction
- PTFE-lined uniballs for smooth articulation and reduced operating noise
- Heat-treated 17-4 stainless steel high-misalignment spacers
- Increased strength and articulation for off-road suspension use
- Designed for suspension systems retaining factory spindle geometry
- Custom tapered-head Grade 8 mounting hardware
- Complete driver- and passenger-side conversion
- Service replacement components available separately

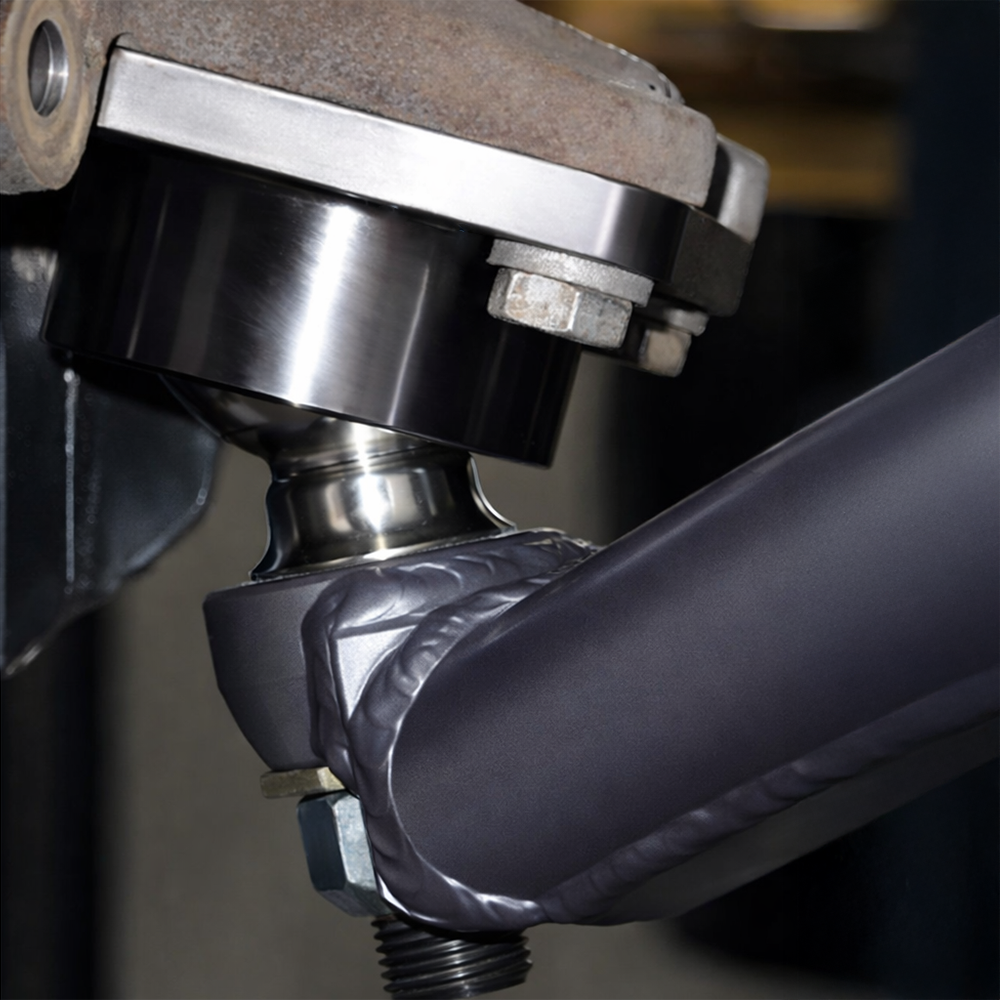

Uniball Conversion Design
The conversion replaces the factory lower ball joint with a high-strength spherical uniball assembly designed to withstand increased suspension loads and articulation.
Each adapter is CNC machined from 4130 chromoly billet and bolts to the factory spindle location. The 1-inch stainless steel uniballs use a PTFE liner to promote smooth movement while reducing noise, and the supplied high-misalignment spacers allow the joint to articulate through the required suspension range.
Because the system retains the factory spindle configuration, it can also be used with aftermarket suspension systems designed around the original Toyota spindle geometry.
Vehicle Fitment
Toyota 4Runner
- 1986–1989 Toyota 4Runner – 1st Gen – 4WD – Front Lower Ball Joint
- 1990–1995 Toyota 4Runner – 2nd Gen – 4WD – Front Lower Ball Joint
Toyota Pickup
- 1986–1988 Toyota Pickup – 2nd Gen – 4WD – Front Lower Ball Joint
- 1989–1995 Toyota Pickup – 3rd Gen – 4WD – Front Lower Ball Joint
Fitment Notes
- 4WD models only
- Does not fit 2WD models
- Designed for suspension systems that retain the factory spindle geometry
- Lower control arm tapered hole must be drilled to 3/4 inch
- Installation requires modification of the lower control arm
- Professional installation is recommended
Product Specifications
Brand: Total Chaos Fabrication
Product Type: Lower Ball Joint Uniball Conversion Kit
Position: Front / Lower
Drivetrain: 4WD
Uniball Size: 1 Inch
Uniball Material: Stainless Steel
Uniball Liner: PTFE
Adapter Material: CNC-Machined 4130 Chromoly Billet
Spacer Material: Heat-Treated 17-4 Stainless Steel
Hardware: Custom Tapered-Head Grade 8
Design: Factory Lower Ball Joint to Uniball Conversion
Installation Requirement: 3/4-Inch Lower Control Arm Hole
Quantity: Driver & Passenger Side Pair
What's Included
- (2) 4130 chromoly lower uniball cups
- (2) 1-inch stainless steel PTFE-lined uniballs
- (2) Upper high-misalignment spacers
- (2) Lower high-misalignment spacers
- (2) Uniball snap rings
- Grade 8 mounting hardware
