Total Chaos Weld-On Front Leaf Spring Hangers
For 1986–1995 Toyota 4Runner & Toyota Pickup 4WD Solid Axle Swap Applications
Overview

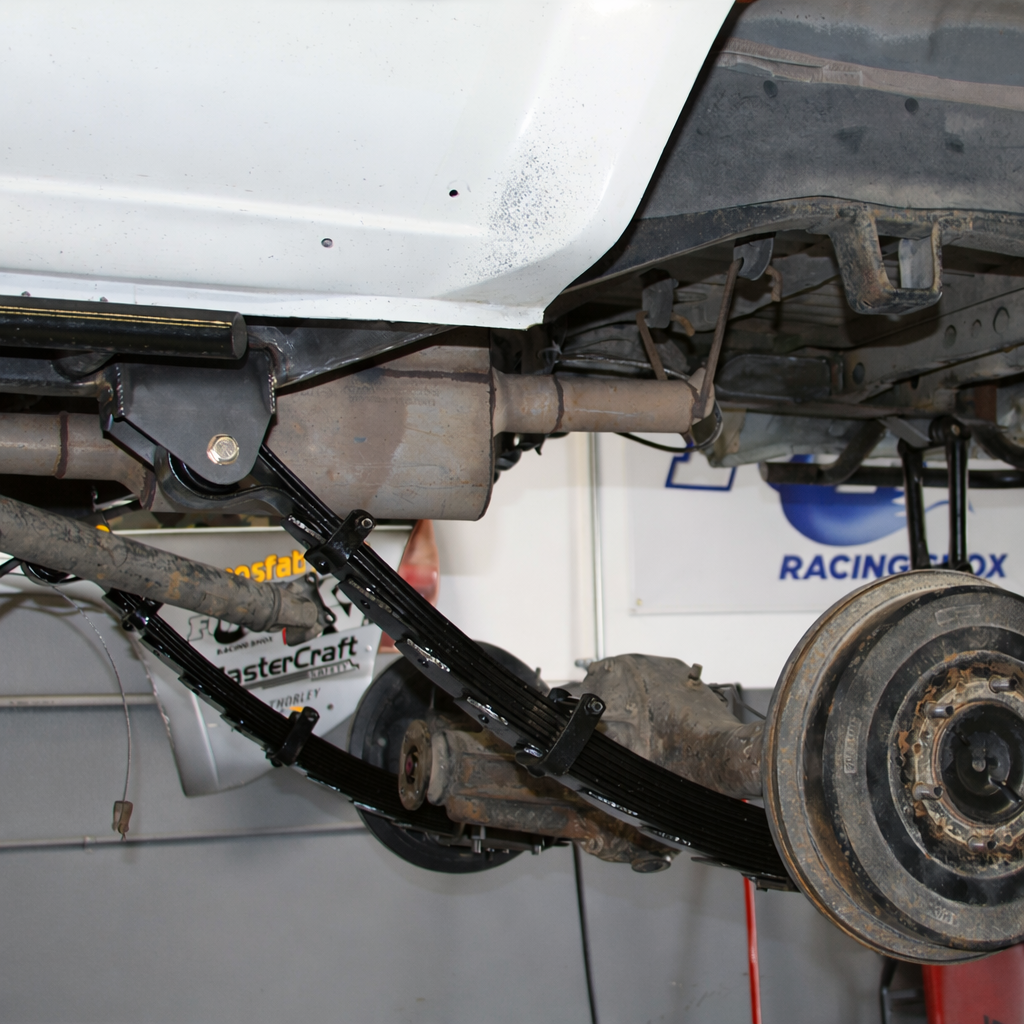

The Total Chaos Weld-On Front Leaf Spring Hangers provide the forward mounting point for aftermarket leaf springs when converting 1986–1995 Toyota 4Runner and Pickup 4WD models to a front solid axle and leaf-spring suspension.
Designed for 2.5-inch-wide aftermarket leaf springs, these brackets relocate the front spring-eye mounting position as part of a custom solid axle swap. Their weld-on construction allows the hanger position to be established around the vehicle's final suspension geometry, spring length, axle placement, and intended use.

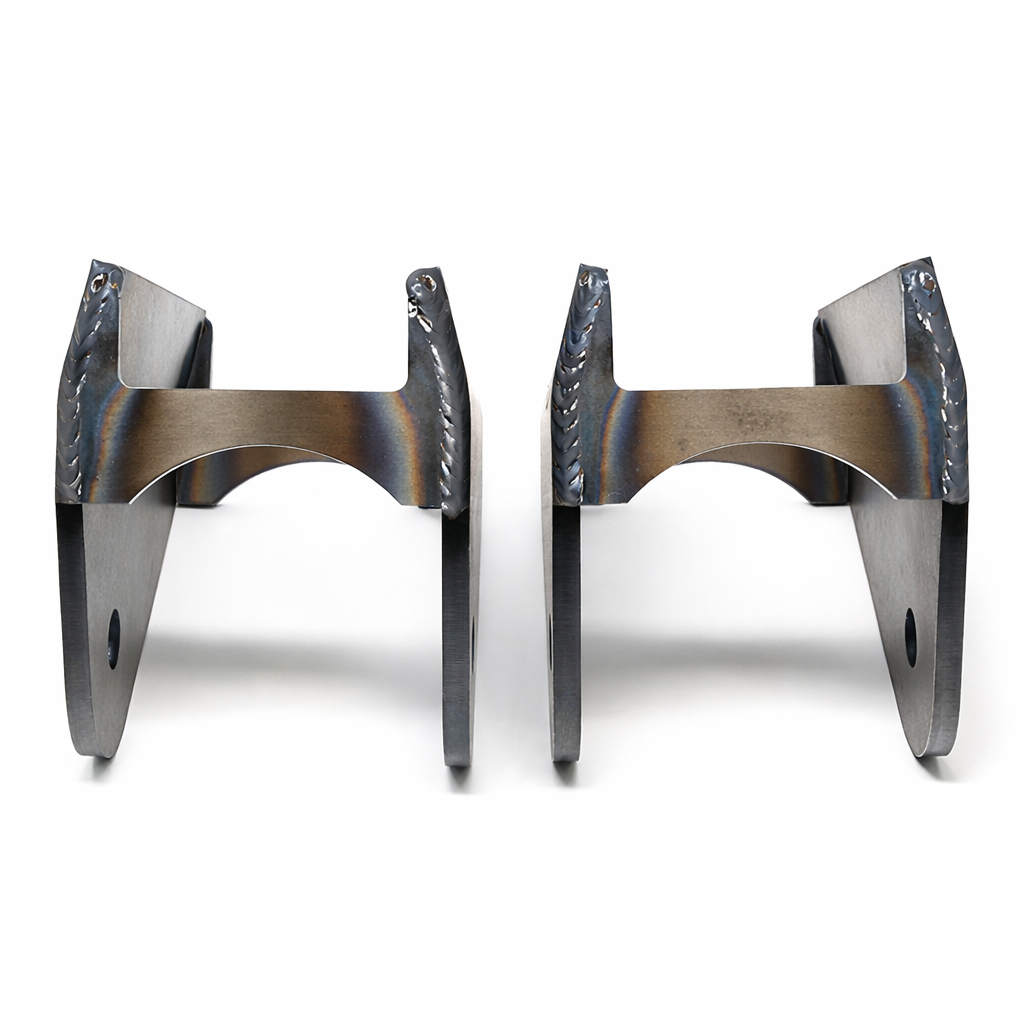

The brackets are precision laser cut from steel and include Grade 8 mounting hardware. Grinding, frame preparation, welding, and custom suspension fabrication are required for installation.
Key Features
- Front leaf spring hanger brackets for solid axle swap conversions
- Designed for 2.5-inch-wide aftermarket leaf springs
- Relocates the forward leaf spring mounting point
- Precision laser-cut steel construction
- Weld-on design for custom suspension fabrication
- Supports custom off-road and performance leaf-spring setups
- Grade 8 mounting hardware included
- Supplied as a pair
- Grinding and welding required
- Professional suspension fabrication recommended
Solid Axle Swap Spring Mounting
Proper front spring-eye placement is a critical part of a leaf-spring solid axle conversion. Hanger location affects axle position, shackle geometry, spring movement, wheelbase, and overall suspension operation.

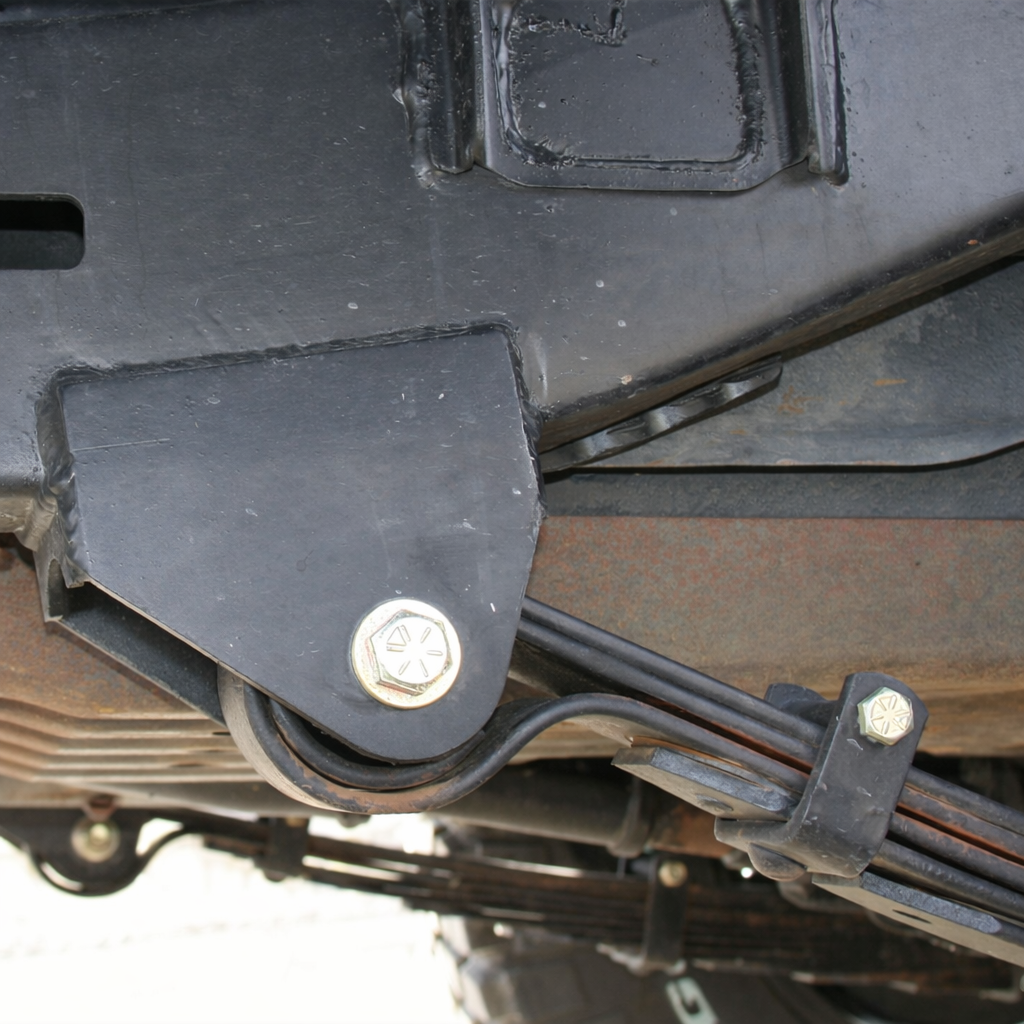

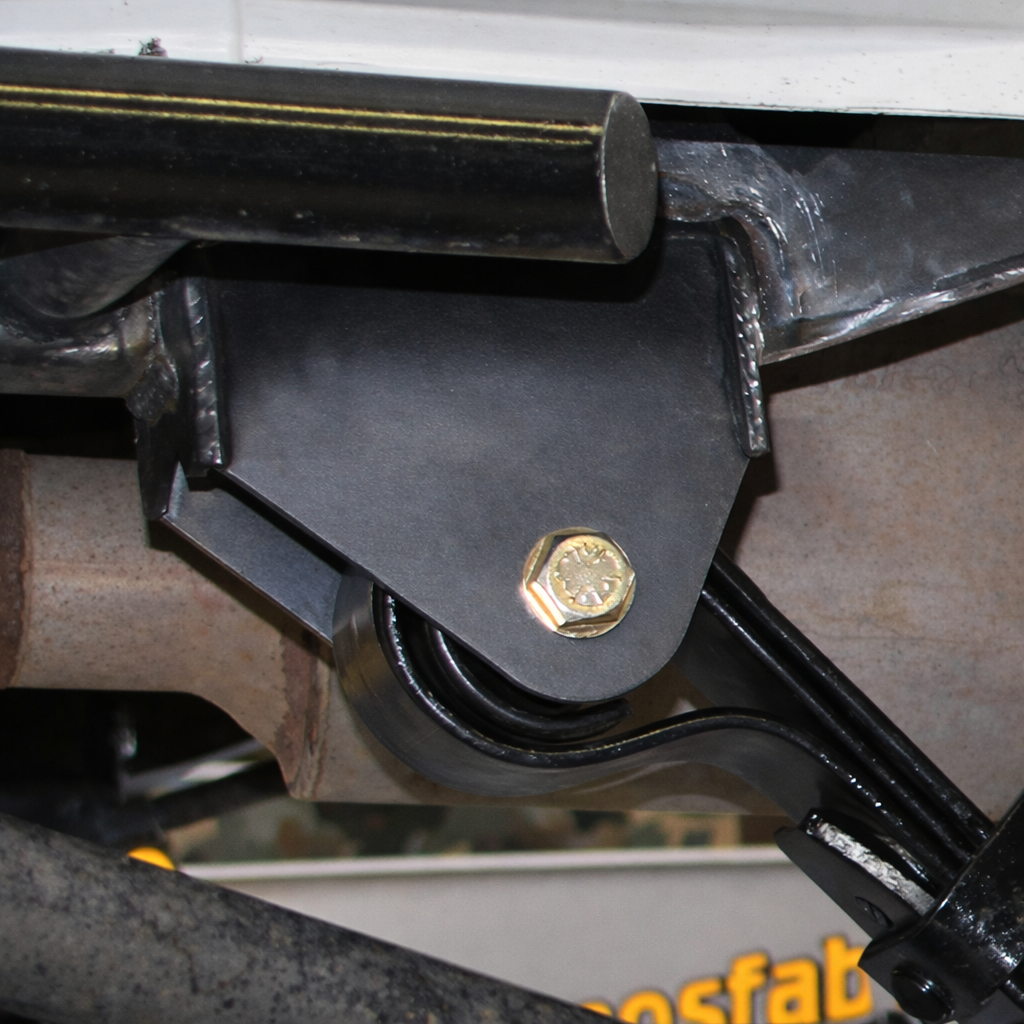

These weld-on hangers provide a structural mounting point for the front eye of a 2.5-inch-wide leaf spring. Because the brackets are intended for custom fabrication, final positioning must be determined around the complete solid axle swap rather than installed according to a universal fixed location.
Frame surfaces should be properly prepared before welding, and both hangers must be positioned accurately to maintain correct suspension alignment.
Vehicle Fitment
Toyota 4Runner
- 1986–1989 Toyota 4Runner – 1st Gen – 4WD – Front Solid Axle Swap – 2.5-Inch-Wide Leaf Springs
- 1990–1995 Toyota 4Runner – 2nd Gen – 4WD – Front Solid Axle Swap – 2.5-Inch-Wide Leaf Springs
Toyota Pickup
- 1986–1988 Toyota Pickup – 2nd Gen – 4WD – Front Solid Axle Swap – 2.5-Inch-Wide Leaf Springs
- 1989–1995 Toyota Pickup – 3rd Gen – 4WD – Front Solid Axle Swap – 2.5-Inch-Wide Leaf Springs
Fitment Notes
- For front solid axle swap applications
- Designed for 2.5-inch-wide aftermarket leaf springs
- Intended for custom front leaf-spring suspension fabrication
- Grinding and frame-surface preparation are required
- Welding is required
- Final hanger position must be established according to the complete suspension geometry
- Professional suspension fabrication and welding are recommended
Product Specifications
Brand: Total Chaos Fabrication
Product Type: Front Leaf Spring Hangers
Position: Front
Material: Steel
Construction: Laser Cut
Leaf Spring Width: 2.5 Inches
Suspension Application: Solid Axle Swap / Leaf Spring Conversion
Installation: Weld-On
Quantity: Pair

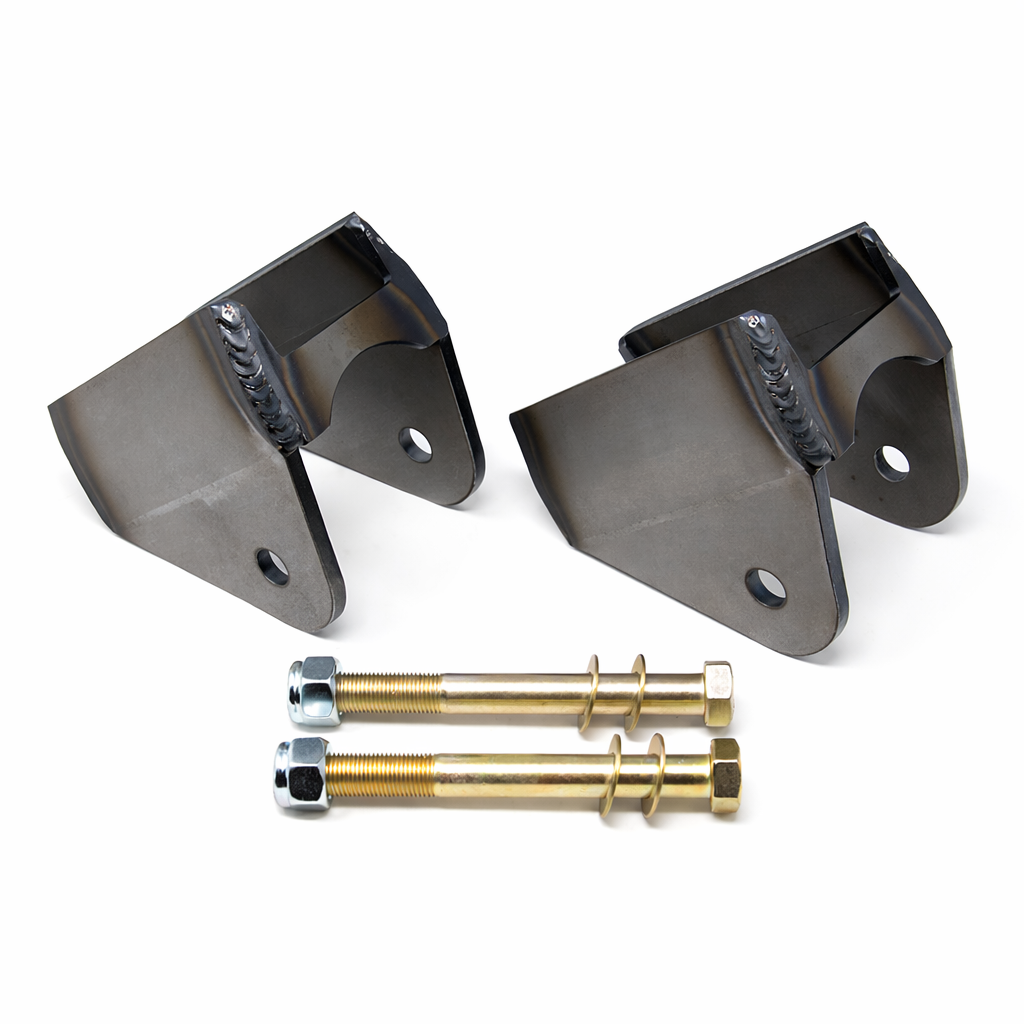

What's Included
- (2) Weld-on front leaf spring hanger brackets
- Grade 8 mounting hardware
