Total Chaos Caddy Idler Arm Rebuild Kit
For Total Chaos Caddy Idler Arms on 1986–1995 Toyota 4Runner & Toyota Pickup 4WD
Overview
The Total Chaos Caddy Idler Arm Rebuild Kit provides the internal wear components needed to service a Total Chaos Caddy Idler Arm used on 1986–1995 Toyota 4Runner and Pickup 4WD applications.
Heavy steering loads, larger tires, off-road use, and extended service can wear the idler arm's bearings, sleeves, and thrust surfaces over time. This kit replaces those service components to restore proper idler arm movement and reduce steering play caused by worn internal parts.
The kit services one Total Chaos Caddy Idler Arm and supports both left-hand-drive and right-hand-drive configurations.
Key Features
- Rebuild kit specifically for the Total Chaos Caddy Idler Arm
- Services one complete idler arm assembly
- Replaces internal bearings, sleeves, and thrust washers
- Helps reduce steering play caused by worn idler arm components
- Restores smooth pivot movement
- Includes 1-inch I.D. steel-backed Teflon sleeves
- Includes double-sealed roller bearings
- Double-sealed bearing design helps protect against dirt and moisture
- Supports both LHD and RHD configurations
- Suitable for servicing steering systems exposed to demanding off-road use
Steering System Service
The idler arm supports the steering linkage and must pivot smoothly while controlling unwanted movement. As its internal wear components deteriorate, steering response can become loose or inconsistent.
This rebuild kit replaces the Caddy Idler Arm's primary service components rather than requiring replacement of the complete upgraded idler arm assembly. New thrust washers, steel-backed Teflon sleeves, and sealed roller bearings renew the internal pivot surfaces and bearing support.
The kit addresses wear within the Total Chaos Caddy Idler Arm itself. Other worn steering components should be inspected separately when diagnosing steering play or wandering.
Vehicle Fitment
Toyota 4Runner
- 1986–1989 Toyota 4Runner – 1st Gen – 4WD – Total Chaos Caddy Idler Arm
- 1990–1995 Toyota 4Runner – 2nd Gen – 4WD – Total Chaos Caddy Idler Arm
Toyota Pickup
- 1986–1988 Toyota Pickup – 2nd Gen – 4WD – Total Chaos Caddy Idler Arm
- 1989–1995 Toyota Pickup – 3rd Gen – 4WD – Total Chaos Caddy Idler Arm
Fitment Notes
- Requires an existing Total Chaos Caddy Idler Arm
- Does not replace or rebuild a factory Toyota idler arm
- Supports left-hand-drive and right-hand-drive configurations
- Services one idler arm assembly
- Professional installation is recommended
- Inspect surrounding steering components when diagnosing excessive steering play
Product Specifications
Brand: Total Chaos Fabrication
Product Type: Idler Arm Rebuild Kit
Application: Total Chaos Caddy Idler Arm
Steering Configuration: LHD or RHD
Sleeve Size: 1-Inch Inside Diameter
Sleeve Construction: Steel-Backed Teflon
Bearing Design: Double-Sealed Roller Bearing
Quantity: One Complete Rebuild Kit

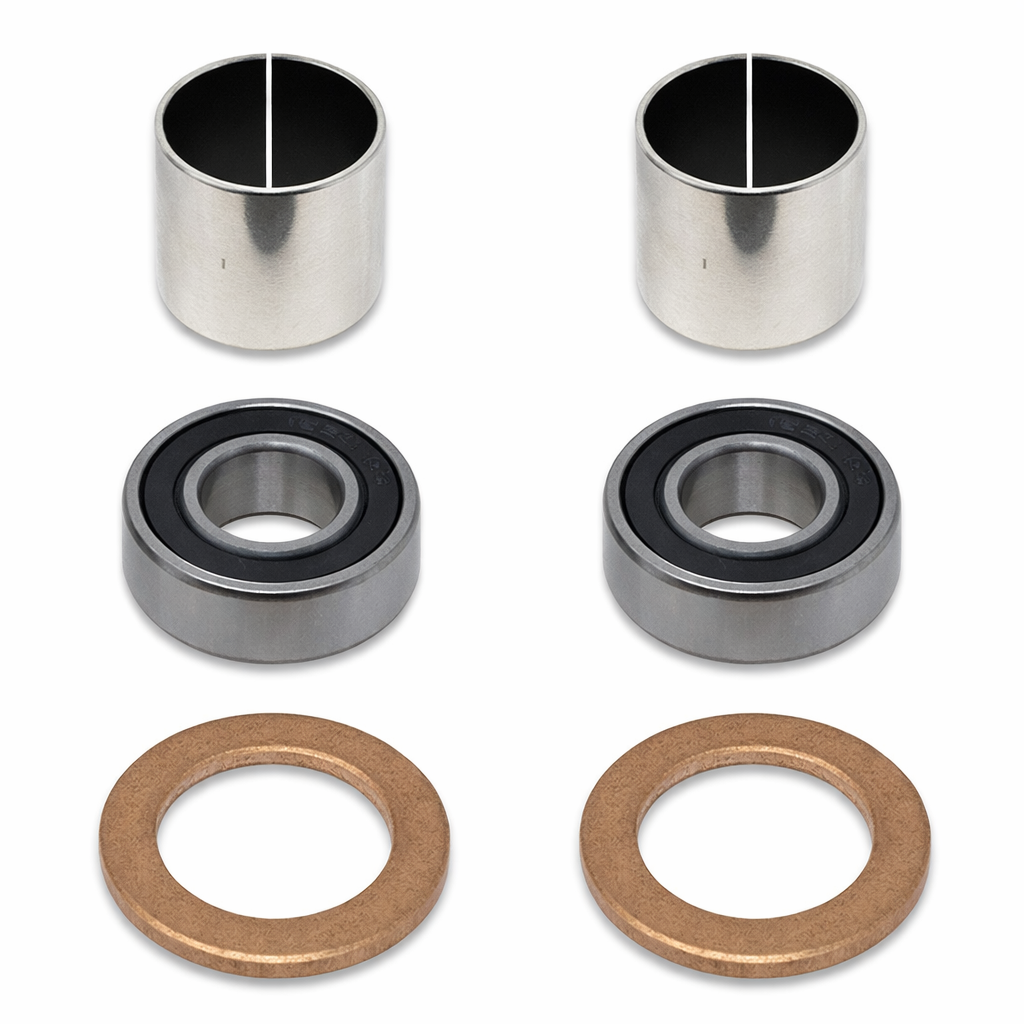

What's Included
- (2) Thrust washers
- (2) 1-inch I.D. steel-backed Teflon sleeves
- (2) Double-sealed roller bearings
- Components to service one Total Chaos Caddy Idler Arm
