Total Chaos Caddy Heavy-Duty Idler Arm
For 1986–1995 Toyota 4Runner 4WD & Toyota Pickup 4WD
Overview
The Total Chaos Caddy Heavy-Duty Idler Arm is an upgraded steering assembly designed to replace the wear-prone factory idler arm on 1986–1995 Toyota 4WD Pickups and 4Runners.

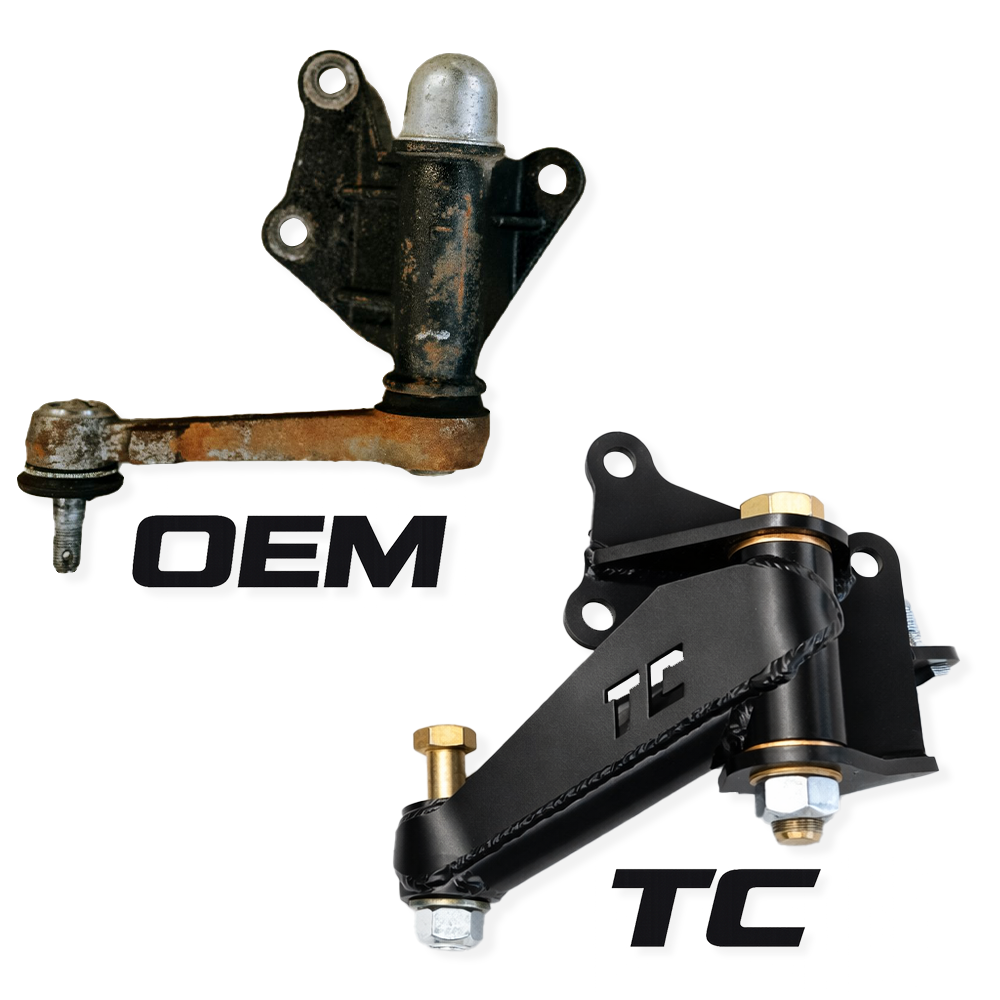

Factory idler arms can develop excessive play as their internal components wear, a problem that becomes more noticeable on off-road trucks and vehicles running larger tires. The Caddy Idler Arm replaces the factory assembly with a reinforced, fully rebuildable design using double-stacked sealed roller bearings for improved steering stability and response.
The assembly features heavy-duty chromoly construction, precision laser-cut mounting brackets, and a durable black Cerakote finish. It installs at the factory idler-arm location and does not require a long-travel suspension system or relocation bracket.
Key Features
- Heavy-duty replacement for the factory Toyota idler arm
- Helps eliminate steering play caused by a worn factory assembly
- Improves steering response, particularly with larger tires
- Fully rebuildable internal design
- Double-stacked sealed roller bearings
- Heavy-duty chromoly construction
- Durable black Cerakote finish
- Precision laser-cut mounting brackets
- 3/4-inch Grade 8 through-bolt with inner sleeve
- Pre-assembled for installation
Reinforced Bearing Design
The factory idler arm can loosen as its internal components wear, introducing unwanted movement into the steering linkage. The Caddy assembly replaces the wear-prone factory design with a double-stacked sealed roller-bearing system built to better withstand steering loads, off-road impacts, and repeated use.
The assembly is also fully rebuildable, allowing its internal wear components to be serviced rather than requiring replacement of the entire idler arm.
Vehicle Fitment
Toyota 4Runner
- 1986–1989 Toyota 4Runner – 1st Gen – 4WD – Steering Idler Arm
- 1990–1995 Toyota 4Runner – 2nd Gen – 4WD – Steering Idler Arm
Toyota Pickup
- 1986–1988 Toyota Pickup – 2nd Gen – 4WD – Steering Idler Arm
- 1989–1995 Toyota Pickup – 3rd Gen – 4WD – Steering Idler Arm
Fitment Notes
- 4WD applications only
- Available for left-hand-drive and right-hand-drive vehicles

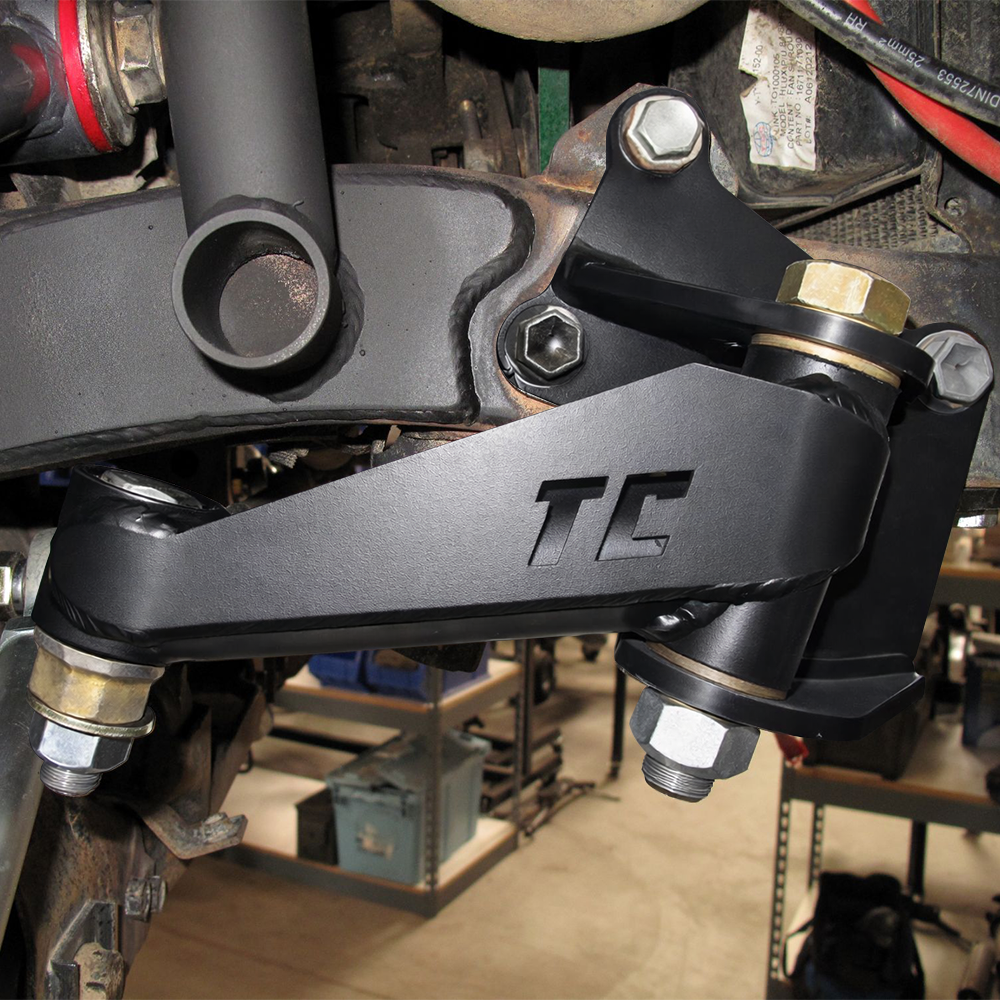

- Mounts at the factory idler-arm location
- No long-travel suspension system required
- No idler-arm relocation bracket required
- Installation requires the centerlink idler-arm hole to be enlarged to 5/8 inch
- Supplied pre-assembled
- Replacement and rebuild components are serviceable separately
Product Specifications
Brand: Total Chaos Fabrication
Product Type: Heavy-Duty Steering Idler Arm
Series: Caddy
Position: Front Steering
Material: Chromoly Steel
Bearing Design: Double-Stacked Sealed Roller Bearings
Finish: Black Cerakote
Hardware: Grade 8
Through-Bolt Diameter: 3/4 Inch
Design: Fully Rebuildable
Installation: Factory Idler-Arm Location
Fit Type: Vehicle-Specific
Available Configurations

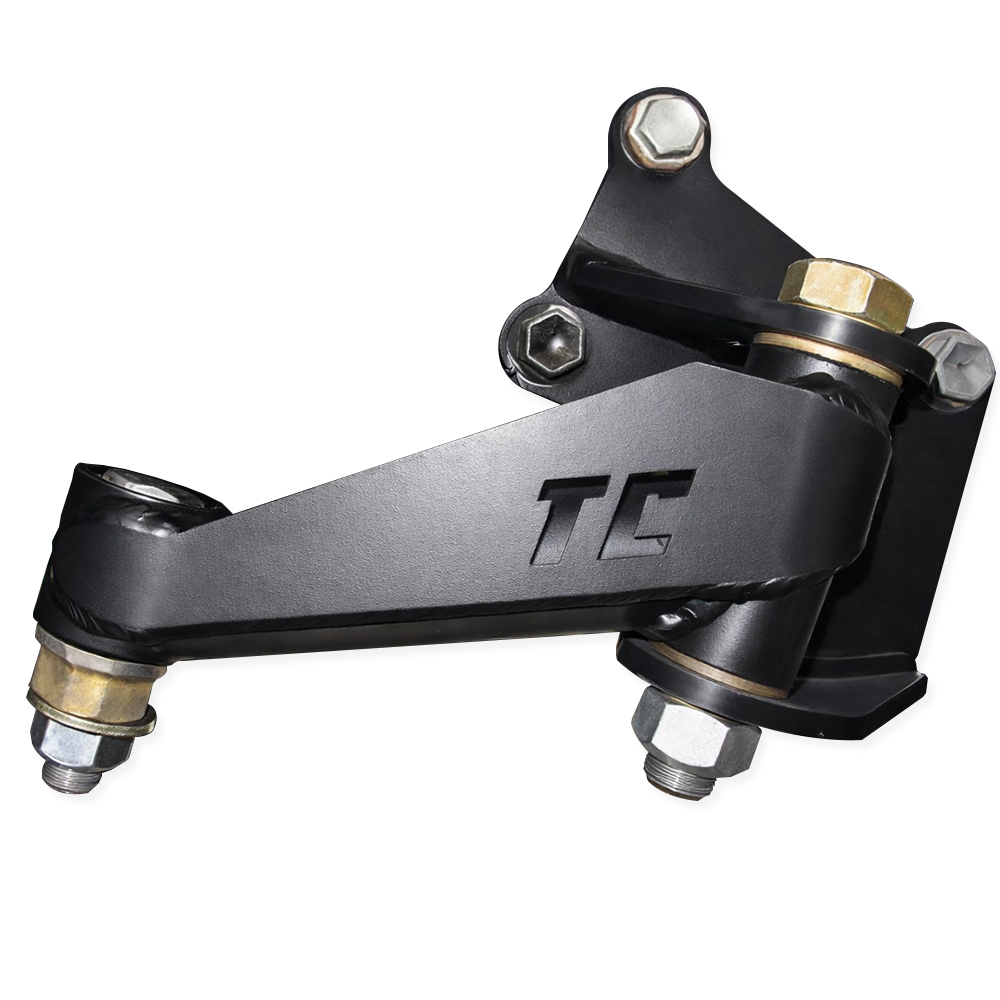

Left-Hand Drive
- (1) Assembled LHD Caddy Idler Arm
- Grade 8 mounting hardware

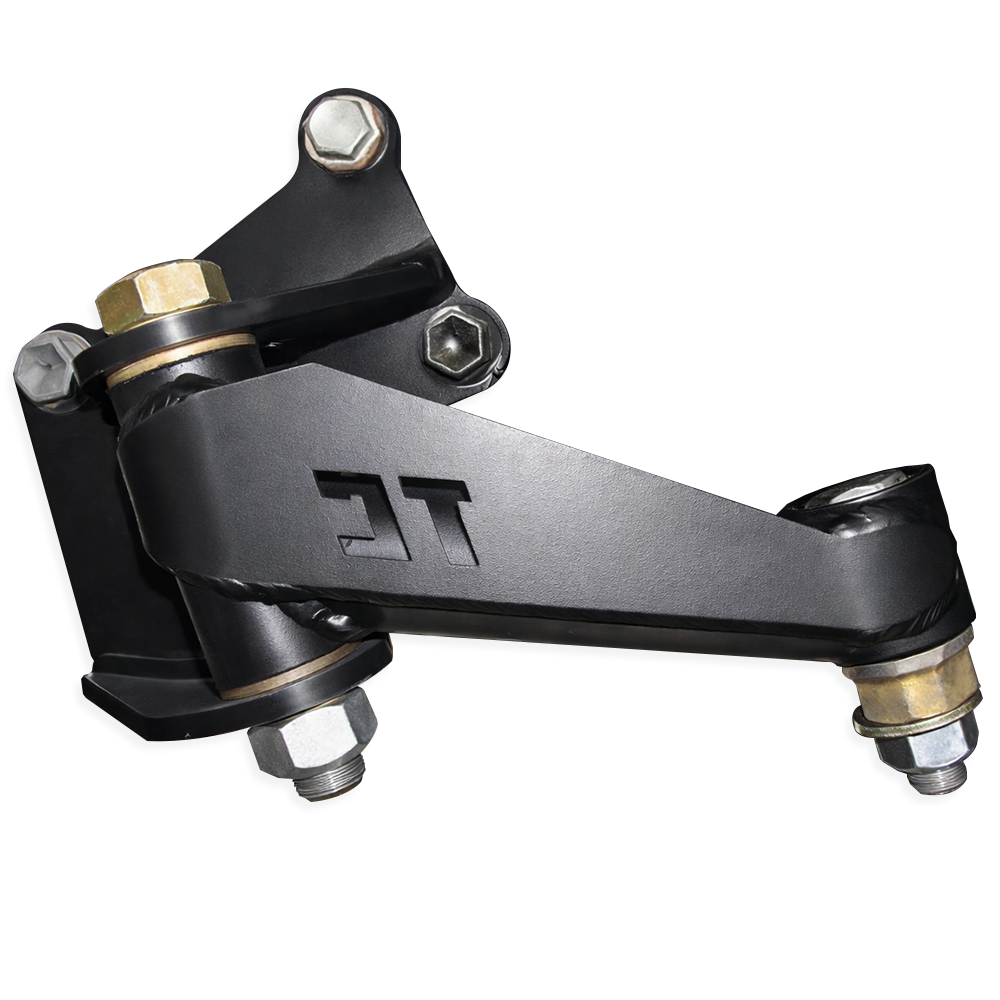

Right-Hand Drive
- (1) Assembled RHD Caddy Idler Arm
- Grade 8 mounting hardware
