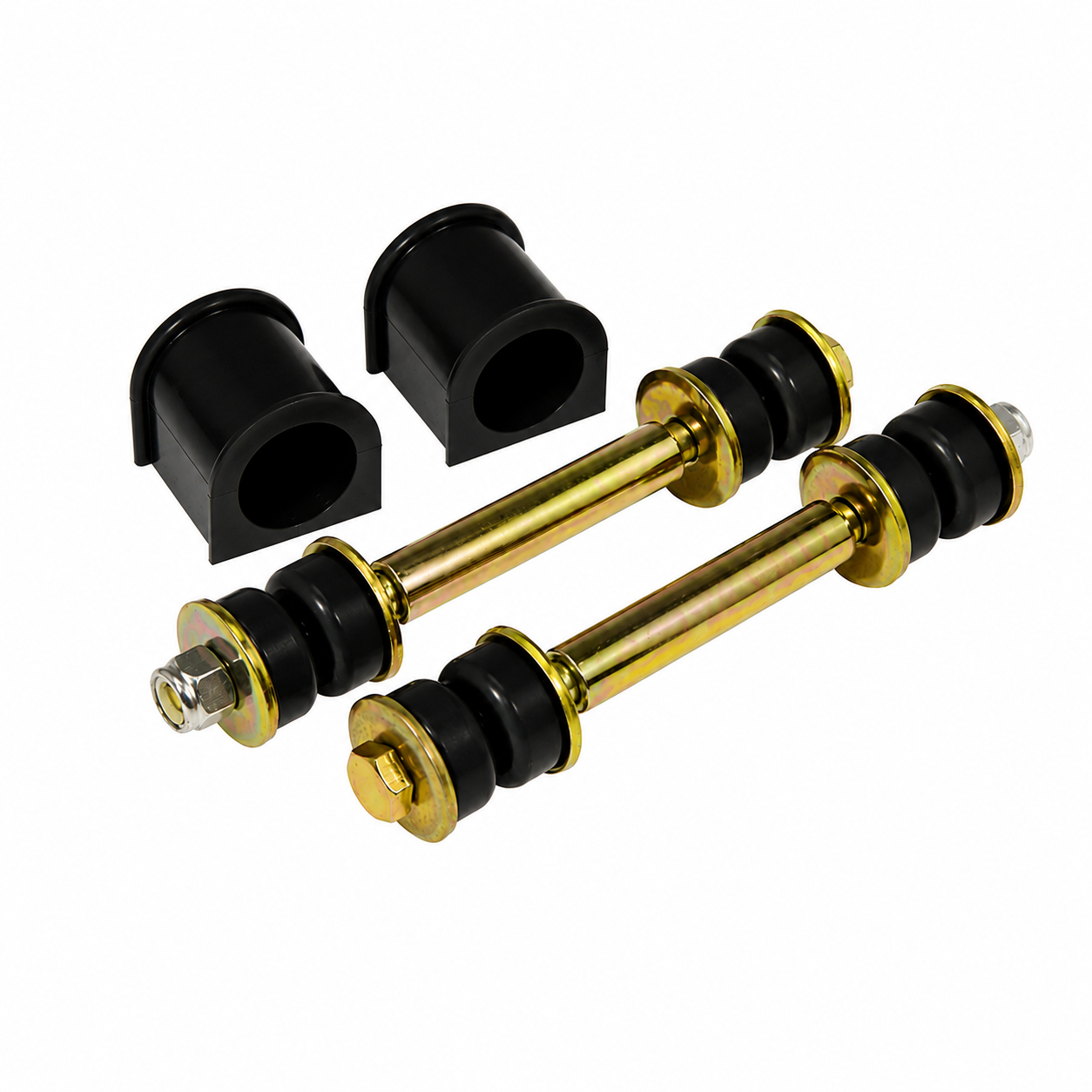

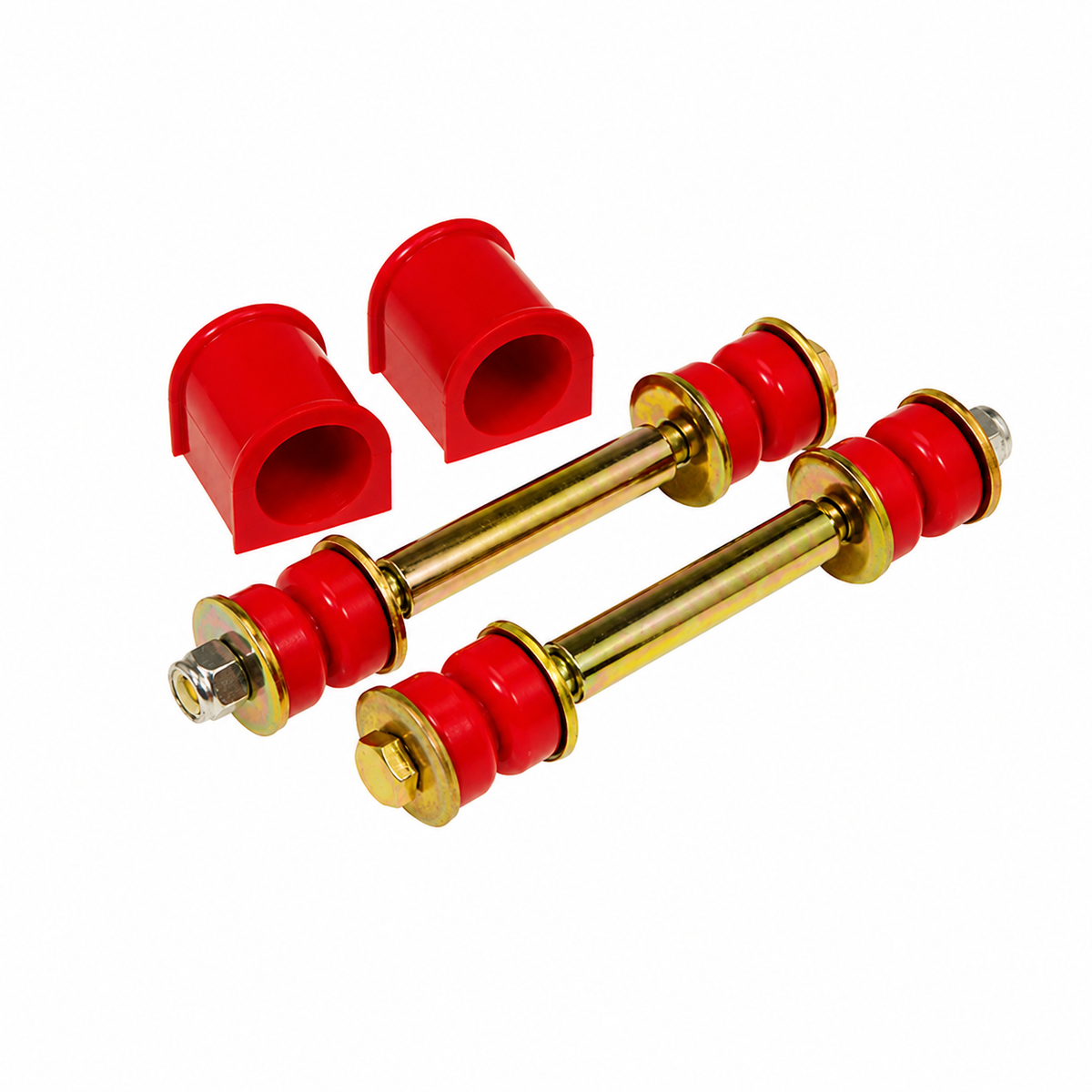

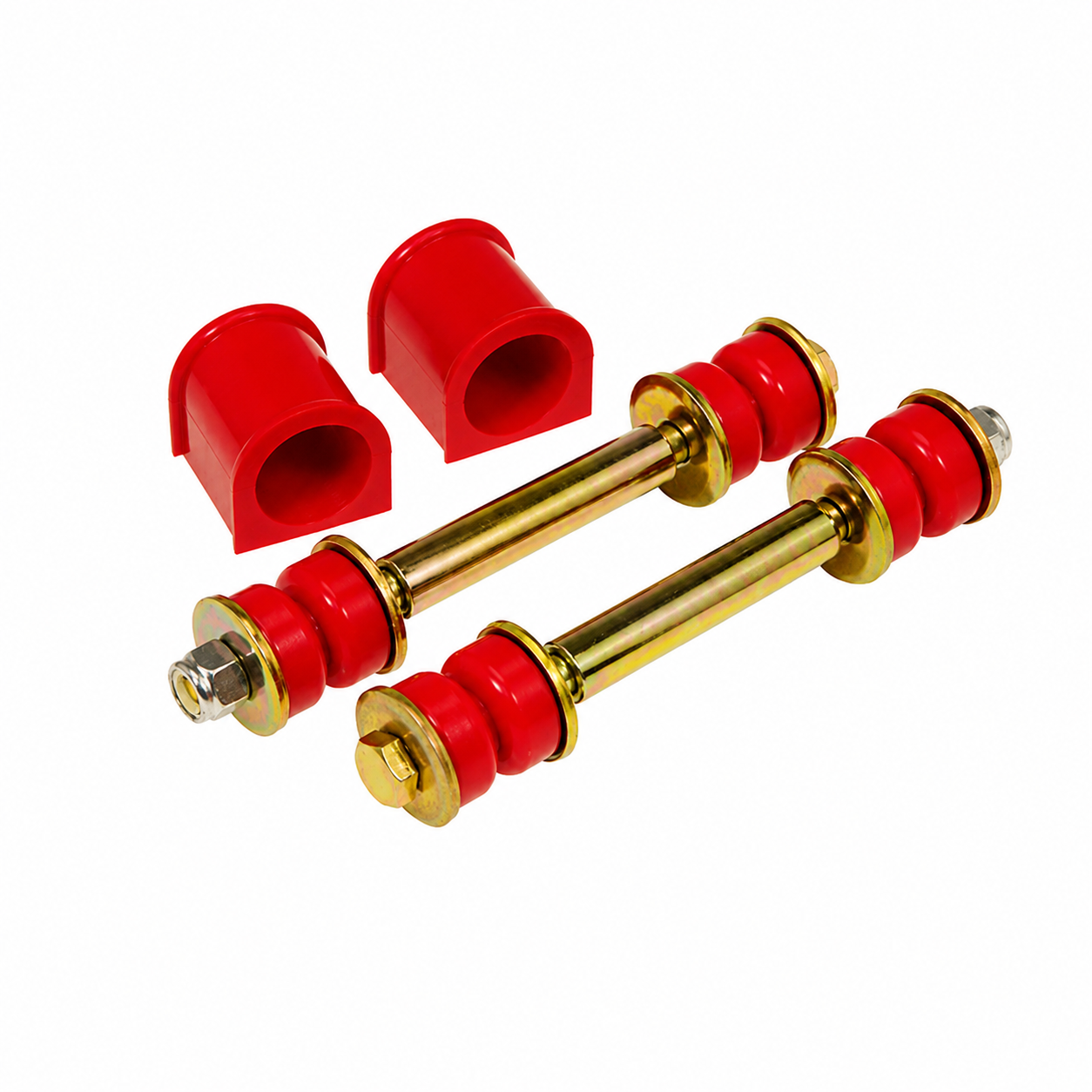

Prothane Front Sway Bar Bushing & End Link Kit – 24mm / 27mm
For 1989–1995 Toyota Pickup 4WD
Overview
The Prothane Front Sway Bar Bushing & End Link Kit replaces worn factory rubber sway bar mounting and end-link bushings on 1989–1995 3rd Gen Toyota Pickup 4WD models. Two configurations are available for trucks equipped with a 24mm or 27mm front sway bar.
Polyurethane provides a firmer connection between the sway bar, chassis, and end links, helping reduce unwanted bushing deflection and maintain more consistent sway bar operation. It also offers increased resistance to deterioration from age, weather, road grime, and automotive fluids compared with conventional rubber bushings.
Both sway bar diameters are used within the same vehicle application range, so physically measure the installed front sway bar before ordering rather than selecting by engine, trim, or model year alone.
Key Features
- Complete front sway bar bushing and end-link kit
- Available for 24mm or 27mm front sway bars
- Polyurethane replacement for factory rubber bushings
- Services both driver and passenger sides
- Includes frame-mounted sway bar bushings
- Includes sway bar end-link bushings and hardware
- Helps reduce unwanted sway bar movement and bushing deflection
- Polyurethane installation grease included
- Available in black or red
- Vehicle-specific fit for 1989–1995 Toyota Pickup 4WD
Choosing the Correct Sway Bar Size
The 24mm and 27mm configurations are not interchangeable. The frame bushings must closely match the actual sway bar diameter to properly locate the bar without excessive clearance or binding.
24mm Front Sway Bar
- Approximately 0.94 inch / 15/16 inch
27mm Front Sway Bar
- Approximately 1.06 inch / 1-1/16 inch
Digital calipers provide the most accurate measurement. A 24mm open-end wrench can also be used as a quick screening method on an unmodified factory bar: if it fits snugly over the bar, the bar is approximately 24mm. If it will not fit, measure the bar directly to confirm the 27mm configuration before ordering.
Vehicle Fitment
Toyota Pickup
- 1989–1995 Toyota Pickup – 3rd Gen – 4WD – 24mm Front Sway Bar
- 1989–1995 Toyota Pickup – 3rd Gen – 4WD – 27mm Front Sway Bar
Fitment Notes
- 4WD Toyota Pickup only
- Front application
- Choose 24mm or 27mm based on the actual installed sway bar diameter
- 24mm and 27mm configurations are not interchangeable
- One kit services both driver and passenger sides
- Measure the sway bar before ordering, especially if suspension components have previously been replaced or modified
- Apply the supplied polyurethane grease to the required bushing contact surfaces during installation
- Inspect sway bar brackets, end links, and mounting points for wear or corrosion before reassembly
Product Specifications
Brand: Prothane
Product Type: Front Sway Bar Bushing & End Link Kit
Position: Front
Material: Polyurethane / Steel
Sway Bar Diameter Options: 24mm / 27mm
Color Options: Black / Red
Coverage: Driver & Passenger Sides
Drivetrain: 4WD
Fitment Type: Vehicle Specific
Installation Grease: Included
Available Configurations
24mm Front Sway Bar
- (2) 24mm front sway bar bushings
- (4) End-link bushings
- (4) Dished washers
- (2) Metal sleeves
- (2) End-link bolts
- (2) Nylon lock nuts
- (1) Polyurethane installation grease packet
- Available in Black or Red
27mm Front Sway Bar
- (2) 27mm front sway bar bushings
- (8) End-link bushings
- (8) Dished washers
- (2) Metal sleeves
- (2) End-link bolts
- (2) Nylon lock nuts
- (1) Polyurethane installation grease packet
- Available in Black or Red
