AE86 Project Kics Kyokugen Heptagon 42mm Closed-End Lug Nuts (Corolla 1983-87)

Project Kics Kyokugen Heptagon 42mm Closed-End Lug Nuts

For 1983–1987 Toyota Corolla Levin / Sprinter Trueno AE86 & 1984–1987 Toyota Corolla Sport SR5 / 1985–1987 Toyota Corolla Sport GT-S AE86 with Aftermarket 60° Conical-Seat Wheels

Overview

The Project Kics Kyokugen Heptagon Lug Nut Set is a high-strength steel wheel-hardware upgrade for Toyota AE86 builds using M12 x 1.5 wheel studs and aftermarket wheels with 60° conical lug seats.

Each lug nut uses a seven-sided heptagon profile that requires the supplied matching adapter for installation and removal. The 42 mm closed-end construction provides an extended tuner-style appearance while helping shield the end of the wheel stud from dirt and moisture.

The set includes 20 lug nuts. A standard 4-lug AE86 requires 16 lug nuts, leaving four additional nuts as spares.

Key Features

• M12 x 1.5 thread size matches the factory AE86 wheel-stud thread
• Forged SCM435 chromoly steel construction
• 42 mm overall length
• Seven-sided heptagon profile requires the matching adapter
• 60° conical / tapered seat for appropriate aftermarket wheels
• Closed-end design helps protect the end of the wheel stud
• Small-diameter tuner-style construction for aftermarket wheel applications
• Black finish
• Includes 20 lug nuts plus the heptagon adapter
• Provides four spare lug nuts when used on a standard 4-lug AE86

Heptagon Design & Wheel Compatibility

Unlike a conventional six-sided lug nut, the Kyokugen uses a seven-sided profile that cannot be removed with a normal hex socket. The included heptagon adapter is required for installation and removal, adding a useful theft-deterrent element without using separate locking lug nuts.

Wheel-seat compatibility is critical. These lug nuts use a 60° conical seat and are intended for aftermarket wheels designed around that seat style. Thread pitch alone does not determine whether a lug nut is suitable for a wheel.

Vehicle Fitment

Toyota Corolla Levin

• 1983–1987 Toyota Corolla Levin – Corolla/Sprinter Series – AE86 – M12 x 1.5 studs – aftermarket 60° conical-seat wheels

Toyota Sprinter Trueno

• 1983–1987 Toyota Sprinter Trueno – Corolla/Sprinter Series – AE86 – M12 x 1.5 studs – aftermarket 60° conical-seat wheels

Toyota Corolla Sport SR5

• 1984–1987 Toyota Corolla Sport SR5 – Corolla – AE86 –  M12 x 1.5 studs – aftermarket 60° conical-seat wheels

Toyota Corolla Sport GT-S

• 1985–1987 Toyota Corolla Sport GT-S – Corolla – AE86 – M12 x 1.5 studs – aftermarket 60° conical-seat wheels

Fitment Notes

• For aftermarket wheels using a 60° conical / tapered lug seat only.
• Do not use with factory wheels that require a different lug-seat design.
• Does not fit wheels designed for inverted or reverse-style lug hardware.
• Standard AE86 wheel configuration is 4-lug / 4x114.3, requiring 16 lug nuts for the vehicle.
• This 20-piece set therefore provides four additional spare lug nuts on a standard AE86.
• Verify that the 42 mm closed-end design provides sufficient clearance when using extended wheel studs.
• Confirm the wheel manufacturer's required lug-seat type and tightening torque before installation.
• The supplied heptagon adapter is required for installation and removal.

Product Specifications

Brand: Project Kics
Series: Kyokugen Heptagon
Product Type: Wheel Lug Nut Set
Thread Size: M12 x 1.5
Seat Type: 60° Conical / Tapered
Overall Length: 42 mm
Material: Forged SCM435 Chromoly Steel
Design: Seven-Sided Heptagon
End Type: Closed End
Color: Black
Quantity: 20 Lug Nuts
Installation Tool: Heptagon Adapter Included
Wheel Application: Aftermarket Wheels with 60° Conical Lug Seats

What's Included

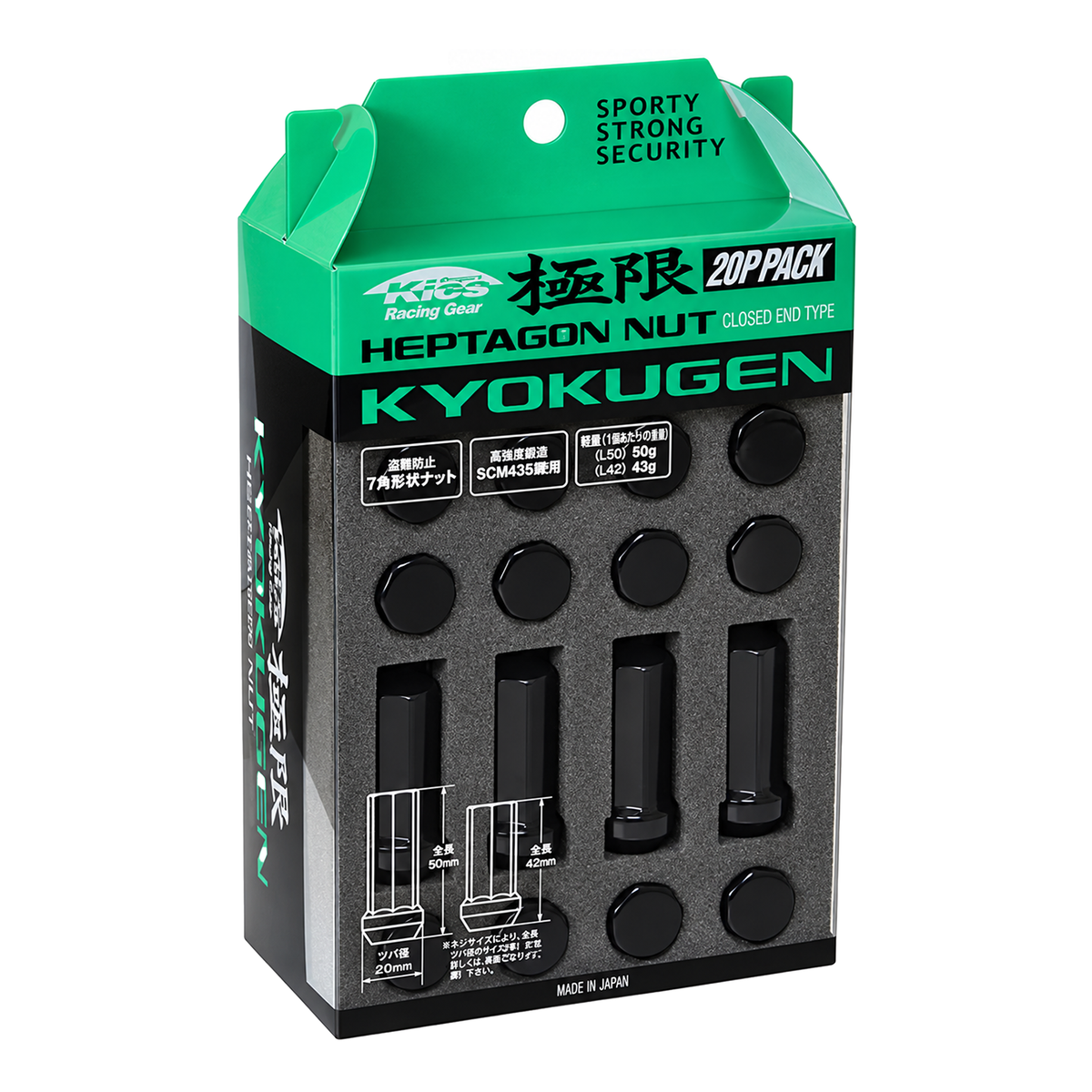

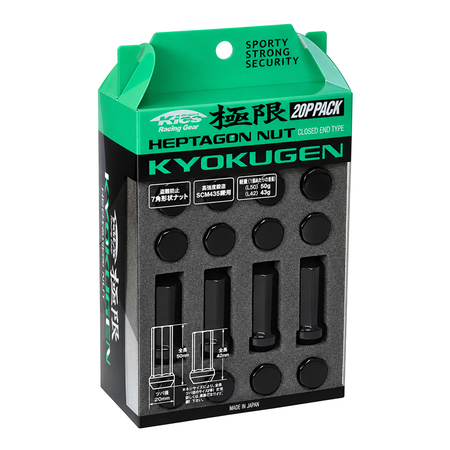

• (20) Project Kics Kyokugen Heptagon 42 mm Lug Nuts
• (1) Heptagon Adapter
