NGK Iridium IX Performance Spark Plugs (1984-95 4Runner/Pickup)

NGK Iridium IX Performance Spark Plugs

For 1984–1995 Toyota 4Runner & Pickup with 2.4L 4-Cylinder or 3.0L V6 Engines

Overview

The NGK Iridium IX Performance Spark Plugs are a performance-oriented ignition upgrade for classic Toyota 4Runner and Pickup applications equipped with the 2.4L 22R, 22RE, 22R-TE 4-cylinder engines or 3.0L 3VZ-E V6.

Iridium IX plugs use a fine-wire iridium center electrode and tapered-cut ground electrode to provide strong, consistent ignition while improving resistance to fouling. The design supports responsive starting, smooth idle quality, and dependable spark performance in daily-driven, off-road, restored, and modified Toyota trucks.

Two engine-specific configurations are available. The 2.4L 4-cylinder kit includes four plugs, providing a complete replacement set. The 3.0L V6 kit includes eight plugs—six for a complete spark plug replacement plus two additional spares.

Key Features

• NGK Iridium IX performance-series spark plugs

• Fine-wire iridium center electrode

• Tapered-cut ground electrode improves ignitability

• Strong resistance to carbon fouling

• Trivalent metal plating provides corrosion resistance

• Designed for consistent starting, idle, and throttle response

• Suitable for factory and performance-oriented ignition applications

• Engine-specific 4-cylinder and V6 configurations

• Direct replacement for supported Toyota ignition systems

• V6 configuration includes two additional spare plugs

Iridium IX Performance Design

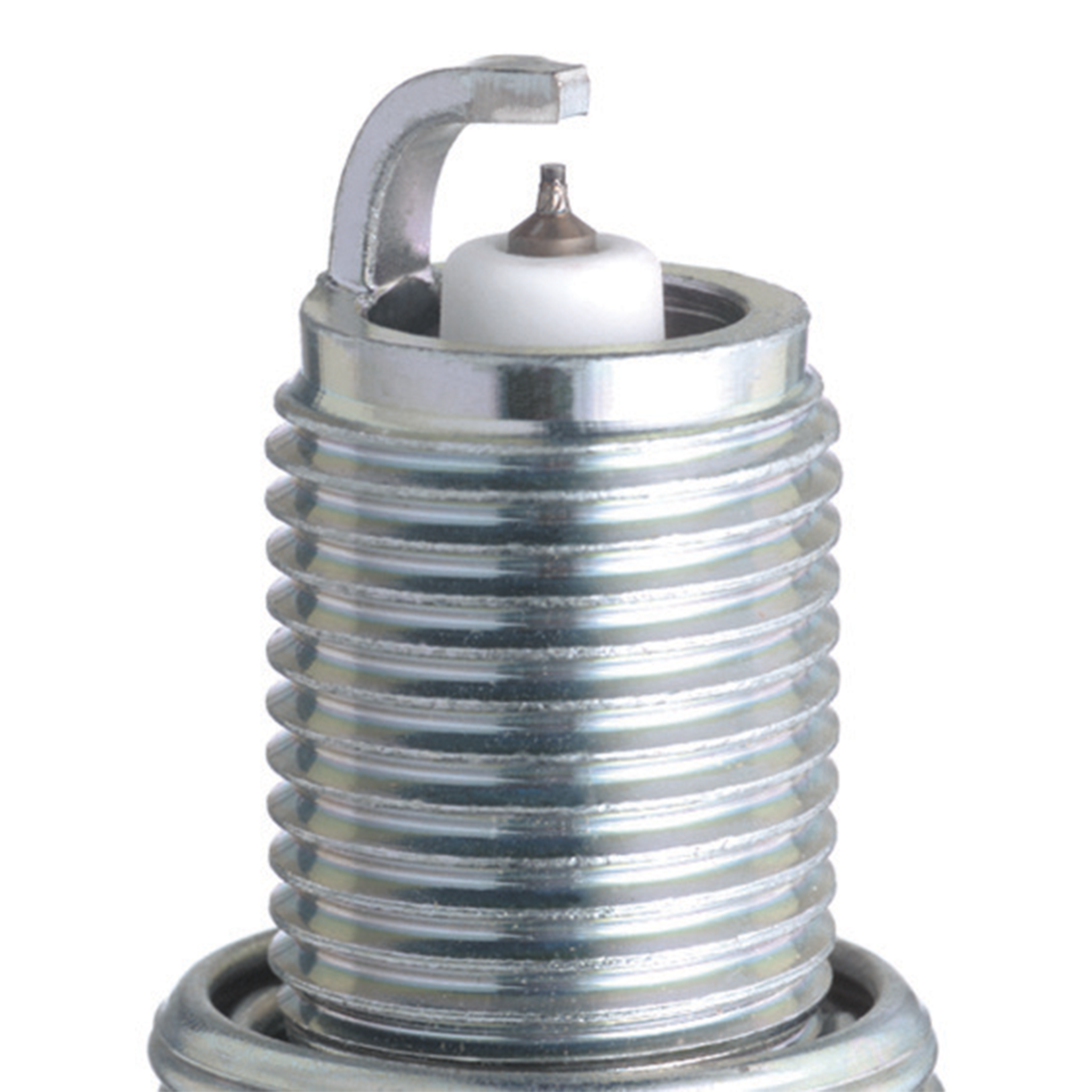

The fine-wire iridium center electrode requires less voltage to generate a stable spark than a conventional large-diameter electrode. The tapered ground electrode also provides additional space for flame-kernel development, helping support reliable combustion.

Iridium's high heat and wear resistance allows the center electrode to maintain its fine profile over extended use, making Iridium IX a durable performance upgrade over conventional nickel-alloy spark plugs.

Vehicle Fitment

Toyota 4Runner – 2.4L 4-Cylinder

• 1984–1989 Toyota 4Runner – 1st Gen – 2.4L 22R / 22RE / 22R-TE applications

• 1990–1995 Toyota 4Runner – 2nd Gen – 2.4L 22RE

Toyota Pickup – 2.4L 4-Cylinder

• 1984–1988 Toyota Pickup – 2nd Gen – 2.4L 22R / 22RE / 22R-TE applications

• 1989–1995 Toyota Pickup – 3rd Gen – 2.4L 22R / 22RE applications

Toyota 4Runner – 3.0L V6

• 1988-1989 Toyota 4Runner – 1st Gen – 3.0L 3VZ-E V6

• 1990–1995 Toyota 4Runner – 2nd Gen – 3.0L 3VZ-E V6

Toyota Pickup – 3.0L V6

• 1988 Toyota Pickup – 2nd Gen – 3.0L 3VZ-E V6

• 1989–1995 Toyota Pickup – 3rd Gen – 3.0L 3VZ-E V6

Fitment Notes

• Select the configuration that matches your engine before ordering

• 2.4L 4-cylinder configuration: 22R, 22RE, and applicable 22R-TE engines

• 3.0L V6 configuration: 3VZ-E engine

• Designed for use with supported factory ignition systems

• Spark plug gap should be verified against the vehicle specification before installation

• Avoid applying force to the fine-wire iridium center electrode when checking or adjusting gap

Product Specifications

Brand: NGK
Series: Iridium IX
Product Type: Performance Spark Plug
Center Electrode Material: Iridium
Center Electrode Design: Fine Wire
Ground Electrode Material: Nickel Alloy
Ground Electrode Design: Tapered Cut
Design: Resistor Spark Plug
Seat Type: Gasket / Flat Seat
Thread Diameter: 14 mm
Thread Reach: 3/4 Inch
NGK Heat Range: 5
Pre-Gap: 0.032 Inch

Available Configurations

2.4L 4-Cylinder – 22R / 22RE / 22R-TE

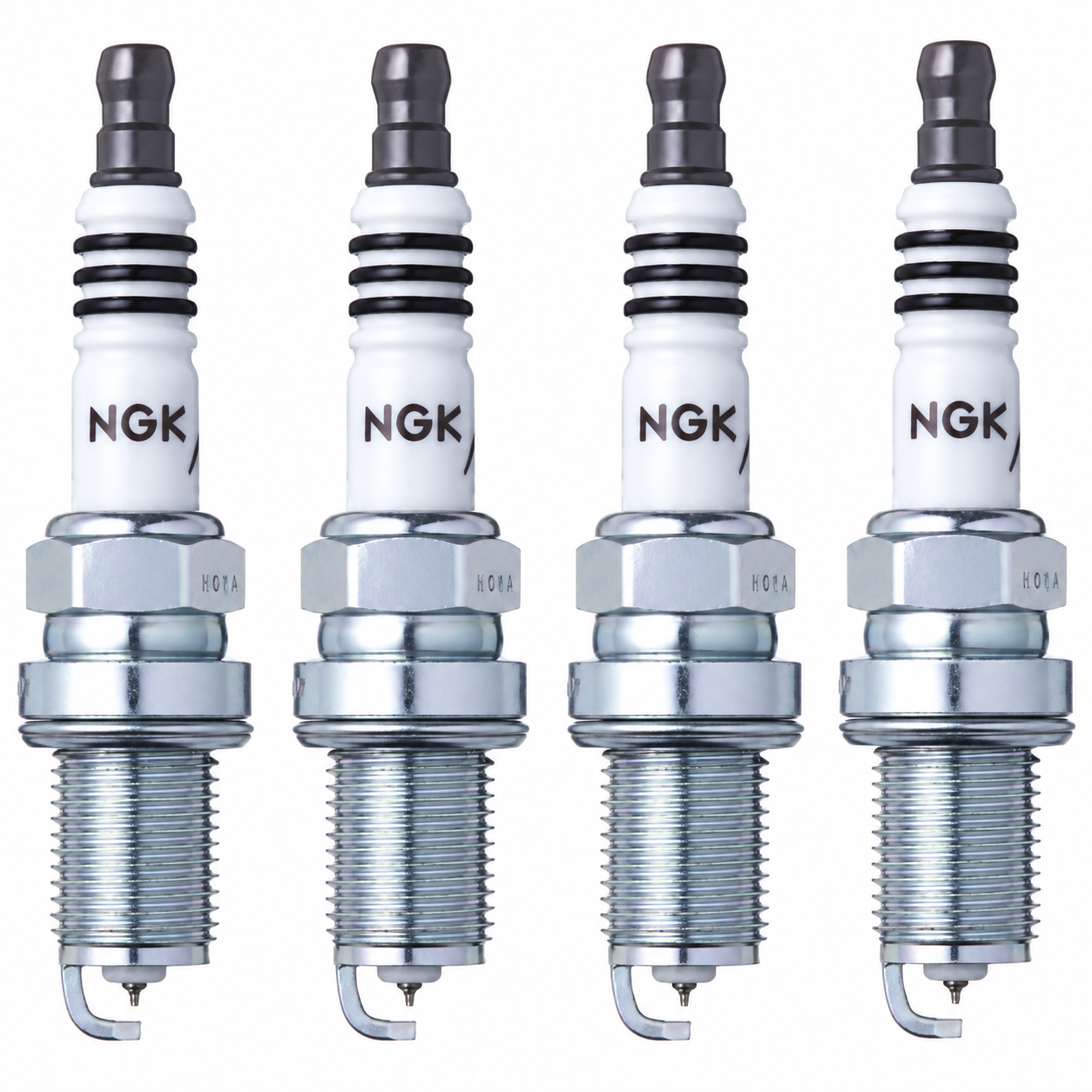

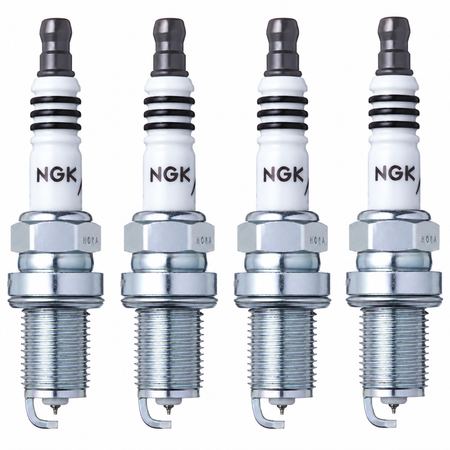

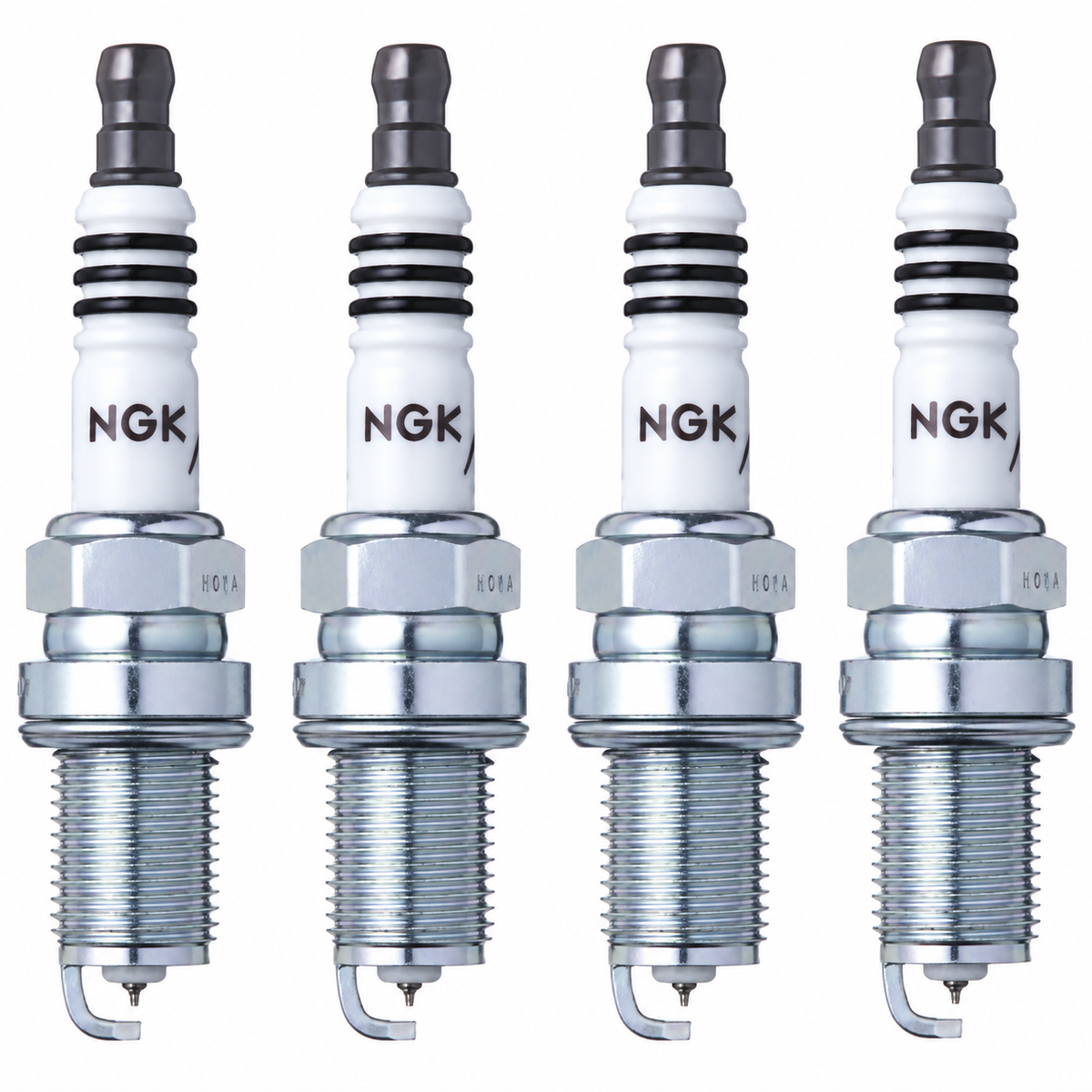

• (4) NGK Iridium IX Performance Spark Plugs

• Complete replacement set for one 4-cylinder engine

3.0L V6 – 3VZ-E

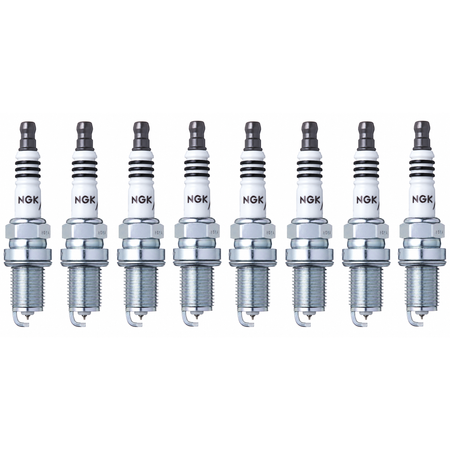

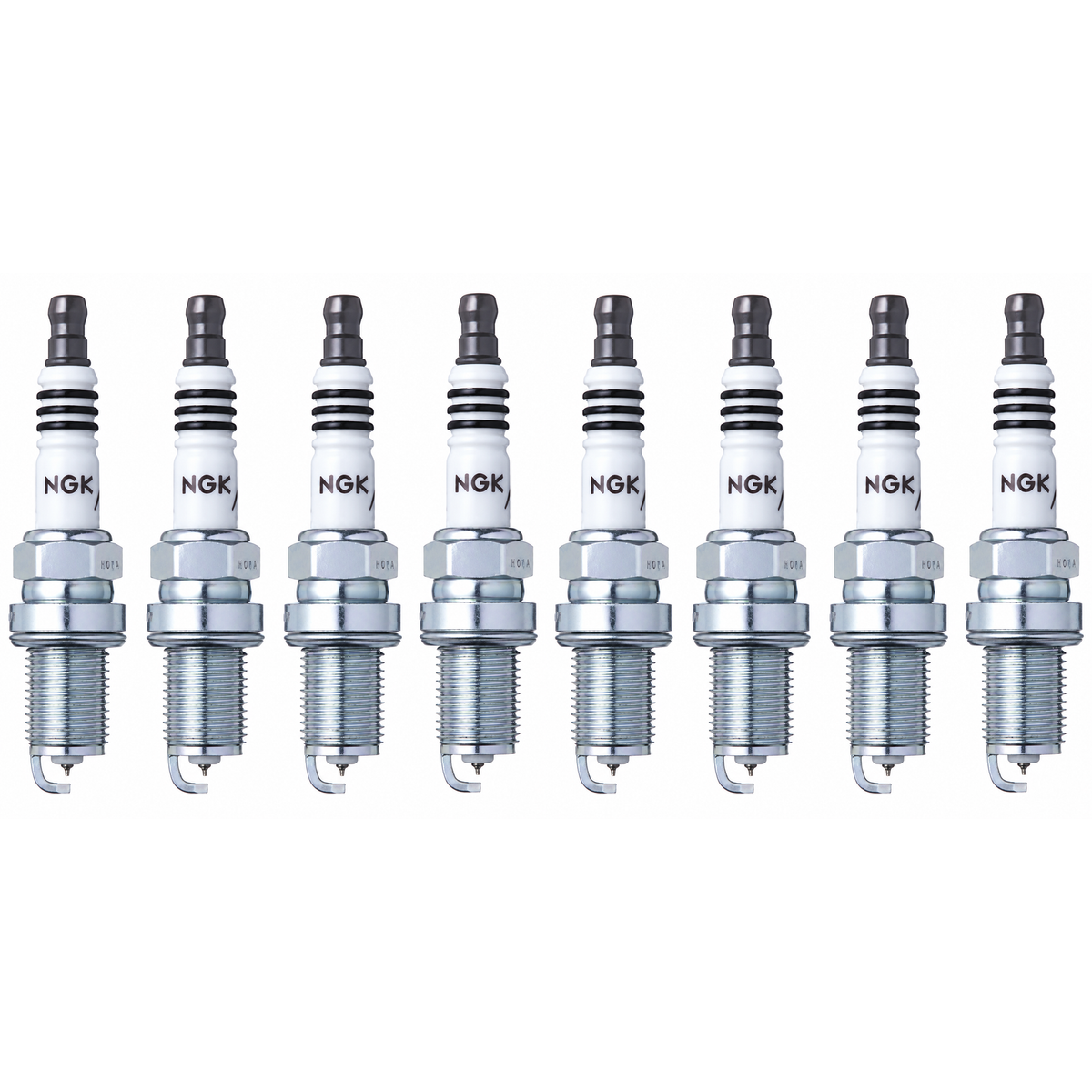

• (8) NGK Iridium IX Performance Spark Plugs

• Six plugs required for one complete V6 spark plug replacement

• Two additional spare spark plugs included
