Longfield 30-Spline Birfield & Axle Kit
For 1979–1995 Toyota Pickup & 1984–1995 Toyota 4Runner 4WD with Toyota-Style Solid Front Axle
Overview
The Longfield 30-Spline Birfield & Axle Kit is a heavy-duty front axle upgrade for Toyota-style solid front axle applications. The kit replaces the factory-style 27-spline birfield and axle arrangement with 30-spline Longfield birfields and 4340 chromoly axle shafts.
The birfield housings are forged from 4340 chromoly steel, while the internal components are heat-treated for increased strength. Precision-polished birfields help reduce imperfections that can create stress risers under high loads.
The kit fits factory solid-axle Toyota trucks through 1985 and can also be used on 1986–1995 Pickup and 4Runner solid axle conversions using the appropriate Toyota-style solid front axle housing. Standard, +3-inch, and +5-inch configurations support factory-width and widened axle builds.
Key Features
- 30-spline Longfield birfields
- Forged 4340 chromoly birfield housings
- Heat-treated 4340 chromoly birfield internals
- 4340 chromoly axle shafts
- Precision-polished birfields help reduce stress risers
- Rated approximately 76% stronger than stock axles
- Up to 40 degrees of birfield steering angle
- Rated breaking point of approximately 8,900–9,000 ft-lbs
- Standard, +3-inch, and +5-inch axle-width configurations
- Includes birfields, front axle shafts, and C-clips
Vehicle Fitment
Toyota Pickup
- 1979–1983 Toyota Pickup – 1st Gen – 4WD – Factory Solid Front Axle
- 1984–1985 Toyota Pickup – 2nd Gen – 4WD – Factory Solid Front Axle
- 1986–1988 Toyota Pickup – 2nd Gen – 4WD – Toyota-Style Solid Axle Conversion
- 1989–1995 Toyota Pickup – 3rd Gen – 4WD – Toyota-Style Solid Axle Conversion
Toyota 4Runner
- 1984–1985 Toyota 4Runner – 1st Gen – 4WD – Factory Solid Front Axle
- 1986–1989 Toyota 4Runner – 1st Gen – 4WD – Toyota-Style Solid Axle Conversion
- 1990–1995 Toyota 4Runner – 2nd Gen – 4WD – Toyota-Style Solid Axle Conversion
Fitment Notes
- 4WD solid front axle applications only
- 1979–1985 Pickup and 1984–1985 4Runner applications use the factory Toyota solid front axle
- 1986–1995 applications require a Toyota-style solid front axle conversion
- Fits Toyota solid front axle housings
- Fits Trail-Gear Rock Assault front axle housings
- Does not fit the factory IFS front suspension
- Upgrades the factory-style 27-spline birfield and axle arrangement to 30-spline components
- Select the axle width that matches the front axle housing being used
- Standard Width is designed for factory-width solid axle applications
- +3" and +5" configurations are designed for corresponding widened solid axle setups
Product Specifications
Brand: Longfield
Product Type: Front Birfield & Axle Kit
Position: Front
Axle Type: Toyota-Style Solid Front Axle
Birfield Spline Count: 30-Spline
Birfield Housing Material: Forged 4340 Chromoly Steel
Birfield Internal Material: 4340 Chromoly Steel
Axle Shaft Material: 4340 Chromoly Steel
Birfield Heat Treatment: Single Heat-Treated
Maximum Steering Angle: Up to 40 Degrees
Rated Breaking Point: Approximately 8,900–9,000 ft-lbs
Warranty: 12-Month Limited Warranty
Longfield Birfield & Axle Kit vs. Gun-Drilled Super Set
The 30-Spline Birfield & Axle Kit is the more affordable Longfield option for Toyota-style solid front axle builds using the factory-style 27-spline birfield and axle arrangement. It uses 4340 chromoly axle shafts and single heat-treated 30-spline birfields.
The Gun-Drilled Super Set adds dual heat-treated birfield internals, gun-drilled grease passages, M8 grease fittings, Machined Spline Savers, chromoly hub gears, Creeper Drive Flanges, and a lifetime warranty. It is better suited to customers looking for the more comprehensive Longfield front axle package.
Available Configurations
Standard Width
- For factory-width Toyota-style solid front axle applications
+3" Width
- For corresponding +3-inch widened solid front axle applications
+5" Width
- For corresponding +5-inch widened solid front axle applications

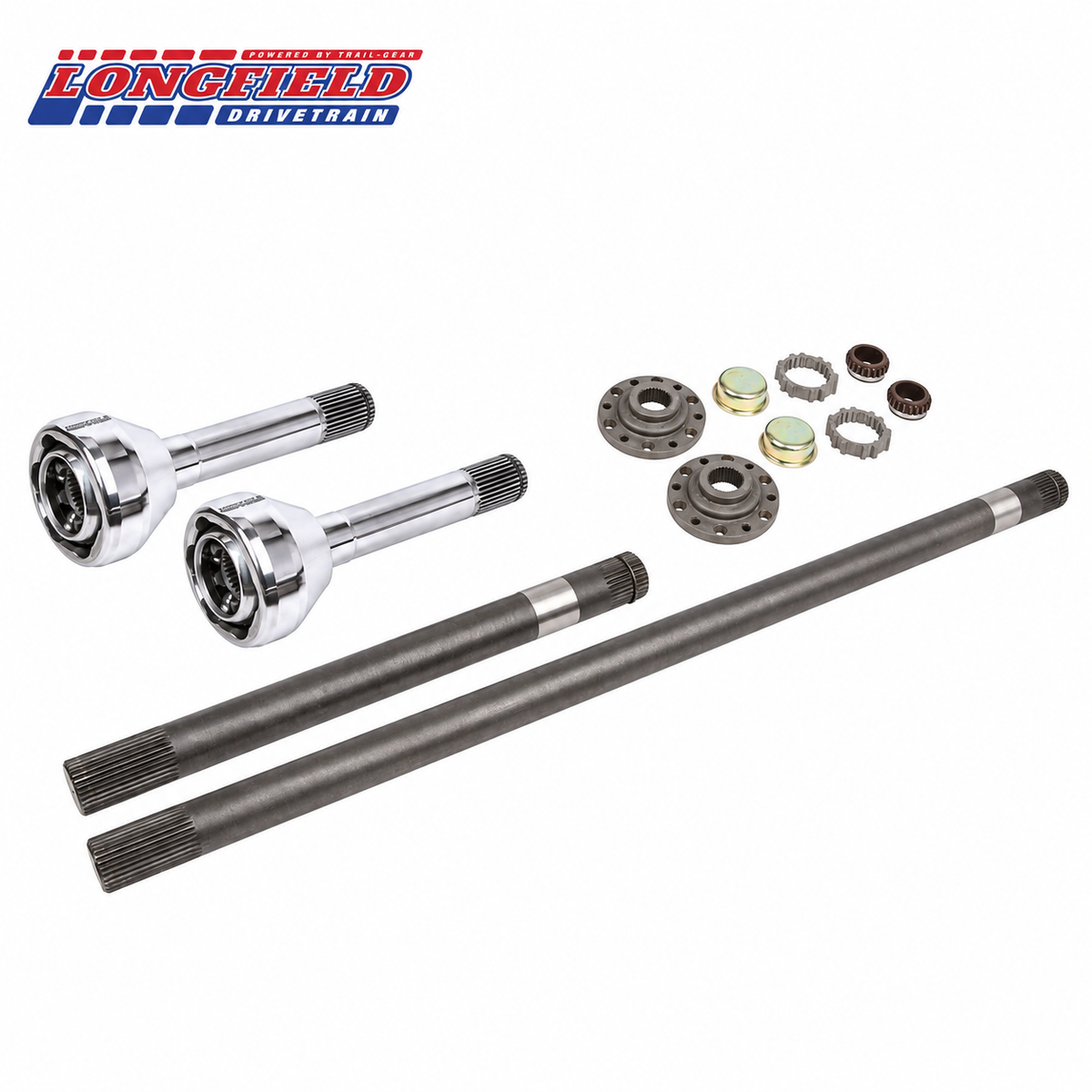

What's Included
- (2) Longfield 30-spline birfields
- (2) 4340 chromoly front axle shafts
- C-clips
