Koyo HH Series Aluminum Performance Radiator 22R/22RE (1984-95 Pickup)

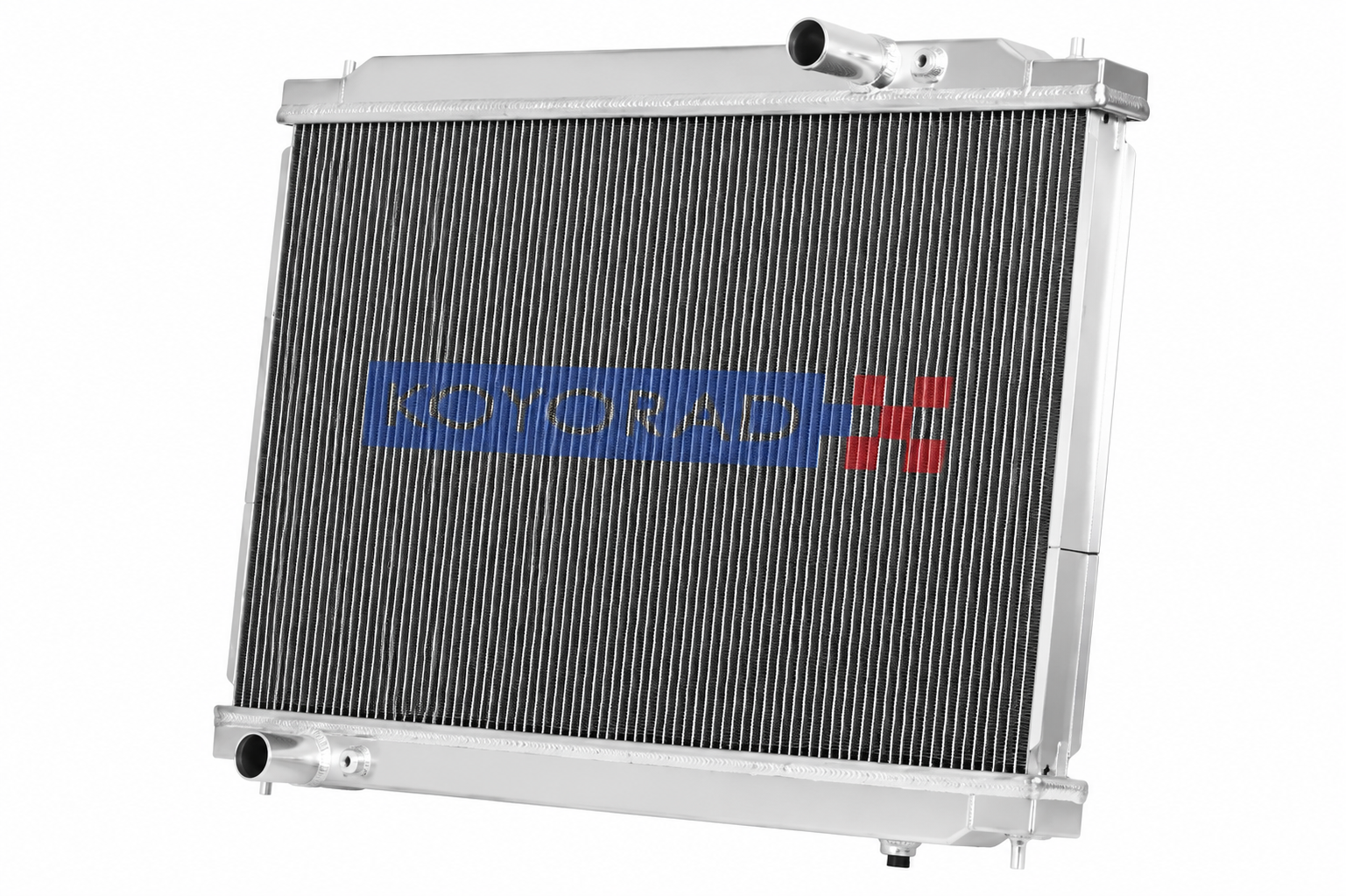

Koyorad HH Series 48mm Aluminum Performance Radiator

For 1984–1995 Toyota Pickup 2WD & 4WD with 22R / 22RE and Manual Transmission

Overview

The Koyorad HH Series 48mm Aluminum Performance Radiator is a high-capacity direct-fit cooling upgrade for 1984–1995 Toyota Pickup models equipped with the naturally aspirated 2.4L 22R or 22RE engine and manual transmission.

Built around Koyorad's 48mm HH Series Hyper Core, this all-aluminum radiator uses increased tube and fin density to provide greater coolant capacity and heat-transfer capability than a conventional factory-style radiator. The upgraded core is well suited to daily driving, off-road use, overland builds, towing, hot climates, and other conditions that place increased demand on the cooling system.

Vehicle-specific mounting points allow the radiator to install in the factory location while retaining the original fan shroud and cooling-system layout.

Key Features

• 48mm HH Series Hyper Core

• All-aluminum performance radiator construction

• Increased tube and fin density for improved heat transfer

• Designed for naturally aspirated 22R and 22RE engines

• Fits 2WD and 4WD Toyota Pickup models

• Manual-transmission application

• Vehicle-specific direct-fit mounting

• Nocolok-R brazed radiator core

• Hand-welded aluminum construction

• Billet aluminum filler neck

• Integrated 1/8-inch threaded accessory port

• Retains the factory fan shroud

48mm HH Series Hyper Core

The 48mm Hyper Core increases coolant volume and heat-transfer surface area while maintaining vehicle-specific fitment. Its high-density tube and fin arrangement is designed to efficiently transfer heat from the engine coolant into the passing airflow.

The additional cooling capacity is particularly useful during sustained engine loads, towing, high ambient temperatures, slow-speed trail driving, and off-road conditions where airflow through the radiator may be reduced.

This makes the HH Series a strong cooling upgrade for both stock and modified 22R and 22RE-powered Toyota Pickups.

All-Aluminum Construction

The radiator uses an all-aluminum core and tanks for efficient heat transfer and increased durability compared with conventional replacement radiators that use plastic end tanks.

Construction features include:

• Hand-assembled aluminum radiator core

• Nocolok-R brazing process

• Hand-welded aluminum tanks

• Precision tube and fin alignment

• Billet aluminum filler neck

• OE-specific mounting locations

The vehicle-specific design allows straightforward installation without requiring a universal mounting system or major vehicle modifications.

Vehicle Fitment

Toyota Pickup

• 1984–1988 Toyota Pickup – 2nd Gen – 2WD or 4WD – 2.4L 22R / 22RE – Manual Transmission

• 1989–1995 Toyota Pickup – 3rd Gen – 2WD or 4WD – 2.4L 22R / 22RE – Manual Transmission

Fitment Notes

• Naturally aspirated 22R and 22RE engines only

• Manual transmission only

• Fits 2WD and 4WD Toyota Pickup models

• Does not fit 22R-TE turbocharged models

• Does not fit V6 models

• Does not fit automatic-transmission applications

• Does not include an integrated automatic-transmission oil cooler

• Uses vehicle-specific factory radiator mounting locations

• Factory fan shroud can be retained

• No cutting or major vehicle modifications required for the listed applications

• Radiator cap is not included

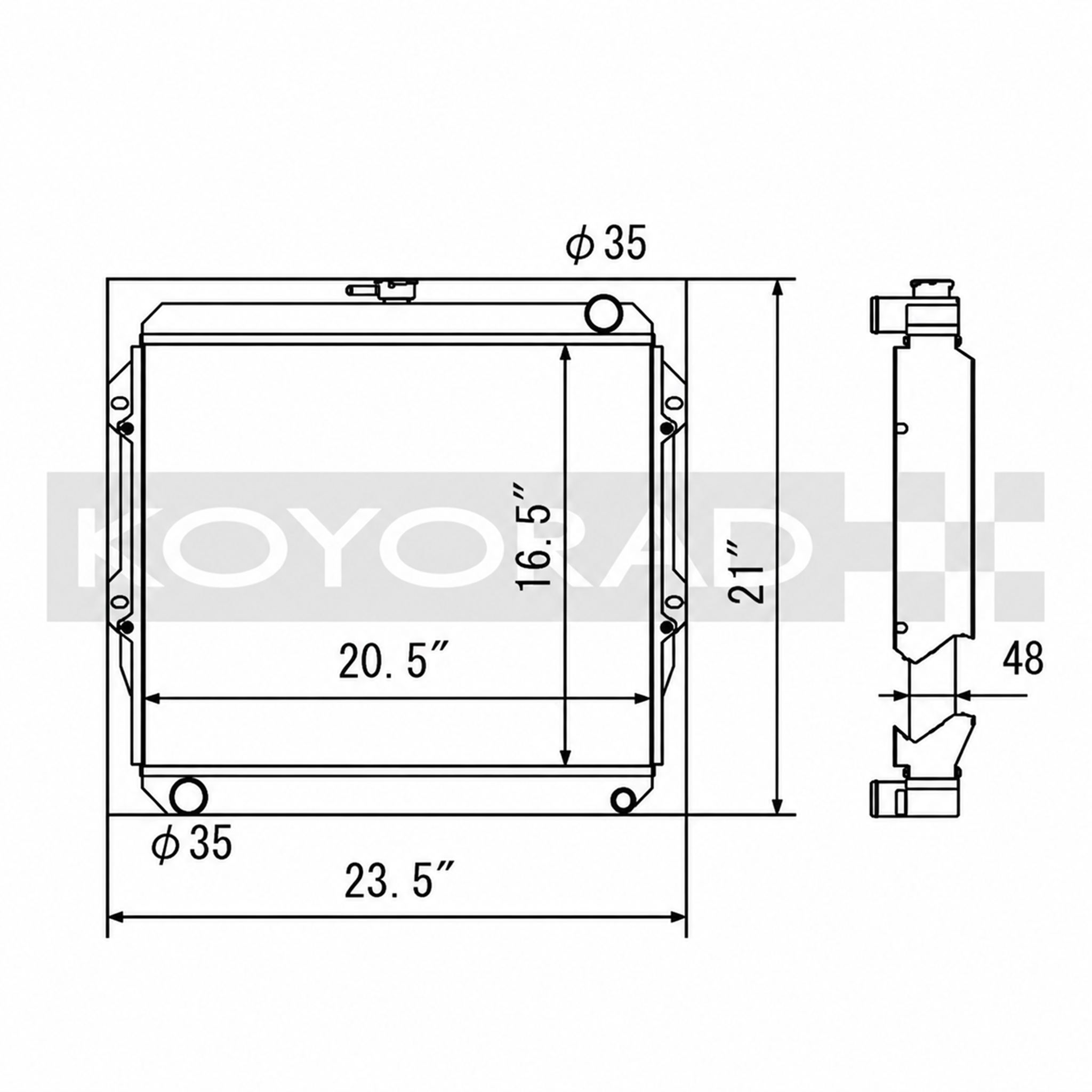

Product Specifications

Brand: Koyorad
Series: HH Series
Product Type: Performance Radiator
Core Type: Hyper Core
Core Thickness: 48 mm
Construction: All Aluminum
Engine: 2.4L 22R / 22RE
Transmission: Manual
Drivetrain: 2WD & 4WD
Core Construction: Nocolok-R Brazed
Tanks: Hand-Welded Aluminum
Filler Neck: Billet Aluminum
Accessory Port: 1/8-Inch Threaded Female Port
Installation: Vehicle-Specific / Direct Fit
Primary Use: Street, Off-Road, Overland, Towing & High-Temperature Driving

What's Included

• (1) Koyorad HH Series 48mm all-aluminum performance radiator

• (1) Pre-installed threaded accessory-port plug

Radiator cap is not included.
