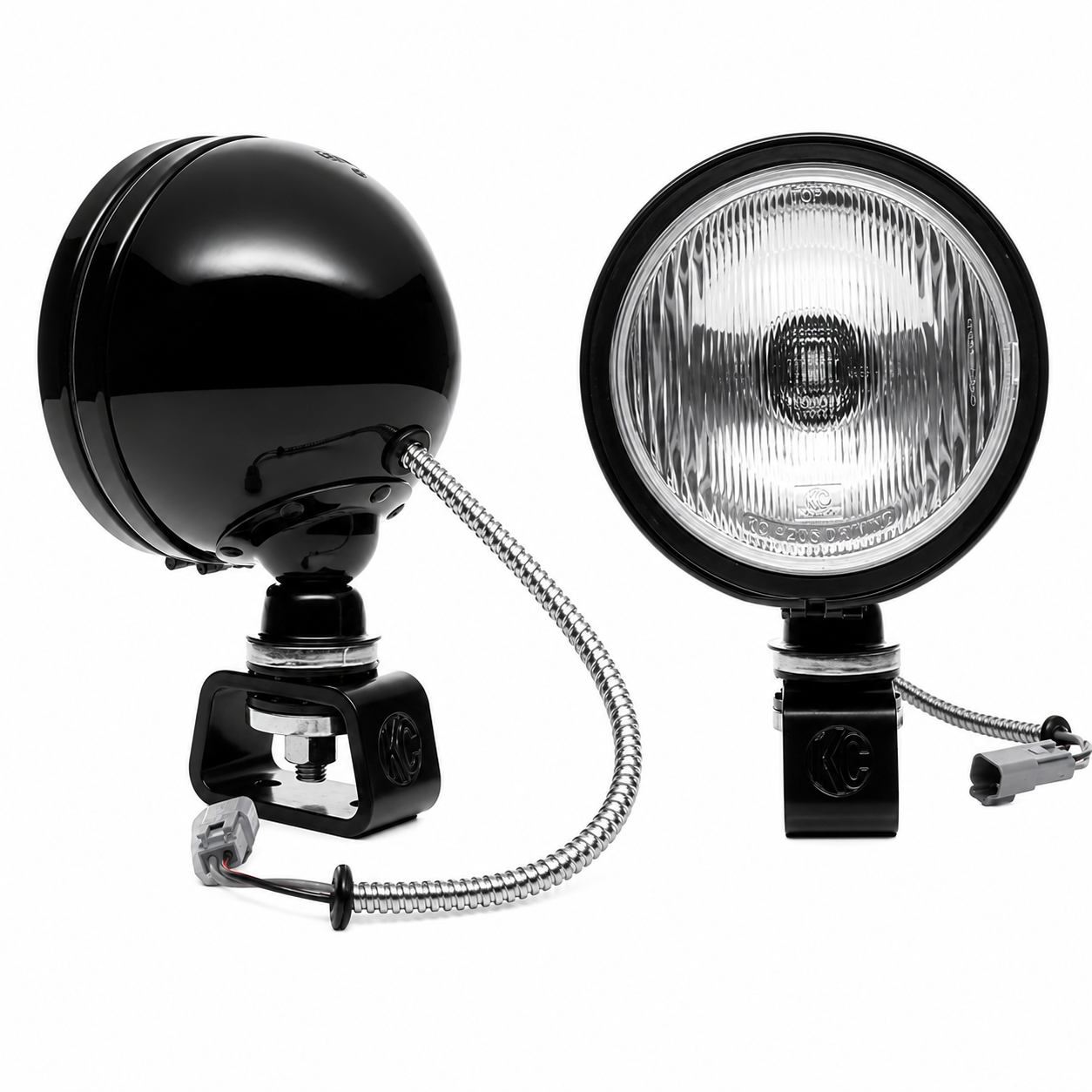

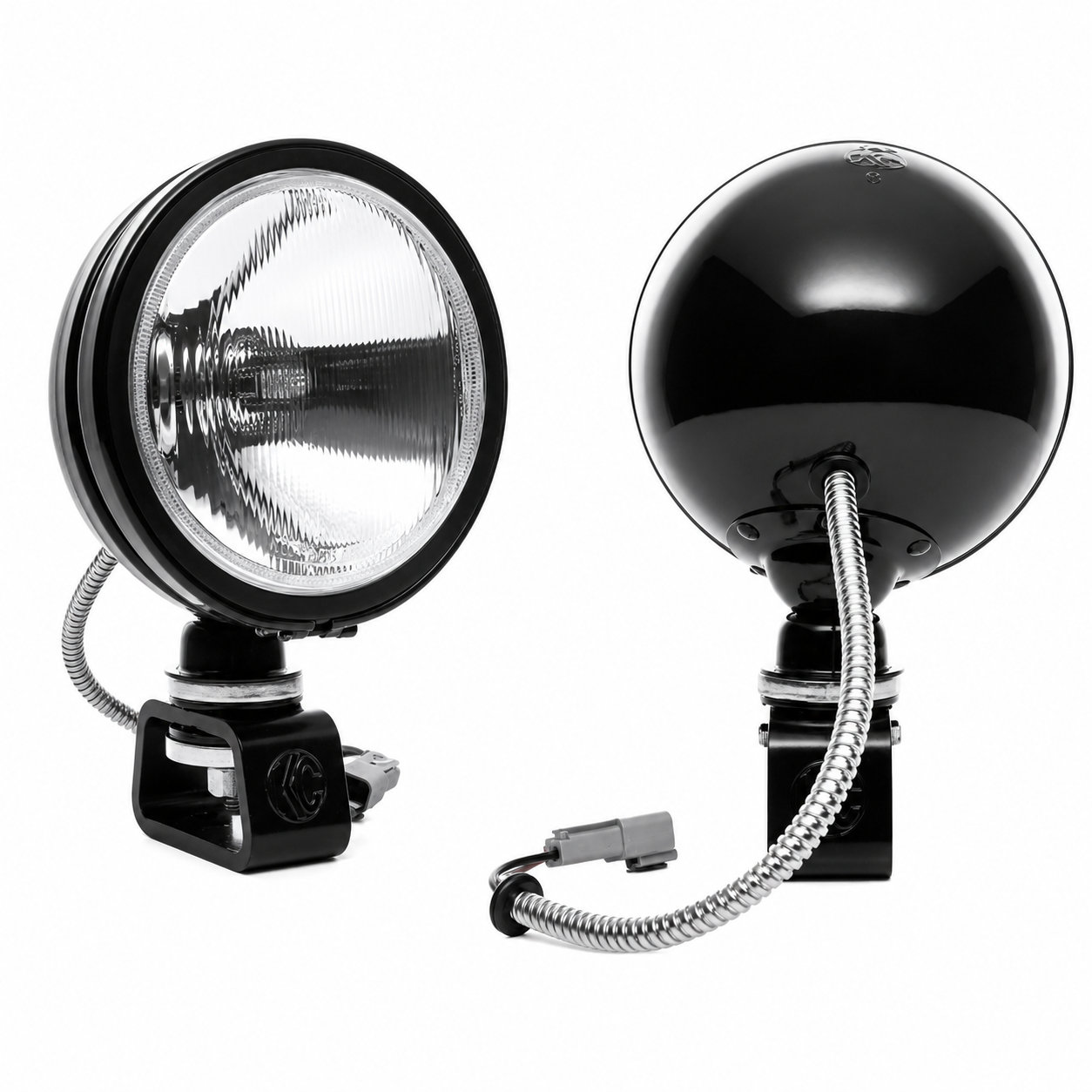

KC HiLiTES 6" Daylighter 100W Halogen 2-Light System
Universal Auxiliary Off-Road Lighting System for Toyota Pickup, Toyota 4Runner & Other Vehicles
Overview
The KC HiLiTES 6" Daylighter Halogen 2-Light System combines classic round off-road styling with powerful, serviceable halogen lighting. Each light uses a 100W H3 halogen bulb with a tempered glass lens and precision reflector, producing 2,452 raw lumens per light.

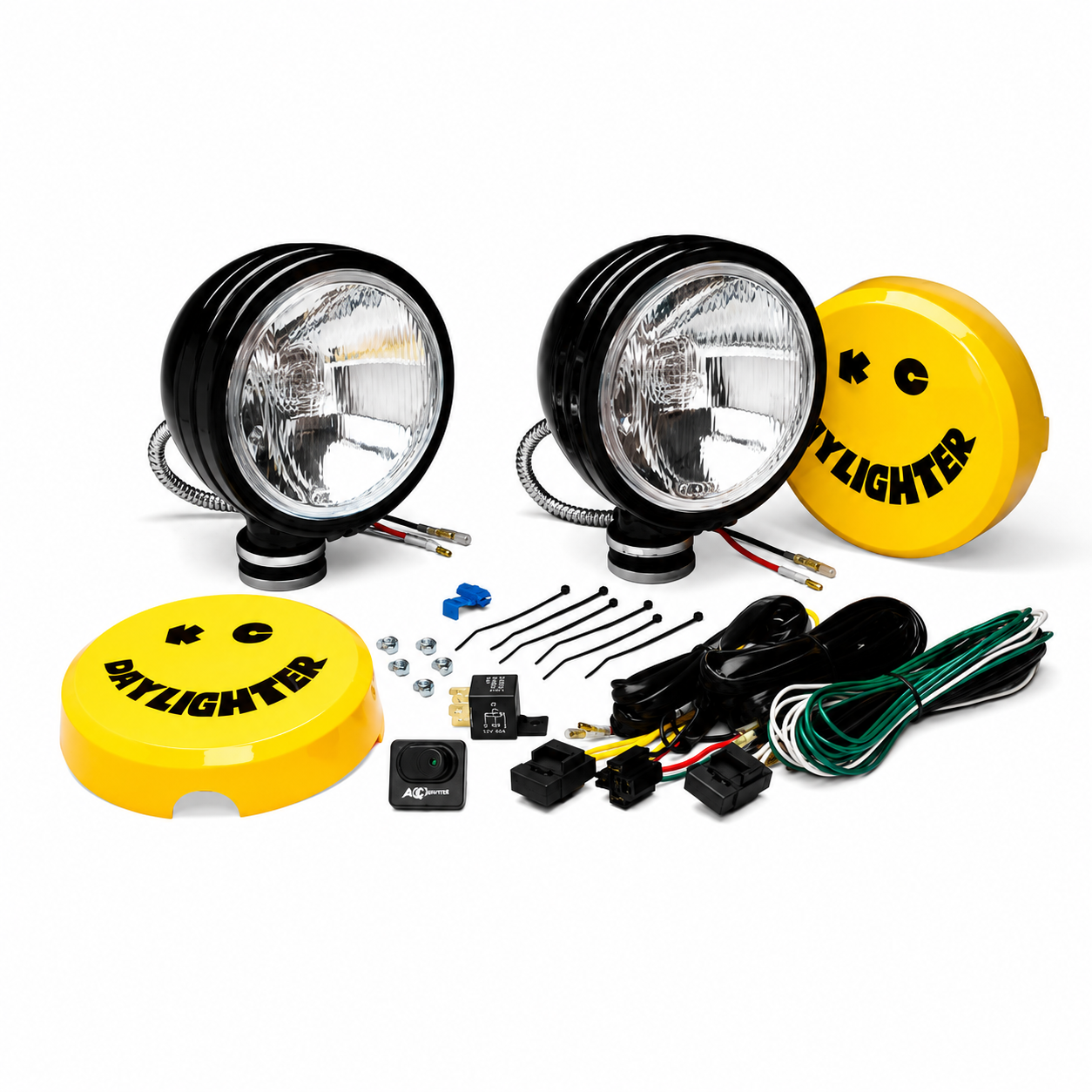

The complete pair system includes two Daylighter lamps, protective KC light covers, and the relay wiring components needed for installation on a suitable 12-volt vehicle electrical system. Choose between Spot and Spread beam patterns depending on whether long-range distance or broader peripheral illumination is the priority.
Key Features
- Complete 2-light auxiliary off-road lighting system
- Two 6" KC Daylighter round lights
- 100W H3 halogen bulb per light
- 2,452 raw lumens per light
- Black steel housings with shock-mounted construction
- Tempered glass lenses
- Precision optical reflectors
- Replaceable halogen bulbs
- IP68 ingress-protection rating
- Adjustable mounting for accurate beam aiming
- Relay wiring harness and dash switch included
- Two protective KC light covers included
- Available in Spot or Spread beam patterns
Spot vs. Spread Beam
Spot Beam
The Spot pattern concentrates the light farther ahead for maximum forward visibility. It is best suited to faster off-road driving, desert terrain, open trails, and other situations where identifying obstacles at greater distances is important.
- Beam Distance: 886 m
- Lux at 10 m: 1,962 lx
- Candela: 196,200 cd
Spread Beam
The Spread pattern provides a broader field of illumination with greater emphasis on peripheral visibility, making it well suited to slower trails, wooded terrain, overlanding, and general off-road use.
- Beam Distance: 829 m
- Lux at 10 m: 1,717 lx
- Candela: 171,675 cd
Both versions produce 2,452 raw lumens per light. The primary difference is how that light is distributed rather than total raw output.
Vehicle Fitment
This is a universal auxiliary lighting system rather than a vehicle-specific bolt-on kit. Installation requires a suitable mounting surface and sufficient clearance for the light housing.
Toyota Pickup
- 1979–1983 Toyota Pickup – 1st Gen – Universal Auxiliary Light Application
- 1984–1988 Toyota Pickup – 2nd Gen – Universal Auxiliary Light Application
- 1989–1995 Toyota Pickup – 3rd Gen – Universal Auxiliary Light Application
Toyota 4Runner
- 1984–1989 Toyota 4Runner – 1st Gen – Universal Auxiliary Light Application
- 1990–1995 Toyota 4Runner – 2nd Gen – Universal Auxiliary Light Application
The lights can also be installed on other trucks, SUVs, Jeeps, off-road vehicles, and custom builds with an appropriate mounting location and electrical system.
Fitment Notes
- Universal-fit auxiliary lighting system
- Not a Toyota-specific mounting kit
- Suitable mounting location must be provided by the installer
- Common mounting locations include bumpers, brush guards, roll bars, roof racks, and fabricated light mounts
- Vehicle-specific brackets or fabrication may be required
- Supplied relay wiring system is designed around a 12V vehicle electrical system
- Spot and Spread versions are auxiliary/off-road beam patterns; verify local regulations before using them on public roads
- Verify mounting clearance before installation
- Aim lights properly after installation
Product Specifications
Brand: KC HiLiTES
Series: Daylighter
Product Type: Auxiliary Halogen Light System
Light Quantity: 2
Light Size: 6 Inch
Light Technology: Halogen
Bulb Type: H3
Wattage: 100W Per Light / 200W Total
Raw Output: 2,452 Lumens Per Light
Light Temperature: 4000K
Beam Options: Spot / Spread
Lens: Clear Tempered Glass
Housing Finish: Black
IP Rating: IP68
Dimensions Per Light: 6.22" W × 8.42" H × 5.38" D
Electrical Application: 12V Vehicle System with Included Relay Harness
Available Configurations
Spot Beam
- (2) 6" 100W Daylighter Spot Beam Halogen Lights
- (2) Protective KC Light Covers
- Relay Wiring Harness
- Dash Switch
- Installation Components
Spread Beam
- (2) 6" 100W Daylighter Spread Beam Halogen Lights
- (2) Protective KC Light Covers
- Relay Wiring Harness
- Dash Switch
- Installation Components
