Fidanza Aluminum Flywheel 20R/22R/22RE/22RTEC

Fidanza Lightweight Aluminum Flywheel

For 1979-1995 Toyota Pickup, 1984-1995 Toyota 4Runner & 1975-1985 Toyota Celica

Overview

Improve engine response and reduce drivetrain rotational mass with the Fidanza Lightweight Aluminum Flywheel. Designed for compatible Toyota manual transmission applications equipped with select 20R, 22R, 22R-E, and 22R-TE four-cylinder engines, this performance flywheel allows the engine to gain and lose RPM more quickly than a conventional heavy cast-iron flywheel.

The Fidanza combines a lightweight billet aluminum flywheel body with a replaceable heat-treated steel friction surface and hardened steel starter ring gear. This serviceable construction provides the performance benefits of reduced rotational inertia while retaining a durable clutch contact surface.

Fidanza manufactures its lightweight flywheels in the United States and states that its designs are generally 40–60% lighter than their factory counterparts, depending on the specific application.

Performance Benefits of a Lightweight Flywheel

The flywheel connects the engine to the clutch assembly and stores rotational energy as the engine runs. Reducing flywheel mass lowers rotational inertia, allowing the engine to respond more quickly to throttle input.

Potential Performance Improvements

• Faster engine RPM changes

• Sharper throttle response

• Reduced rotating mass

• Quicker engine acceleration

• More responsive rev matching

• Improved performance during spirited driving

• Suitable for naturally aspirated and turbocharged engines

A lightweight flywheel does not add engine horsepower. Instead, it reduces the amount of energy required to accelerate the flywheel, allowing the engine to rev more freely.

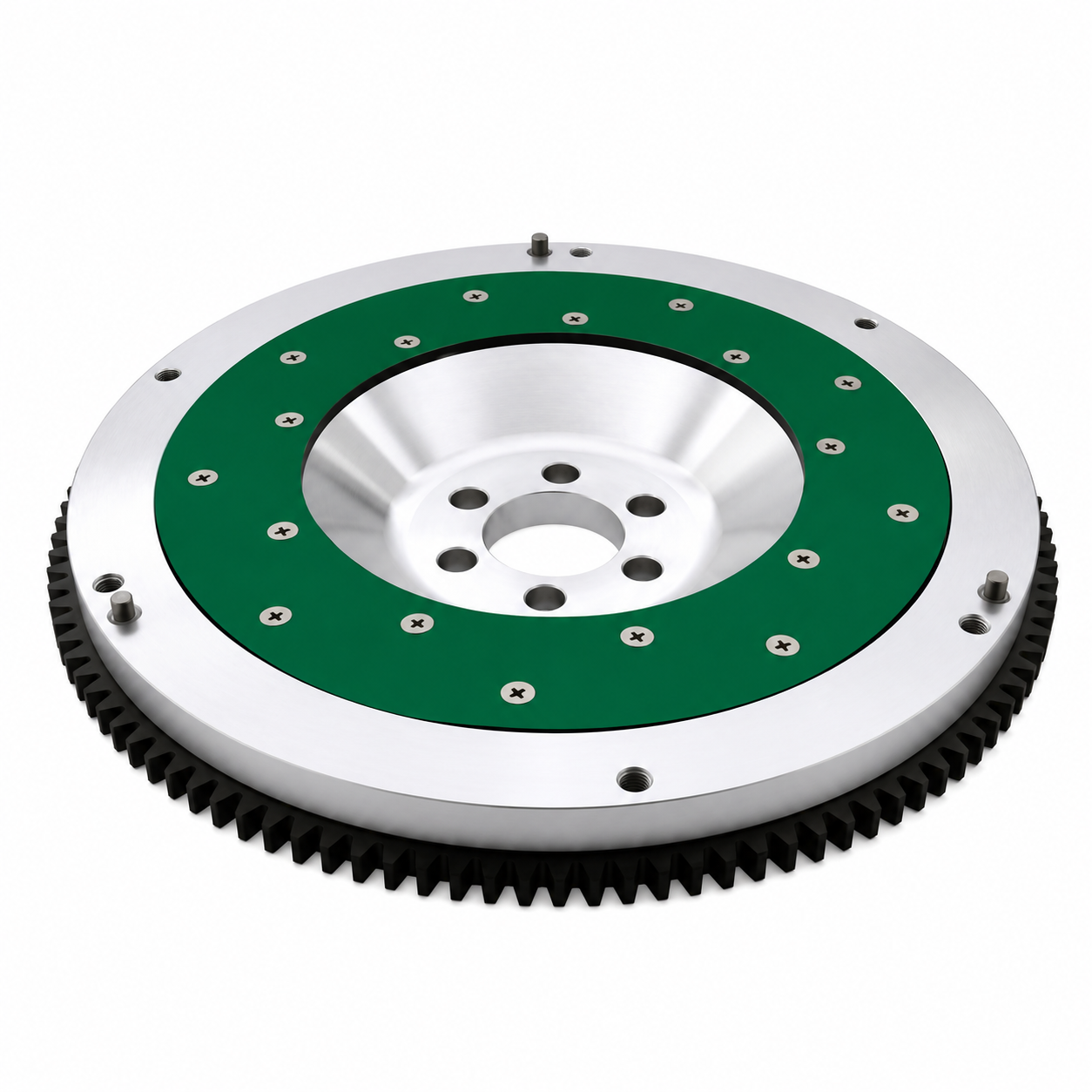

Fidanza Aluminum Flywheel Construction

The Fidanza Aluminum Flywheel is manufactured using modern materials and a serviceable multi-piece design.

Key Construction Features

• Billet aluminum flywheel body

• CNC-machined construction

• Replaceable heat-treated steel friction plate

• Hardened steel starter ring gear

• Military-specification fasteners

• Stepped pressure-plate dowels on applicable configurations

• Precision-balanced assembly

• Direct-fit design for compatible applications

• Manufactured in the USA

Fidanza flywheels are designed to provide reduced rotating mass without relying on an excessively thin or fragile friction surface.

Replaceable Steel Friction Surface

Unlike a conventional one-piece cast-iron flywheel, the Fidanza Aluminum Flywheel uses a separate bolt-on steel friction plate.

The clutch disc engages against the steel friction surface rather than directly against the aluminum flywheel body.

Benefits of the Replaceable Friction Plate

• Worn friction surfaces can be replaced

• The complete flywheel does not normally need to be discarded

• Supports future clutch servicing

• Reduces long-term replacement costs

• Provides a durable clutch engagement surface

• Compatible with a wide range of clutch friction materials

Fidanza states that its aluminum flywheels can be used with common organic, Kevlar, ceramic, metallic, and sintered-iron clutch disc materials when the clutch and flywheel specifications are otherwise compatible.

Hardened Steel Ring Gear

The starter ring gear is manufactured from hardened steel to provide a durable engagement surface for the starter motor.

The ring gear is mechanically attached to the aluminum flywheel body and is designed to withstand repeated engine starts and normal drivetrain heat cycles.

Why Choose the Fidanza Flywheel Over a Factory Flywheel?

The factory Toyota flywheel was designed around smooth engagement, drivability, and stored rotational energy. The Fidanza flywheel is designed for drivers who prioritize faster engine response and reduced rotating mass.

Advantages Over a Heavy Factory Flywheel

• Up to 40–60% lighter than many original flywheels

• Faster throttle response

• Quicker engine RPM changes

• Lower rotational inertia

• Replaceable clutch friction surface

• Modern billet aluminum construction

• Improved serviceability

• Suitable for performance-oriented builds

• Compatible with stock-style and upgraded clutch combinations when properly matched

Important Drivability Considerations

A lightweight flywheel changes how the vehicle responds because it stores less rotational energy than a heavy factory flywheel.

Drivers May Notice

• RPM rises more quickly

• RPM falls more quickly between shifts

• Rev matching becomes more responsive

• Clutch engagement may require slightly more throttle

• Low-speed driving may feel less forgiving

• The engine may be easier to stall under heavy load

These characteristics are normal effects of reduced flywheel inertia and do not indicate a defect.

Off-Road Use Considerations

The Fidanza Aluminum Flywheel may work well in many street, trail, racing, and performance applications, but it is not necessarily the ideal flywheel for every off-road build.

A heavy factory flywheel stores more rotational energy, which can help an engine continue turning during:

• Very low-speed rock crawling

• Deep mud

• Soft sand

• Steep technical climbs

• High-load clutch engagement

• Recovery maneuvers

• Vehicles with heavy tires and drivetrain components

Because the Fidanza flywheel carries less rotational inertia, the engine can lose RPM more quickly when placed under load. Drivers may need to use more precise throttle and clutch control to prevent bogging or stalling.

For vehicles primarily built around extremely low-speed crawling or sustained heavy-load operation, discuss the advantages and disadvantages of a lightweight flywheel with the vehicle builder before ordering.

Ideal Applications

The Fidanza Aluminum Flywheel is well suited for compatible:

• Performance street trucks

• Sport-oriented restorations

• Daily-driven vehicles

• Autocross builds

• Racing applications

• Naturally aspirated engine builds

• Turbocharged 22R-TE applications

• Clutch upgrades

• Engine swaps

• Lightweight off-road vehicles

• Trail vehicles where faster engine response is preferred

Vehicle Compatibility

Compatibility is determined by the installed engine, manual transmission, clutch diameter, flywheel bolt pattern, and pressure-plate configuration.

Toyota Pickup

Compatible with select 1979–1995 Toyota Pickup manual transmission models equipped with an appropriate:

• 20R engine

• 22R engine

• 22R-E / 22RE engine

• 22R-TE / 22RTE engine

Toyota 4Runner

Compatible with select 1984–1995 Toyota 4Runner manual transmission models equipped with an appropriate:

• 22R engine

• 22R-E / 22RE engine

• 22R-TE / 22RTE engine

Toyota Celica

Compatible with select 1975–1985 Toyota Celica manual transmission models equipped with a compatible:

• 20R engine

• 22R engine

Toyota Corona

Compatible with select 1981–1982 Toyota Corona manual transmission models equipped with a compatible 22R engine.

Fitment Requirements

Before ordering, confirm:

• Vehicle year and model

• Installed engine

• Manual transmission model

• Flywheel bolt pattern

• Clutch disc diameter

• Pressure-plate bolt pattern

• Starter ring-gear compatibility

• Required flywheel step and clutch geometry

What’s Included

• One Fidanza Lightweight Aluminum Flywheel
