DFC OE Rear Brake Drum 2WD Standard 1/2-Ton & 3/4-Ton
For 1979–1995 Toyota Pickup RWD / 2WD – Standard 5-Lug Applications
Overview

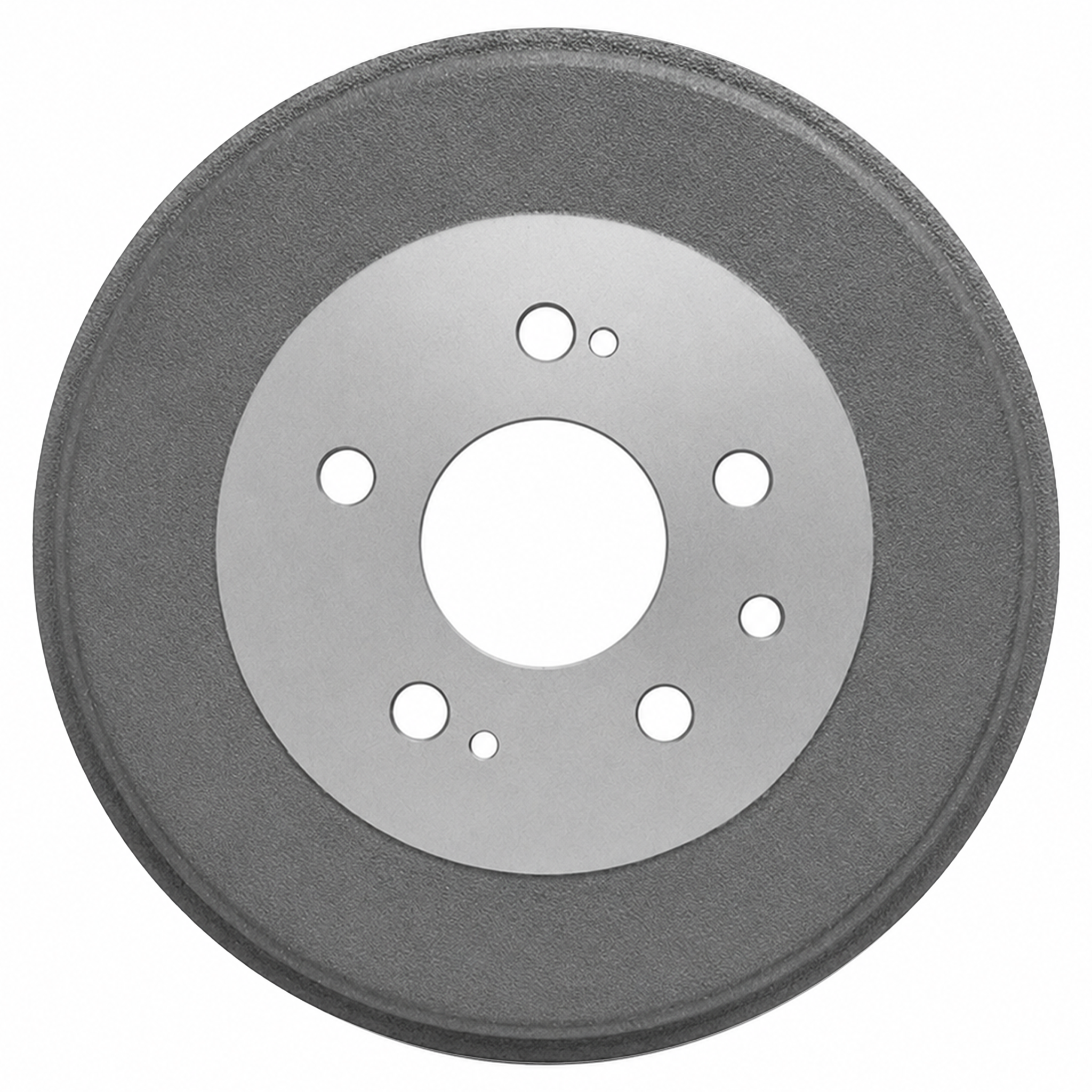

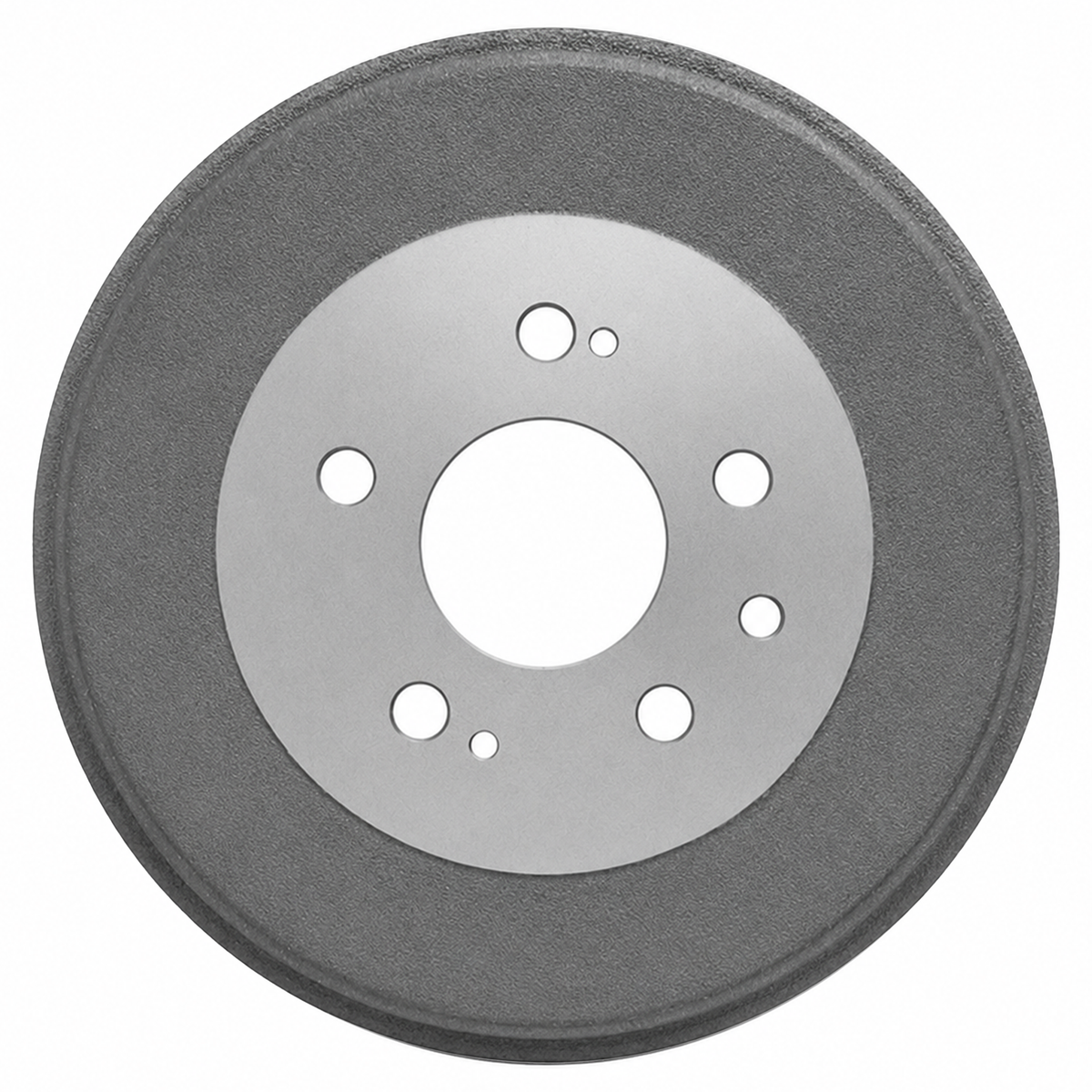

The Dynamic Friction Company (DFC) True Balanced Rear Brake Drum is a direct-fit OE replacement for 1979–1995 Toyota Pickup RWD / 2WD standard 5-lug rear drum brake applications, including 1/2-ton and 3/4-ton configurations within the listed fitment.
This listing combines two year-specific rear brake drums. 1979–1983 trucks use the earlier drum configuration, while 1984–1995 trucks use a different later drum. Both use a 254 mm nominal drum diameter, 5-hole design, 67 mm center bore, and 114.3 mm bolt circle, but the outside diameter and overall height differ.
DFC True Balanced drums are precision machined and balanced for OE-style form, fit, and function and feature a black high-temperature coating for corrosion protection.
Key Features
- Direct-fit rear brake drum for 1979–1995 Toyota Pickup RWD / 2WD
- Designed for standard 5-lug rear brake applications
- Two year-specific rear drum configurations
- 254 mm nominal drum diameter
- 5-hole, 114.3 mm bolt circle
- 67 mm center hole diameter
- Floating-mount design
- Precision cut and mill balanced
- Black high-temperature protective coating
- Available individually or as a pair
Rear Drum Specifications by Year
1979–1983
- Nominal Drum Diameter: 254 mm
- Maximum Drum Diameter: 256 mm
- Outside Diameter: 298 mm
- Overall Height: 70.5 mm
- Center Hole Diameter: 67 mm
- Mounting Hole Quantity: 5
- Mounting Hole Diameter: 14.5 mm
- Bolt Circle Diameter: 114.3 mm
- Mount Type: Floating
1984–1995
- Nominal Drum Diameter: 254 mm
- Maximum Drum Diameter: Approximately 256 mm
- Outside Diameter: 305.5 mm
- Overall Height: 72 mm
- Center Hole Diameter: 67 mm
- Mounting Hole Quantity: 5
- Mounting Hole Diameter: 14.5 mm
- Bolt Circle Diameter: 114.3 mm
- Mount Type: Floating
The two drums share the same nominal braking diameter and mounting pattern but are not interchangeable by year. Select the year range that matches the truck.
Vehicle Fitment
Toyota Pickup
- 1979–1983 Toyota Pickup – 1st Gen – RWD / 2WD – 1/2-Ton – 5-Lug – Rear
- 1979–1983 Toyota Pickup – 1st Gen – RWD / 2WD – 3/4-Ton – 5-Lug – Rear
- 1984–1988 Toyota Pickup – 2nd Gen – RWD / 2WD – Standard 5-Lug Application – Rear
- 1989–1995 Toyota Pickup – 3rd Gen – RWD / 2WD – Standard 5-Lug Application – Rear
Fitment Notes
- Rear application only
- RWD / 2WD applications only
- Standard 5-lug rear brake configuration only
- Select the correct Year Range before ordering
- 1979–1983 and 1984–1995 use different rear brake drums
- Does not replace the 6-hole 4WD rear brake drum
- Does not replace heavy-duty 1-ton-specific rear brake drums
- Verify the existing rear brake and wheel configuration before ordering
- Available individually or as a pair
- Select a pair when replacing both rear brake drums
Product Specifications
Brand: Dynamic Friction Company (DFC)
Series: True Balanced
Product Type: Brake Drum
Position: Rear
Recommended Use: OE Replacement
Material: Cast Iron
Finish: Black High-Temperature Coating
Nominal Drum Diameter: 254 mm
Mounting Hole Quantity: 5
Center Hole Diameter: 67 mm
Bolt Circle Diameter: 114.3 mm
Mount Type: Floating
Fit Type: Vehicle-Specific / Direct Fit
Drivetrain: RWD / 2WD
Wheel Configuration: Standard 5-Lug
Dimensions: Application-Specific by Year Range
Available Configurations
Year Range
1979–1983
- 1st Gen Toyota Pickup RWD / 2WD standard 5-lug rear brake application
- 298 mm outside drum diameter
- 70.5 mm overall height
1984–1995
- 2nd Gen and 3rd Gen Toyota Pickup RWD / 2WD standard 5-lug rear brake application
- 305.5 mm outside drum diameter
- 72 mm overall height
Quantity
Single
- (1) Application-correct DFC True Balanced Rear Brake Drum

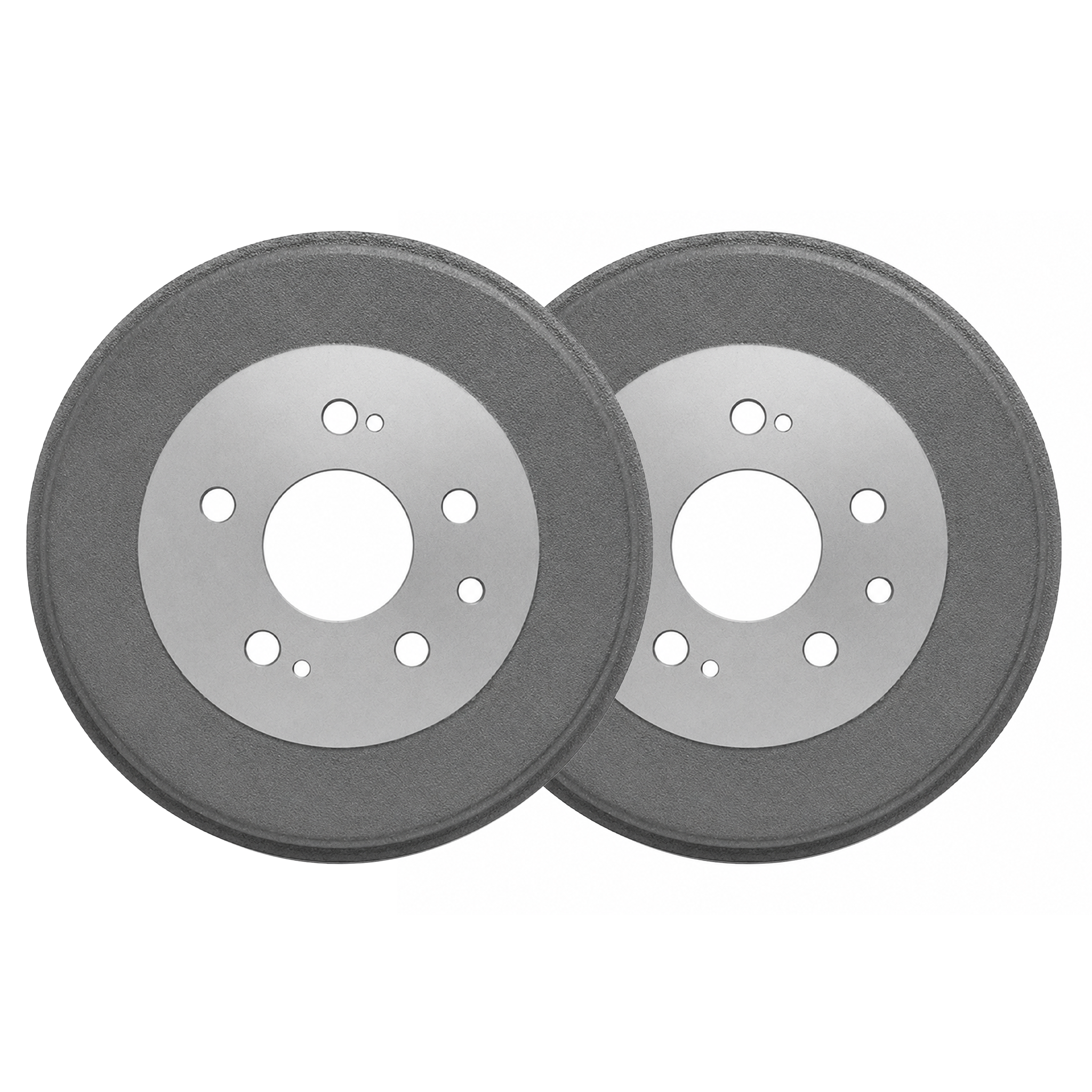

Pair
- (2) Matching application-correct DFC True Balanced Rear Brake Drums
- Provides both drums needed to replace the driver- and passenger-side rear brake drums
