DFC OE Rear Drum 2WD 1-Ton (1979-83 4Runner/Pickup)

DFC True Balanced 1-Ton Rear Brake Drum

For 1979–1992 Toyota Pickup 1-Ton / Cab & Chassis SRW Applications

Overview

The Dynamic Friction Company (DFC) True Balanced Rear Brake Drum is a direct-fit replacement for specific heavy-duty Toyota Pickup rear brake applications. Within the 1979–1992 range, this drum is primarily cataloged for 1-ton, Cab & Chassis, camper, and single-rear-wheel (SRW) configurations rather than standard 1/2-ton or 3/4-ton pickups.

DFC machines and balances its True Balanced drums to help maintain smooth braking operation and reduce vibration or pedal pulsation. The uses a 254 mm nominal braking diameter, 5-lug 114.3 mm bolt circle, 67 mm center bore, and a deeper 78 mm overall height suited to these heavy-duty brake applications.

This is not the standard 1979–1983 2WD drum or the 6-lug 4WD drum. Verify the truck's load rating and rear brake configuration before ordering.

Key Features

• Direct-fit replacement brake drum for specific heavy-duty Toyota Pickup applications
• Designed primarily for 1-ton / Cab & Chassis / SRW rear brake configurations
• Precision cut and balanced to help reduce vibration and pedal pulsation
• Machined to match OE-style form, fit, and function
• Black high-temperature coating for corrosion protection
• 254 mm nominal drum diameter
• 5-lug, 114.3 mm bolt circle
• 67 mm center bore
• 78 mm overall height
• New aftermarket replacement component

Material & Construction

DFC manufactures its True Balanced drums from cast iron and machines them using dedicated drum-processing and balancing equipment. A black high-temperature exterior coating helps protect exposed surfaces against corrosion.

Vehicle Fitment

Toyota Pickup

• 1979–1988 – RWD – Cab & Chassis – 1-Ton / SRW, including cataloged camper applications
• 1989–1990 – RWD – Cab & Chassis – SRW
• 1991–1992 – Cab & Chassis – SRW

Cataloged trims vary by year and include Base, DLX, SR5, and certain SR5 Turbo configurations.

Fitment Notes

• Rear application for the 1979–1992 Pickup fitments listed above
• Intended for heavy-duty 1-ton / Cab & Chassis / SRW brake configurations
• Uses a 5-lug mounting pattern
• Does not replace the 6-lug 4WD drum
• Do not assume compatibility with a standard 1/2-ton or 3/4-ton Pickup
• Available individually or as a pair
• Select a pair when replacing both rear brake drums

• Verify axle, load rating, and brake configuration before installation

Product Specifications

Brand: Dynamic Friction Company (DFC)
Series: True Balanced
Product Type: Brake Drum
Position: Rear for 1979–1992 applications
Material: Cast Iron
Color / Finish: Black coated
Mount Type: Floating
Bolt Hole Quantity: 5
Bolt Hole Diameter: 14.5 mm
Bolt Circle Diameter: 114.3 mm
Center Hole Diameter: 67 mm
Nominal Drum Diameter: 254 mm
Maximum Drum Diameter: 10.059 in
Outside Diameter: 302.5 mm
Overall Height: 78 mm

Available Configurations

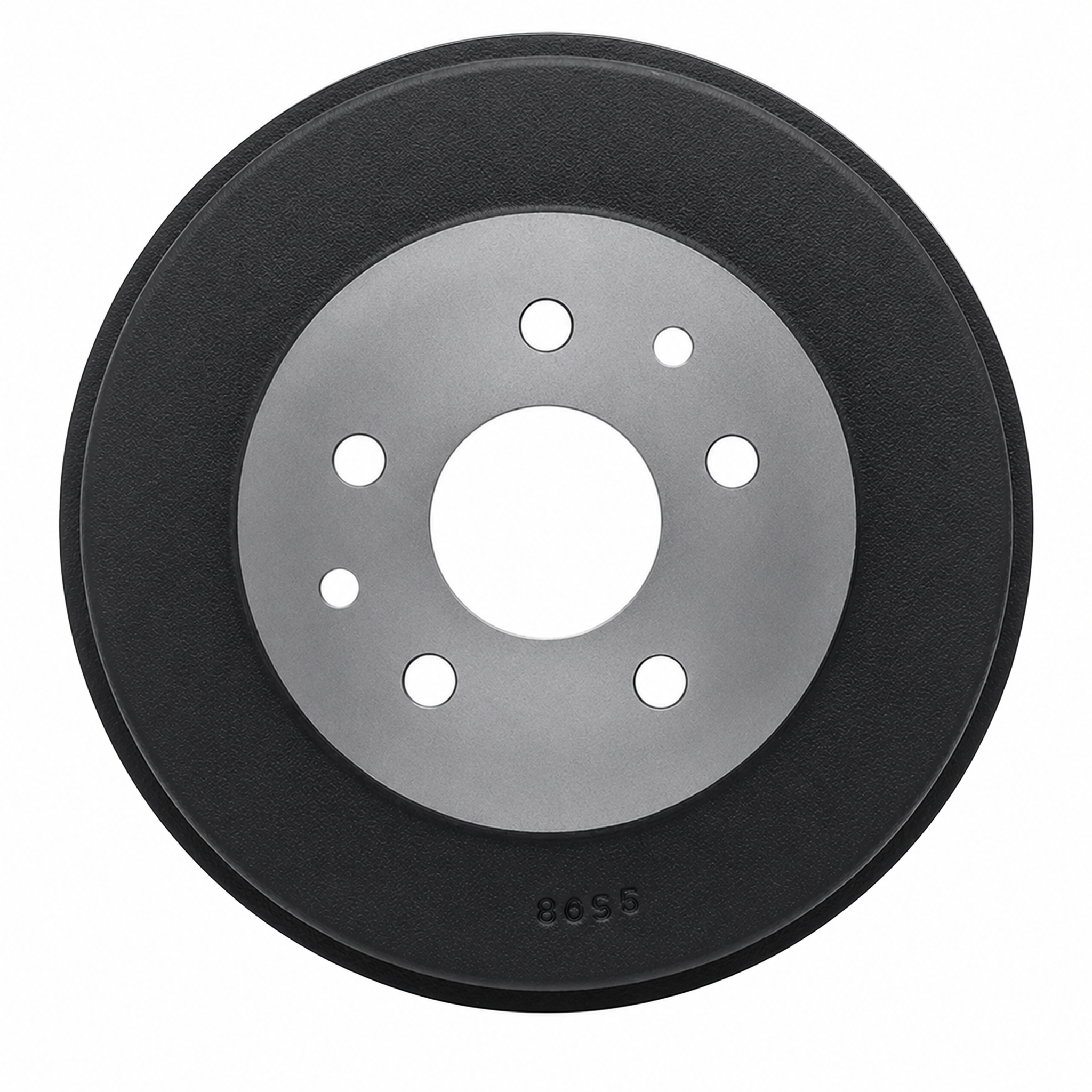

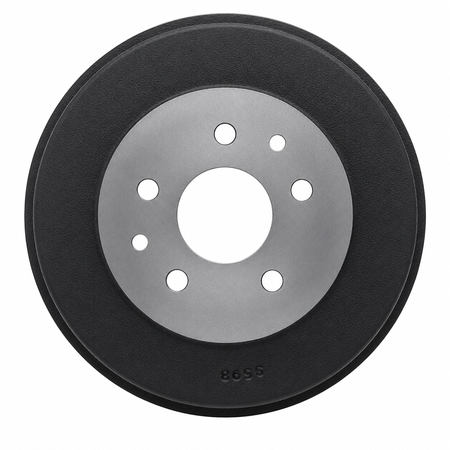

Single Rear Brake Drum

• (1) DFC True Balanced Rear Brake Drum
• Ideal for replacing one damaged or worn rear brake drum

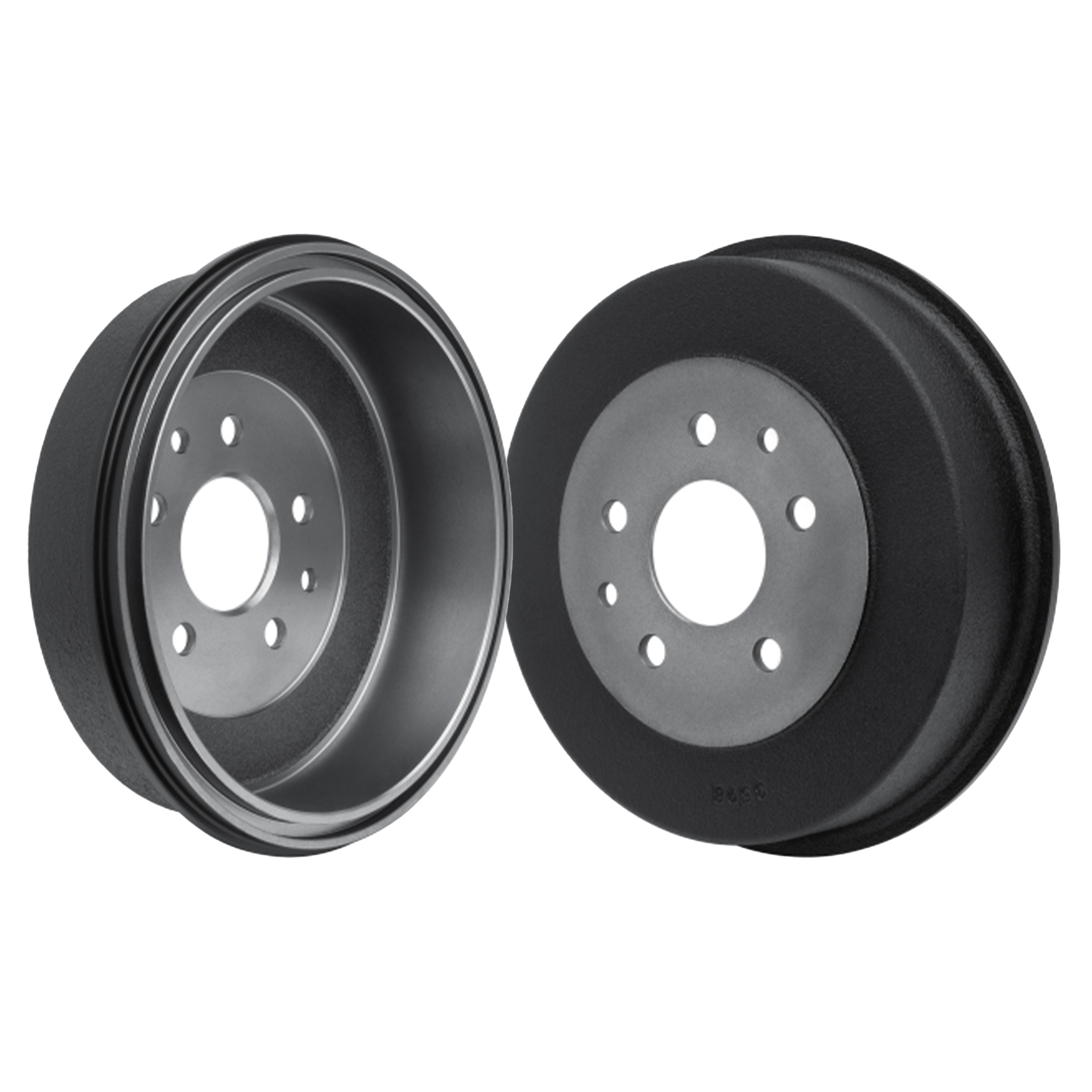

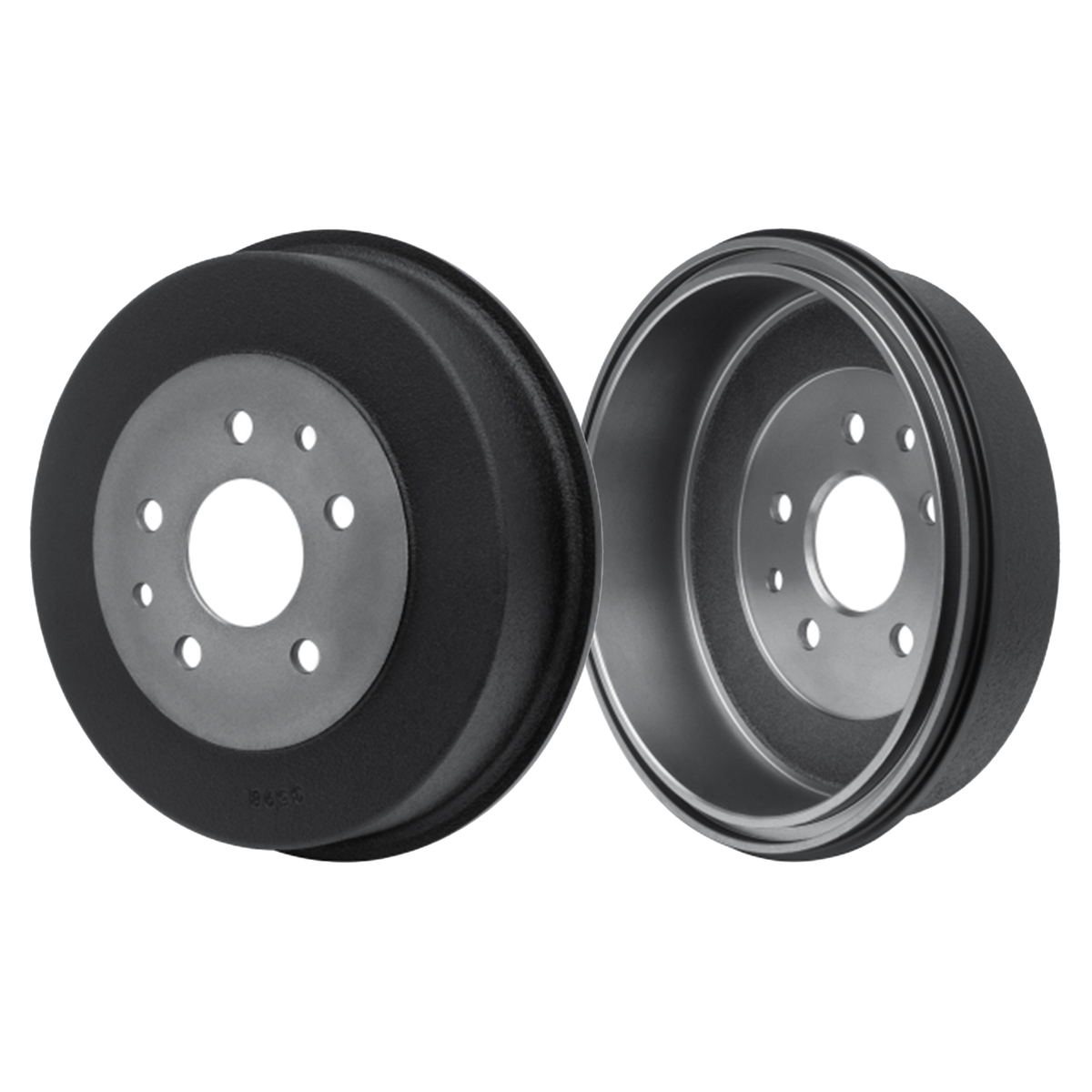

Pair of Rear Brake Drums

• (2) DFC True Balanced Rear Brake Drums
• Provides both drums needed to replace the driver- and passenger-side rear brake drums
