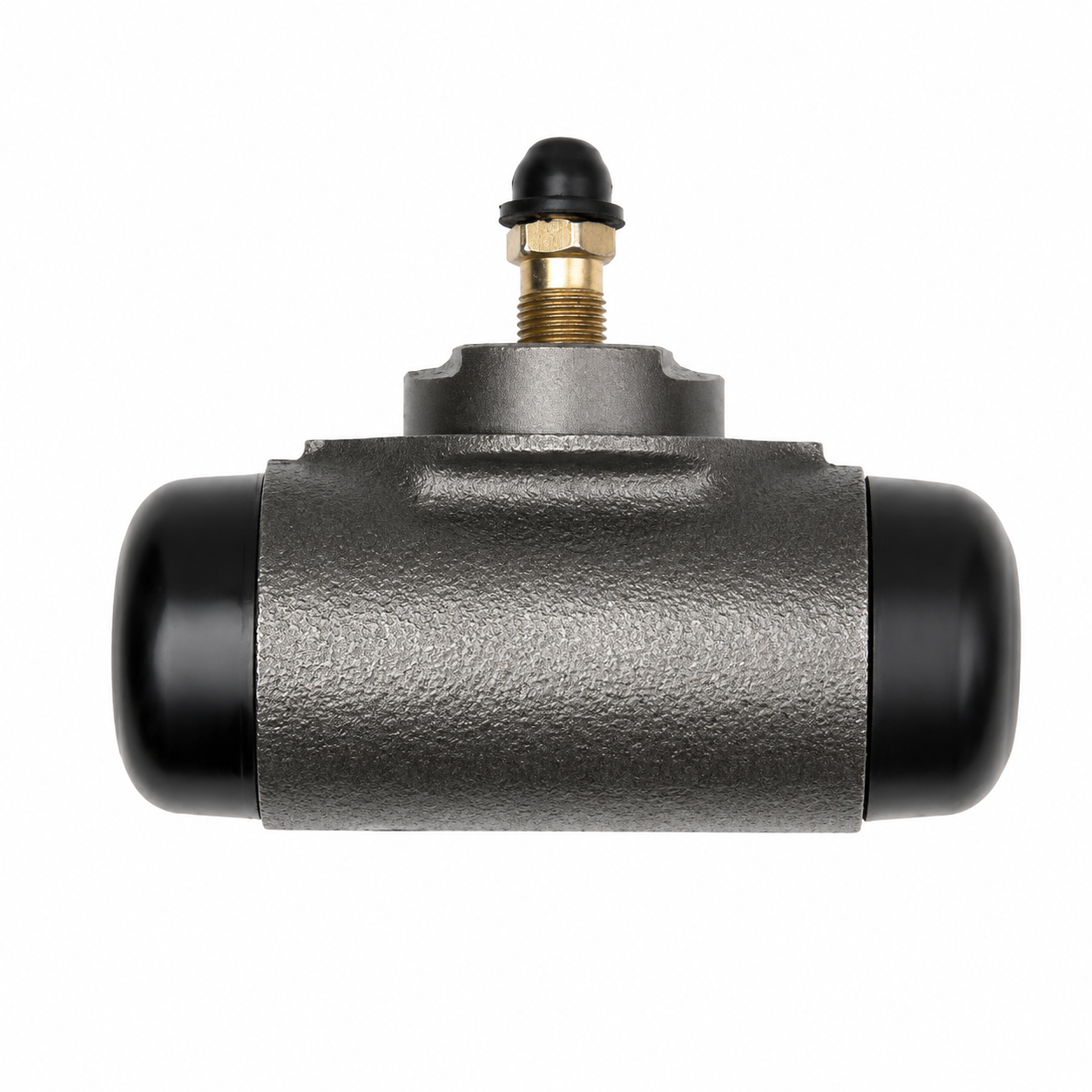

DFC OE Rear Brake Wheel Cylinder
For 1979ā1995 Toyota Pickup 2WD Standard / 1/2-Ton Applications
Overview
The DFC OE Rear Brake Wheel Cylinder is a direct-fit hydraulic replacement for the rear drum brake system used on 1979ā1995 Toyota Pickup 2WD applications equipped with the corresponding standard brake configuration.
This wheel cylinder uses a 22.23 mm (7/8-inch) bore and fits either the driver- or passenger-side rear drum brake assembly. Earlier applications are primarily identified by the 1/2-ton chassis configuration, while 1989ā1995 models require the 17S front brake package.
Because Toyota used more than one brake package on later 2WD Pickups, verifying the front caliper casting or rotor diameter is important before ordering.
Key Features
- OE-style replacement rear brake wheel cylinder
- 22.23 mm / 7/8-inch bore diameter
- Fits applicable 1979ā1995 Toyota Pickup 2WD models
- Designed for standard / 1/2-ton rear drum brake applications
- Fits driver- or passenger-side rear position
- Two-piston internal design
- Two-bolt mounting configuration
- Inverted-flare hydraulic connection
- Bleeder screw included
- Vehicle-specific direct-fit installation
Brake Configuration Identification
Toyota used different rear wheel cylinders depending on the truck's chassis and brake package.
1979ā1985
- Fits 1/2-ton 2WD applications
1986
- Fits 1/2-ton 2WD
- Does not fit RN70 chassis applications
1987ā1988
- Fits 1/2-ton 2WD applications
1989ā1995
- Fits trucks equipped with the 17S front brake package
- Trucks equipped with the F18Q front brake package use a different, larger-bore rear wheel cylinder
How to Identify 17S vs. F18Q Brakes
For 1989ā1995 Toyota Pickup 2WD models, the easiest way to determine the correct rear wheel cylinder is to identify the front brake package.
The most reliable method is to inspect the front brake caliper casting.
- Look through the front wheel toward the brake caliper. Remove the wheel if the marking cannot be seen clearly.
- Locate the raised casting identification on the caliper body.
- Clean away brake dust, dirt, or surface corrosion as needed.
- Look for either 17S or F18Q cast into the caliper.
17S Brake Package
- Front caliper marked 17S
- Uses approximately 248 mm front brake rotors
- Uses the 7/8-inch rear wheel cylinder covered by this listing
F18Q Brake Package
- Front caliper marked F18Q
- Uses approximately 254 mm front brake rotors
- Uses a different, larger-bore rear wheel cylinder
If the caliper marking is unreadable, front rotor diameter provides a secondary identification method:
- Approximately 248 mm rotor = 17S
- Approximately 254 mm rotor = F18Q
Because brake components may have been changed during the truck's life, verify the installed brake components rather than relying only on model year, engine, cab style, or trim level.
Vehicle Fitment
Toyota Pickup
- 1979ā1983 Toyota Pickup ā 1st Gen ā 2WD ā 1/2-Ton ā Rear
- 1984ā1985 Toyota Pickup ā 2nd Gen ā 2WD ā 1/2-Ton ā Rear
- 1986 Toyota Pickup ā 2nd Gen ā 2WD ā 1/2-Ton ā Except RN70 ā Rear
- 1987ā1988 Toyota Pickup ā 2nd Gen ā 2WD ā 1/2-Ton ā Rear
- 1989ā1995 Toyota Pickup ā 3rd Gen ā 2WD ā 17S Front Brake Package ā Rear
Fitment Notes
- Rear application only
- Fits either driver- or passenger-side rear position
- 1986 RN70 chassis uses a different rear wheel cylinder
- 1989ā1995 models must have the 17S front brake package
- Does not fit 1989ā1995 trucks equipped with F18Q front calipers
- 17S applications use approximately 248 mm front rotors
- F18Q applications use approximately 254 mm front rotors
- Bore diameter is 22.23 mm / 7/8 inch
- Replacing both rear wheel cylinders together is recommended when servicing both rear drum brakes
Product Specifications
Brand: Dynamic Friction Company (DFC)
Product Type: Drum Brake Wheel Cylinder
Position: Rear Left / Rear Right
Recommended Use: OE Replacement
Bore Diameter: 22.23 mm / 7/8 in
Attachment Type: 2-Bolt
Mounting Hole Quantity: 2
Piston Quantity: 2
Flare Type: Inverted Flare
Bleeder Screw: Included
Fit Type: Vehicle-Specific / Direct Fit
Drivetrain: 2WD / RWD
Available Configurations
Single
- (1) DFC Rear Brake Wheel Cylinder

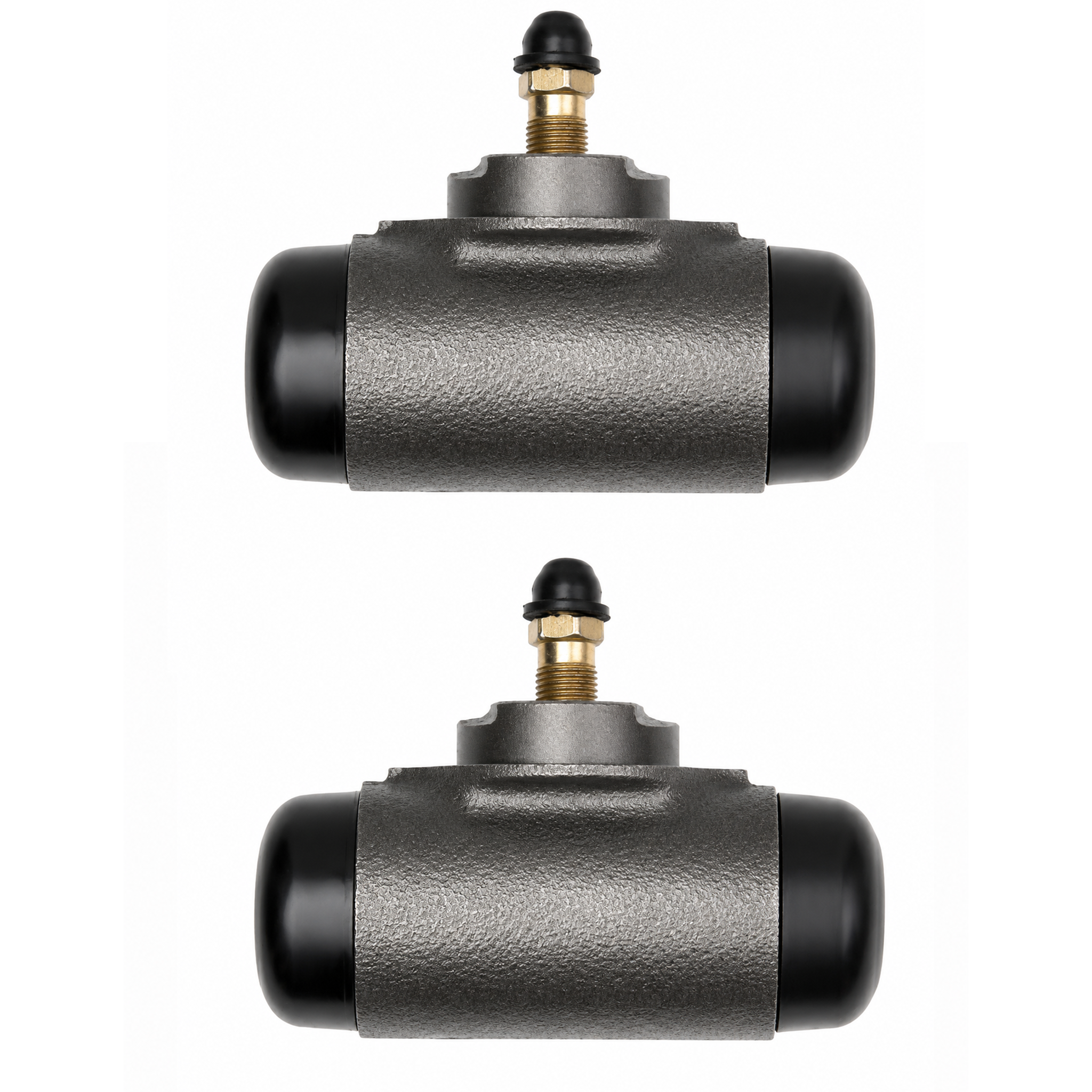

Pair
- (2) Matching DFC Rear Brake Wheel Cylinders
- Includes one wheel cylinder for each rear drum brake assembly
