DFC True Balanced Rear Brake Drums – Standard & Heavy Duty
For 1986–1995 Toyota Pickup 4WD
Overview

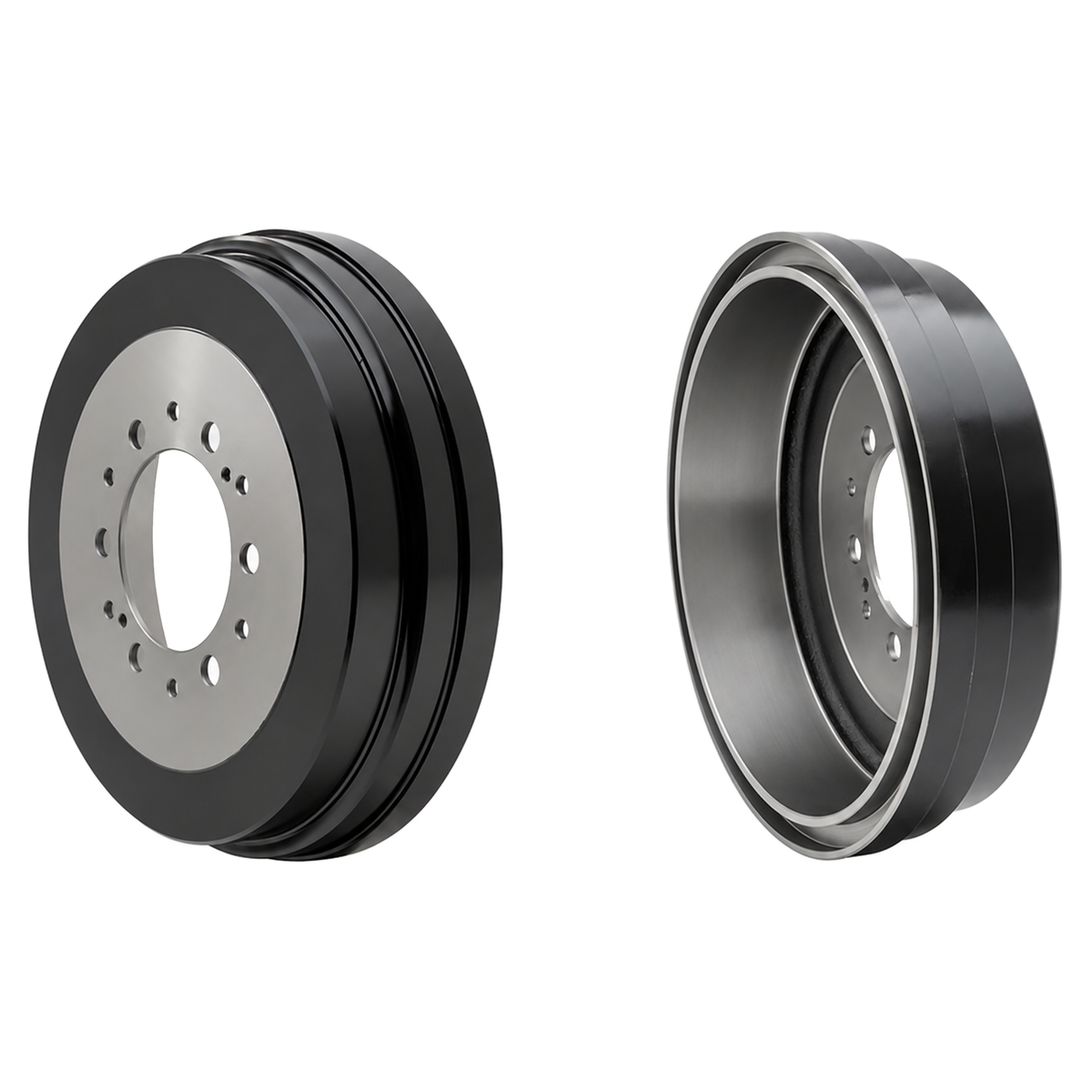

The DFC True Balanced Rear Brake Drum is a direct-fit replacement for the rear drum brakes used on 1986–1995 Toyota Pickup 4WD models. This listing combines both factory brake configurations into one product, allowing you to choose between Standard and Heavy Duty drums.
The Standard drum is designed for trucks equipped with the standard rear drum configuration, while the Heavy-Duty drum is designed for trucks equipped with the optional heavy-duty rear drums. Both are precision-machined, mill-balanced, and finished with a high-temperature black coating for corrosion protection and clean appearance.
Choose a single drum when replacing one rear drum or a pair when servicing both sides of the rear axle.
Key Features
- Direct-fit rear brake drum for 1986–1995 Toyota Pickup 4WD
- Choice of Standard or Heavy-Duty rear drum configuration
- Cast iron construction
- Precision-cut and mill-balanced design
- Machined for accurate OE-style fit and function
- Six-hole Toyota mounting configuration
- Floating drum design
- High-temperature black protective coating
- No vehicle modifications required
- Available individually or as a pair
Standard vs. Heavy Duty
Toyota Pickup 4WD models in this year range may be equipped with either the standard rear drum configuration or the optional heavy-duty rear drum configuration.
Standard Drum
- Nominal Drum Diameter: 295 mm
- Maximum Service Diameter: 297 mm
- Outside Diameter: 342.5 mm
- Overall Height: 83 mm
- Center Hole Diameter: 106 mm
- Mounting Holes: 6
- Bolt Circle: 139.7 mm
- Approximate Weight: 21.5 lb
The Standard version uses the lighter casting and should be selected for trucks equipped with the standard rear drum configuration.
Heavy-Duty Drum
- Nominal Drum Diameter: 294.2 mm
- Maximum Service Diameter: 297 mm
- Outside Diameter: 343 mm
- Overall Height: 83 mm
- Center Hole Diameter: 106 mm
- Mounting Holes: 6
- Bolt Circle: 139.6 mm
- Approximate Weight: 24.25 lb
The Heavy-Duty version uses a heavier casting and should be selected for trucks equipped with the optional heavy-duty rear drum configuration.
Because the two versions have slightly different dimensions and are intended for different factory brake configurations, match the drum type already equipped on your vehicle.
Vehicle Fitment
Toyota Pickup
- 1986–1988 Toyota Pickup – 2nd Gen – 4WD – Standard Rear Drums – Rear
- 1986–1988 Toyota Pickup – 2nd Gen – 4WD – Heavy-Duty Rear Drums – Rear
- 1989–1995 Toyota Pickup – 3rd Gen – 4WD – Standard Rear Drums – Rear
- 1989–1995 Toyota Pickup – 3rd Gen – 4WD – Heavy-Duty Rear Drums – Rear
Fitment Notes
- 4WD models only
- Rear application only
- Select Standard for trucks equipped with standard rear drums
- Select Heavy Duty for trucks equipped with the optional heavy-duty rear drums
- If replacing only one drum, match the configuration installed on the opposite side
- Use matching drum types on both sides of the rear axle
- If the existing configuration is unknown, verify the current drum before ordering
- Maximum service diameter for both configurations is 297 mm
- One drum services one rear wheel
- A pair includes both drums required to service the rear axle
Product Specifications
Brand: Dynamic Friction Company (DFC)
Series: True Balanced
Product Type: Rear Brake Drum
Position: Rear
Material: Cast Iron
Finish: Black High-Temperature Coating
Mount Type: Floating
Mounting Hole Quantity: 6
Center Hole Diameter: 106 mm
Maximum Service Diameter: 297 mm
Available Designs: Standard / Heavy Duty
Fit Type: Vehicle Specific / Direct Fit
Standard Drum
Nominal Drum Diameter: 295 mm
Outside Diameter: 342.5 mm
Overall Height: 83 mm
Bolt Circle: 139.7 mm
Approximate Weight: 21.5 lb
Heavy-Duty Drum
Nominal Drum Diameter: 294.2 mm
Outside Diameter: 343 mm
Overall Height: 83 mm
Bolt Circle: 139.6 mm
Approximate Weight: 24.25 lb
Available Configurations
Select the rear brake configuration currently equipped on your Toyota Pickup, followed by the quantity required.
Standard
- Single Drum – (1) Standard Rear Brake Drum
- Pair of Drums – (2) Standard Rear Brake Drums
Heavy Duty
- Single Drum – (1) Heavy-Duty Rear Brake Drum
- Pair of Drums – (2) Heavy-Duty Rear Brake Drums
