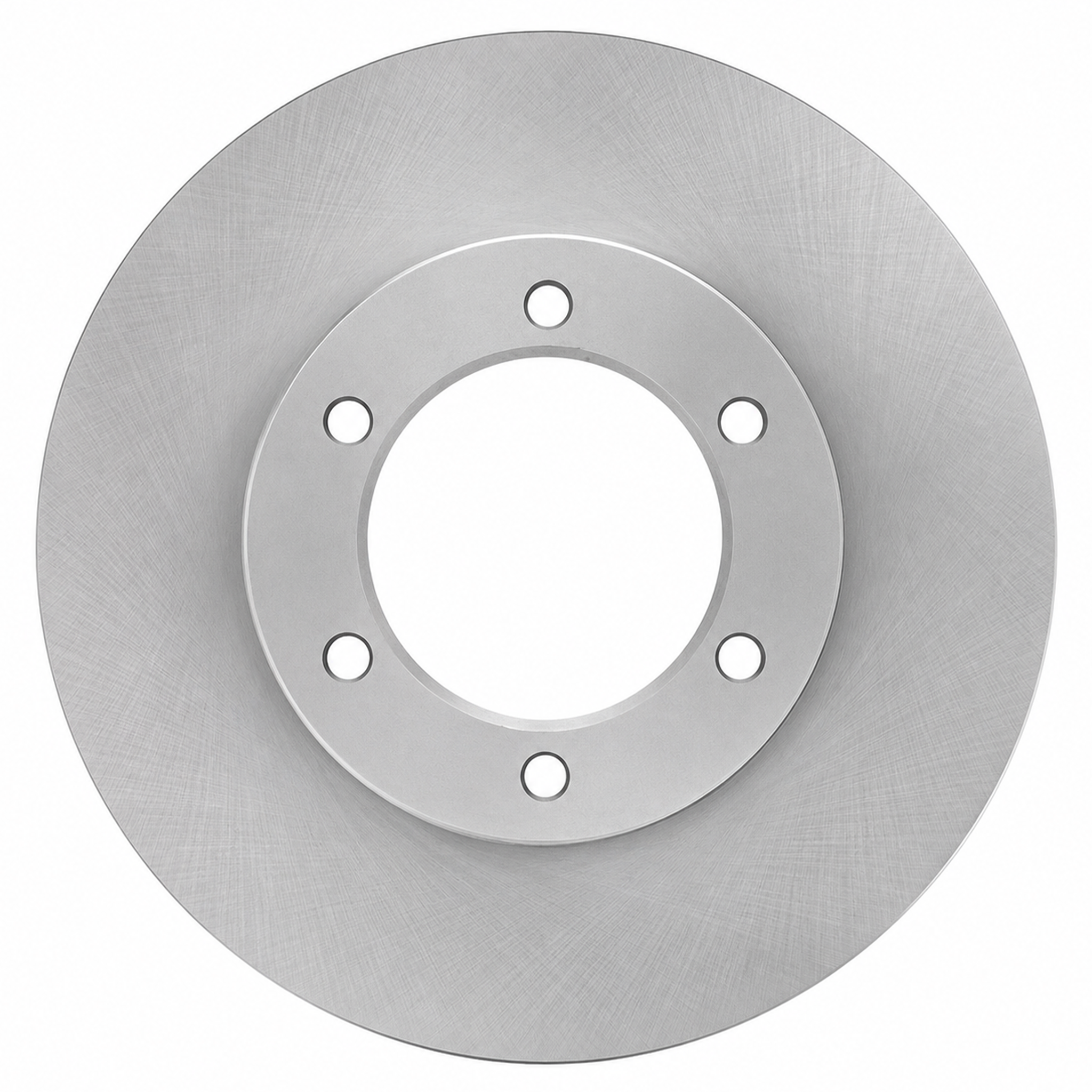

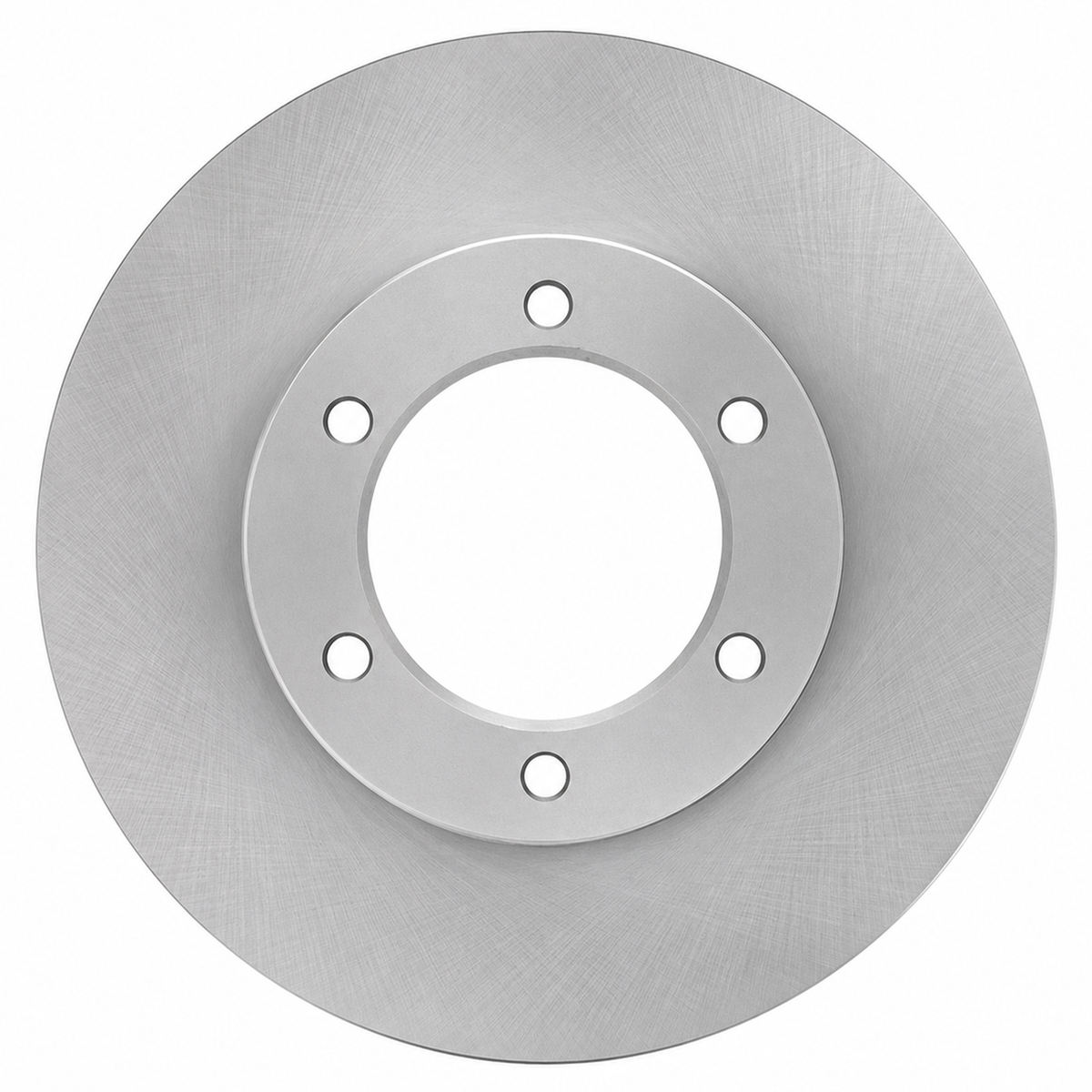

DFC OE Front Brake Rotor 4WD
For 1979–1995 Toyota Pickup 4WD
Overview
The Dynamic Friction Company (DFC) Premium OE Front Brake Rotor is a direct-fit replacement for 1979–1995 Toyota Pickup 4WD front brake applications.
This listing covers three year-specific rotor applications: 1979–1980, 1981–1985, and 1986–1995. The 1979–1985 trucks use 302 mm solid rotors, while 1986–1995 models use a thicker 289 mm vented rotor. Although the 1979–1980 and 1981–1985 rotors share the same listed dimensions, they are separate applications and must be selected by model year.
DFC Premium OE rotors use G3000/G11H18 cast iron, CNC-machined braking surfaces, and a non-directional finish designed around original-equipment form, fit, and function.
Key Features
- Direct-fit front brake rotor for 1979–1995 Toyota Pickup 4WD
- Three application-specific year ranges
- G3000/G11H18 cast iron construction
- CNC-machined braking surfaces
- Non-directional surface finish
- OE-style form, fit, and function
- Solid or vented construction depending on model year
- Six-hole mounting configuration
- Vehicle-specific rotor dimensions
- Available individually or as a pair
Rotor Specifications by Year
1979–1980
- Outside Diameter: 302 mm
- New Rotor Thickness: 12.5 mm
- Minimum Safe Thickness: 11.5 mm
- Overall Height: 48 mm
- Center Hole Diameter: 100 mm
- Rotor Construction: Solid
- Mounting Hole Quantity: 6
1981–1985
- Outside Diameter: 302 mm
- New Rotor Thickness: 12.5 mm
- Minimum Safe Thickness: 11.5 mm
- Overall Height: 48 mm
- Center Hole Diameter: 100 mm
- Rotor Construction: Solid
- Mounting Hole Quantity: 6
1986–1995
- Outside Diameter: 289 mm
- New Rotor Thickness: 20 mm
- Minimum Safe Thickness: 18 mm
- Overall Height: 64.4 mm
- Center Hole Diameter: 100.1 mm
- Rotor Construction: Vented
- Mounting Hole Quantity: 6
The 1979–1980 and 1981–1985 rotors are separate applications despite sharing the same listed dimensions. Select the rotor according to the truck's model year rather than dimensions alone.
Vehicle Fitment
Toyota Pickup
- 1979–1980 Toyota Pickup – 1st Gen – 4WD – Front – 302 × 12.5 mm Solid Rotor
- 1981–1983 Toyota Pickup – 1st Gen – 4WD – Front – 302 × 12.5 mm Solid Rotor
- 1984–1985 Toyota Pickup – 2nd Gen – 4WD – Front – 302 × 12.5 mm Solid Rotor
- 1986–1988 Toyota Pickup – 2nd Gen – 4WD – Front – 289 × 20 mm Vented Rotor
- 1989–1995 Toyota Pickup – 3rd Gen – 4WD – Front – 289 × 20 mm Vented Rotor
Fitment Notes
- Front application only
- 4WD models only
- Does not fit 2WD Toyota Pickup models
- Select the correct Year Range before ordering
- 1979–1985 applications use solid front rotors
- 1986–1995 applications use vented front rotors
- 1979–1980 and 1981–1985 use separate rotor applications despite sharing the same listed dimensions
- Available individually or as a pair
- Select a pair when replacing both front brake rotors
Product Specifications
Brand: Dynamic Friction Company (DFC)
Series: Premium OE
Product Type: Disc Brake Rotor
Position: Front
Recommended Use: OE Replacement
Material: G3000 / G11H18 Cast Iron
Surface Type: Smooth
Brake Surface: Non-Directional
Disc Finish: Plain
Rotor Construction: Solid or Vented Depending on Application
Fit Type: Vehicle-Specific / Direct Fit
Drivetrain: 4WD
Outside Diameter: 289 mm or 302 mm Depending on Application
New Rotor Thickness: 12.5 mm or 20 mm Depending on Application
Minimum Safe Thickness: 11.5 mm or 18 mm Depending on Application
Mounting Hole Quantity: 6
Available Configurations
Year Range
1979–1980
- 302 × 12.5 mm solid front rotor
1981–1985
- 302 × 12.5 mm solid front rotor
- Separate application from the 1979–1980 rotor
1986–1995
- 289 × 20 mm vented front rotor
Quantity
Single
- (1) Application-correct DFC Premium OE Front Brake Rotor
Pair
- (2) Matching application-correct DFC Premium OE Front Brake Rotors
- Includes both front rotors for the driver- and passenger-side front brakes
