DFC OE Front Rotor 2WD 1-Ton (1984-95 Pickup)

DFC OE Replacement Front Rotor 2WD 1-Ton

For 1984–1995 Toyota Pickup RWD / 2WD 1-Ton – SRW & DRW Applications

Overview

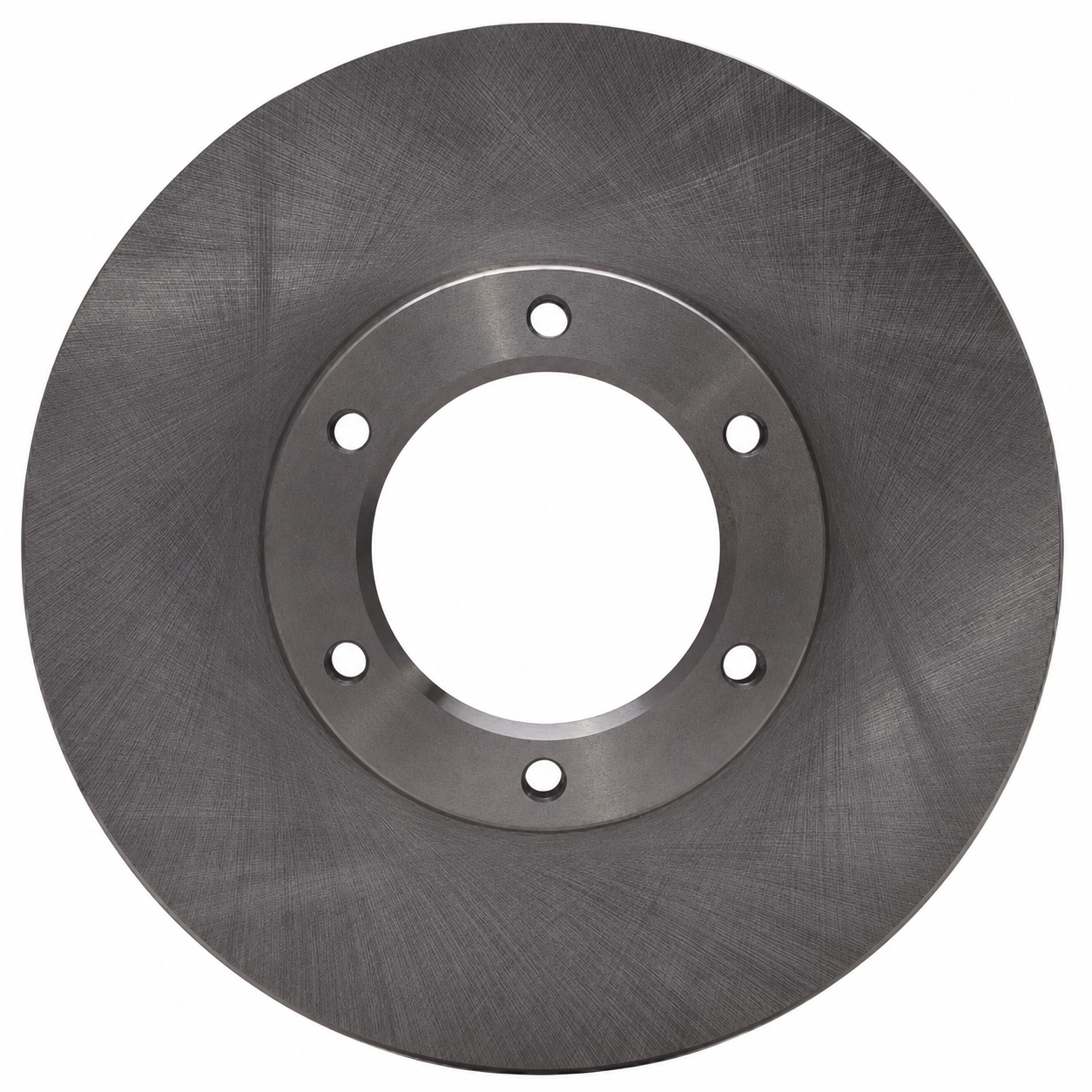

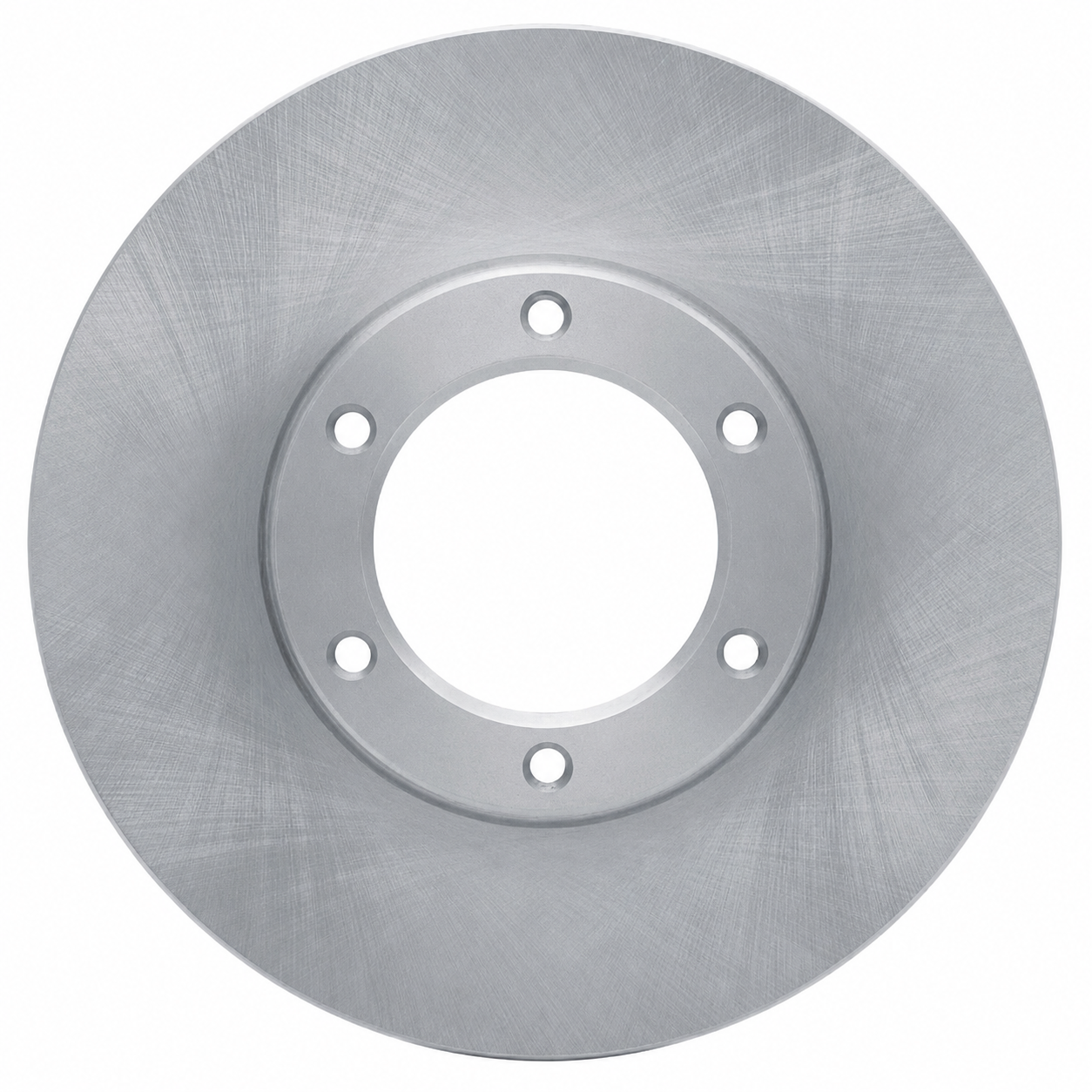

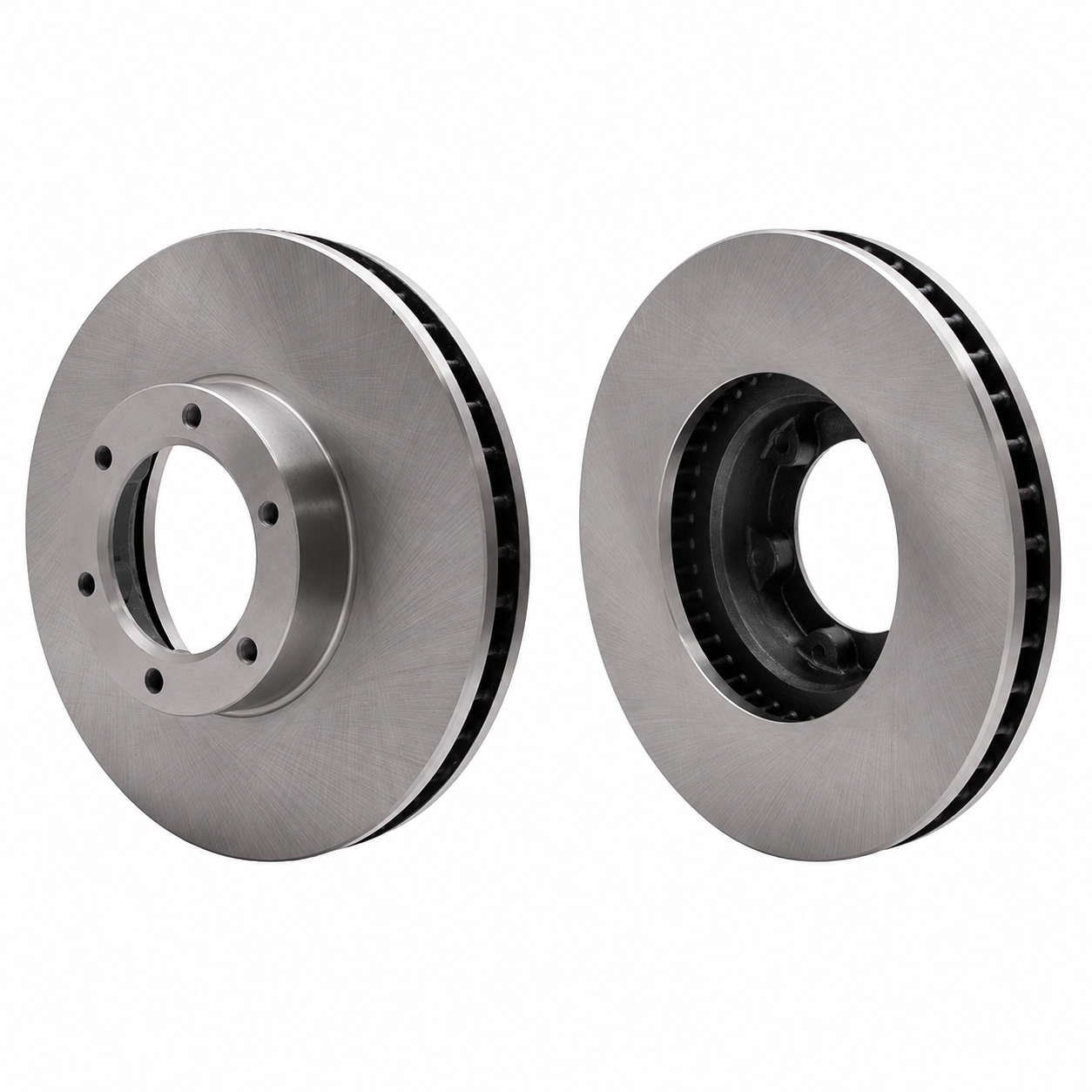

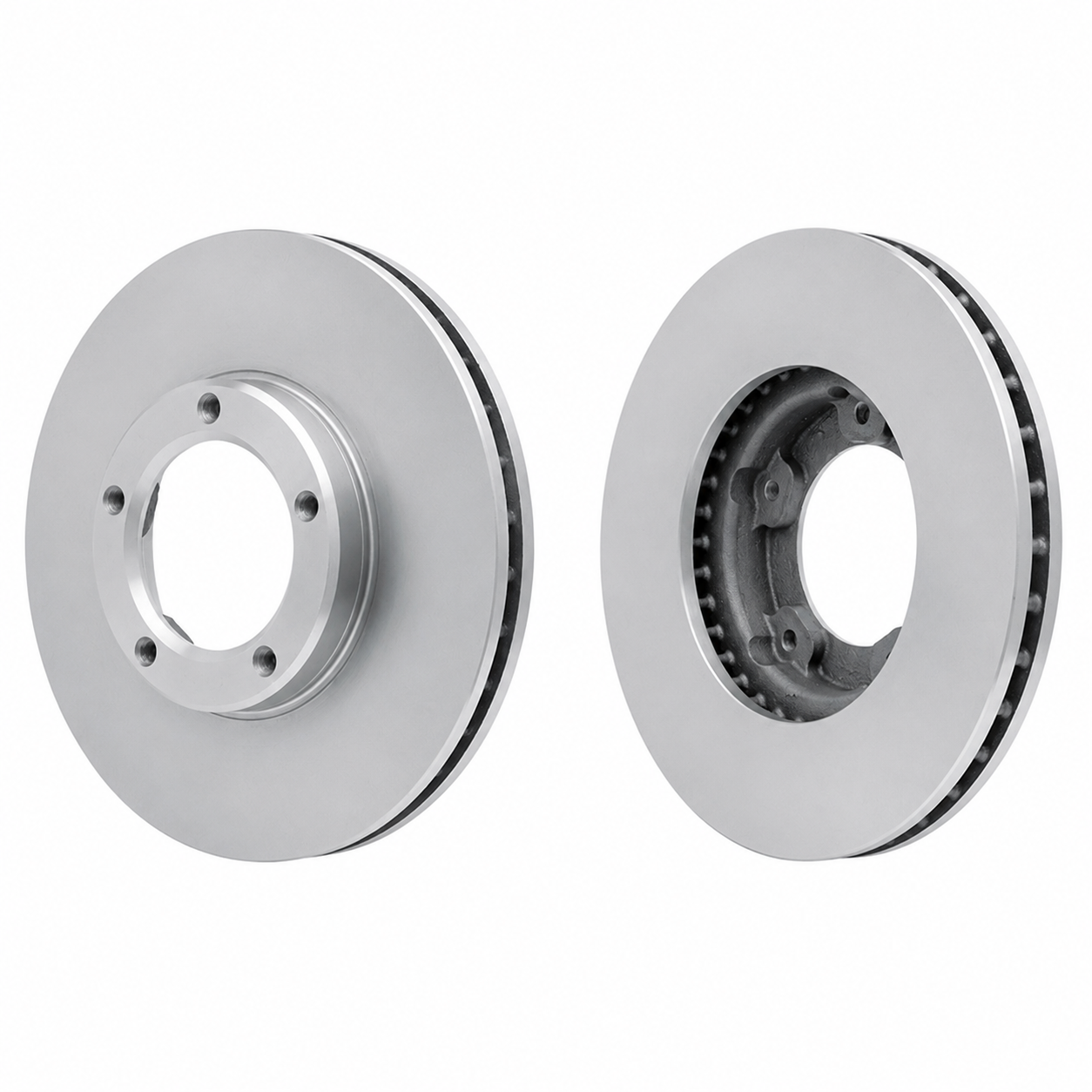

The Dynamic Friction Company (DFC) OE Replacement Front Brake Rotor is a direct-fit replacement for compatible 1984–1995 Toyota Pickup RWD / 2WD 1-ton front brake applications equipped with either single rear wheels (SRW) or dual rear wheels (DRW).

This listing combines multiple application-specific front brake rotors. The correct rotor is determined by both model year and rear wheel configuration, so select the appropriate year range and either SRW or DRW before ordering.

DFC Premium OE brake rotors use G3000/G11H18 iron castings, CNC-machined surfaces, and a non-directional finish. DFC designs its Premium OE rotor line around original-equipment form, fit, and function.

Key Features

• Direct-fit front brake rotor for compatible Toyota Pickup RWD / 2WD 1-ton applications
• Supports SRW and DRW truck configurations
• Application-specific rotor selection based on model year and rear wheel type
• G3000/G11H18 iron casting
• CNC-machined braking surfaces
• Non-directional braking surface
• OE-style form, fit, and function
• Application-specific rotor construction
• New aftermarket replacement component
• Available individually or as a pair

Front Rotor Selection by Year & Rear Wheel Type

1984–1986 – 2nd Gen

• SRW: Standard 1-ton SRW front rotor application
• DRW: Uses the same front rotor application as SRW
• SRW and DRW use the same front rotor for this year range

1987–1988 – 2nd Gen

• SRW: Continues to use the standard SRW front rotor application
• DRW: Uses a different DRW-specific front rotor
• SRW and DRW require different front rotors

1989–1995 – 3rd Gen

• SRW: Continues to use the standard SRW front rotor application
• DRW: Uses a different later DRW-specific front rotor
• SRW and DRW require different front rotors

SRW = Single Rear Wheel
DRW = Dual Rear Wheel

Although SRW and DRW describe the truck's rear wheel configuration, this distinction is important because it determines the correct front brake rotor on the applicable 1-ton models.

Vehicle Fitment

Toyota Pickup

• 1984–1986 Toyota Pickup – 2nd Gen – RWD / 2WD – 1-Ton – SRW – Front
• 1984–1986 Toyota Pickup – 2nd Gen – RWD / 2WD – 1-Ton – DRW – Front
• 1987–1988 Toyota Pickup – 2nd Gen – RWD / 2WD – 1-Ton – SRW – Front
• 1987–1988 Toyota Pickup – 2nd Gen – RWD / 2WD – 1-Ton – DRW – Front
• 1989–1995 Toyota Pickup – 3rd Gen – RWD / 2WD – 1-Ton – SRW – Front
• 1989–1995 Toyota Pickup – 3rd Gen – RWD / 2WD – 1-Ton – DRW – Front

Fitment Notes

• Front application only
• RWD / 2WD 1-ton applications only
• Available for both SRW and DRW configurations
• 1984–1986 SRW and DRW use the same front rotor application
• 1987–1988 SRW and DRW use different front rotor applications
• 1989–1995 SRW and DRW use different front rotor applications
• Select both the correct Year Range and Rear Wheel Type
• Does not fit 4WD front brake applications
• Does not replace standard 1/2-ton or 3/4-ton front brake applications
• Available individually or as a pair
• Select a pair when replacing both front brake rotors

Product Specifications

Brand: Dynamic Friction Company (DFC)
Product Type: Disc Brake Rotor
Position: Front
Recommended Use: OE Replacement
Material: G3000 / G11H18 Cast Iron
Brake Surface: Non-Directional
Rotor Configuration: Application-Specific
Fit Type: Vehicle-Specific / Direct Fit
Drivetrain: RWD / 2WD
Vehicle Configuration: 1-Ton
Rear Wheel Configuration: SRW or DRW

Available Configurations

Year Range

• 1984–1986 – 2nd Gen
• 1987–1988 – 2nd Gen
• 1989–1995 – 3rd Gen

Rear Wheel Type

• SRW – Single Rear Wheel
• DRW – Dual Rear Wheel

Quantity

Single

• (1) Application-correct DFC Front Brake Rotor

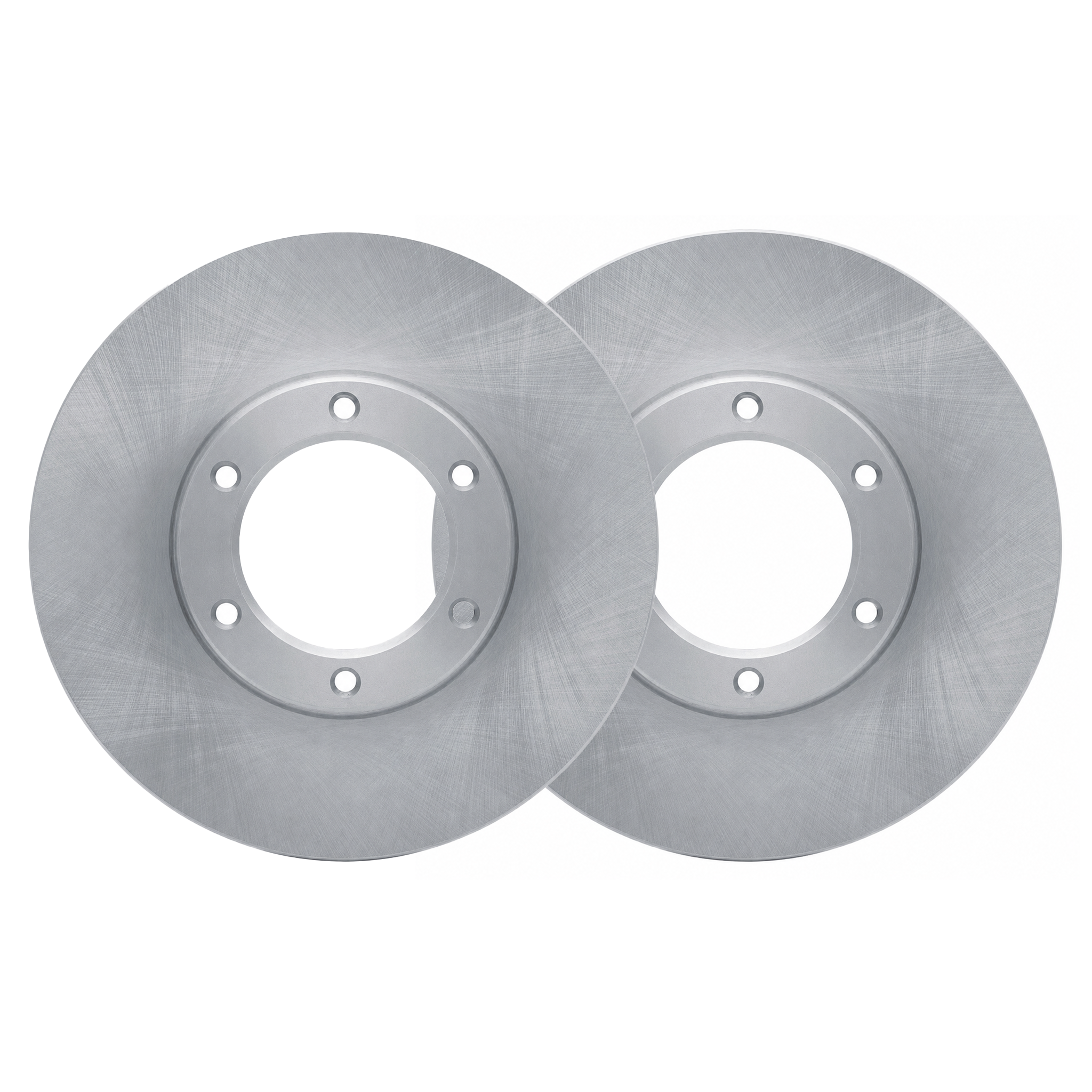

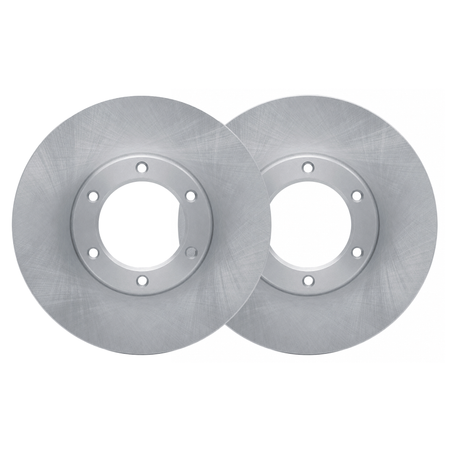

Pair

• (2) Matching application-correct DFC Front Brake Rotors
• Provides both rotors needed to replace the driver- and passenger-side front brake rotors
