AE86 CUSCO Safety21 6-Point Steel Around-Dash Roll Cage | LHD (Corolla 1983-87)

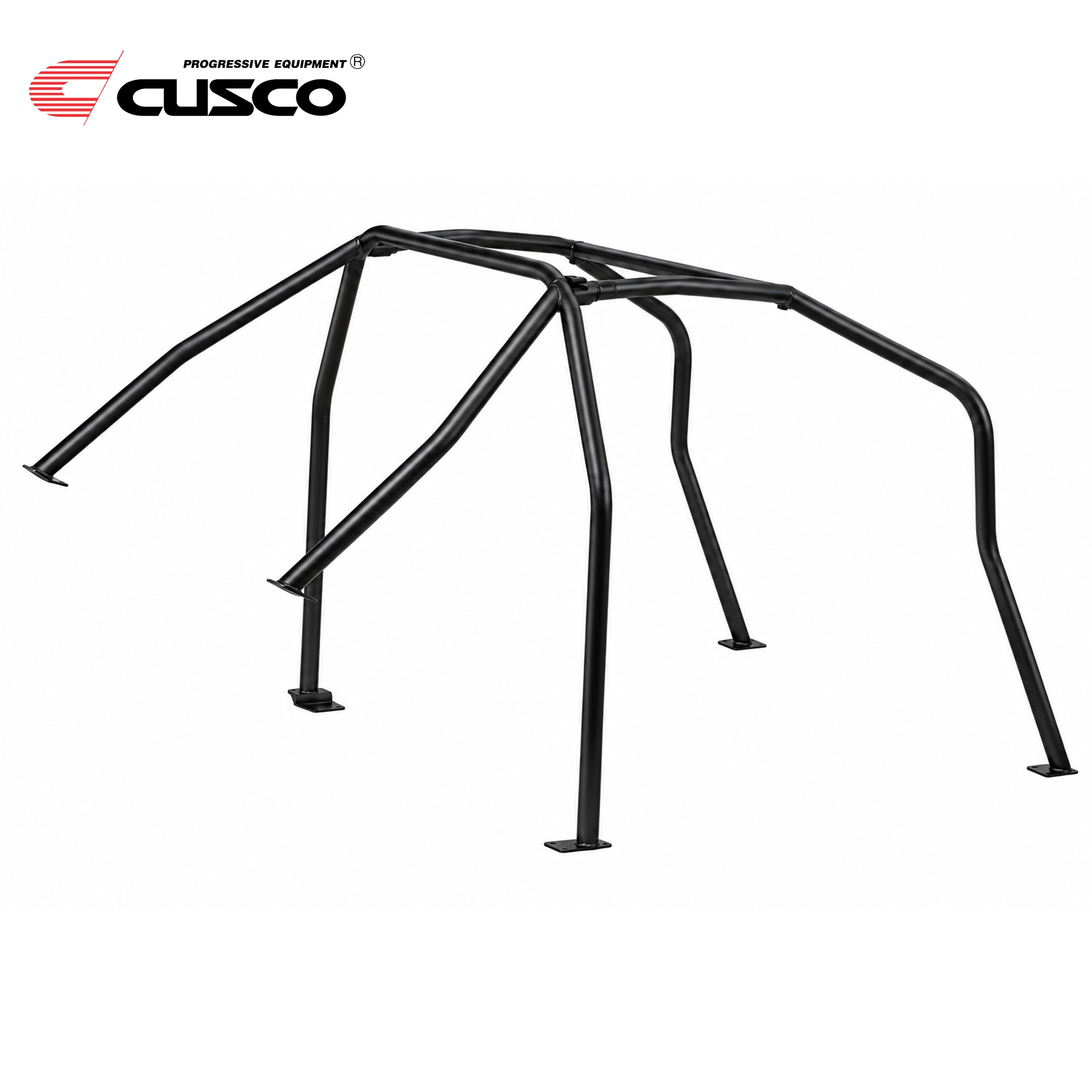

CUSCO Safety21 6-Point Steel Around-Dash Roll Cage

For 1984–1987 Toyota Corolla Sport SR5 AE86 & 1985–1987 Toyota Corolla Sport GT-S AE86 – Left-Hand Drive, Non-Sunroof

Overview

The CUSCO Safety21 6-point roll cage is a vehicle-specific steel chassis reinforcement system for USDM Toyota Corolla Sport GT-S and SR5 AE86 models with left-hand drive and a non-sunroof roof configuration.

Its six-point layout reinforces the front and rear cabin areas while using an around-dashboard design, routing the front A-pillar bars around the dashboard rather than through it. The cage also uses curved rear side bars designed around the rear seating area, creating CUSCO's 5-passenger-style configuration.

This configuration is well suited to GT-S and SR5 AE86 street, performance, drift, autocross, and track-oriented builds where increased chassis reinforcement is desired without choosing the more invasive through-dashboard cage configuration.

Key Features

• Designed for Toyota Corolla Sport GT-S and SR5 AE86
• CUSCO Safety21 roll cage series
• 6-point front and rear cage configuration
• Specifically configured for left-hand-drive AE86 models
• Designed for non-sunroof vehicles
• Around-dashboard front-bar routing
• Curved rear side bars for a 5-passenger-style configuration
• Steel construction
• 40 mm outside-diameter tubing
• Black finish
• Vehicle-specific AE86 mounting configuration

Around-Dash & 5-Passenger Design

The around-dashboard configuration routes the front cage bars around the sides of the dashboard rather than passing directly through it. This makes installation less invasive to the factory dashboard than CUSCO's competition-oriented through-dash configurations.

At the rear, curved rear side bars are used instead of the straight rear side bars found on CUSCO's 2-passenger versions. This provides additional clearance around the rear seating area and distinguishes this cage as the 5-passenger-style Safety21 configuration.

For AE86 owners comparing CUSCO cage options, this configuration is particularly attractive for GT-S and SR5 builds that retain more of the factory interior while still adding a full front-and-rear six-point cage.

Vehicle Fitment

Toyota Corolla Sport SR5 AE86

• 1984–1987 Toyota Corolla Sport SR5 AE86 – Left-Hand Drive – Non-Sunroof
• 2-door coupe and 3-door hatchback body configurations

Toyota Corolla Sport GT-S AE86

• 1985–1987 Toyota Corolla Sport GT-S AE86 – Left-Hand Drive – Non-Sunroof
• 2-door coupe and 3-door hatchback body configurations

Fitment Notes

• Specifically for USDM AE86 GT-S and SR5 applications
• Left-hand drive only
• Non-sunroof models only
• Designed for the AE86 chassis
• Suitable for 2-door coupe and 3-door hatchback AE86 body styles
• Engine type does not define the cage configuration; fitment is based primarily on the AE86 chassis, body, steering position, and roof configuration
• Around-dashboard configuration
• Curved rear side-bar / 5-passenger-style layout
• Do not use this LHD configuration for right-hand-drive JDM Corolla Levin or Sprinter Trueno models
• Verify applicable motorsport and sanctioning-body requirements before competition use
• Professional roll-cage installation is recommended
• Approved roll-cage padding should be used wherever cage tubing may contact an occupant

Product Specifications

Brand: CUSCO
Series: Safety21
Product Type: Roll Cage
Vehicle: Toyota Corolla AE86
USDM Trims: GT-S, SR5
Configuration: 6-Point, Front & Rear
Passenger Configuration: 5-Passenger Style
Rear Bar Design: Curved Rear Side Bars
Material: Steel
Tube Diameter: 40 mm OD
Finish: Black
Steering Position: Left-Hand Drive
Roof Configuration: Non-Sunroof
Front Bar Routing: Around Dashboard
Body Styles: Coupe, Hatchback
Fit Type: Vehicle Specific

What's Included

• (1) CUSCO Safety 21 6-point roll cage system
