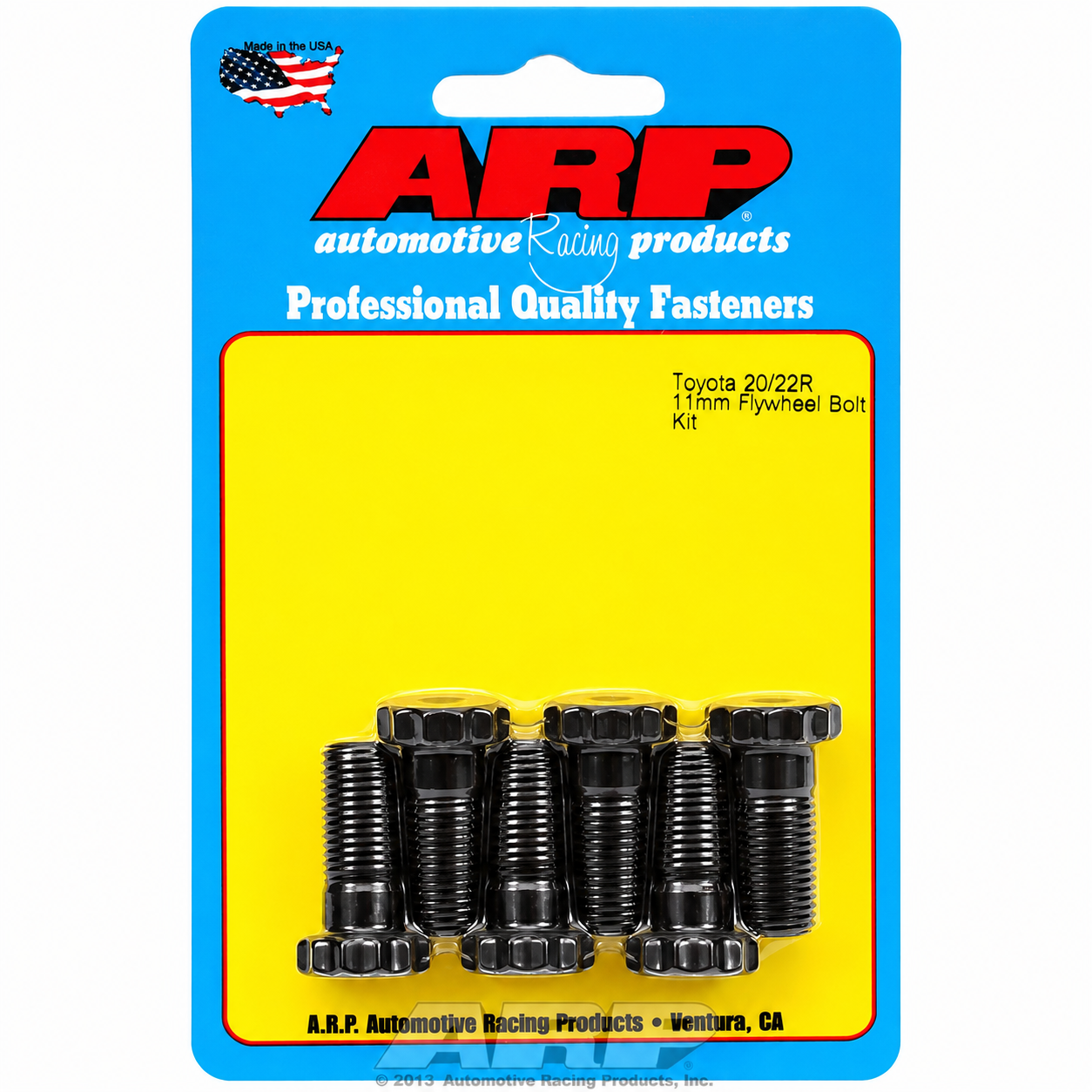

ARP Pro Series Flywheel Bolt Kit
For 1979–1995 Toyota Pickup & 1984–1995 Toyota 4Runner with 20R, 22R, or 22RE Engines and Manual Transmission
Overview
The ARP Pro Series Flywheel Bolt Kit is a high-strength replacement fastener set for Toyota 20R, 22R, and 22RE manual-transmission flywheel applications found in classic Toyota Pickup and 4Runner models.
Flywheel bolts secure the flywheel directly to the crankshaft and are subjected to substantial clamping loads, rotational forces, and repeated heat cycles. This six-bolt ARP kit upgrades the factory hardware with 8740 chromoly steel fasteners rated at 200,000 psi tensile strength, making it well suited to clutch replacements, flywheel installations, engine rebuilds, restorations, and performance builds.

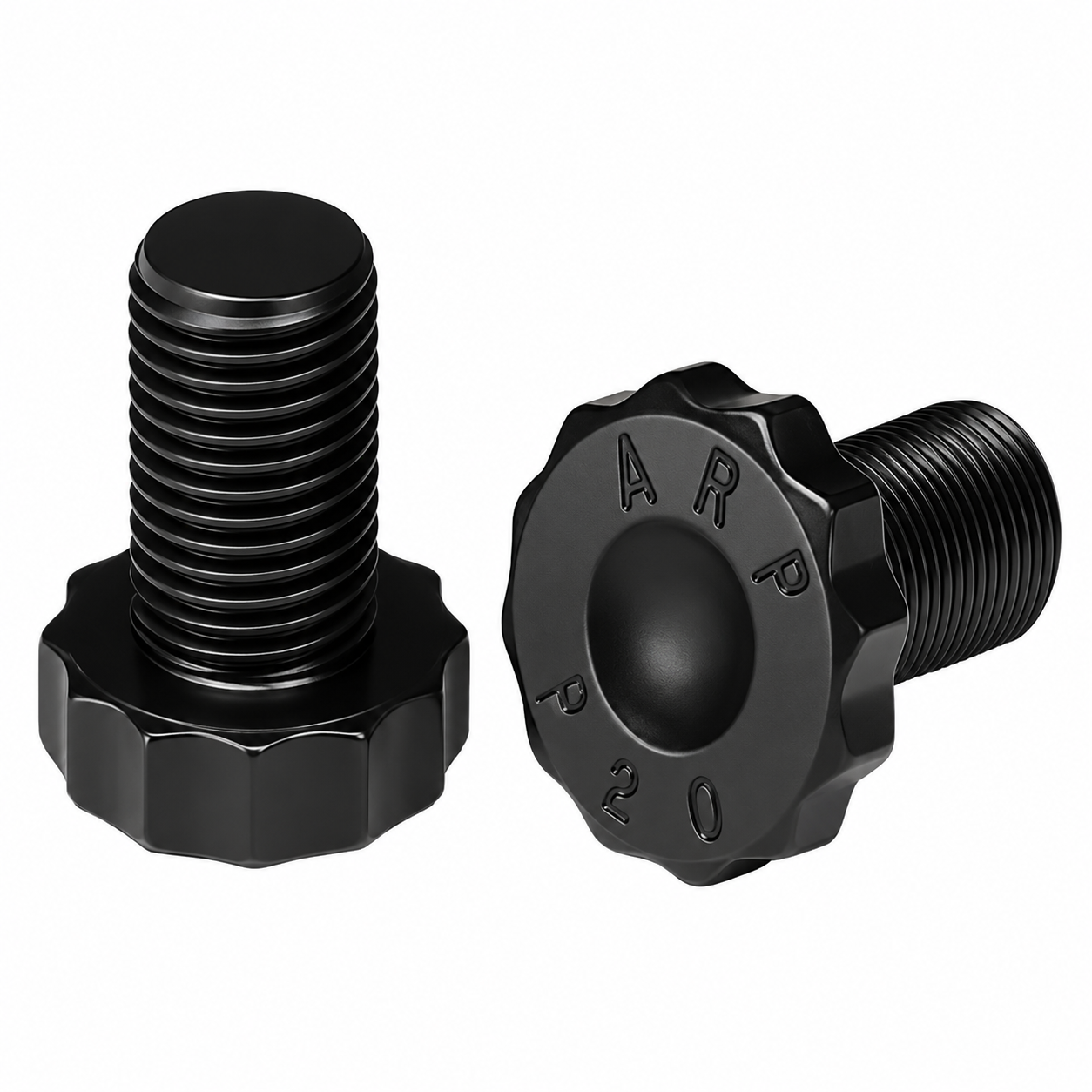

The bolts use an M11 × 1.25 thread, 1.040-inch underhead length, and low-profile 12-point head specifically designed for the Toyota R-series flywheel application.
Key Features
-
ARP Pro Series flywheel fasteners
-
200,000 psi tensile strength
-
8740 chromoly steel construction
-
Heat-treated before thread rolling and final machining
-
M11 × 1.25 thread size
-
1.040-inch underhead length
-
Low-profile 12-point head design
-
Larger shank diameter improves flywheel registration
-
Six-bolt set provides a complete flywheel installation
-
Designed for Toyota 20R, 22R, and 22RE manual flywheel applications
Pro Series Fastener Construction
The Pro Series bolts are manufactured from high-strength alloy steel and heat-treated before the threads are rolled and the fasteners receive their final machining. This production process provides the strength and consistent thread engagement required for a highly loaded rotating drivetrain connection.
The larger-than-stock shank and low-profile 12-point head are designed specifically for secure flywheel retention and proper flywheel registration on the crankshaft.
Installation Requirements
-
Install without washers
-
Apply Loctite 242 threadlocker to the bolt threads
-
Apply ARP Ultra-Torque Fastener Assembly Lubricant beneath the bolt heads
-
Tighten the bolts progressively using an alternating or crisscross pattern
-
Final torque: 85 ft-lb
-
Confirm adequate flywheel bolt-hole chamfer clearance before final installation
Vehicle Fitment
Toyota Pickup
-
1979–1983 Toyota Pickup – 1st Gen – Manual Transmission – 20R / 22R engine applications
-
1984–1988 Toyota Pickup – 2nd Gen – Manual Transmission – 22R / 22RE engine applications
-
1989–1995 Toyota Pickup – 3rd Gen – Manual Transmission – 22R / 22RE engine applications
Toyota 4Runner
-
1984–1989 Toyota 4Runner – 1st Gen – Manual Transmission – 22R / 22RE engine applications
-
1990–1995 Toyota 4Runner – 2nd Gen – Manual Transmission – 22RE engine applications
Fitment Notes
-
Manual-transmission flywheel applications only
-
Designed for Toyota 20R, 22R, and 22RE engine applications
-
Uses the M11 × 1.25 six-bolt flywheel configuration
-
Not intended for automatic-transmission flexplates
-
Install without washers
-
Verify engine and flywheel configuration before ordering
Product Specifications
Brand: ARP
Series: Pro Series
Product Type: Flywheel Bolt Kit
Fastener Material: 8740 Chromoly Steel
Finish: Black Oxide
Head Style: 12-Point
Thread Size: M11 × 1.25
Underhead Length: 1.040 Inches
Tensile Strength: 200,000 PSI
Quantity: 6 Bolts
Application: Manual Transmission Flywheel
Installation Torque: 85 ft-lb with specified threadlocker and assembly lubricant
What's Included
-
(6) ARP Pro Series Flywheel Bolts
-
Installation Instructions
