ARB Air Locker Toyota 8" Rear Differential – 30-Spline, 50mm Bearings
For 1979–1995 Toyota Pickup & 1984–1995 Toyota 4Runner with 30-Spline Toyota 8" Rear Differential
Overview
The ARB Air Locker is a driver-selectable pneumatic locking differential for Toyota 8-inch rear axle applications using 30-spline axle shafts and 50mm carrier-bearing journals. With the locker disengaged, the differential operates like a conventional open differential for normal street driving. When compressed air is supplied, the locking mechanism connects both axle shafts to the ring gear for maximum available traction.
This application uses a 10-bolt ring gear configuration and supports the full range of gear ratios used with the applicable Toyota 8-inch differential. Its heavy-duty construction includes a nodular-iron differential case, forged internal gears, and ARB's timed locking mechanism.
The 50mm carrier design installs directly into applicable V6/Turbo-style third members. Earlier 4-cylinder Toyota 8-inch differentials using 45mm carrier bearings require 45mm-to-50mm conversion bearings, available through the 4-Cylinder Kit configuration.
Key Features
- Driver-selectable pneumatic locking differential
- Toyota 8-inch rear differential application
- 30-spline axle configuration
- 50mm carrier-bearing journals
- 10-bolt ring gear configuration
- Compatible with all supported Toyota 8" gear ratios
- Operates as an open differential when disengaged
- Locks both axle shafts together when activated
- Forged nickel-alloy steel internal gears
- Fully machined nodular-iron differential case
- ARB timed locking mechanism for positive engagement and disengagement
- 5-year warranty
Differential & Carrier Bearing Compatibility
This Air Locker uses a 50mm carrier-bearing journal.
V6 / Turbo Toyota 8" Differentials
Toyota V6/Turbo-style third members equipped for the larger carrier use the corresponding 50mm carrier bearings.
4-Cylinder Toyota 8" Differentials
Toyota 4-cylinder third members originally designed around 45mm carrier bearings require 45mm-to-50mm conversion carrier bearings to install this Air Locker.
The 4-Cylinder Kit includes the required conversion bearings for this application.
Air System Requirements
An ARB air compressor is required to engage and disengage the locker and is sold separately.
The Air Locker includes its pneumatic activation components, including the activation switch, solenoid valve, air line, and bulkhead fitting. A differential overhaul kit is also recommended when bearings, seals, and other wear components are being replaced during installation.
Vehicle Fitment
Toyota 4Runner
- 1984–1989 Toyota 4Runner – 1st Gen – Toyota 8" Rear Differential – 30-Spline
- 1990–1995 Toyota 4Runner – 2nd Gen – Toyota 8" Rear Differential – 30-Spline
Toyota Pickup
- 1979–1983 Toyota Pickup – 1st Gen – Toyota 8" Rear Differential – 30-Spline
- 1984–1988 Toyota Pickup – 2nd Gen – Toyota 8" Rear Differential – 30-Spline
- 1989–1995 Toyota Pickup – 3rd Gen – Toyota 8" Rear Differential – 30-Spline
Fitment Notes
- Rear Toyota 8-inch differential applications only
- 30-spline axle shafts required
- Air Locker uses 50mm carrier-bearing journals
- 4-cylinder third members with 45mm carrier bearings require 45mm-to-50mm conversion bearings
- V6/Turbo-style applications use the appropriate 50mm carrier bearings
- Compatible with all supported Toyota 8" gear ratios
- Does not fit Toyota 7.5" IFS front differentials
- This listing is intended for rear differential applications
- ARB air compressor required and sold separately
- Verify the installed differential, spline count, and carrier-bearing configuration before ordering
- Professional differential setup and installation are recommended
Product Specifications
Brand: ARB
Product Type: Selectable Locking Differential
Differential Application: Toyota 8"
Position: Rear
Engagement: Pneumatic / Driver Selectable
Axle Spline Count: 30
Carrier Bearing Journal: 50mm
Ring Gear Configuration: 10-Bolt
Gear Ratio Compatibility: All Supported Ratios
Differential Case: Nodular Iron
Internal Gears: Forged Nickel-Alloy Steel
Air Compressor: Required, Sold Separately
Warranty: 5 Years
Available Configurations

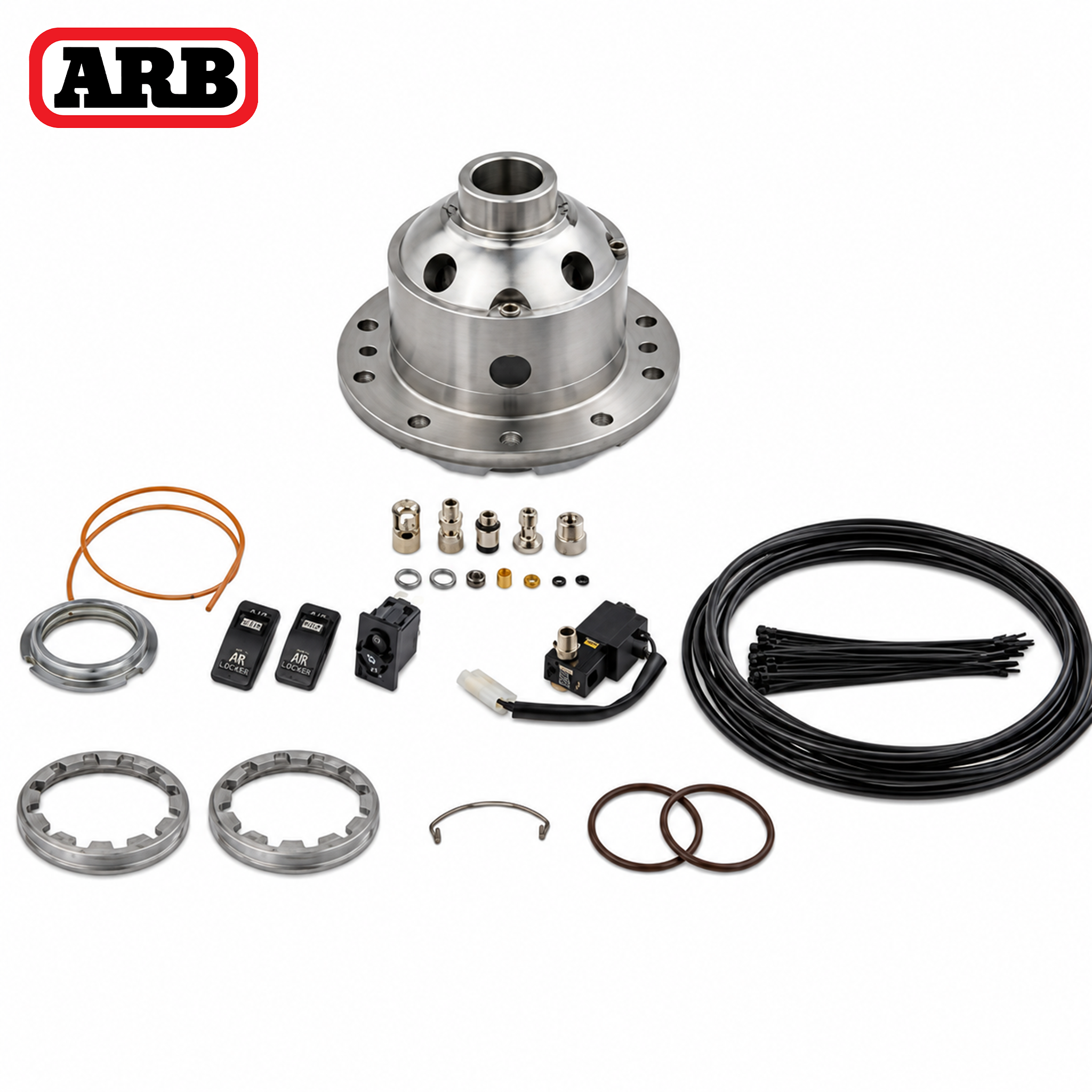

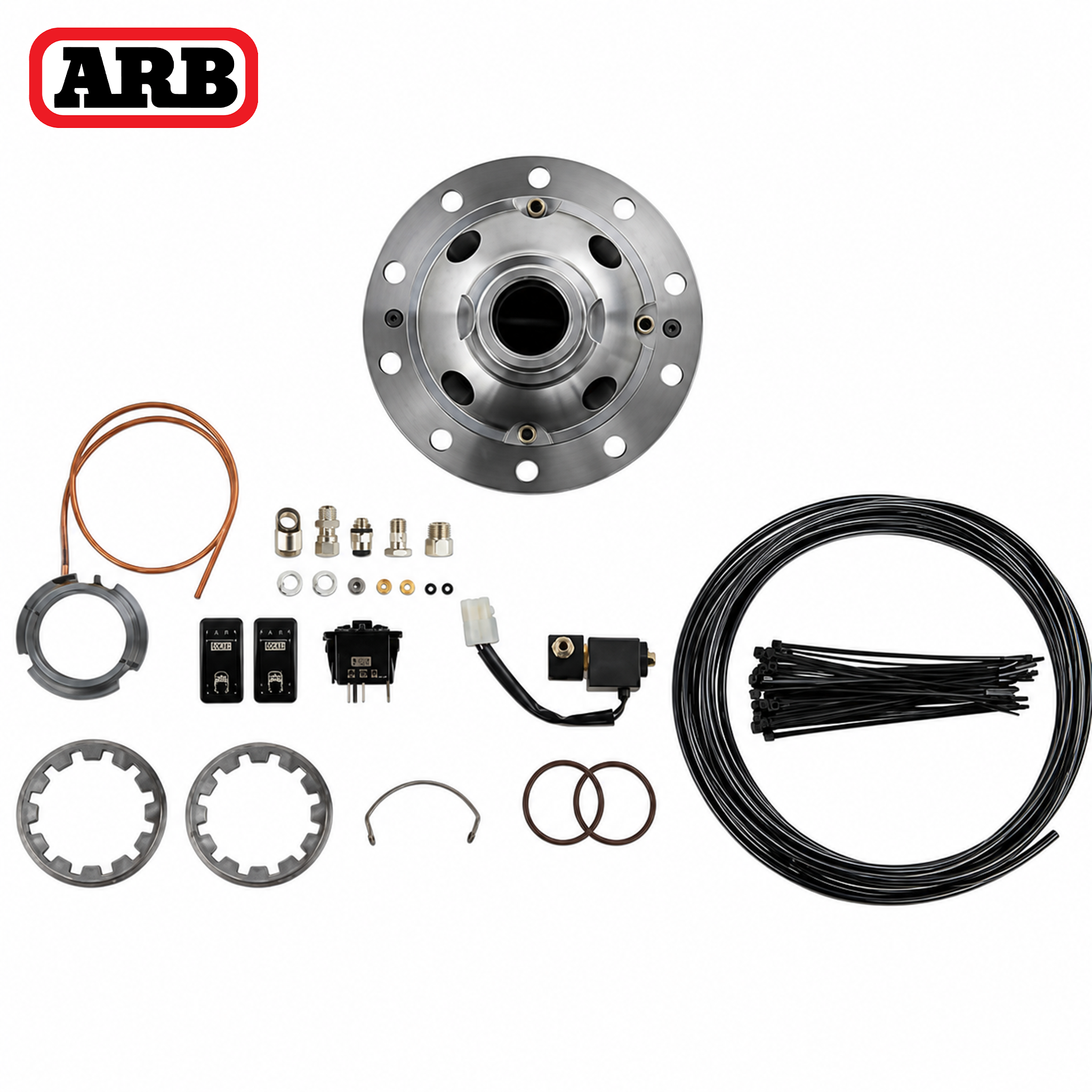

Locker Only
- (1) ARB Air Locker
- (1) Activation Switch
- (1) Solenoid Valve
- Air Line
- Bulkhead Fitting
- Required locker installation components

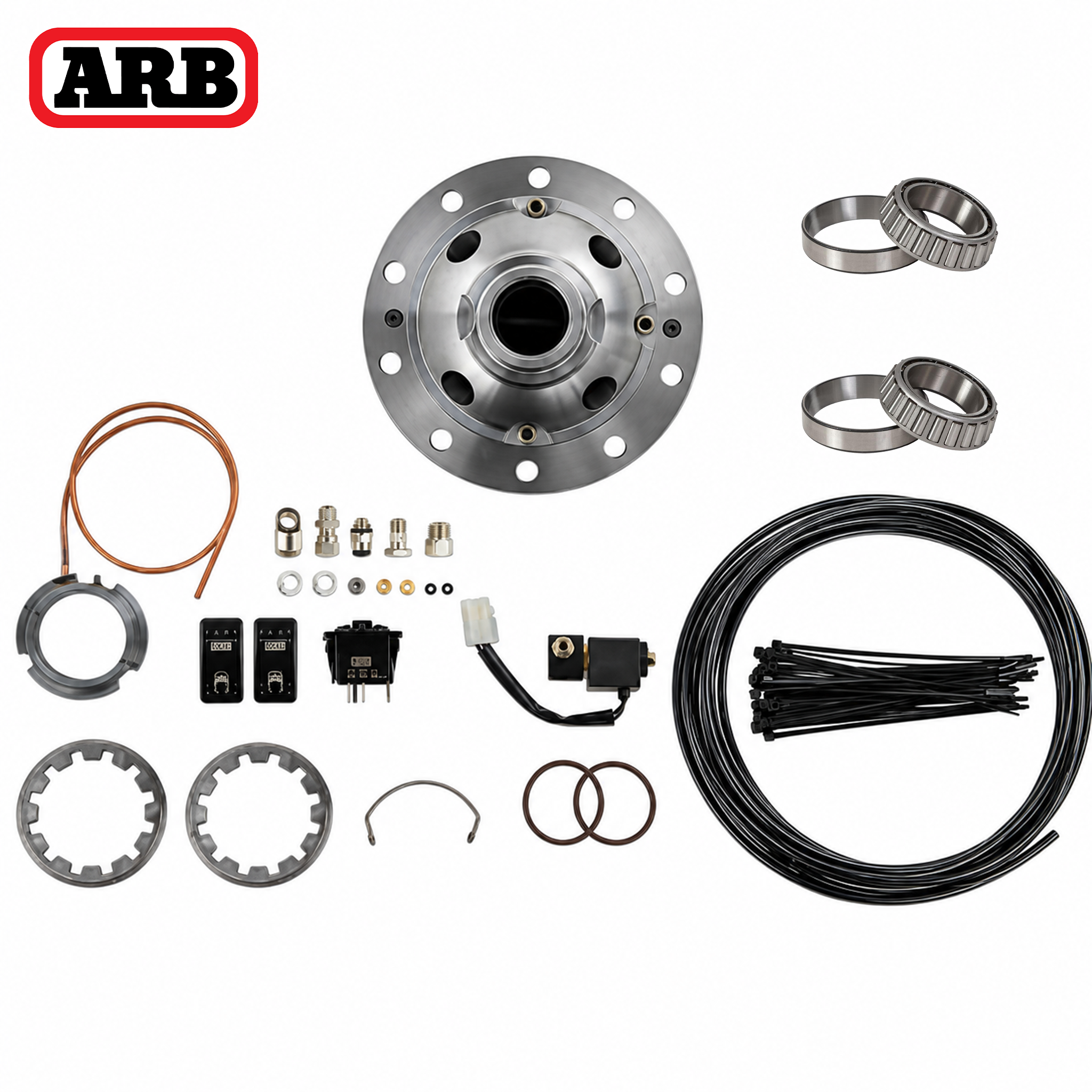

V6 / Turbo Kit
- (1) ARB Air Locker
- (2) 50mm Carrier Bearings
- (1) Activation Switch
- (1) Solenoid Valve
- Air Line
- Bulkhead Fitting
- Required locker installation components
4-Cylinder Kit
- (1) ARB Air Locker
- (2) 45mm-to-50mm Conversion Carrier Bearings
- (1) Activation Switch
- (1) Solenoid Valve
- Air Line
- Bulkhead Fitting
- Required locker installation components
