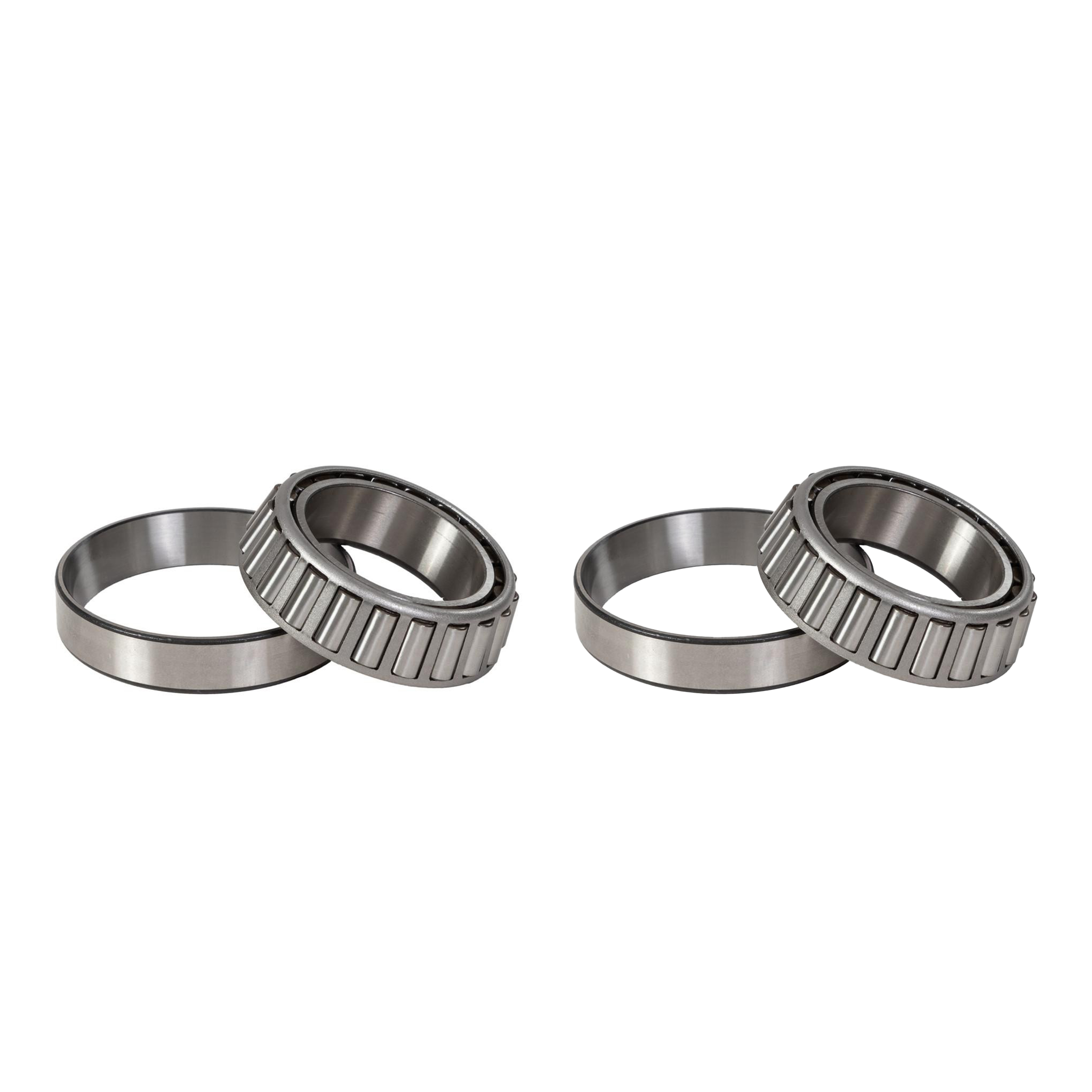

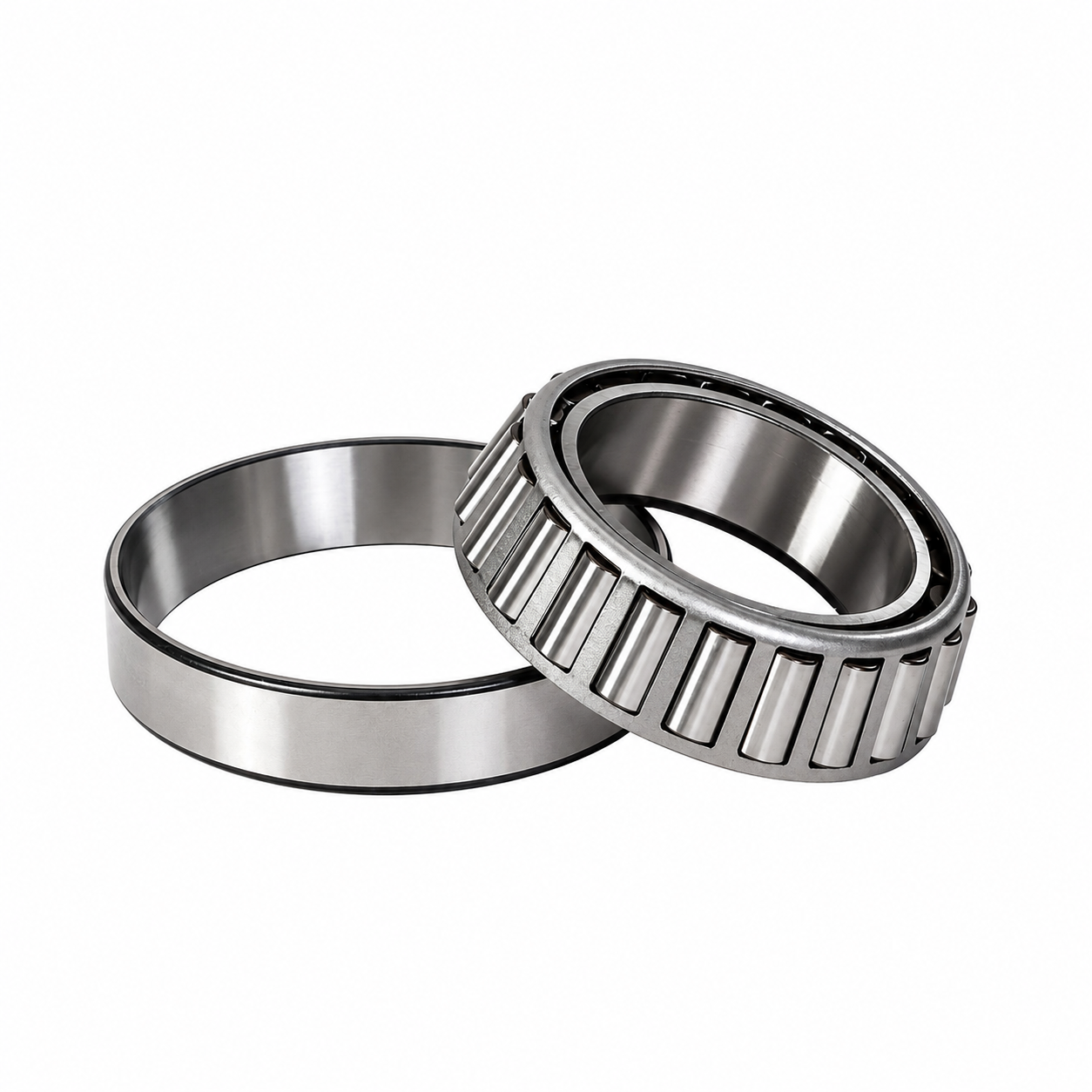

ARB 50mm x 83mm Differential Carrier Bearing
For 1986–1995 Toyota 4Runner & Pickup with Toyota 8" V6/Turbo-Style Rear Differential
Overview
The ARB 50mm x 83mm Differential Carrier Bearing is a tapered roller bearing designed for Toyota 8-inch V6/Turbo-style rear differentials using a 50mm carrier journal and 83mm carrier-bearing bore.
This bearing is used to support the differential carrier while handling the combined radial and axial loads generated through the ring-and-pinion assembly. It is suitable for factory differential rebuilds, carrier replacement, ring-and-pinion installations, and ARB Air Locker installations that retain the 83mm bearing bore.
The bearing is available individually or as a pair. Two carrier bearings are required for a complete differential carrier installation.
Key Features
- Genuine ARB differential carrier bearing
- 50mm inside diameter
- 83mm outside diameter
- Tapered roller bearing construction
- Designed for Toyota 8-inch V6/Turbo-style rear differentials
- Fits 50mm carrier journals with an 83mm housing bore
- Suitable for factory differential and ARB Air Locker installations
- Supports combined radial and axial drivetrain loads
- Available individually or as a pair
- Two bearings required per differential carrier
Differential Compatibility
This bearing is designed for the Toyota 8-inch V6/Turbo-style third member using a 50mm differential carrier journal and 83mm carrier-bearing bore.
This is different from the bearing used when installing a 50mm-journal carrier into a standard 4-cylinder Toyota 8-inch third member. The 4-cylinder housing uses a smaller 80mm carrier-bearing bore and therefore requires the appropriate 50mm x 80mm conversion carrier bearing instead.
Because Toyota third members are commonly swapped between vehicles, verify the installed differential rather than relying solely on the vehicle's original engine or model year.
Vehicle Fitment
Toyota 4Runner
- 1986–1987 Toyota 4Runner – 1st Gen – 22R-TE Turbo – Toyota 8" V6/Turbo-Style Rear Differential – 50mm Journal / 83mm Bearing Bore
- 1988–1989 Toyota 4Runner – 1st Gen – 3VZ-E V6 – Toyota 8" V6-Style Rear Differential – 50mm Journal / 83mm Bearing Bore
- 1990–1995 Toyota 4Runner – 2nd Gen – 3VZ-E V6 – Toyota 8" V6-Style Rear Differential – 50mm Journal / 83mm Bearing Bore
Toyota Pickup
- 1986–1987 Toyota Pickup – 2nd Gen – 22R-TE Turbo – Toyota 8" V6/Turbo-Style Rear Differential – 50mm Journal / 83mm Bearing Bore
- 1988 Toyota Pickup – 2nd Gen – 3VZ-E V6 – Toyota 8" V6-Style Rear Differential – 50mm Journal / 83mm Bearing Bore
- 1989–1995 Toyota Pickup – 3rd Gen – 3VZ-E V6 – Toyota 8" V6-Style Rear Differential – 50mm Journal / 83mm Bearing Bore
Fitment Notes
- Toyota 8" V6/Turbo-style rear differential only
- Requires a 50mm carrier journal
- Requires an 83mm carrier-bearing bore
- Fits factory V6/Turbo-style differential carriers using this bearing configuration
- Suitable for Toyota 8" ARB Air Locker installations requiring an 83mm OD carrier bearing
- Does not fit standard 4-cylinder Toyota 8" third members with an 80mm carrier-bearing bore
- 4-cylinder 80mm-bore applications require a 50mm x 80mm conversion bearing when installing a 50mm-journal carrier
- Verify the installed third member before ordering, especially on vehicles with swapped differentials
- Proper carrier-bearing preload and ring-and-pinion backlash must be set during installation
- Professional differential setup is recommended
Product Specifications
Brand: ARB
Product Type: Differential Carrier Bearing
Bearing Type: Tapered Roller
Application: Toyota 8" V6/Turbo-Style Rear Differential
Position: Differential Carrier
Inside Diameter: 50mm
Outside Diameter: 83mm
Carrier Journal: 50mm
Housing Bearing Bore: 83mm
Quantity: Single or Pair
Available Configurations
Single Bearing
- (1) ARB 50mm x 83mm Differential Carrier Bearing
Pair of Bearings
- (2) ARB 50mm x 83mm Differential Carrier Bearings
- Provides both carrier bearings required for one differential carrier
