Yukon Gear V6/Turbo Master Differential Overhaul Kit
For 1986–1995 Toyota 4Runner & 1986-1995 Toyota Pickup Equipped with a V6/Turbo Engine and Toyota 8-Inch Differential
Overview
Rebuild your Toyota V6/Turbo rear differential with a complete Yukon Gear & Axle Master Differential Overhaul Kit designed for Toyota V6 and Turbo 4-cylinder differential applications.
This kit is an ideal solution for rebuilding the rear differential in compatible 1986–1995 Toyota 4Runner and Toyota Pickup models equipped with the larger V6/Turbo-style differential. It provides the bearings, races, seals, shims, hardware, and setup components required for a comprehensive differential overhaul or ring-and-pinion installation.
Whether you are restoring a factory third member, replacing worn differential bearings, installing new gears, or rebuilding an off-road axle assembly, Yukon Master Overhaul Kits provide application-specific components designed for proper differential setup and long-term reliability.
Available configurations allow you to match the overhaul kit to either a 27-spline pinion setup or a compatible 29-spline Yukon gear conversion.
Key Features
- Complete master differential rebuild kit
- Designed for Toyota V6/Turbo rear differential applications
- Fits compatible Toyota 4Runner and Pickup rear differentials
- Includes carrier bearings and races
- Includes inner and outer pinion bearings and races
- Includes pinion seal
- Complete differential shim kit
- Ring gear bolts included
- Pinion nut included
- Includes crush sleeve or solid pinion spacer depending on selected configuration
- Includes differential gasket
- Includes thread-locking compound
- Includes gear-marking compound and application brush
- Suitable for factory differential rebuilds and ring-and-pinion installations
- Manufactured by Yukon Gear & Axle

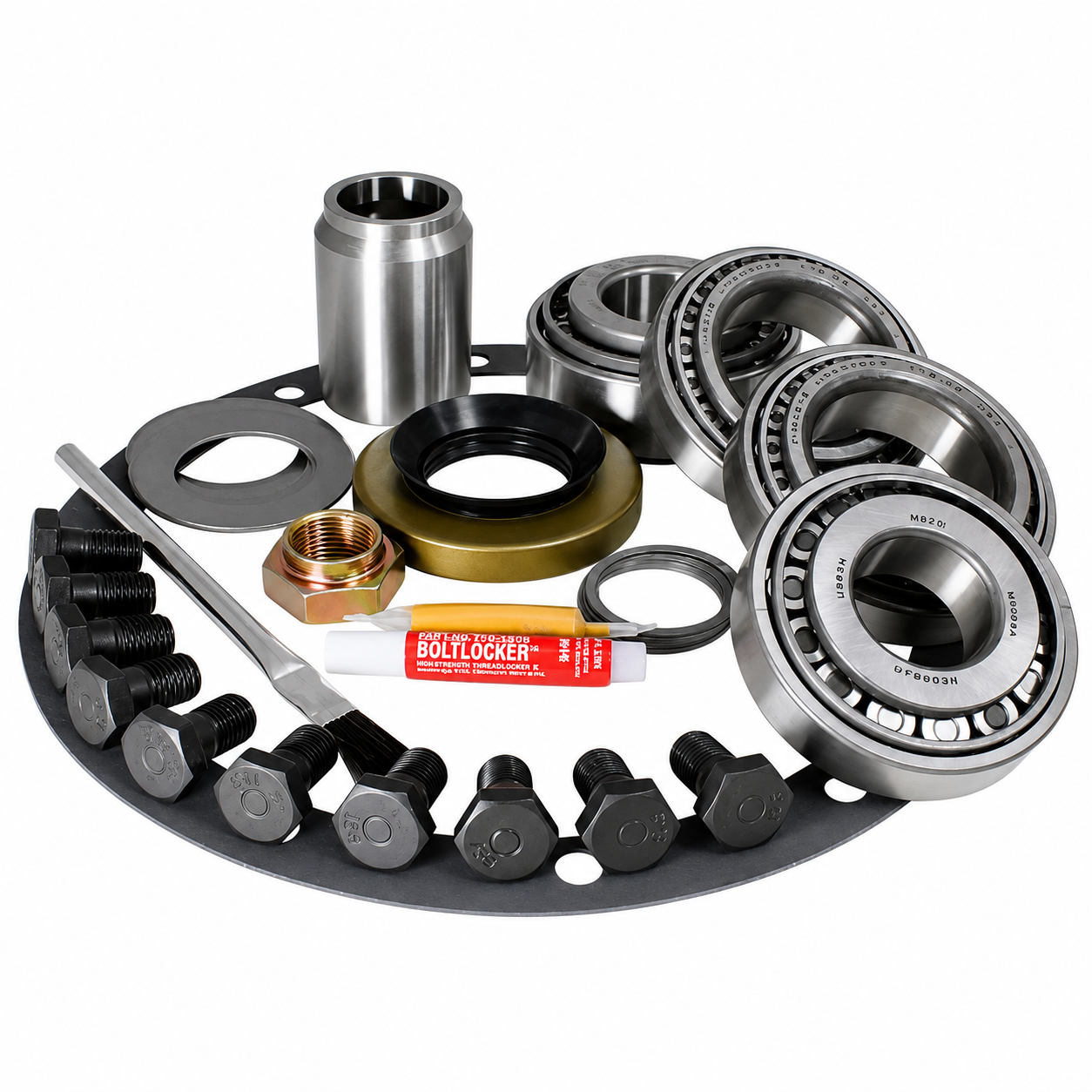

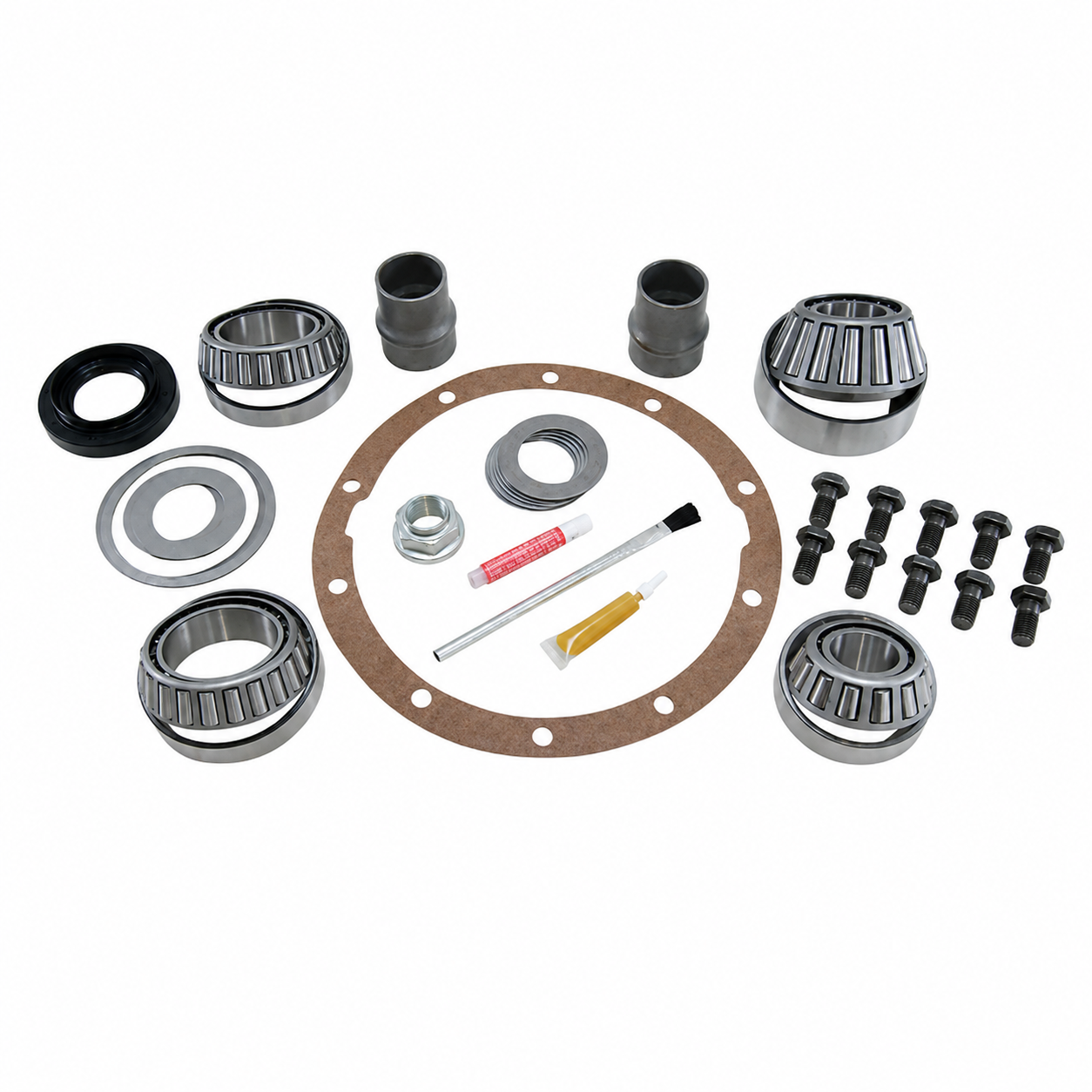

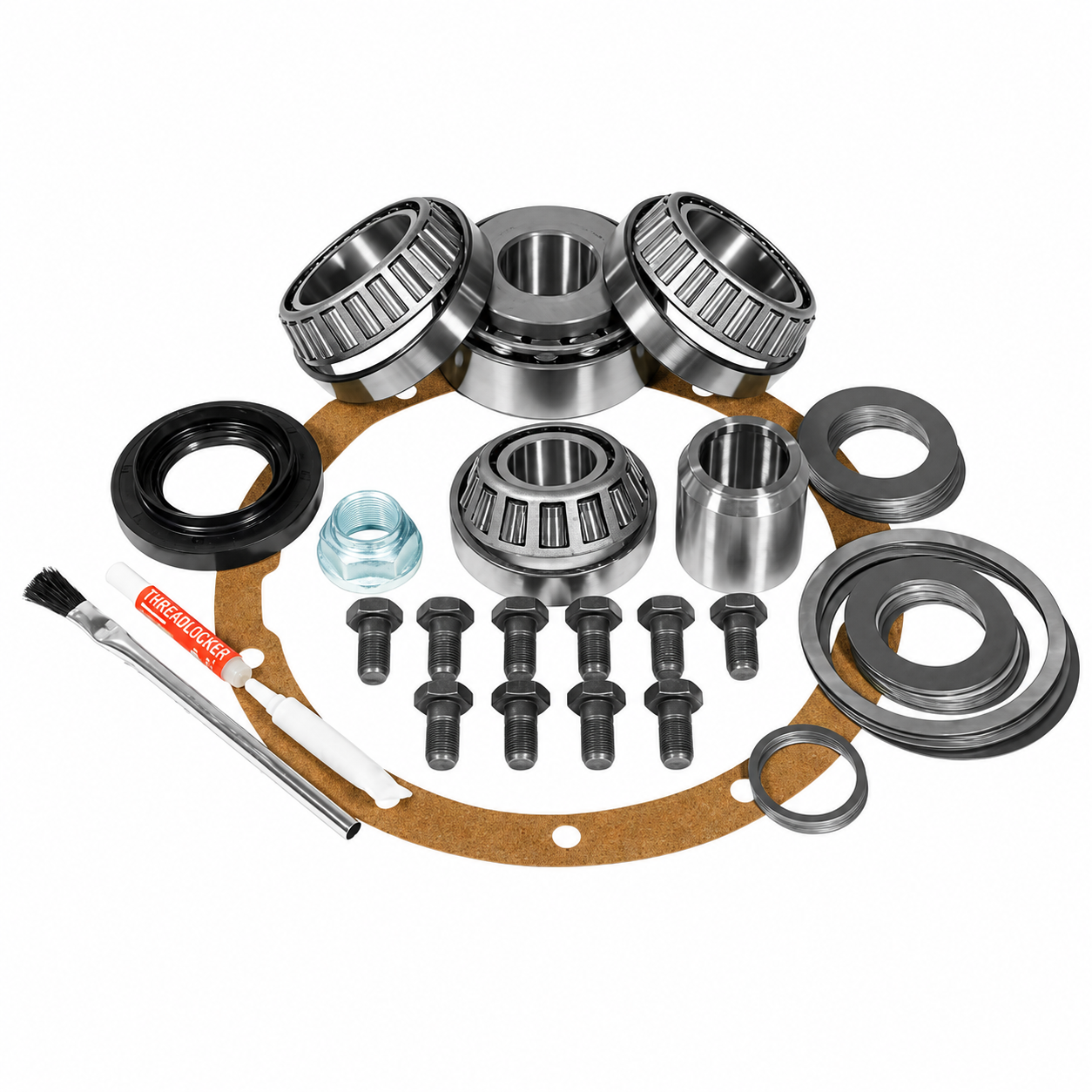

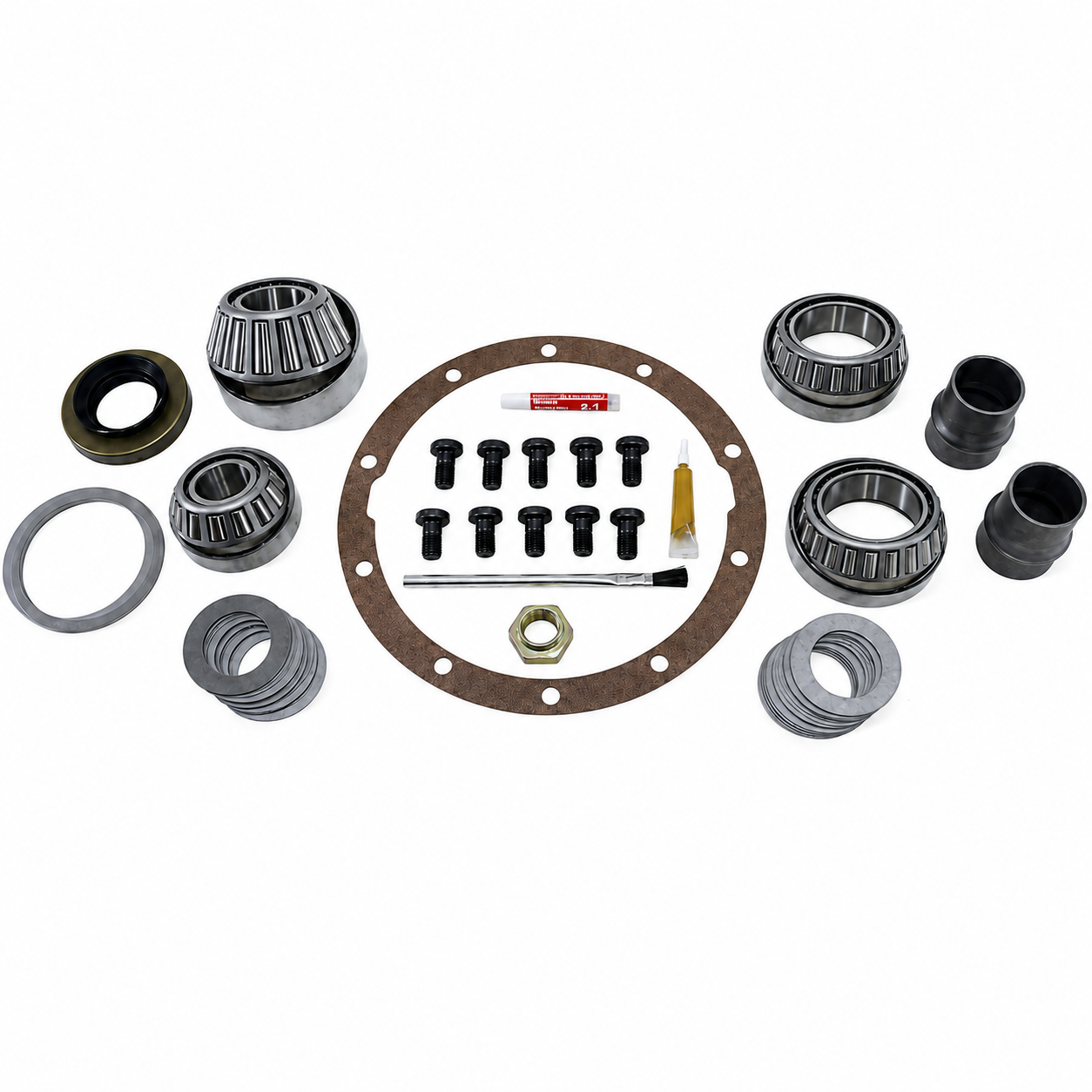

What's Included
Depending on the selected configuration, the Yukon Master Differential Overhaul Kit includes the major installation components required to rebuild the differential:
- Carrier bearings
- Carrier bearing races
- Inner pinion bearing
- Outer pinion bearing
- Pinion bearing races
- Pinion seal
- Complete shim kit
- Ring gear bolts
- Pinion nut
- Crush sleeve or crush-sleeve eliminator
- Oil slingers and baffles where applicable
- Differential gasket
- Thread-locking compound
- Gear-marking compound
- Application brush
Kit contents may vary slightly according to the selected pinion configuration.
Choose the Correct Pinion Spline Configuration
27-Spline Pinion – Factory-Style 1986–1995 Application
Choose the 27-spline configuration when rebuilding a compatible Toyota V6/Turbo differential that retains a 27-spline pinion gear.
This is the appropriate configuration for most original-style 1986–1995 Toyota V6/Turbo differential rebuilds using the factory-style pinion spline arrangement.
The standard 27-spline Yukon Master Overhaul Kit uses the conventional crush-sleeve arrangement.
29-Spline Pinion – Yukon Gear Conversion
Choose the 29-spline configuration only when your differential is being assembled with a compatible Yukon 29-spline V6/Turbo ring-and-pinion gear set.
The spline count refers to the pinion shaft, not the axle shaft or differential carrier.
A 29-spline gear conversion can require compatible 29-spline installation components such as the correct yoke, pinion nut, and seal. Confirm the components included with your selected Yukon ring-and-pinion gear set before installation.
Do not select the overhaul kit based only on vehicle year. Match the kit to the pinion spline count and differential components being used.
Optional Solid Pinion Spacer Upgrade
For both applications, an optional Yukon Master Overhaul Kit with a solid pinion spacer / crush-sleeve eliminator is available.
A conventional crush sleeve establishes pinion-bearing preload by permanently deforming as the pinion nut is tightened. A solid spacer instead uses precision shims to establish the required preload.
Benefits of a Solid Pinion Spacer
- Provides a mechanically fixed pinion-bearing spacing
- Helps maintain consistent pinion-bearing preload
- Reduces the possibility of additional crush-sleeve deformation
- Useful for frequently serviced or heavily used differentials
- Allows preload to be adjusted through precision shim selection
- Popular for off-road, towing, oversized-tire, and performance builds
Correct setup remains critical. Pinion-bearing preload, pinion depth, backlash, and gear-contact pattern should always be established according to proper differential setup procedures.
Vehicle Fitment
Designed for compatible Toyota V6/Turbo-style rear differentials used in the following applications:
Toyota Pickup
1986–1988 Toyota Pickup
- Compatible Turbo 4-cylinder and V6/Turbo-style rear differential applications
- Rear differential application
1989–1995 Toyota Pickup
- Compatible 3.0L 3VZ-E V6 applications
- Rear differential application
Toyota 4Runner
1986–1989 Toyota 4Runner
- Compatible Turbo 4-cylinder and V6/Turbo-style rear differential applications
- Rear differential application
1990–1995 Toyota 4Runner
- Compatible 3.0L 3VZ-E V6 applications
- Rear differential application
Important Fitment Information
Toyota trucks and 4Runners are frequently modified, and complete axle assemblies or third members may have been replaced during previous repairs, gear-ratio changes, or off-road builds.
Before ordering, verify:
- Rear differential type
- Pinion spline count
- Ring-and-pinion configuration
- Differential carrier configuration
- Whether the axle assembly is original to the vehicle
- Whether a 27-spline or 29-spline pinion gear is being installed
Always order differential rebuild components according to the differential currently installed in the vehicle rather than relying exclusively on the vehicle model year.
This kit is intended for the Toyota V6/Turbo-style rear differential and should not be confused with overhaul kits designed for the standard Toyota 4-cylinder 8-inch differential.
Recommended For
This Yukon Master Differential Overhaul Kit is suitable for:
- Factory differential restoration
- Worn bearing and seal replacement
- Ring-and-pinion gear installation
- Differential re-gearing
- Third-member rebuilding
- Daily-driven Toyota trucks
- Classic Toyota restorations
- Off-road builds
- Overland vehicles
- Towing applications
- Oversized-tire builds
Professional differential setup is recommended if you do not have experience setting pinion depth, pinion-bearing preload, carrier-bearing preload, backlash, and gear-contact pattern.
